Model # DCVH660EH0BB Official GE electric dryer

Here are the diagrams and repair parts for Official GE DCVH660EH0BB electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

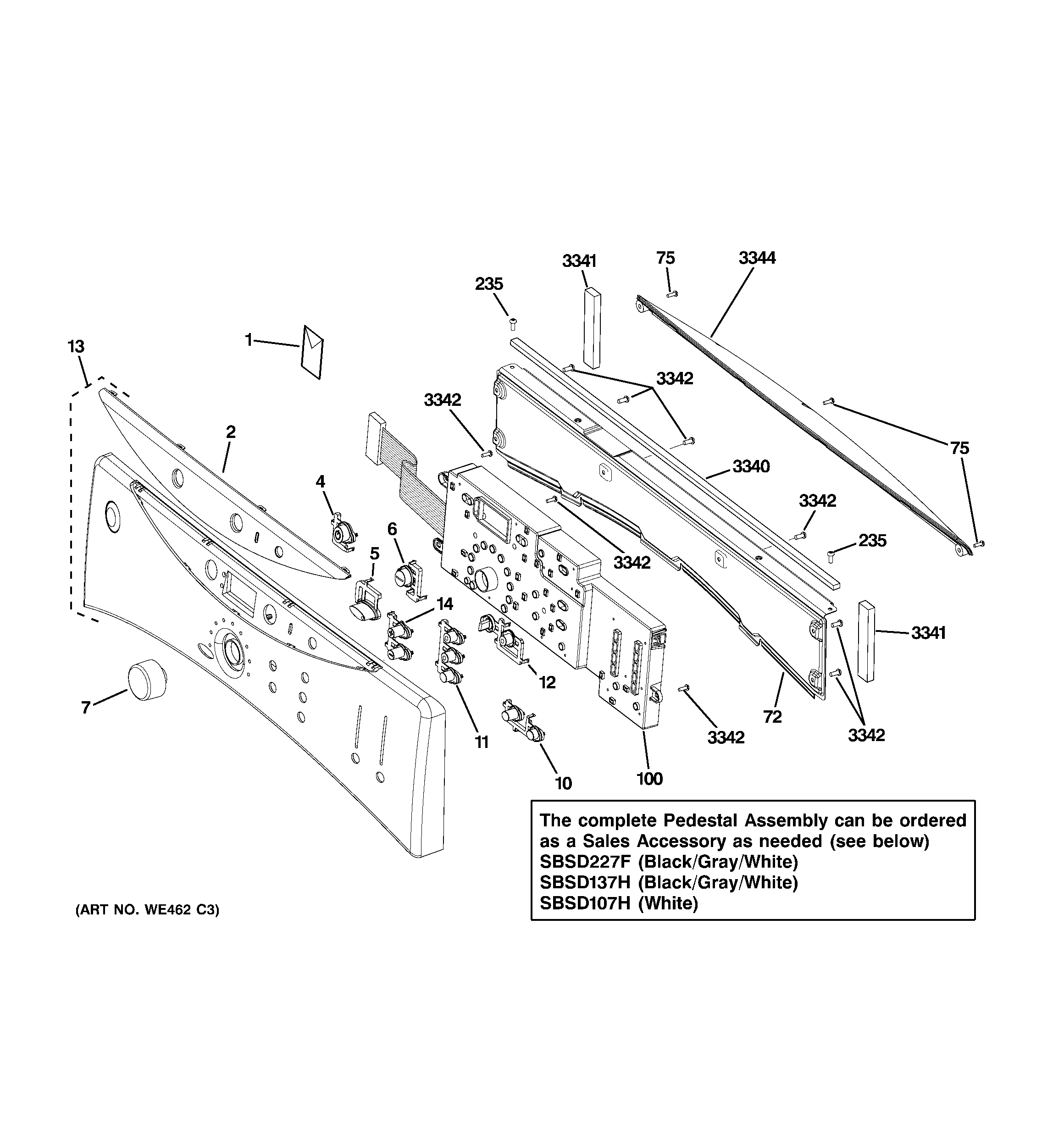

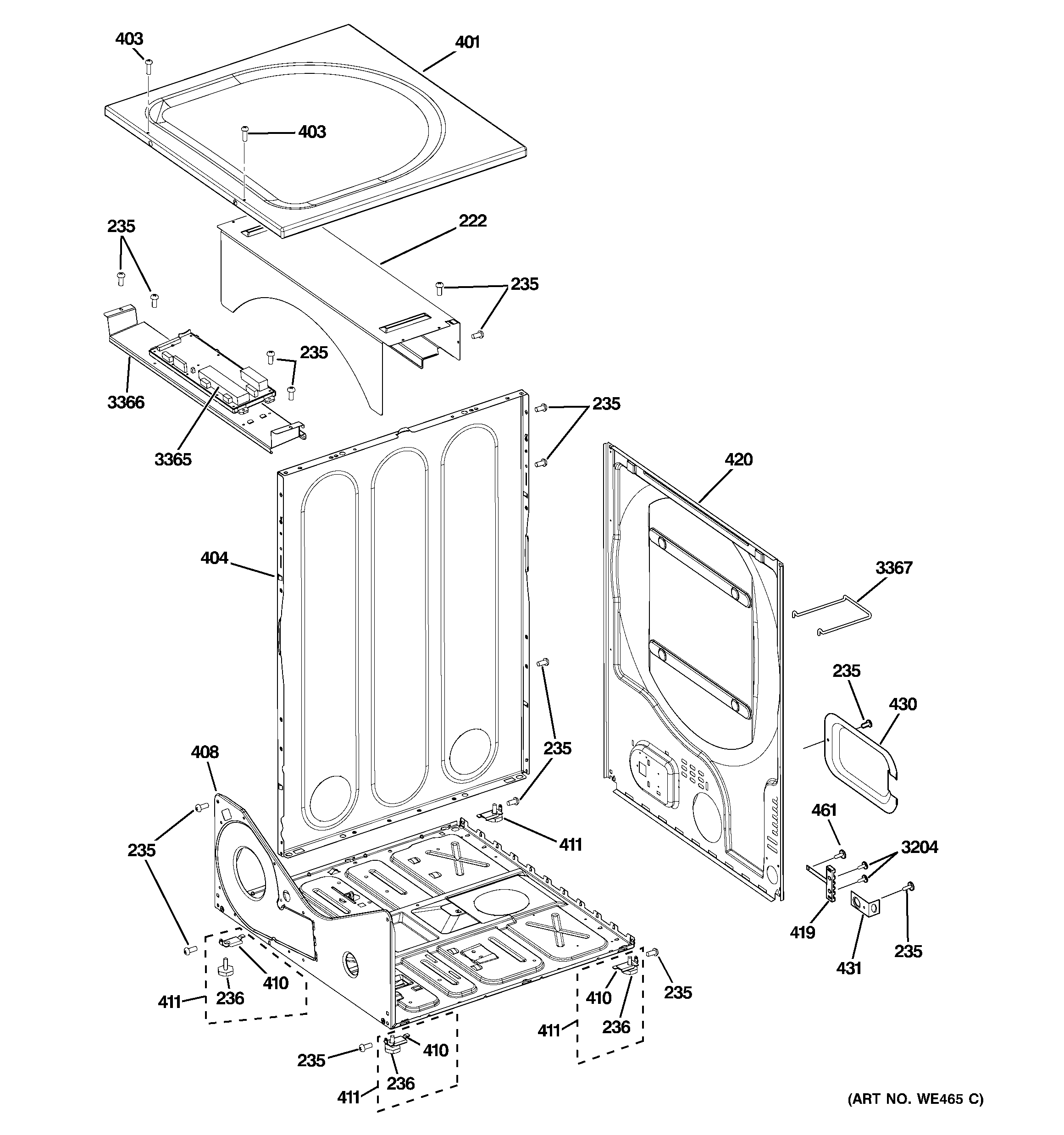

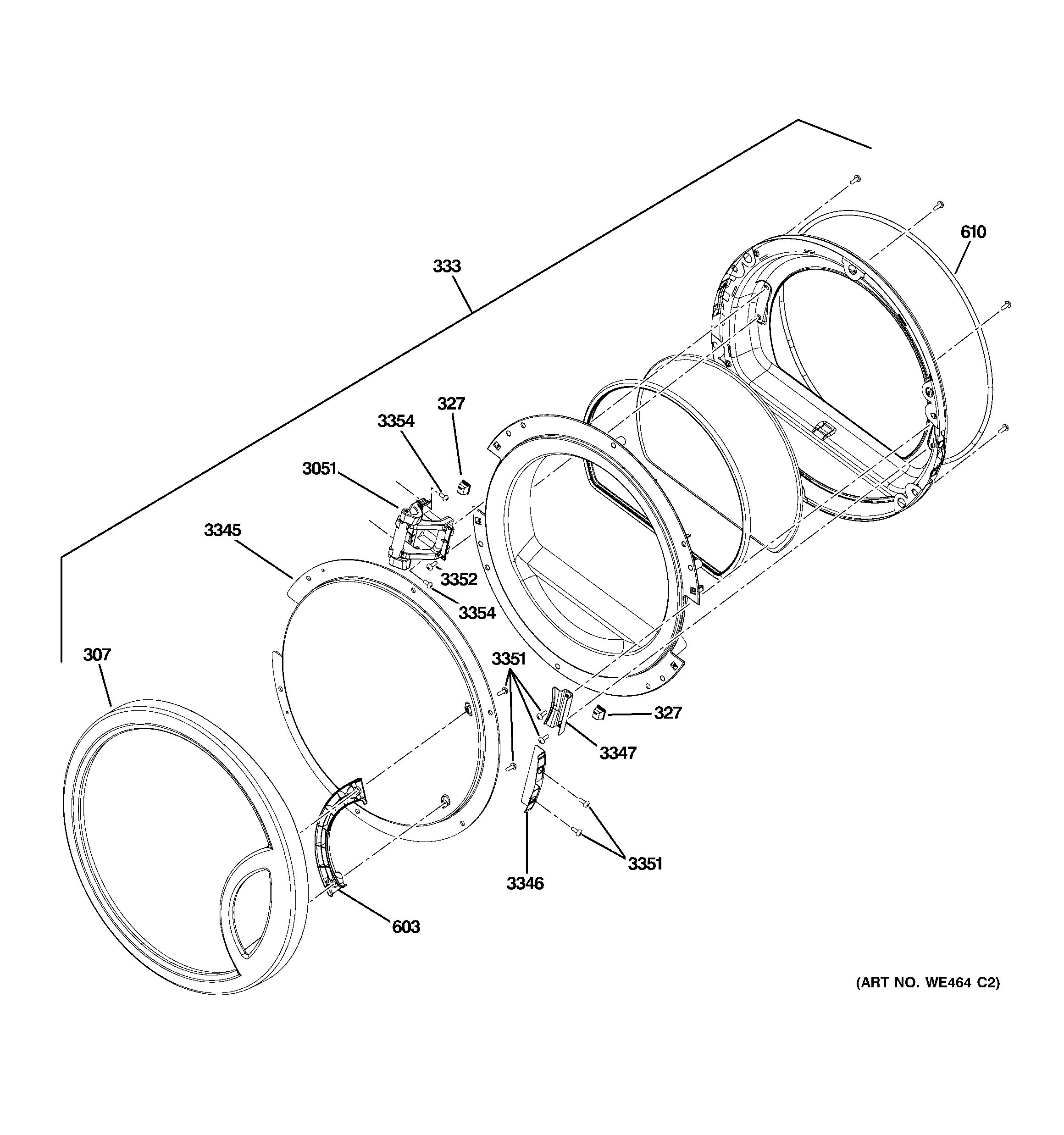

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Inlet Control WE4M333
#506

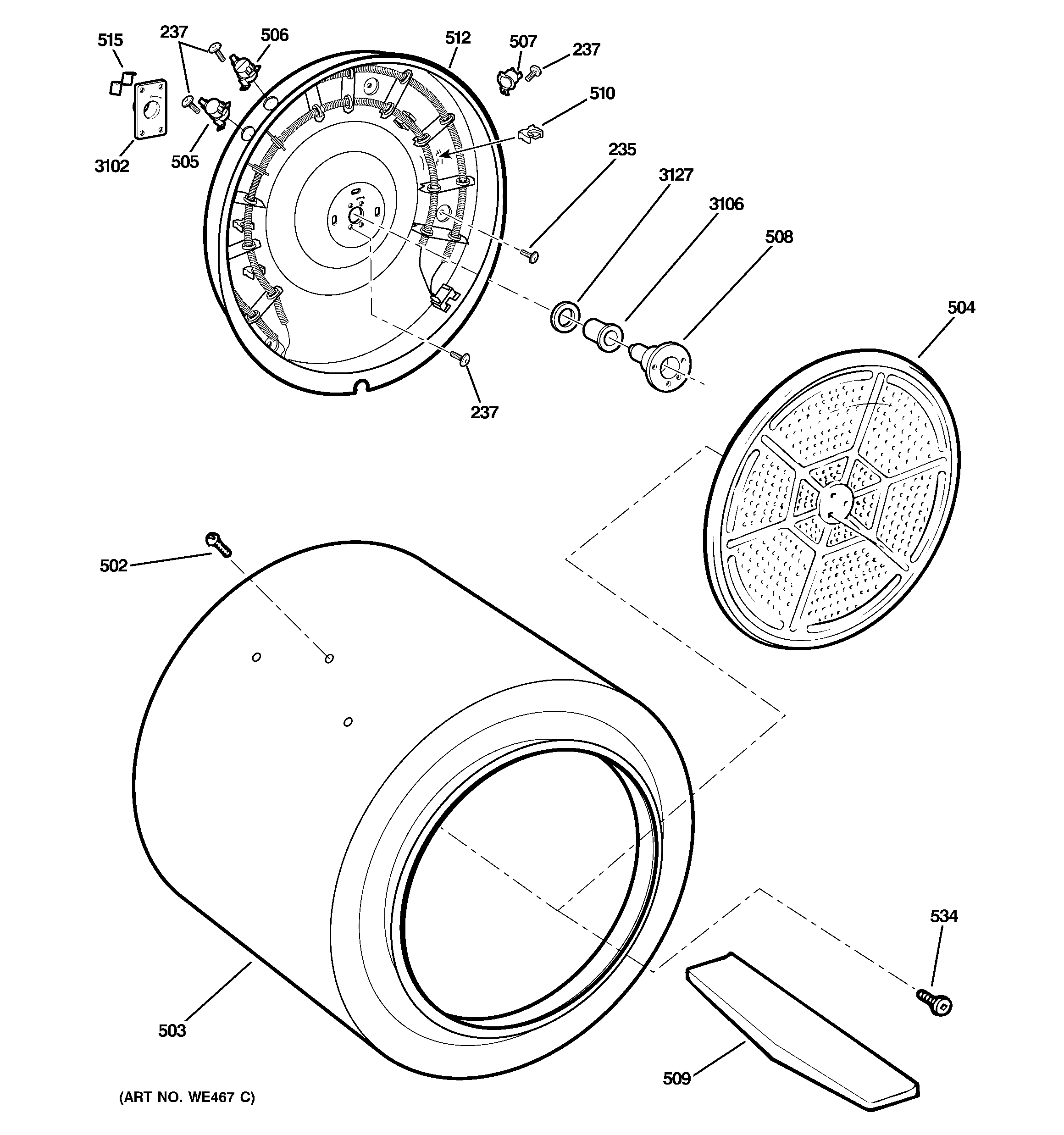

Drum diagram

Inlet control

Part #WE4M333

Replaced by #WE4M398

?
Manufacturer substitution
This part replaces WE4M333. Substitute parts can look different from the original.
BEST SELLER
$33.90 |
15% OFF Phone Price : $39.90
In Stock
Kenmore Dryer Rear Bearing WE1M462
#3106

Drum diagram

Kenmore dryer rear bearing

Part #WE1M462

BEST SELLER
$24.24 |
20% OFF Phone Price : $30.24
In Stock
Idler Pulley WE12M8
#216

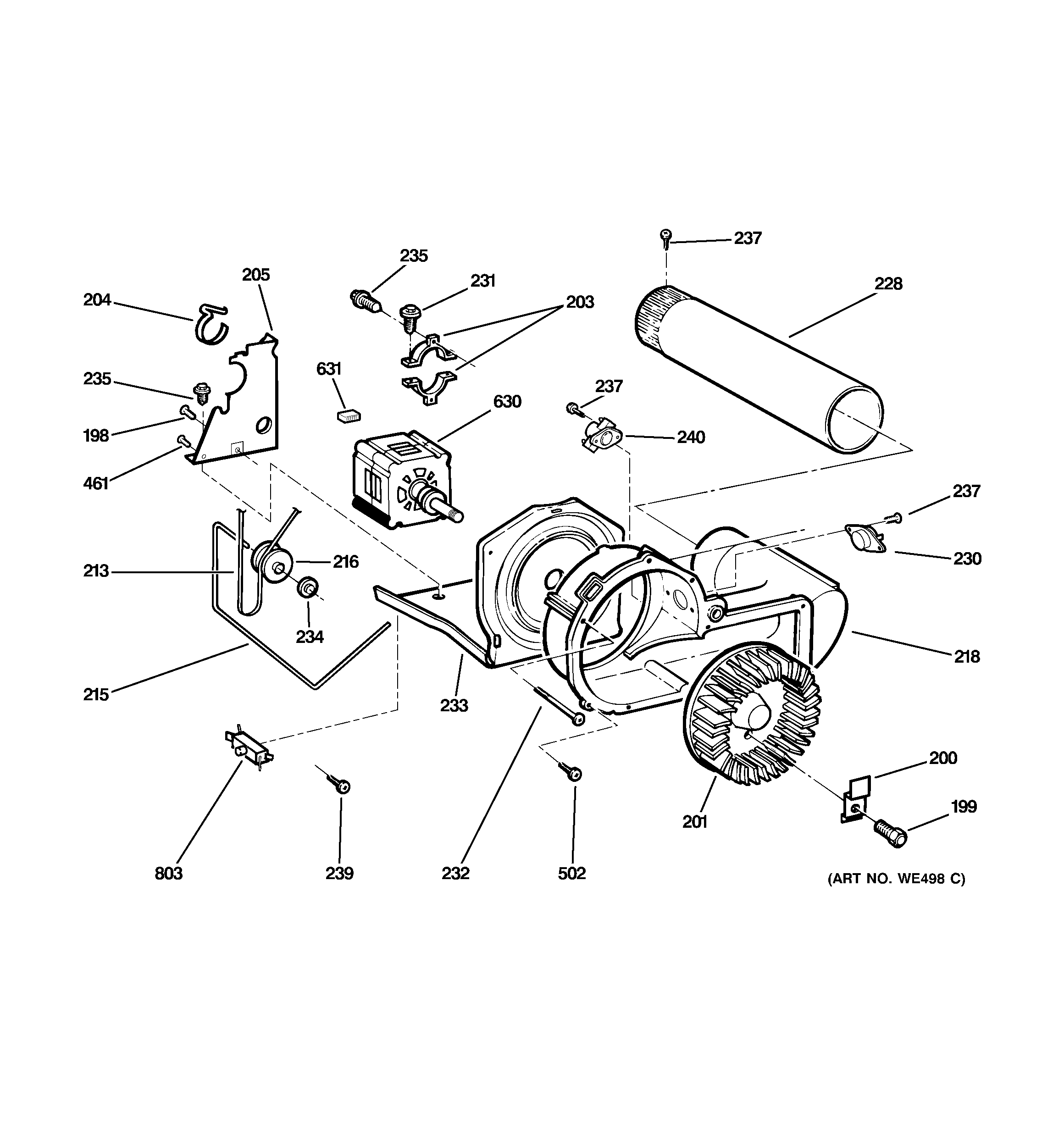

Blower & motor diagram

Idler pulley

Part #WE12M8

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12M8. Substitute parts can look different from the original.
BEST SELLER
$24.59 |
20% OFF Phone Price : $30.59
In Stock
Shft-brkt WE3X39
#508

Drum diagram

Shft-brkt

Part #WE3X39

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE3X39. Substitute parts can look different from the original.
BEST SELLER
$64.45 |
10% OFF Was : $71.61
In Stock
Dryer Drum Bearing Bracket (replaces We01m0300) WE1M300
#3102

Drum diagram

Dryer drum bearing bracket (replaces we01m0300)

Part #WE1M300

BEST SELLER
$15.97 |
11% OFF Phone Price : $17.97
In Stock
Dryer Drum Front Bearing (replaces We14m0124, We14m120) WE14M124
#313

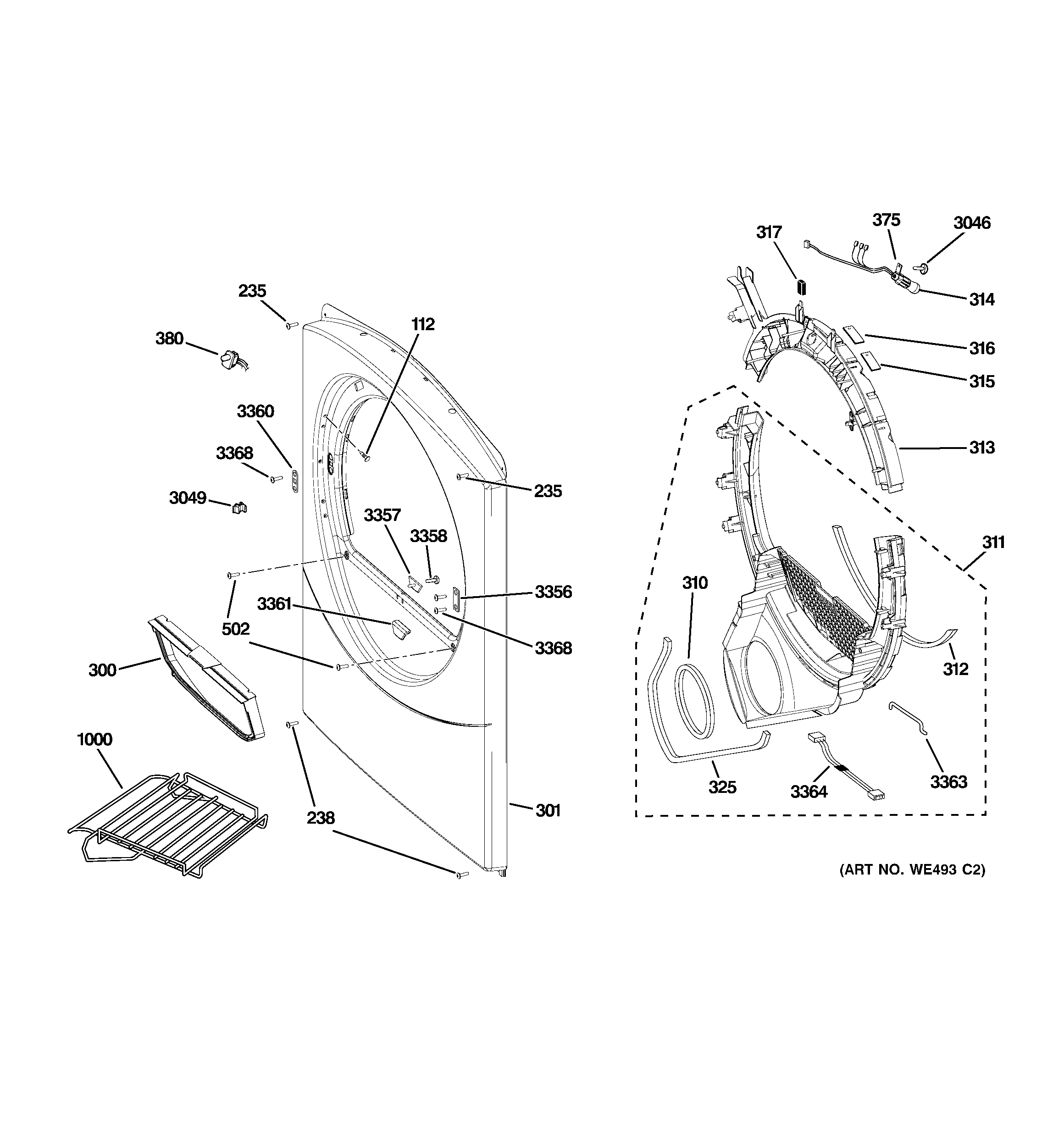

Front panel diagram

Dryer drum front bearing (replaces we14m0124, we14m120)

Part #WE14M124

BEST SELLER
$60.90 |
9% OFF Phone Price : $66.90
In Stock
Dryer Heating Element Assembly (replaces We11m0023, We11m21) WE11M23
#512

Drum diagram

Dryer heating element assembly (replaces we11m0023, we11m21)

Part #WE11M23

BEST SELLER
$136.33 |
8% OFF Phone Price : $148.33
In Stock
Motor And Pulley Assembly WE17M22
#630

Blower & motor diagram

Motor and pulley assembly

Part #WE17M22

Replaced by #WE17X10010

?
Manufacturer substitution
This part replaces WE17M22. Substitute parts can look different from the original.
BEST SELLER
$223.60 |
5% OFF Phone Price : $235.60
In Stock
Dryer Drum Lamp WE4M305
#314

Front panel diagram

Dryer drum lamp

Part #WE4M305

Replaced by #WE05X20431

?
Manufacturer substitution
This part replaces WE4M305. Substitute parts can look different from the original.
BEST SELLER
$13.71 |
13% OFF Phone Price : $15.71
In Stock
Dryer Safety Thermostat (replaces We04m0160) WE4M160
#505

Drum diagram

Dryer safety thermostat (replaces we04m0160)

Part #WE4M160

BEST SELLER
$123.69 |
9% OFF Phone Price : $135.69
In Stock
