Tappan
Electric Wall Oven

Model # 11-4989-00-04 Official Tappan wall oven - 5995242483

Here are the diagrams and repair parts for Official Tappan 11-4989-00-04 wall oven - 5995242483, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Bulb 3201908
#4

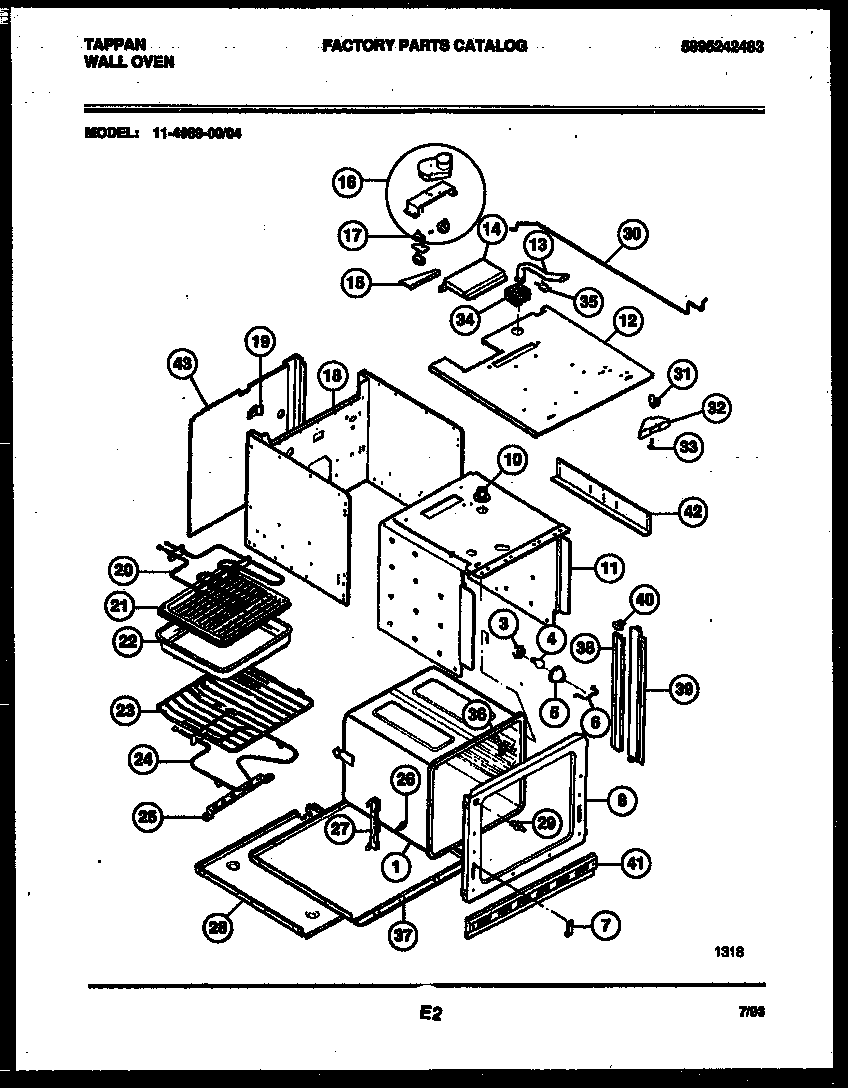

Body parts diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock

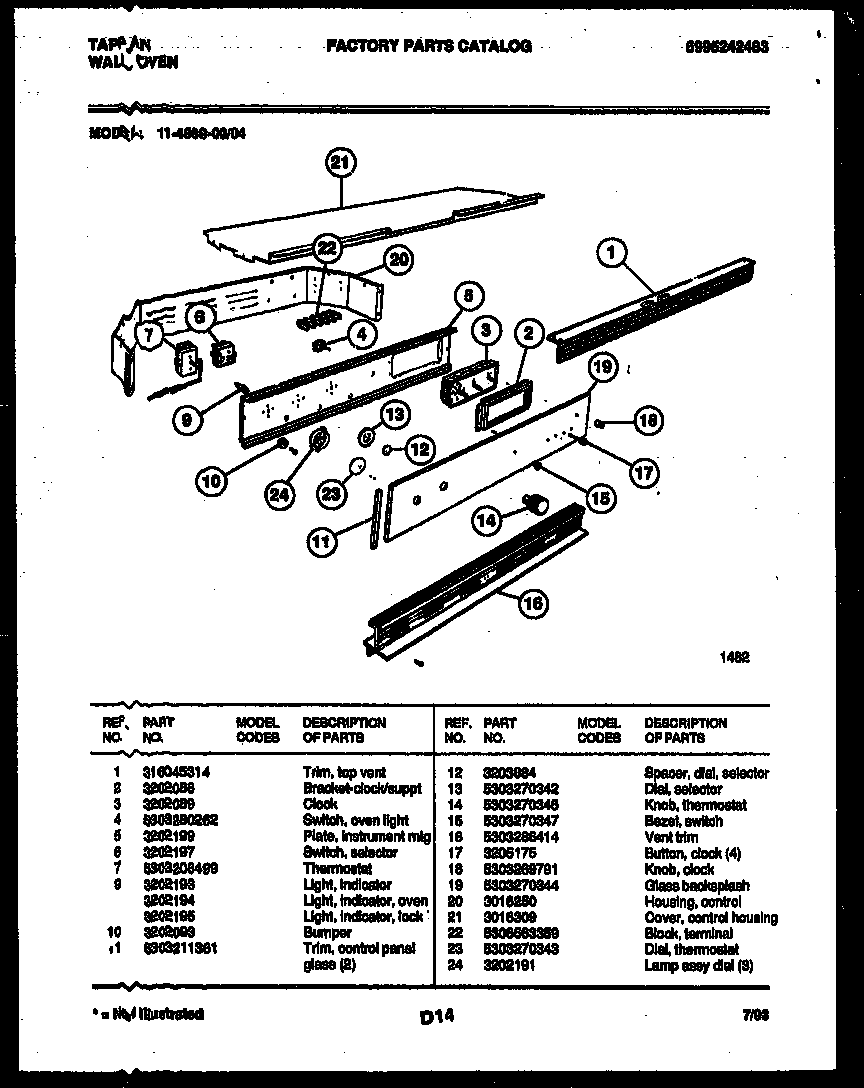

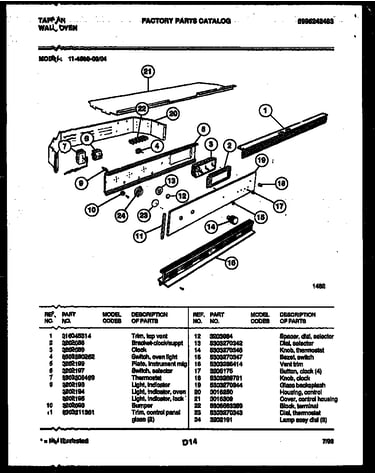

Block 5306563359
#22

Control panel diagram

Block

Part #5306563359

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5306563359. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Element 3202440
#24

Body parts diagram

Element

Part #3202440

Replaced by #318255101

?
Manufacturer substitution
This part replaces 3202440. Substitute parts can look different from the original.
BEST SELLER
$132.85 |
8% OFF Phone Price : $144.85
In Stock

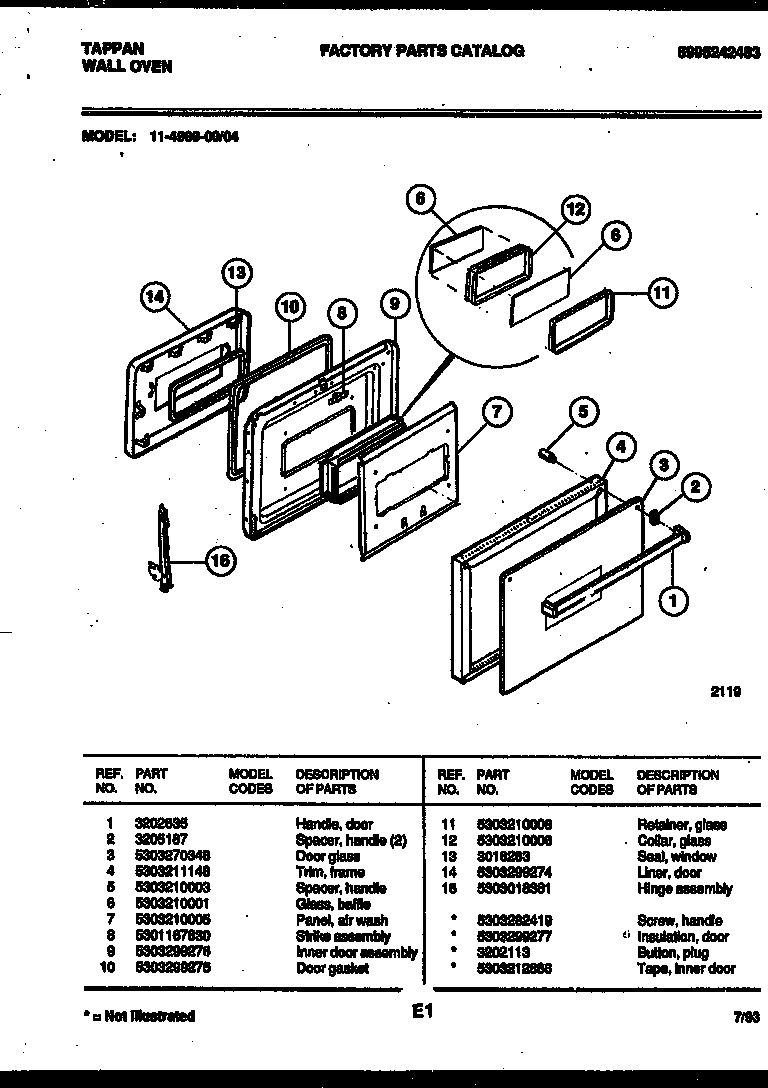

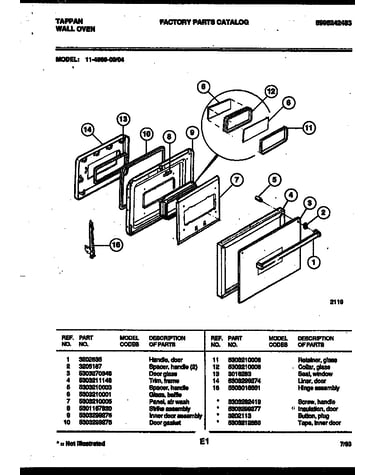

Cover 3201911
#5

Body parts diagram

Cover

Part #3201911

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 3201911. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Switch 3016298
#29

Body parts diagram

Switch

Part #3016298

Replaced by #316445501

?
Manufacturer substitution
This part replaces 3016298. Substitute parts can look different from the original.
$63.47 |
9% OFF Phone Price : $69.47
In Stock
Range Broil Element 5303016247
#20

Body parts diagram

Range broil element

Part #5303016247

$163.62 |
7% OFF Phone Price : $175.62
Back Order
Insulation 5303299277

#NI

All parts diagram

Insulation

Part #5303299277

This item is not returnable
$6.49
In Stock
Wall Oven Door Hinge Receiver 3201631
#27

Body parts diagram

Wall oven door hinge receiver

Part #3201631

$114.40
In Stock
Trim 5303280270
#39

Body parts diagram

Trim

Part #5303280270

$39.49
In Stock
Oven Rack 5303296873
#23

Body parts diagram

Oven rack

Part #5303296873

Replaced by #318345216

?
Manufacturer substitution
This part replaces 5303296873. Substitute parts can look different from the original.
$78.17 |
7% OFF Phone Price : $84.17
In Stock
