Model # JCSP28GT2BB Official GE electric range

Here are the diagrams and repair parts for Official GE JCSP28GT2BB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

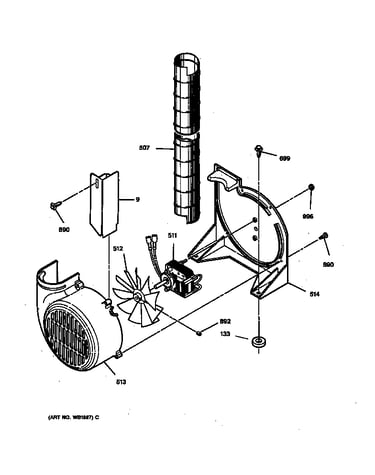

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
G.e. Range Bake Element (replaces 325883, 340521, 8029,e) WB44K5012
#251

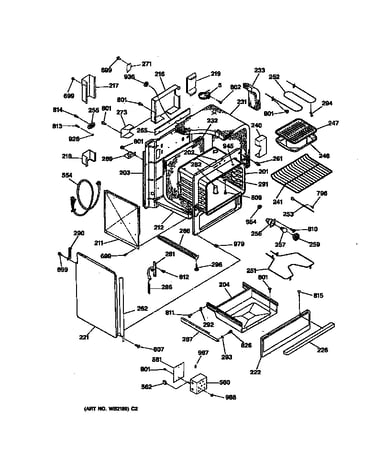

Body & drawer parts diagram

G.e. range bake element (replaces 325883, 340521, 8029,e)

Part #WB44K5012

BEST SELLER
$43.25 |
12% OFF Phone Price : $49.25
In Stock
Sensor WB21X5318
#253

Body & drawer parts diagram

Sensor

Part #WB21X5318

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB21X5318. Substitute parts can look different from the original.
BEST SELLER
$147.17 |
8% OFF Phone Price : $159.17
In Stock
Terminal Block Assembly WB17K5017
#82

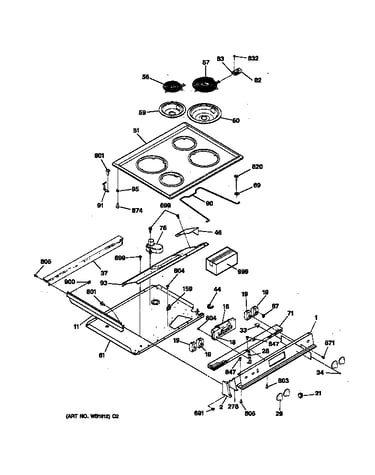

Control panel & cooktop diagram

Terminal block assembly

Part #WB17K5017

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces WB17K5017. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Range Broil Element Support (replaces Wb02k9719, Wb02x9719, Wb2x9438, Wb2x9576) WB2X9719
#294

Body & drawer parts diagram

Range broil element support (replaces wb02k9719, wb02x9719, wb2x9438, wb2x9576)

Part #WB2X9719

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Broil Element (replaces Wb44x0232) WB44X232
#252

Body & drawer parts diagram

Range broil element (replaces wb44x0232)

Part #WB44X232

BEST SELLER
$58.44 |
9% OFF Phone Price : $64.44
In Stock
8" Surf Elem WB30M0002
#57

Control panel & cooktop diagram

8" surf elem

Part #WB30M0002

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30M0002. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
11% OFF Phone Price : $52.48
In Stock
Range Oven Door Hinge, Left (replaces Wb14x0103, Wb14x113) WB14X103
#281A

Body & drawer parts diagram

Range oven door hinge, left (replaces wb14x0103, wb14x113)

Part #WB14X103

BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Range Oven Door Handle (black) WB15T10030
#136

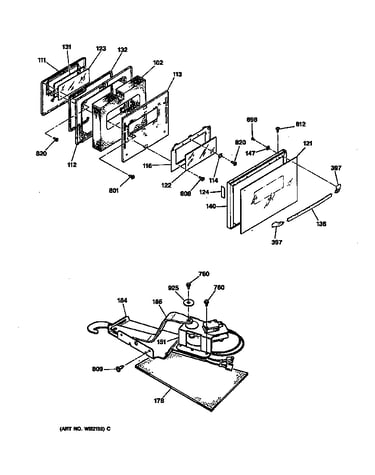

Door & door lock diagram

Range oven door handle (black)

Part #WB15T10030

$40.60 |
13% OFF Phone Price : $46.60
In Stock
Range Coil Surface Element, 6-in WB30M1
#56

Control panel & cooktop diagram

Range coil surface element, 6-in

Part #WB30M1

$38.22 |
14% OFF Phone Price : $44.22
In Stock
Dr Hndl Ecap WB15K5069
#397

Door & door lock diagram

Dr hndl ecap

Part #WB15K5069

Replaced by #WB7X7183

?
Manufacturer substitution
This part replaces WB15K5069. Substitute parts can look different from the original.
$15.82 |
11% OFF Phone Price : $17.82
In Stock
