Electric Range

Model # JB910KK4CC Official GE electric range

Here are the diagrams and repair parts for Official GE JB910KK4CC electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

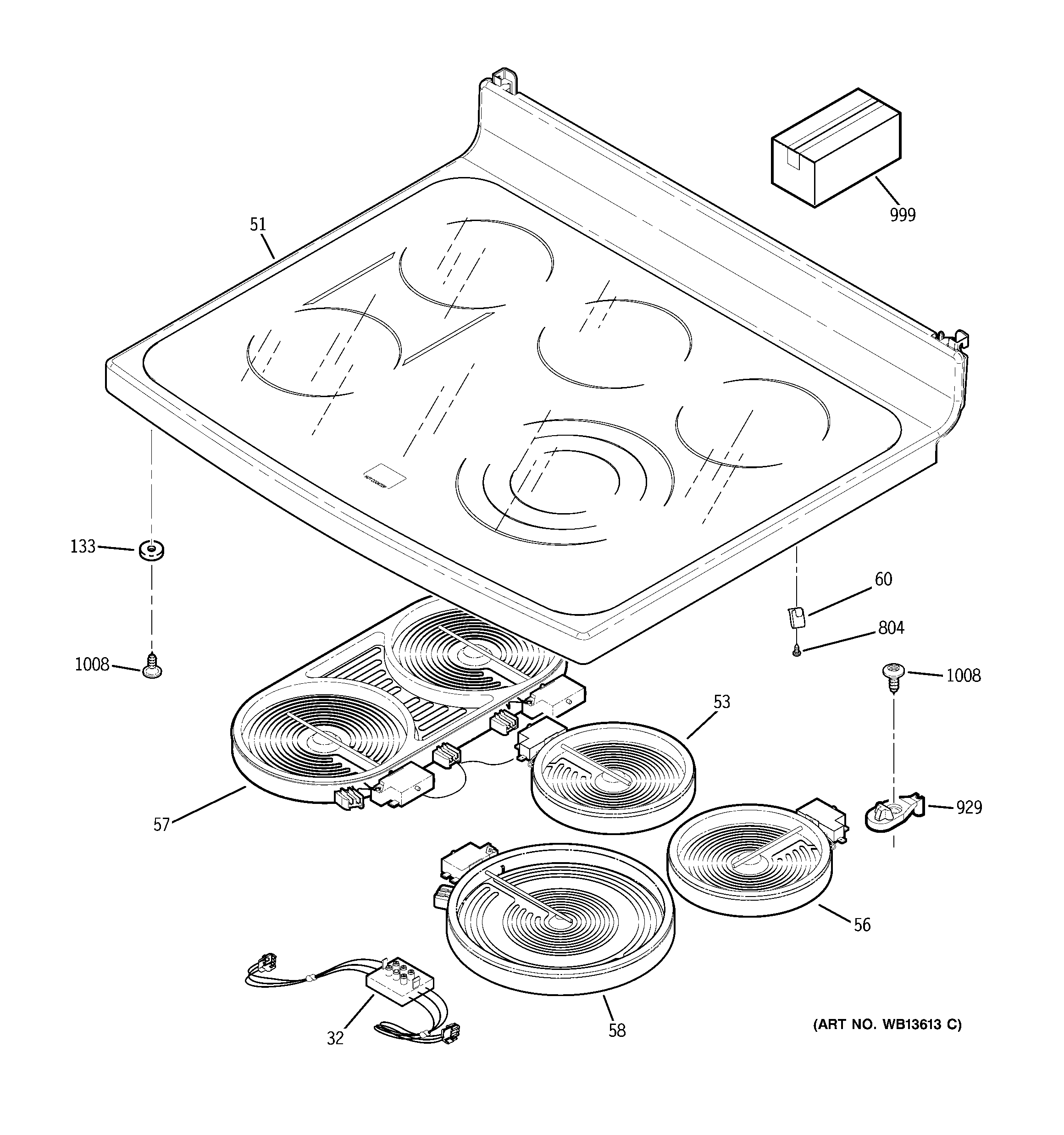

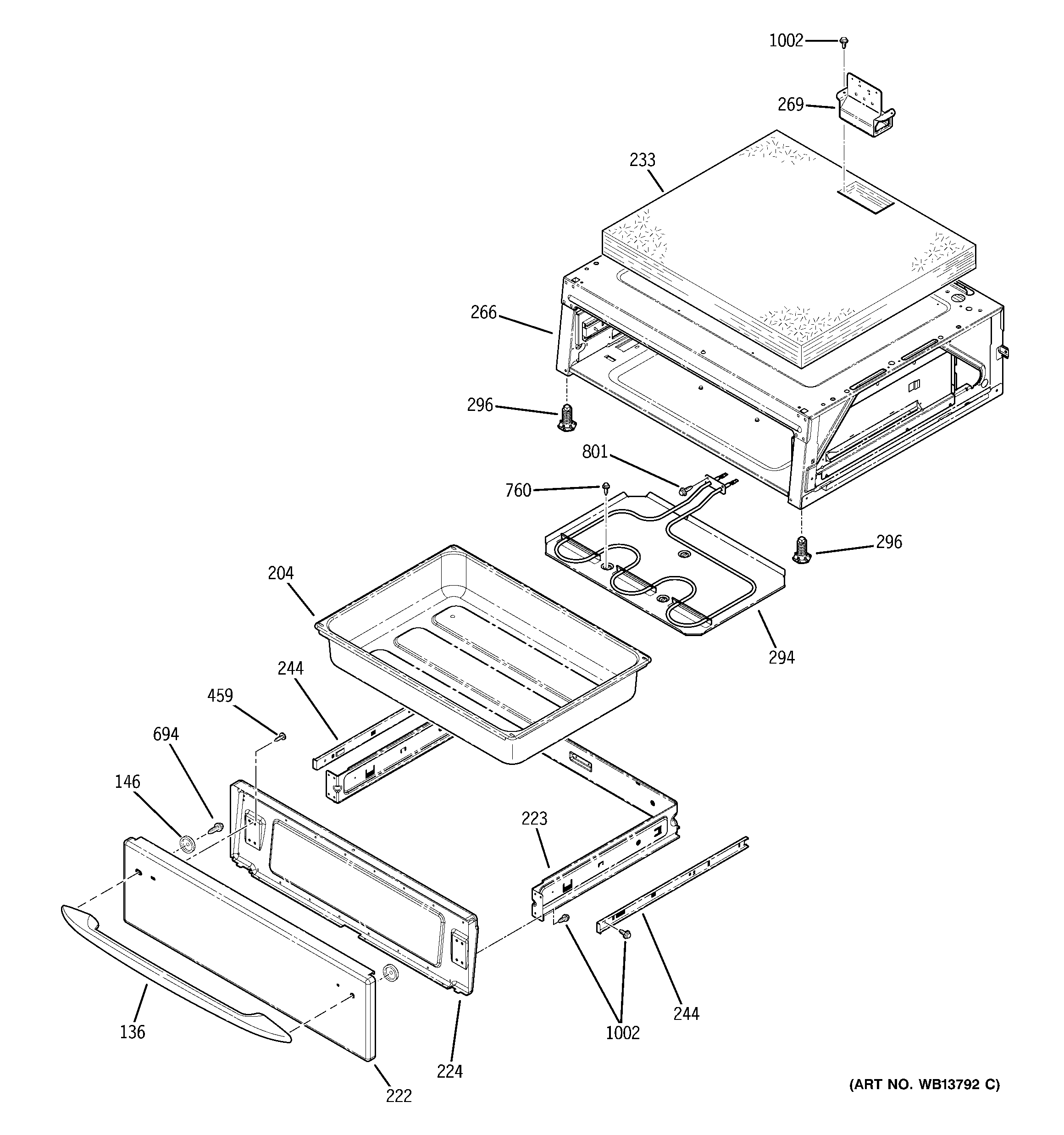

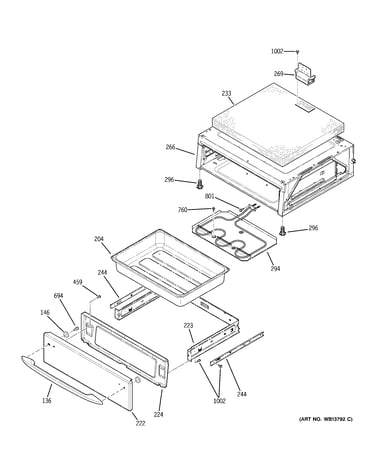

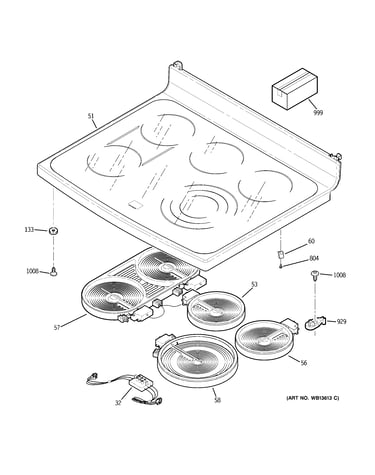

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJB910KK4CC Ranges

  • Range Oven Light Bulb WX12X1510
    #257

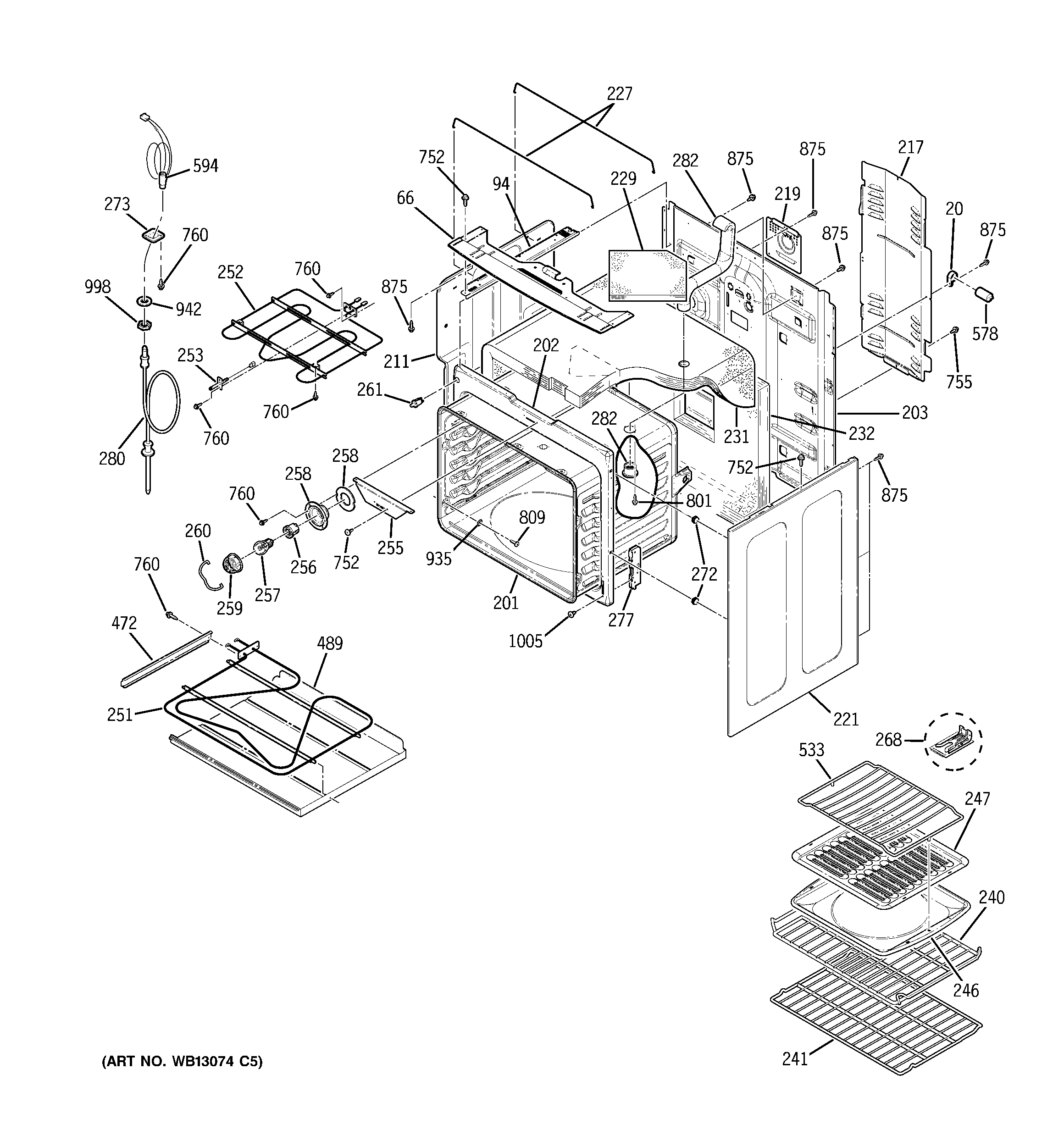

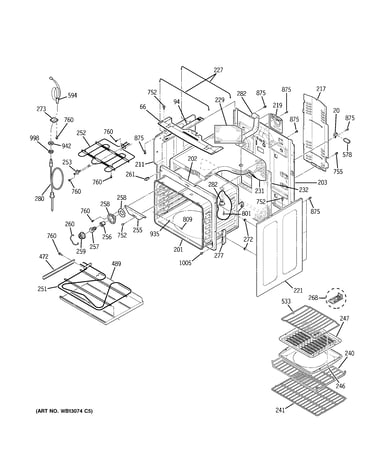

    Body parts diagram

    Range oven light bulb

    Part #WX12X1510

    Replaced by #40A15

    ?
    Manufacturer substitution
    This part replaces WX12X1510. Substitute parts can look different from the original.
    BEST SELLER
    $13.61
    13% OFF Phone Price : $15.61
    In Stock
  • Wall Oven Temperature Sensor WB21T10007
    #253

    Body parts diagram

    Wall oven temperature sensor

    Part #WB21T10007

    Replaced by #WB21X22134

    ?
    Manufacturer substitution
    This part replaces WB21T10007. Substitute parts can look different from the original.
    BEST SELLER
    $20.60
    23% OFF Phone Price : $26.60
    In Stock
  • Range Surface Element Control Switch WB24T10063
    #22

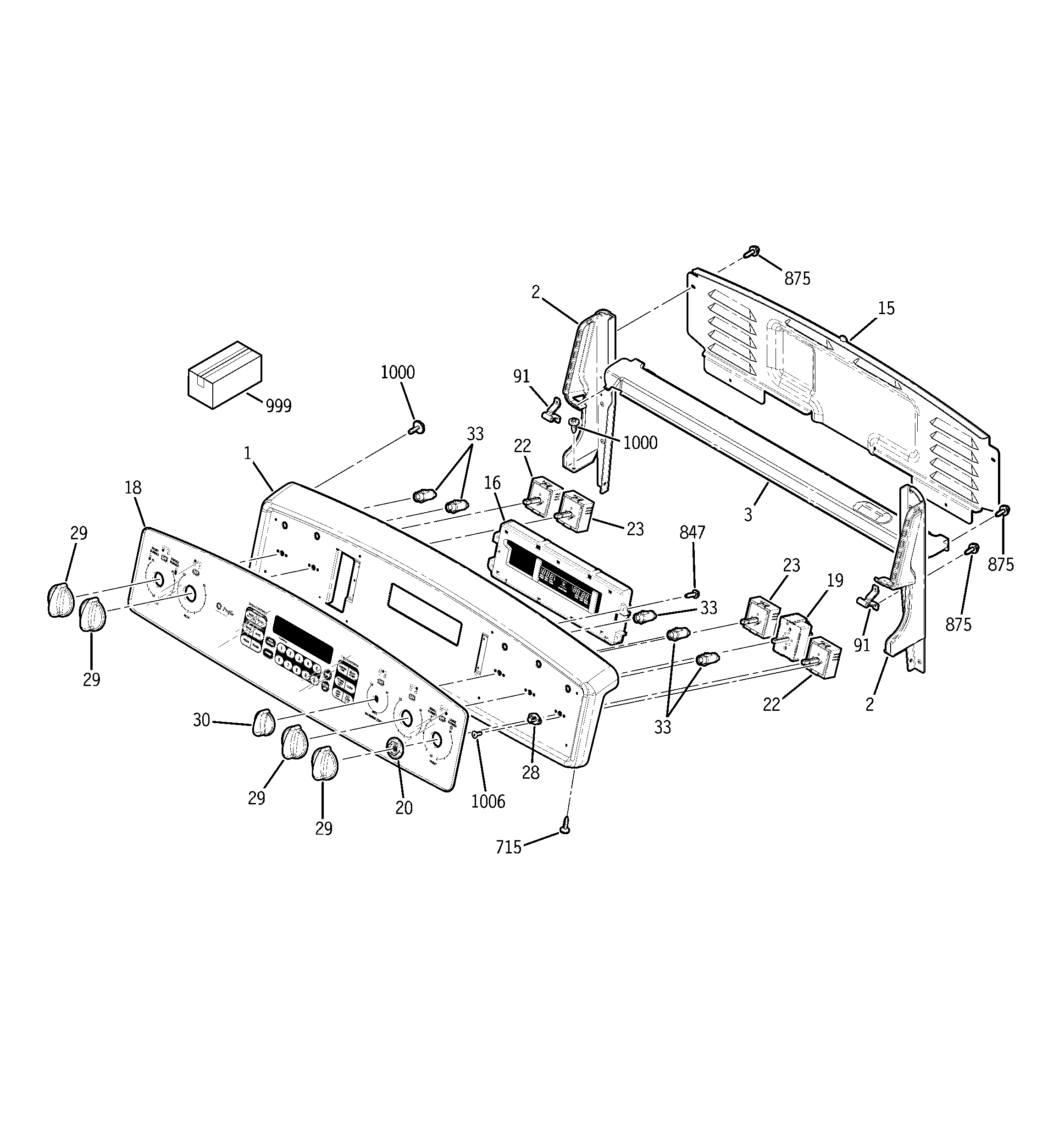

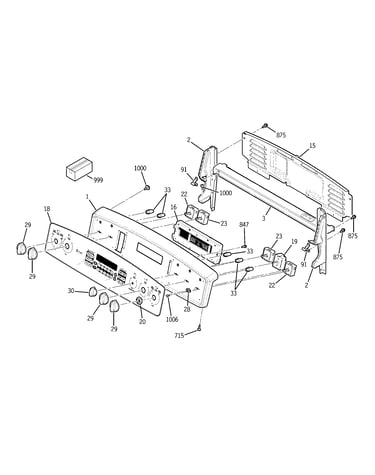

    Control panel diagram

    Range surface element control switch

    Part #WB24T10063

    BEST SELLER
    $78.20
    7% OFF Phone Price : $84.20
    In Stock
  • Range Convection Element WB44T10053
    #298

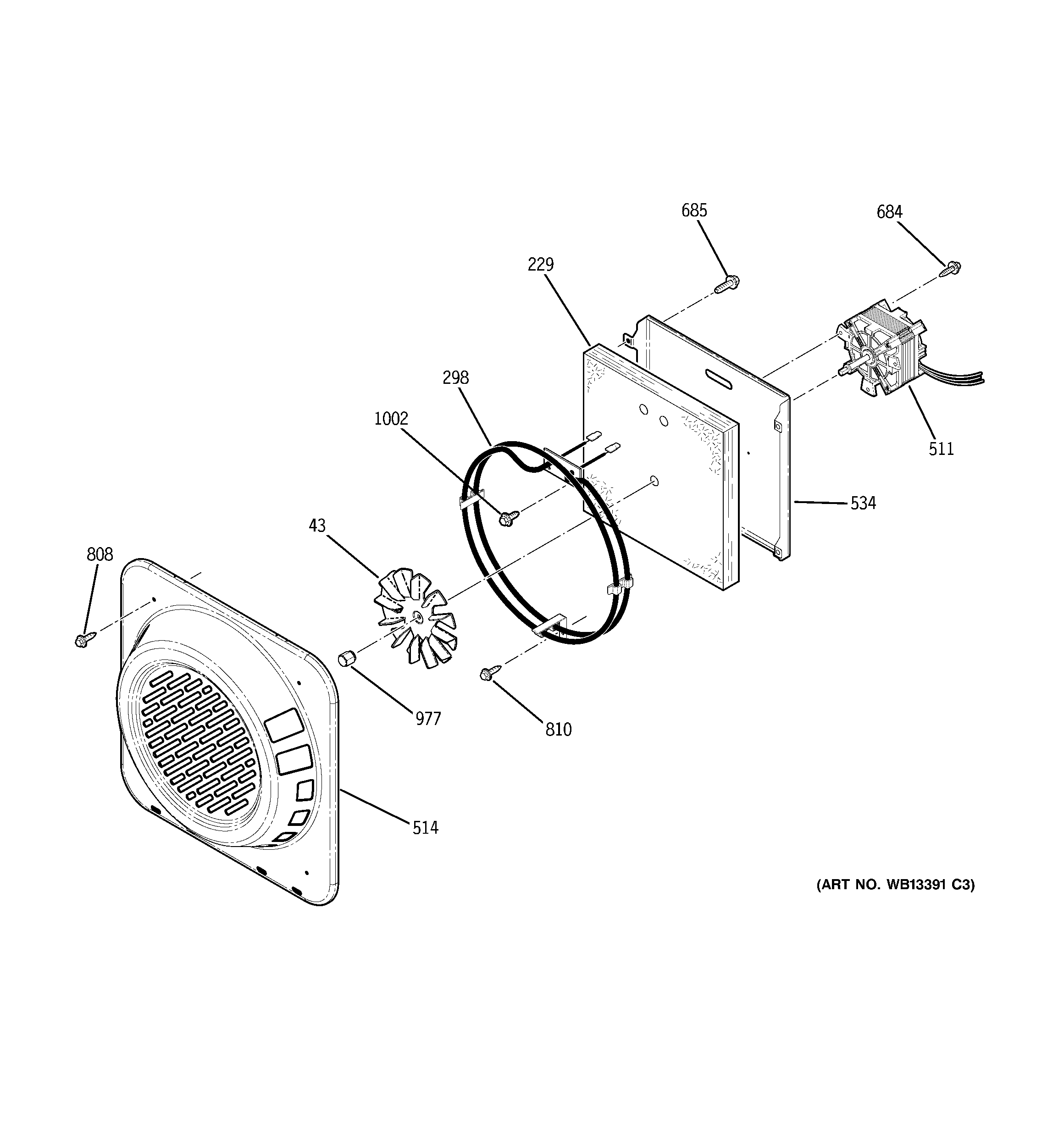

    Convection fan diagram

    Range convection element

    Part #WB44T10053

    $72.30
    8% OFF Phone Price : $78.30
    In Stock
  • G.e. Range Oven Door Inner Glass WB57K5230
    #122

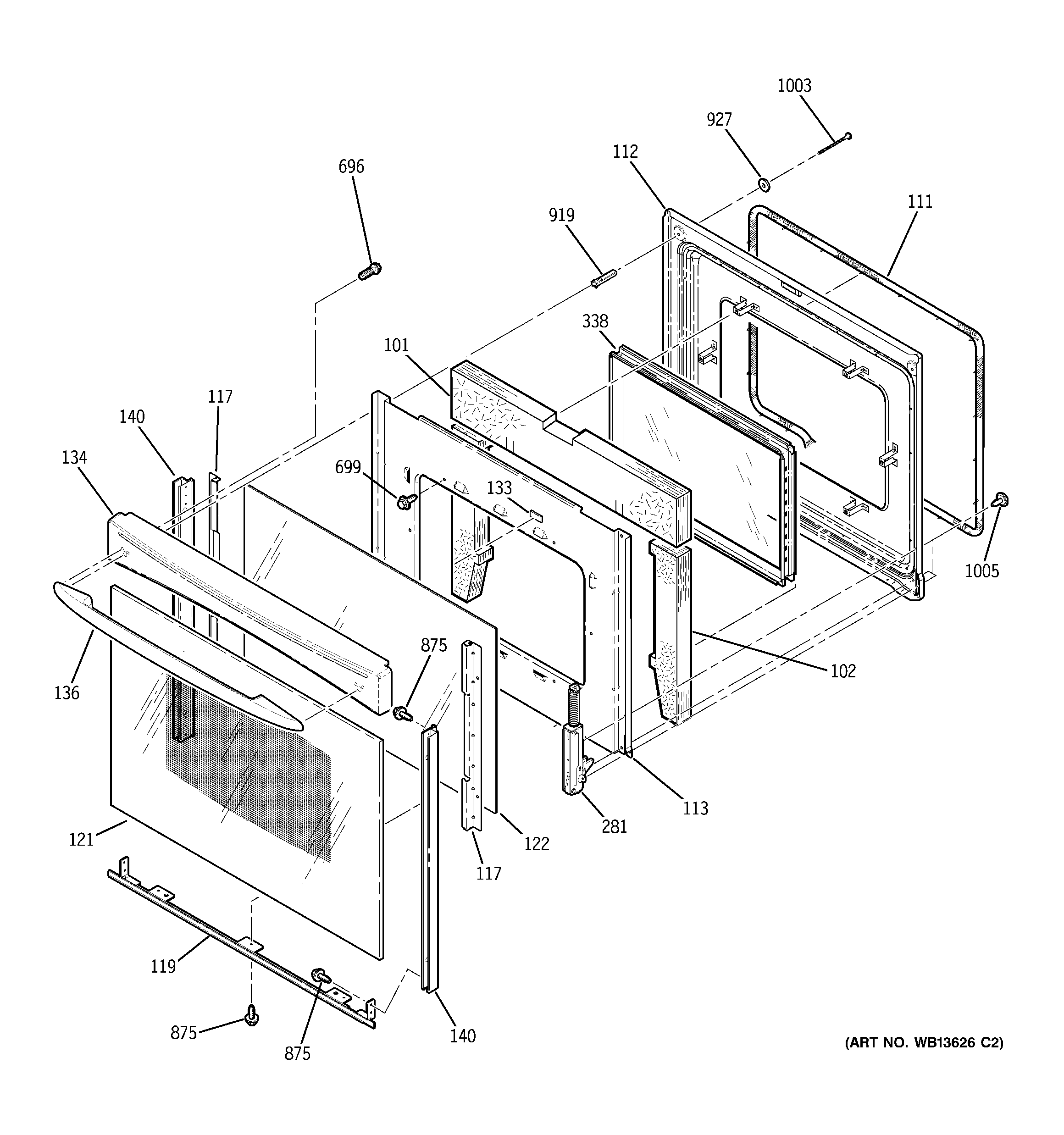

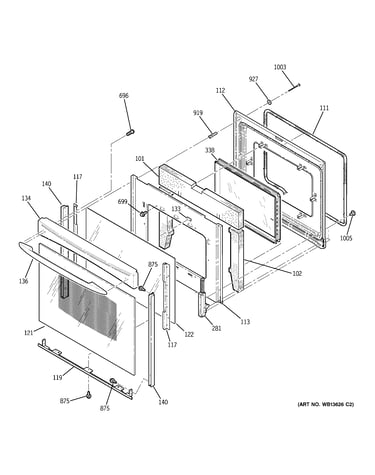

    Door diagram

    G.e. range oven door inner glass

    Part #WB57K5230

    $135.69
    8% OFF Phone Price : $147.69
    In Stock
  • Nut WB02T10017
    #977

    Convection fan diagram

    Nut

    Part #WB02T10017

    This item is not returnable
    $11.04
    15% OFF Phone Price : $13.04
    In Stock
  • Range Oven Door Trim, Lower (white) WB07T10478
    #119

    Door diagram

    Range oven door trim, lower (white)

    Part #WB07T10478

    Replaced by #WB07X42948

    ?
    Manufacturer substitution
    This part replaces WB07T10478. Substitute parts can look different from the original.
    In Stock
  • Range Convection Fan Blade WB02T10289
    #43

    Convection fan diagram

    Range convection fan blade

    Part #WB02T10289

    This item is not returnable
    $25.09
    19% OFF Phone Price : $31.09
    In Stock
  • Range Oven Door Gasket WB04T10022
    #111

    Door diagram

    Range oven door gasket

    Part #WB04T10022

    $61.12
    9% OFF Phone Price : $67.12
    In Stock
  • Screw WH02X0930
    Screw

    Part #WH02X0930

    Replaced by #WH2X930

    ?
    Manufacturer substitution
    This part replaces WH02X0930. Substitute parts can look different from the original.
    This item is not returnable
    $7.95
    11% OFF Phone Price : $8.95
    In Stock
