Walk-Behind Mower

Model # 13191080 Official Craftsman 20" rotary power lawn mower

Here are the diagrams and repair parts for Official Craftsman 13191080 20" rotary power lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Bolt 52246
#10

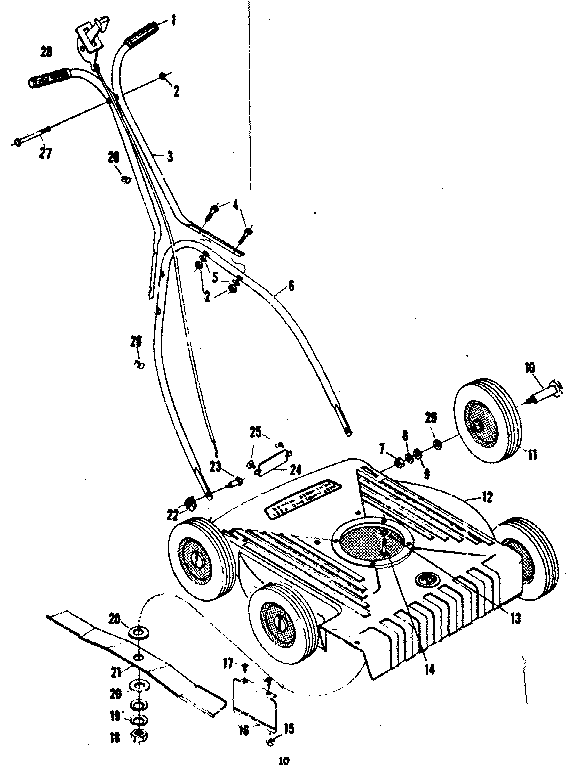

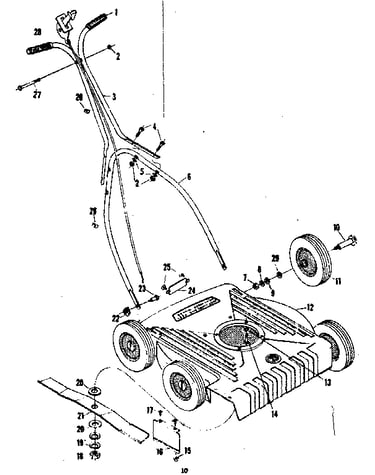

Replacement parts diagram

Bolt

Part #52246

Replaced by #532121117

?
Manufacturer substitution
This part replaces 52246. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Blade 53325
#21

Replacement parts diagram

Blade

Part #53325

Replaced by #532145106

?
Manufacturer substitution
This part replaces 53325. Substitute parts can look different from the original.
$28.46
In Stock
Screw 51447
#14

Replacement parts diagram

Screw

Part #51447

The manufacturer no longer makes this part, and there's no substitute part

Bolt 54138
#27

Replacement parts diagram

Bolt

Part #54138

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Washer 55611
#29

Replacement parts diagram

Lawn & garden equipment washer

Part #55611

The manufacturer no longer makes this part, and there's no substitute part

Cup Washer 54867
#19

Replacement parts diagram

Cup washer

Part #54867

The manufacturer no longer makes this part, and there's no substitute part

Handle 54490
#3

Replacement parts diagram

Handle

Part #54490

The manufacturer no longer makes this part, and there's no substitute part

Handle 52692
#6

Replacement parts diagram

Handle

Part #52692

The manufacturer no longer makes this part, and there's no substitute part

Clamp 52329
#26

Replacement parts diagram

Clamp

Part #52329

The manufacturer no longer makes this part, and there's no substitute part

Shoulder Bolt 53745
#23

Replacement parts diagram

Shoulder bolt

Part #53745

The manufacturer no longer makes this part, and there's no substitute part
