Frigidaire
Countertop Microwave

Model # MCT1390A2 Official Frigidaire 1.3 cubic foot microwave

Here are the diagrams and repair parts for Official Frigidaire MCT1390A2 1.3 cubic foot microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

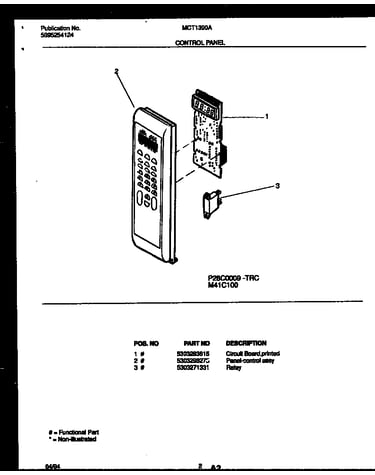

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |

Bld Dr Frame 5303301309
#7

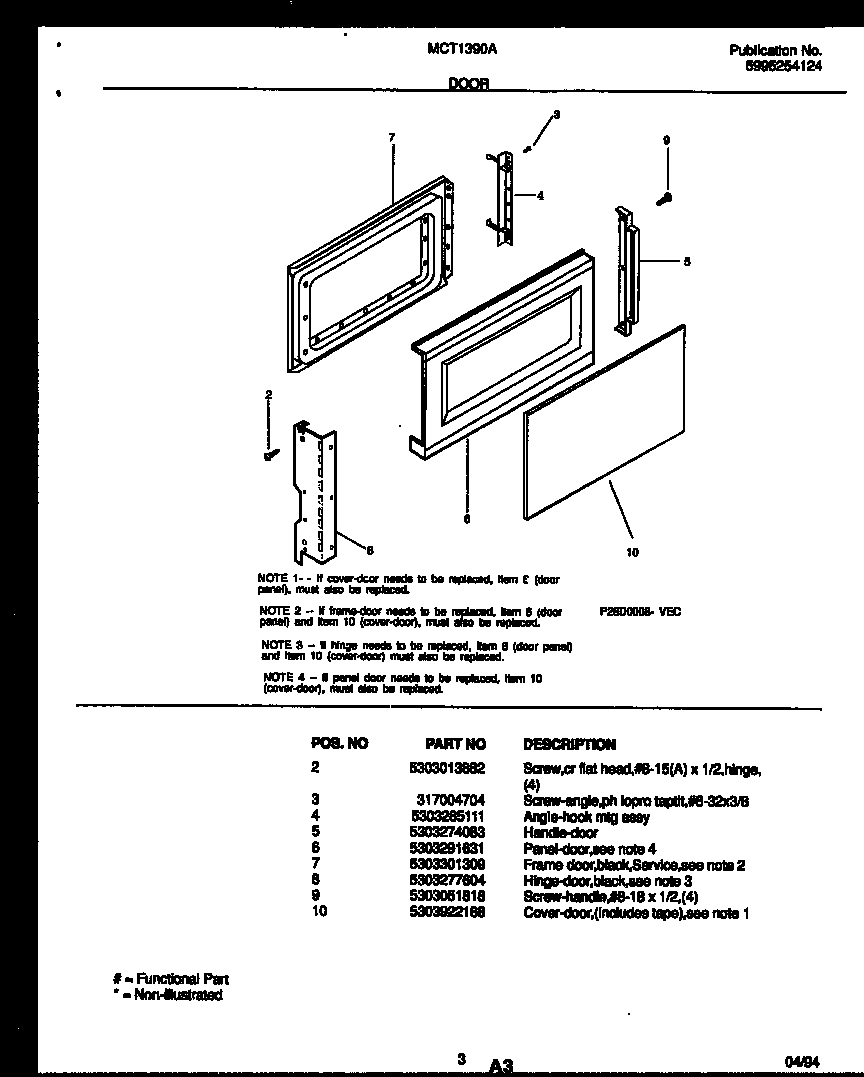

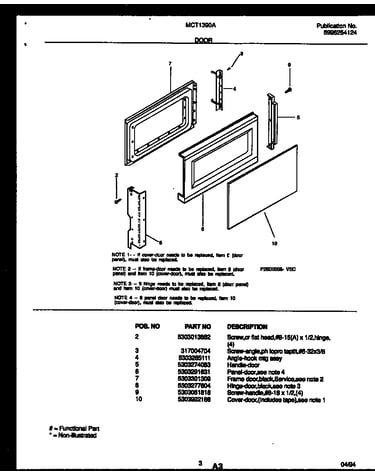

Door parts diagram

Bld dr frame

Part #5303301309

In Stock
Screw 5303013944
#32

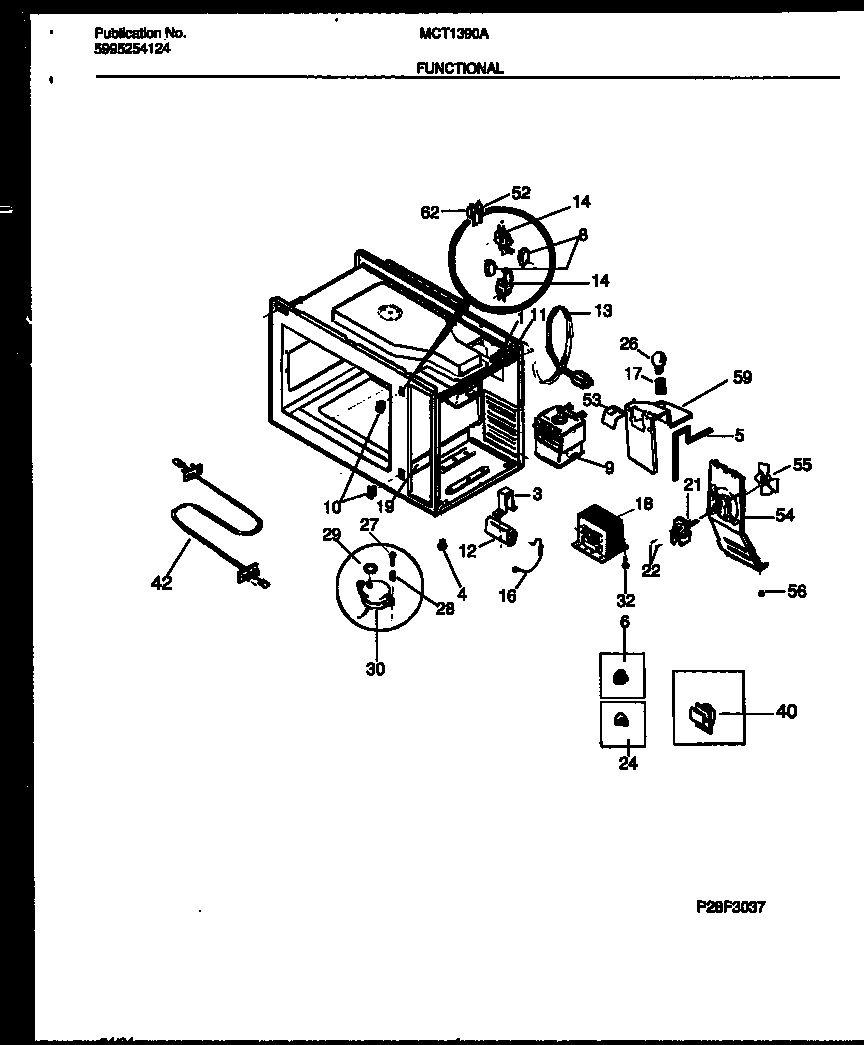

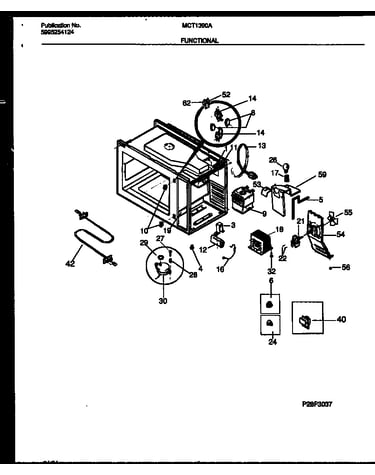

Functional parts diagram

Screw

Part #5303013944

This item is not returnable
In Stock
Microwave Turntable Screw 317009501
#27

Functional parts diagram

Microwave turntable screw

Part #317009501

This item is not returnable
In Stock
Door Cover 5303922168
#10

Door parts diagram

Door cover

Part #5303922168

In Stock
Microwave Shield 317009404
#25

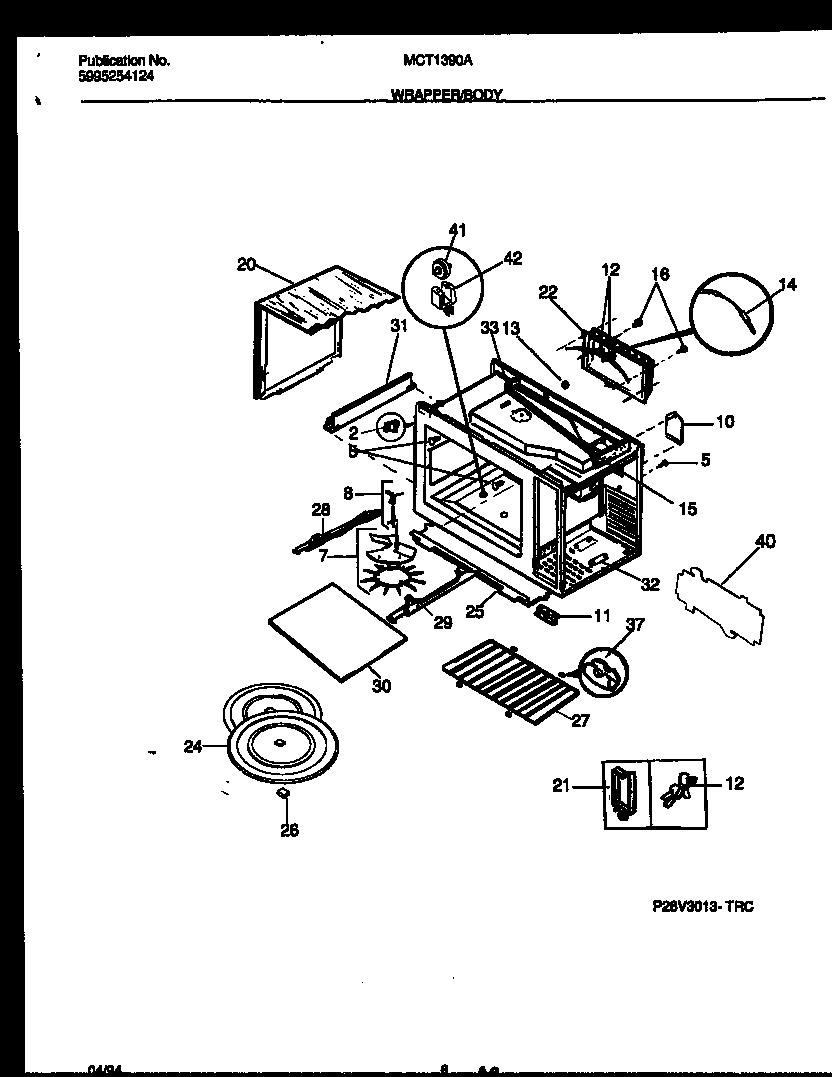

Wrapper and body parts diagram

Microwave shield

Part #317009404

In Stock
Button Plug 5303291811
#5

Wrapper and body parts diagram

Button plug

Part #5303291811

This item is not returnable
In Stock
Screw 5303273263
#20A

Wrapper and body parts diagram

Screw

Part #5303273263

This item is not returnable
In Stock
Tape 5303017864
#5

Functional parts diagram

Tape

Part #5303017864

Replaced by #5303922194

?
Manufacturer substitution
This part replaces 5303017864. Substitute parts can look different from the original.
In Stock
Screw 5303051818
#9

Door parts diagram

Screw

Part #5303051818

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 5303051818. Substitute parts can look different from the original.
This item is not returnable
In Stock
Drive Hinge 5303277604
#8

Door parts diagram

Drive hinge

Part #5303277604

Replaced by #5303280301

?
Manufacturer substitution
This part replaces 5303277604. Substitute parts can look different from the original.
In Stock
