Top-Mount Refrigerator

Model # TBT18JABTRWW Official GE refrigerator - b series

Here are the diagrams and repair parts for Official GE TBT18JABTRWW refrigerator - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

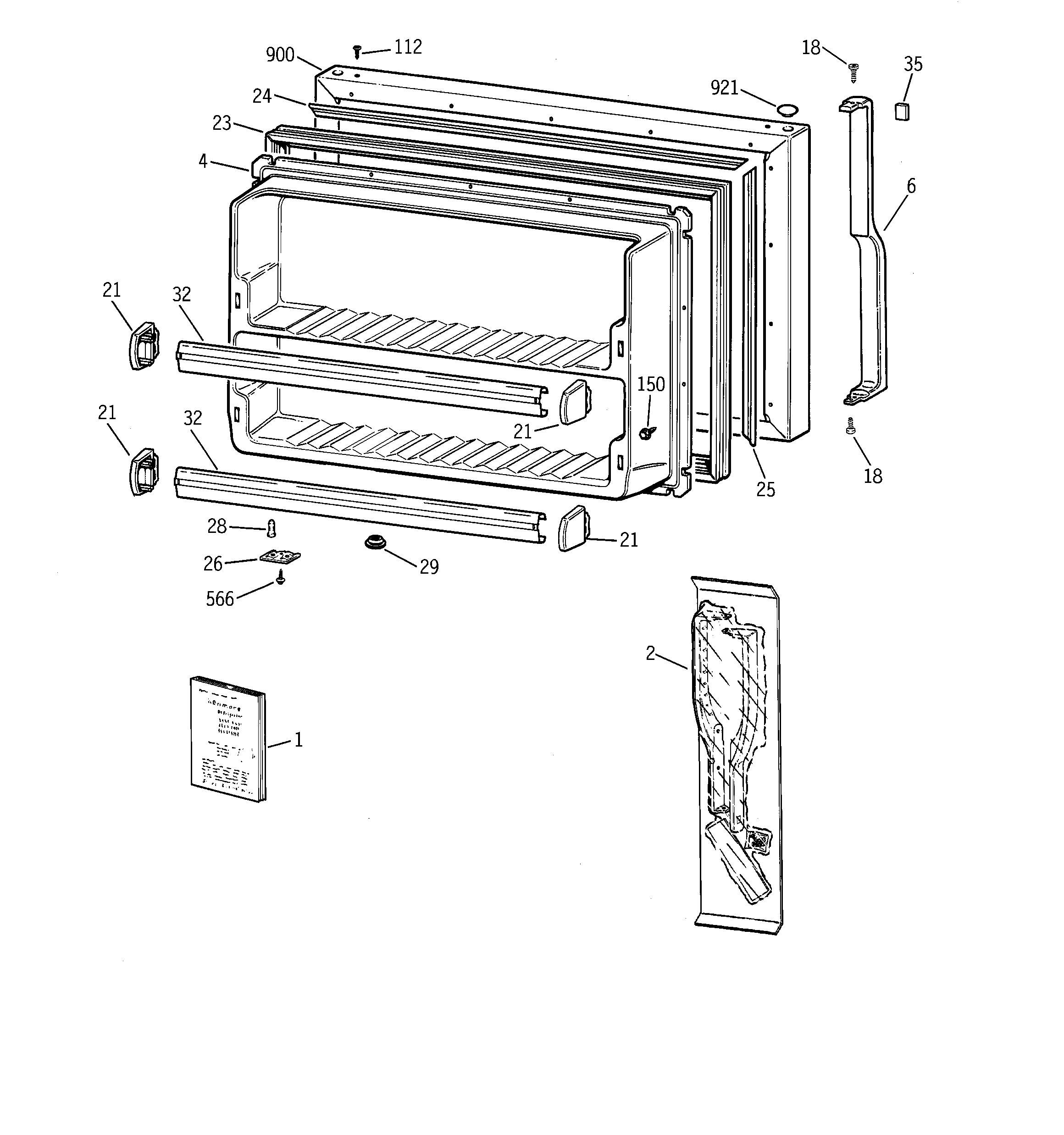

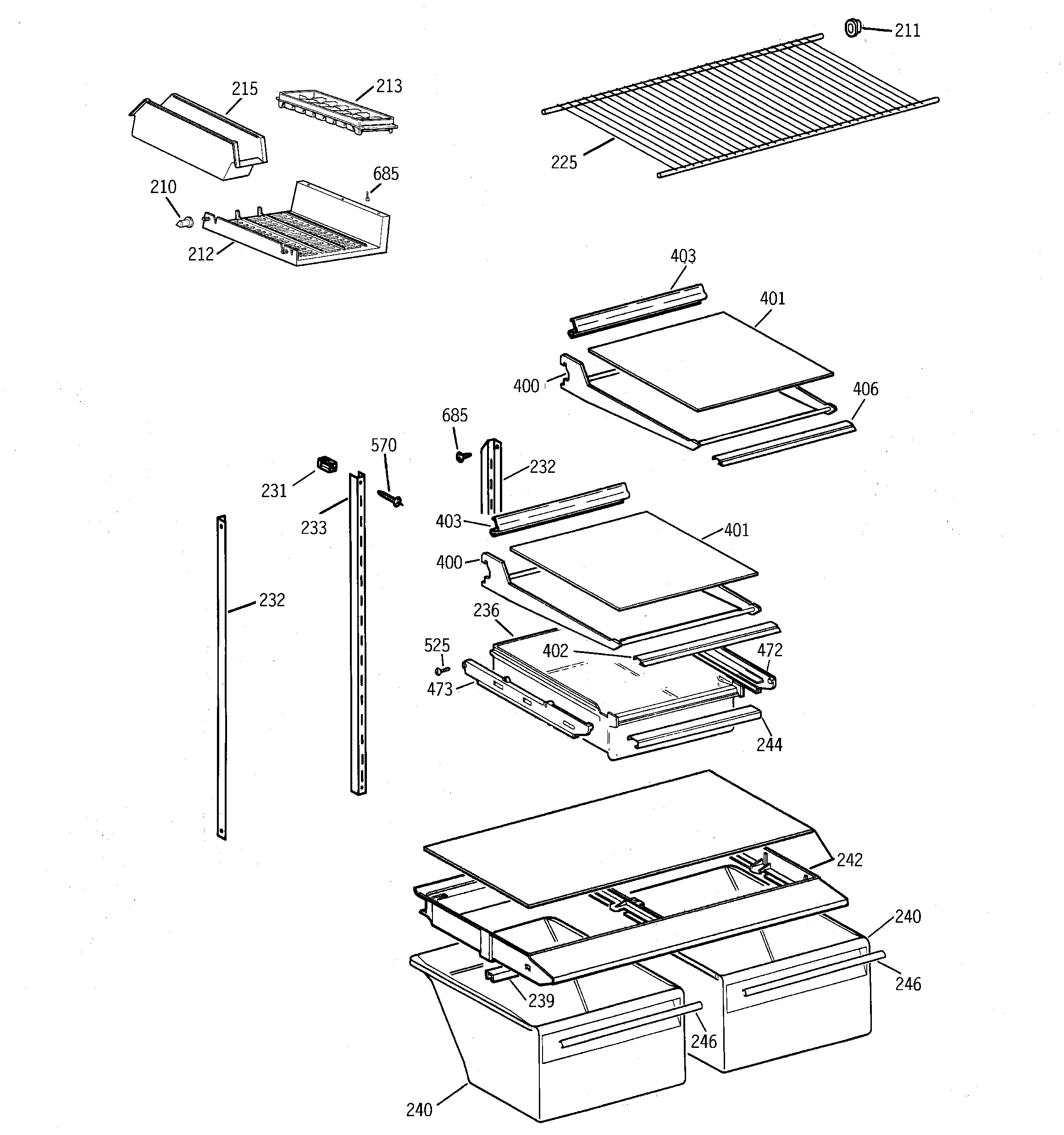

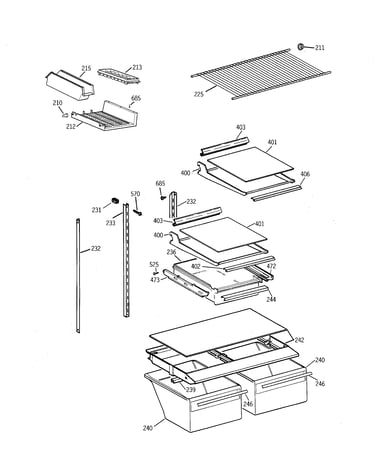

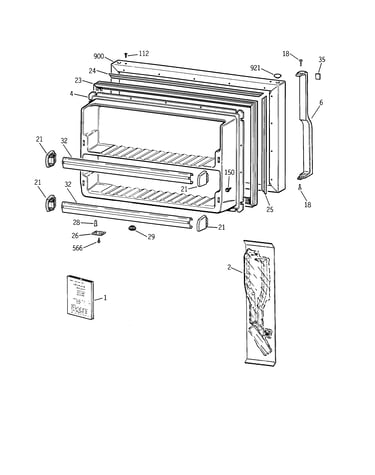

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 173 parts  |
Dryer Filter WR86X0096
#740

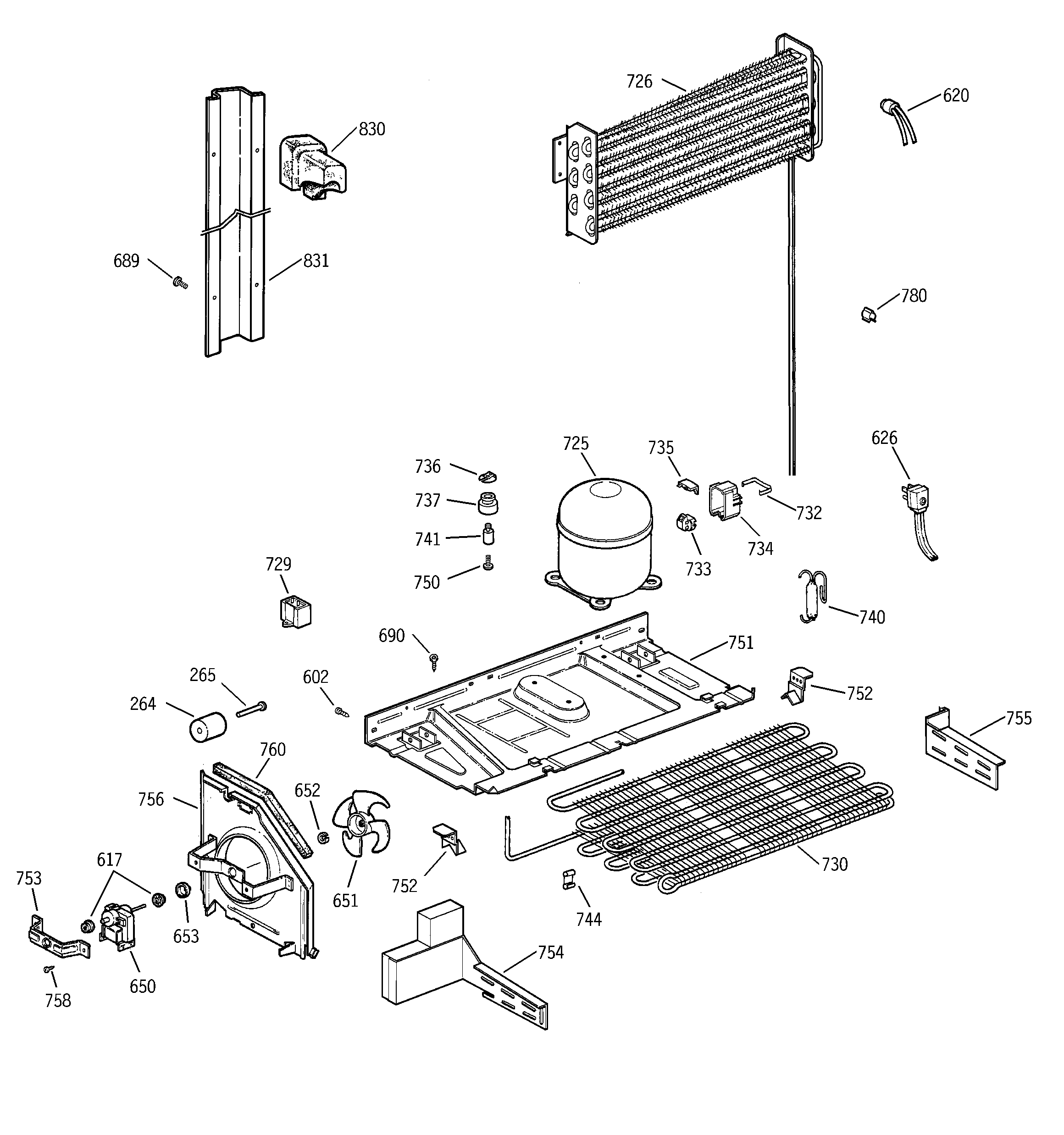

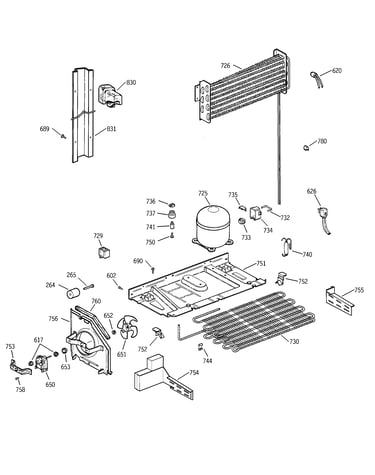

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
#435

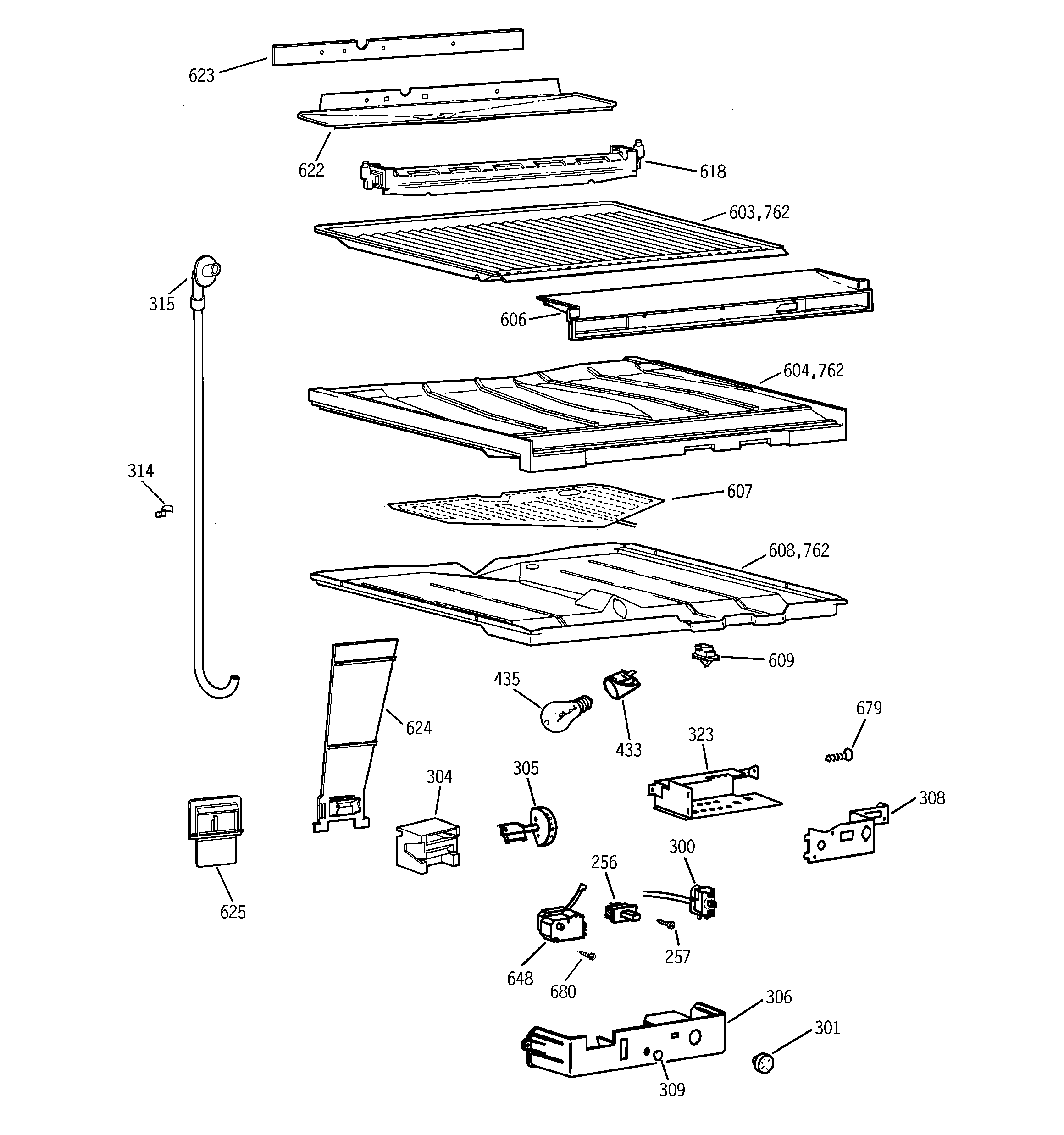

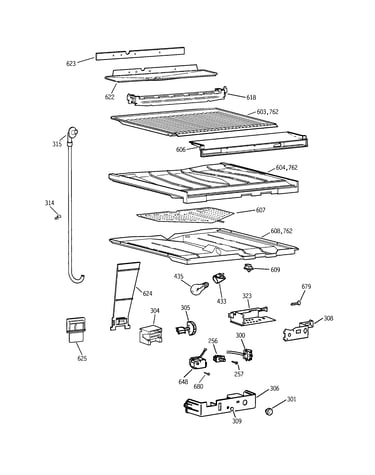

Compartment separator parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Comp Repl Kt WR87X0475
#725

Unit parts diagram

Comp repl kt

Part #WR87X0475

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X0475. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10146
#281

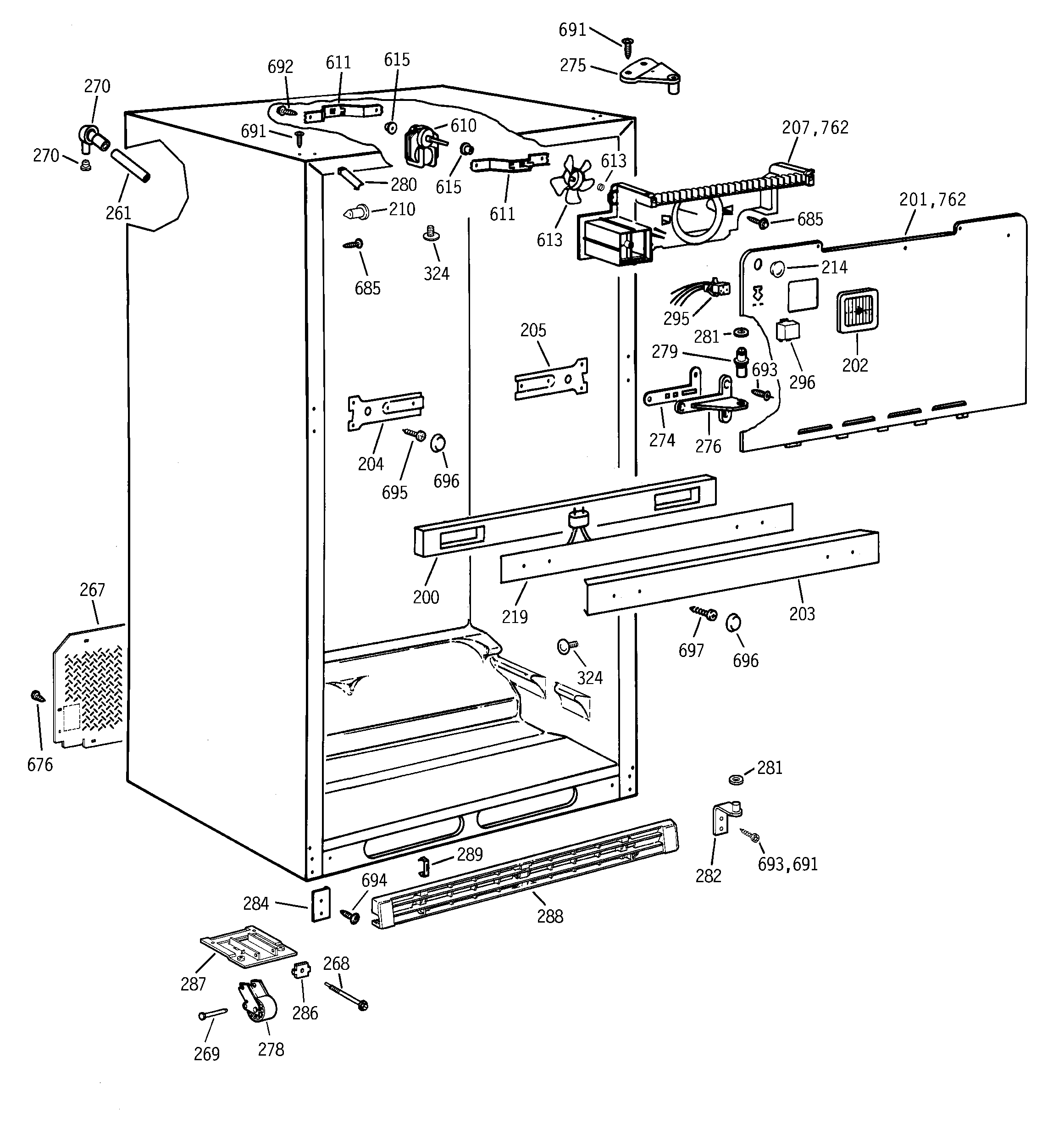

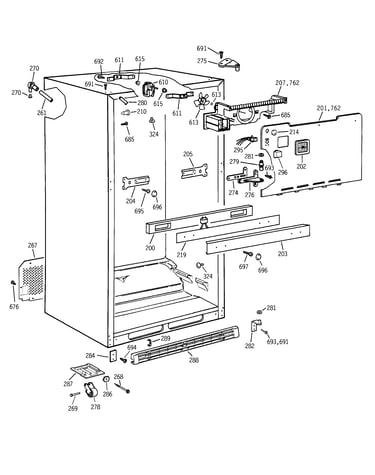

Cabinet diagram

Refrigerator door hinge nylon washer

Part #WR01X10146

Replaced by #WR01X27364

?
Manufacturer substitution
This part replaces WR01X10146. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Refrigerator Overload WR08X0168
#735

Unit parts diagram

Refrigerator overload

Part #WR08X0168

Replaced by #WR08X10025

?
Manufacturer substitution
This part replaces WR08X0168. Substitute parts can look different from the original.
BEST SELLER
$25.20 |
19% OFF Phone Price : $31.20
In Stock
Refrigerator Door Gasket WR24X0450
#104

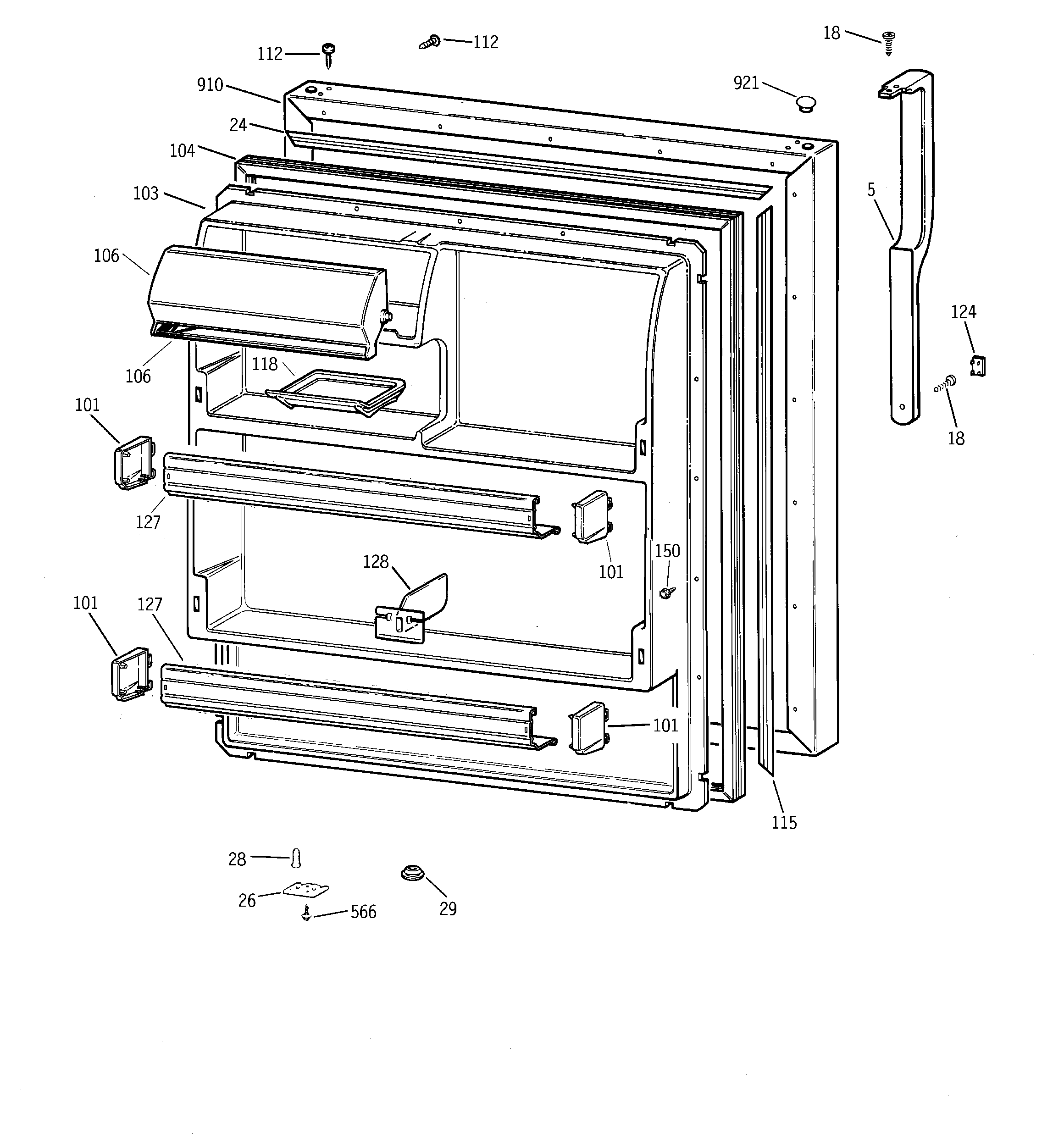

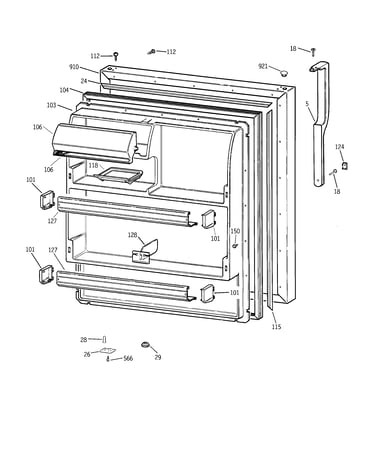

Fresh food diagram

Refrigerator door gasket

Part #WR24X0450

Replaced by #WR24X450

?
Manufacturer substitution
This part replaces WR24X0450. Substitute parts can look different from the original.
$96.44 |
11% OFF Phone Price : $108.44
In Stock
Refrigerator Grommet WR02X8474
#270

Cabinet diagram

Refrigerator grommet

Part #WR02X8474

Replaced by #WR2X8474

?
Manufacturer substitution
This part replaces WR02X8474. Substitute parts can look different from the original.
$10.24 |
16% OFF Phone Price : $12.24
In Stock
Ring/fan Bld WR02X3198
#613

Cabinet diagram

Ring/fan bld

Part #WR02X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR02X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Relay Protector WR07X0240
#733

Unit parts diagram

Refrigerator relay protector

Part #WR07X0240

Replaced by #WR07X10055

?
Manufacturer substitution
This part replaces WR07X0240. Substitute parts can look different from the original.
This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Refrigerator Defrost Heater WR51X10002
#618

Compartment separator parts diagram

Refrigerator defrost heater

Part #WR51X10002

Replaced by #WR51X464

?
Manufacturer substitution
This part replaces WR51X10002. Substitute parts can look different from the original.
$122.37 |
9% OFF Phone Price : $134.37
In Stock
