Whirlpool
Bottom-Mount Refrigerator

Model # WRF540CWHW08 Official Whirlpool bottom-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRF540CWHW08 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

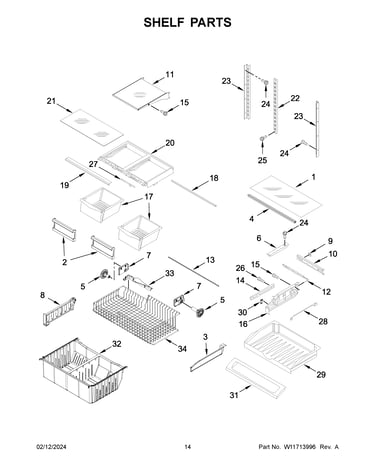

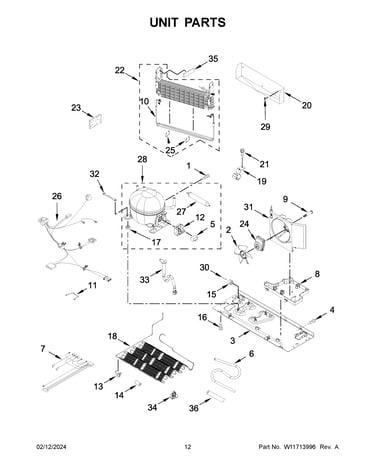

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Filter, Water W11256384
#25

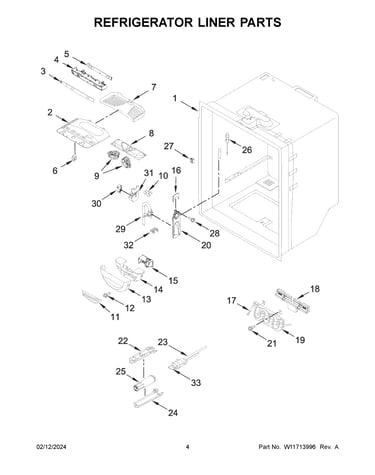

Refrigerator liner parts diagram

Filter, water

Part #W11256384

Replaced by #EDR4RXD1

?
Manufacturer substitution
This part replaces W11256384. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Switch- Rock W10847853
#6

Refrigerator liner parts diagram

Switch- rock

Part #W10847853

Replaced by #W11384469

?
Manufacturer substitution
This part replaces W10847853. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Door Switch W10847849
#16

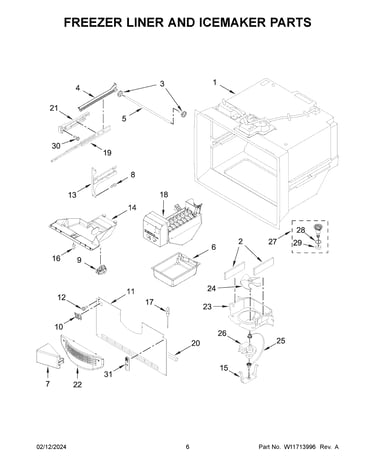

Freezer liner and icemaker parts diagram

Refrigerator door switch

Part #W10847849

Replaced by #W11396033

?
Manufacturer substitution
This part replaces W10847849. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Refrigerator Evaporator Motor 13062901
#26

Freezer liner and icemaker parts diagram

Refrigerator evaporator motor

Part #13062901

Replaced by #W11024089

?
Manufacturer substitution
This part replaces 13062901. Substitute parts can look different from the original.
BEST SELLER
$45.28 |
12% OFF Phone Price : $51.28
In Stock
Head, Water Filter (includes Bypass Cartridge) W11308018
#23

Refrigerator liner parts diagram

Head, water filter (includes bypass cartridge)

Part #W11308018

Replaced by #W11346623

?
Manufacturer substitution
This part replaces W11308018. Substitute parts can look different from the original.
BEST SELLER
$59.02 |
9% OFF Phone Price : $65.02
In Stock
Refrigerator Electronic Control Board W10317076
#29

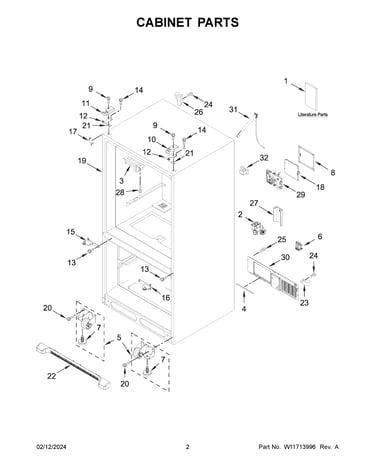

Cabinet parts diagram

Refrigerator electronic control board

Part #W10317076

Replaced by #WPW10317076

?
Manufacturer substitution
This part replaces W10317076. Substitute parts can look different from the original.
BEST SELLER
$372.14 |
$12.00 OFF Phone Price : $384.14
In Stock
Refrigerator Water Filter Bypass 12664501SP
#33

Refrigerator liner parts diagram

Refrigerator water filter bypass

Part #12664501SP

Replaced by #W11395888

?
Manufacturer substitution
This part replaces 12664501SP. Substitute parts can look different from the original.
BEST SELLER
$31.98 |
16% OFF Phone Price : $37.98
In Stock
Refrigerator Touch-up Paint (white) 72017
#NI

Optional parts diagram

Refrigerator touch-up paint (white)

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray Paint (white) 350930
#NI

Optional parts diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Refrigerator Flipper Assembly 12722803W
#13

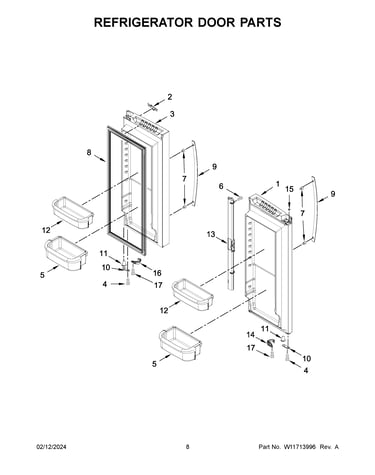

Refrigerator door parts diagram

Refrigerator flipper assembly

Part #12722803W

Replaced by #WP12722803W

?
Manufacturer substitution
This part replaces 12722803W. Substitute parts can look different from the original.
BEST SELLER
$156.90 |
7% OFF Phone Price : $168.90
In Stock
