Model # DGA501G3W Official Kelvinator 27" gas dryer - 5995223426

Here are the diagrams and repair parts for Official Kelvinator DGA501G3W 27" gas dryer - 5995223426, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forDGA501G3W 27" Gas Dryer - 5995223426

  • Belt 5303283471
    #17

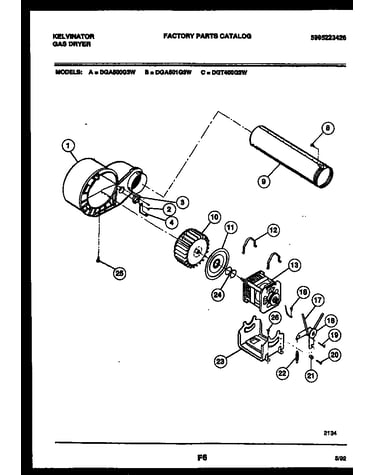

    Motor and blower parts diagram

    Belt

    Part #5303283471

    Replaced by #134503600

    ?
    Manufacturer substitution
    This part replaces 5303283471. Substitute parts can look different from the original.
    4.17 (24)
    BEST SELLER
    $8.11 |
    11% OFF Phone Price : $9.11
    In Stock
  • Dryer Drum Bearing Kit 5303281153

    #NI

    All parts diagram

    Dryer drum bearing kit

    Part #5303281153

    4.57 (21)
    BEST SELLER
    $31.63 |
    16% OFF Phone Price : $37.63
    In Stock
  • Glide 5303283285
    #34

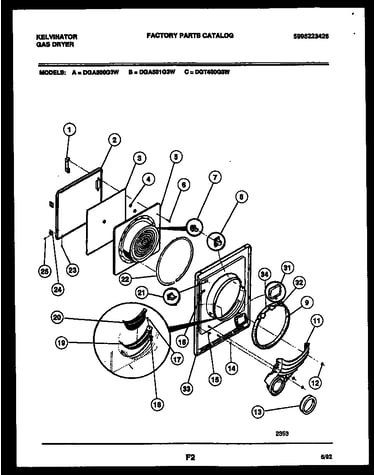

    Door parts diagram

    Glide

    Part #5303283285

    Replaced by #5303937139

    ?
    Manufacturer substitution
    This part replaces 5303283285. Substitute parts can look different from the original.
    4.36 (14)
    BEST SELLER
    $30.56 |
    16% OFF Phone Price : $36.56
    In Stock
  • Coil 5300622602
    #28

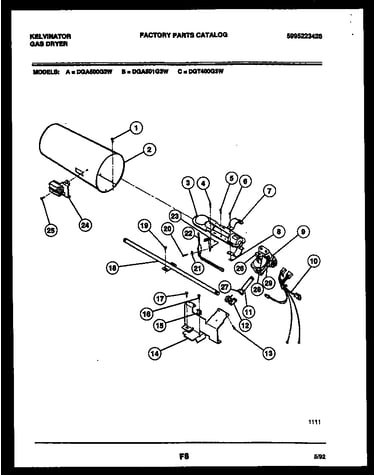

    Burner, igniter and valve diagram

    Coil

    Part #5300622602

    Replaced by #5303931775

    ?
    Manufacturer substitution
    This part replaces 5300622602. Substitute parts can look different from the original.
    5 (8)
    BEST SELLER
    $35.66 |
    14% OFF Phone Price : $41.66
    In Stock
  • Coil 5308015680
    #29

    Burner, igniter and valve diagram

    Coil

    Part #5308015680

    Replaced by #5303931775

    ?
    Manufacturer substitution
    This part replaces 5308015680. Substitute parts can look different from the original.
    5 (8)
    BEST SELLER
    $35.66 |
    14% OFF Phone Price : $41.66
    In Stock
  • Dryer Rear Bearing Clip 5303281020
    #31

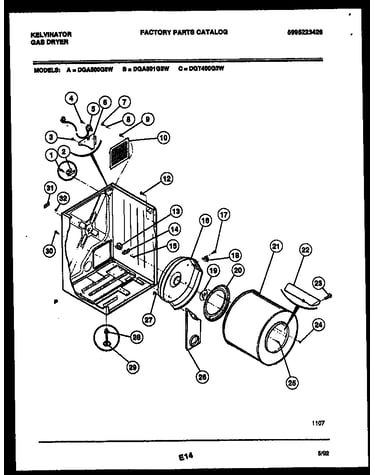

    Cabinet and component parts diagram

    Dryer rear bearing clip

    Part #5303281020

    1 (1)
    $17.28 |
    10% OFF Phone Price : $19.28
    In Stock
  • Strike 5303211430
    #7

    Door parts diagram

    Strike

    Part #5303211430

    Replaced by #5303207102

    ?
    Manufacturer substitution
    This part replaces 5303211430. Substitute parts can look different from the original.
    3.67 (3)
    This item is not returnable
    $17.87 |
    10% OFF Phone Price : $19.87
    In Stock
  • Dryer Safety Thermostat 5308015399
    #18

    Cabinet and component parts diagram

    Dryer safety thermostat

    Part #5308015399

    $158.46 |
    7% OFF Phone Price : $170.46
    In Stock
  • Screw 3281066
    #32

    Door parts diagram

    Screw

    Part #3281066

    Replaced by #5303300265

    ?
    Manufacturer substitution
    This part replaces 3281066. Substitute parts can look different from the original.
    This item is not returnable
    $16.40
    In Stock
  • Screw 5303161244
    #17

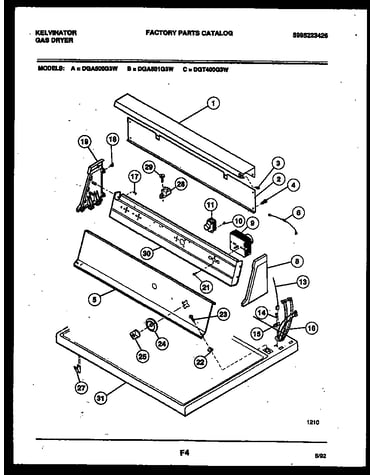

    Console and control parts diagram

    Screw

    Part #5303161244

    Replaced by #131205100

    ?
    Manufacturer substitution
    This part replaces 5303161244. Substitute parts can look different from the original.
    $15.72 |
    11% OFF Phone Price : $17.72
