Model # 42LA-AL Official GunJet spray gun

Here are the diagrams and repair parts for Official GunJet 42LA-AL spray gun, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |

Tubng Gasket 6943
#9

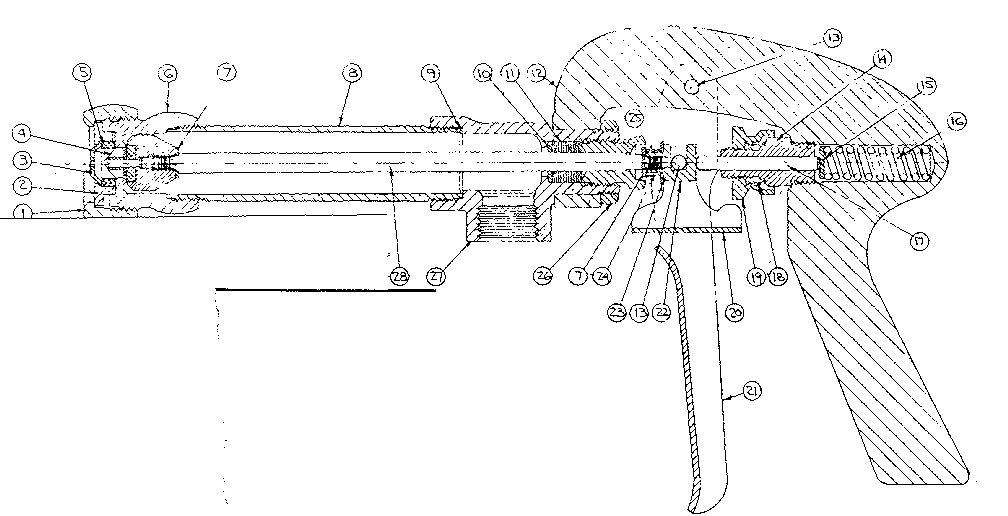

Spray gun diagram

Tubng gasket

Part #6943

The manufacturer no longer makes this part, and there's no substitute part

Disc Retainer, Aluminum 6612AL
#2

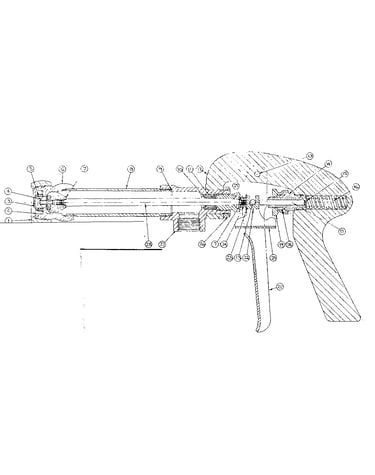

Spray gun diagram

Disc retainer, aluminum

Part #6612AL

The manufacturer no longer makes this part, and there's no substitute part

Core & Seat Plug Sub-asb. Aluminum 6610AL
#4

Spray gun diagram

Core & seat plug sub-asb. aluminum

Part #6610AL

The manufacturer no longer makes this part, and there's no substitute part

Stem 6870
#28

Spray gun diagram

Stem

Part #6870

The manufacturer no longer makes this part, and there's no substitute part

Trigger Stop 6510
#20

Spray gun diagram

Trigger stop

Part #6510

The manufacturer no longer makes this part, and there's no substitute part

Triggr Guide 6597
#22

Spray gun diagram

Triggr guide

Part #6597

The manufacturer no longer makes this part, and there's no substitute part

Washer 6592
#15

Spray gun diagram

Washer

Part #6592

The manufacturer no longer makes this part, and there's no substitute part

Packing 6602
#11

Spray gun diagram

Packing

Part #6602

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut, Aluminum 6599AL
#26

Spray gun diagram

Lock nut, aluminum

Part #6599AL

The manufacturer no longer makes this part, and there's no substitute part

Rivet 7623
#13

Spray gun diagram

Rivet

Part #7623

The manufacturer no longer makes this part, and there's no substitute part
