Heating & Cooling Combined Unit

Model # PGX360080K00A1 Official ICP package gas/electric unit - pgx3 series

Here are the diagrams and repair parts for Official ICP PGX360080K00A1 package gas/electric unit - pgx3 series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Furnace Inducer Vent Motor Assembly 1054268
#45

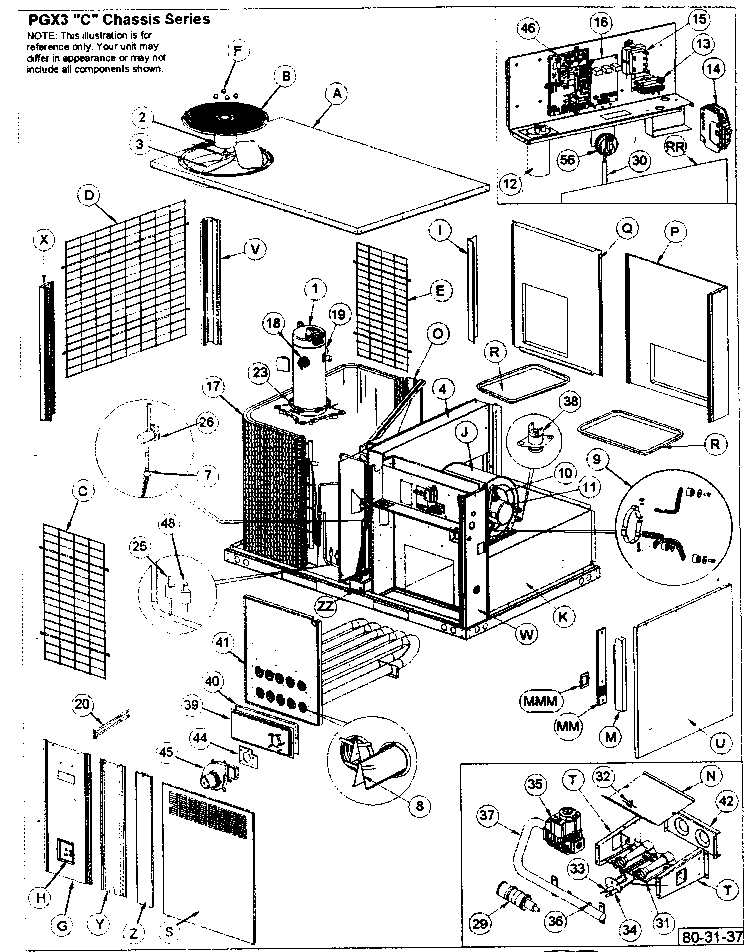

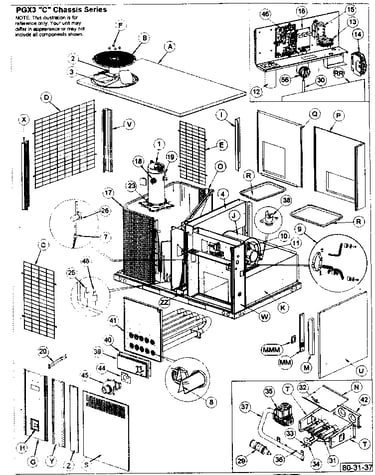

Cabinet parts diagram

Furnace inducer vent motor assembly

Part #1054268

$297.67 |
$12.00 OFF Phone Price : $309.67
In Stock
Furnace Burner (replaces 1012384) 1008725
#31

Cabinet parts diagram

Furnace burner (replaces 1012384)

Part #1008725

$129.04
In Stock
Igniter Assembly 1173831
#29

Cabinet parts diagram

Igniter assembly

Part #1173831

Replaced by #1177395

?
Manufacturer substitution
This part replaces 1173831. Substitute parts can look different from the original.
$125.29 |
9% OFF Phone Price : $137.29
In Stock
Drier 1173679
#NI

Cabinet parts diagram

Drier

Part #1173679

$68.02
In Stock
Sensor 1173830
#34

Cabinet parts diagram

Sensor

Part #1173830

$38.31
In Stock
Heater 1173705
#23

Cabinet parts diagram

Heater

Part #1173705

$96.49
In Stock
Furnace Vent Motor Gasket 607014
#44

Cabinet parts diagram

Furnace vent motor gasket

Part #607014

This item is not returnable
$44.60
In Stock
Contactor 1173690
#13

Cabinet parts diagram

Contactor

Part #1173690

$76.87
In Stock
Wheel 1173815
#10

Cabinet parts diagram

Wheel

Part #1173815

$238.42
In Stock
Hood Flue Al 1054621
#M

Cabinet parts diagram

Hood flue al

Part #1054621

$228.16
In Stock
