Model # DPGT650GH0WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE DPGT650GH0WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Dryer Drum Support Roller WE03X10008
#273

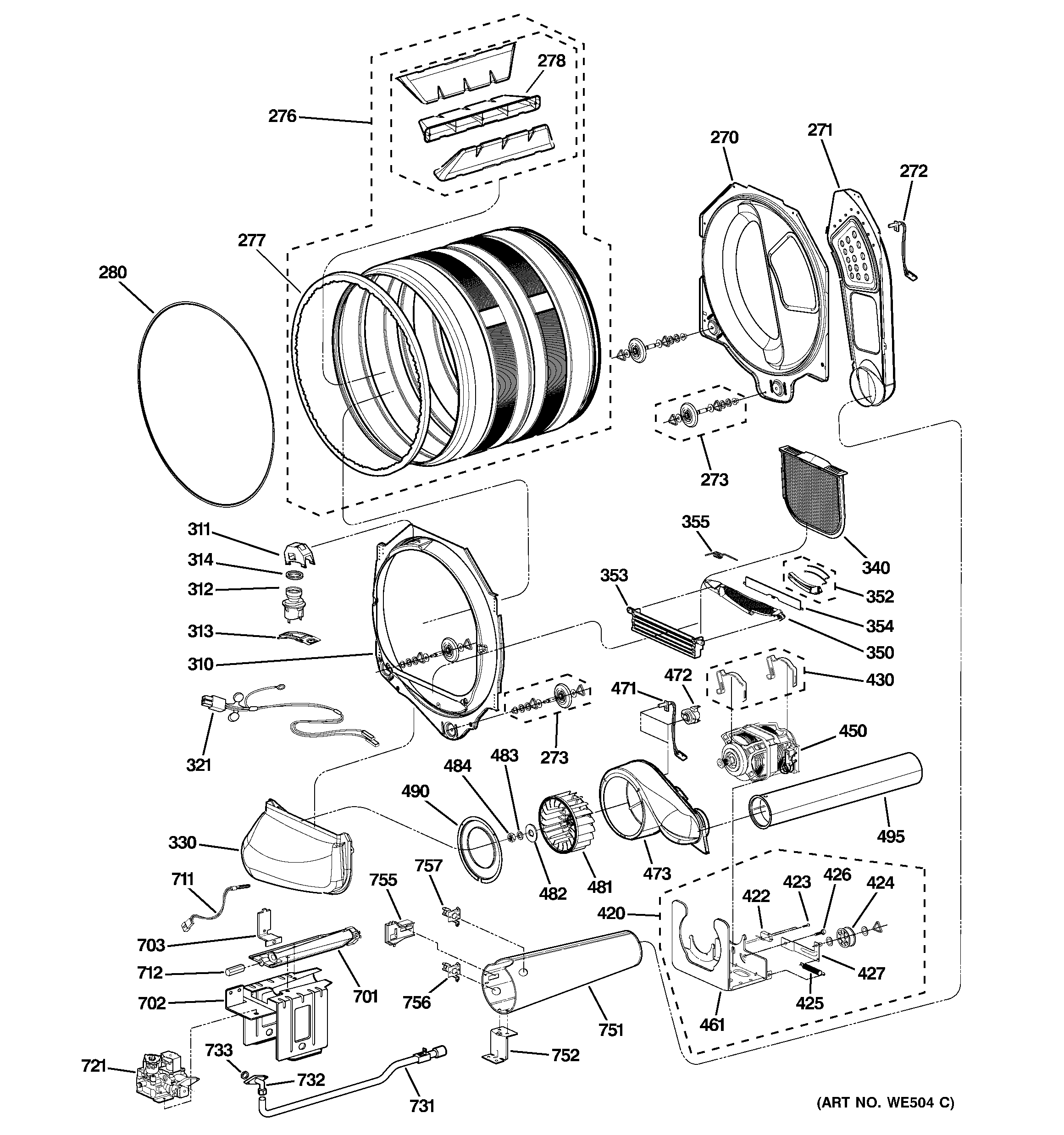

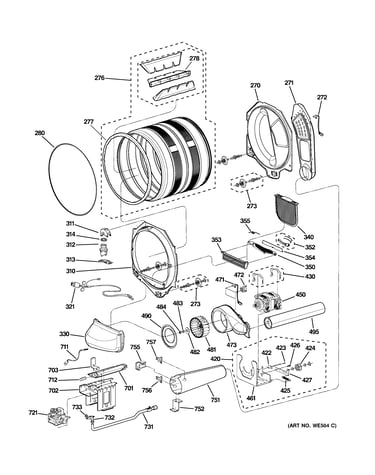

Drum, motor & blower diagram

Dryer drum support roller

Part #WE03X10008

$53.29 |
10% OFF Phone Price : $59.29
In Stock
Dryer Drum Belt WE12X10011
#280

Drum, motor & blower diagram

Dryer drum belt

Part #WE12X10011

$79.10 |
7% OFF Phone Price : $85.10
In Stock
Dryer Burner Igniter WE04X10116
#711

Drum, motor & blower diagram

Dryer burner igniter

Part #WE04X10116

$169.93 |
7% OFF Phone Price : $181.93
In Stock
Dryer Side Exhaust Vent Kit (replaces 14-a003, We02x10096) WE25X10015
#9999

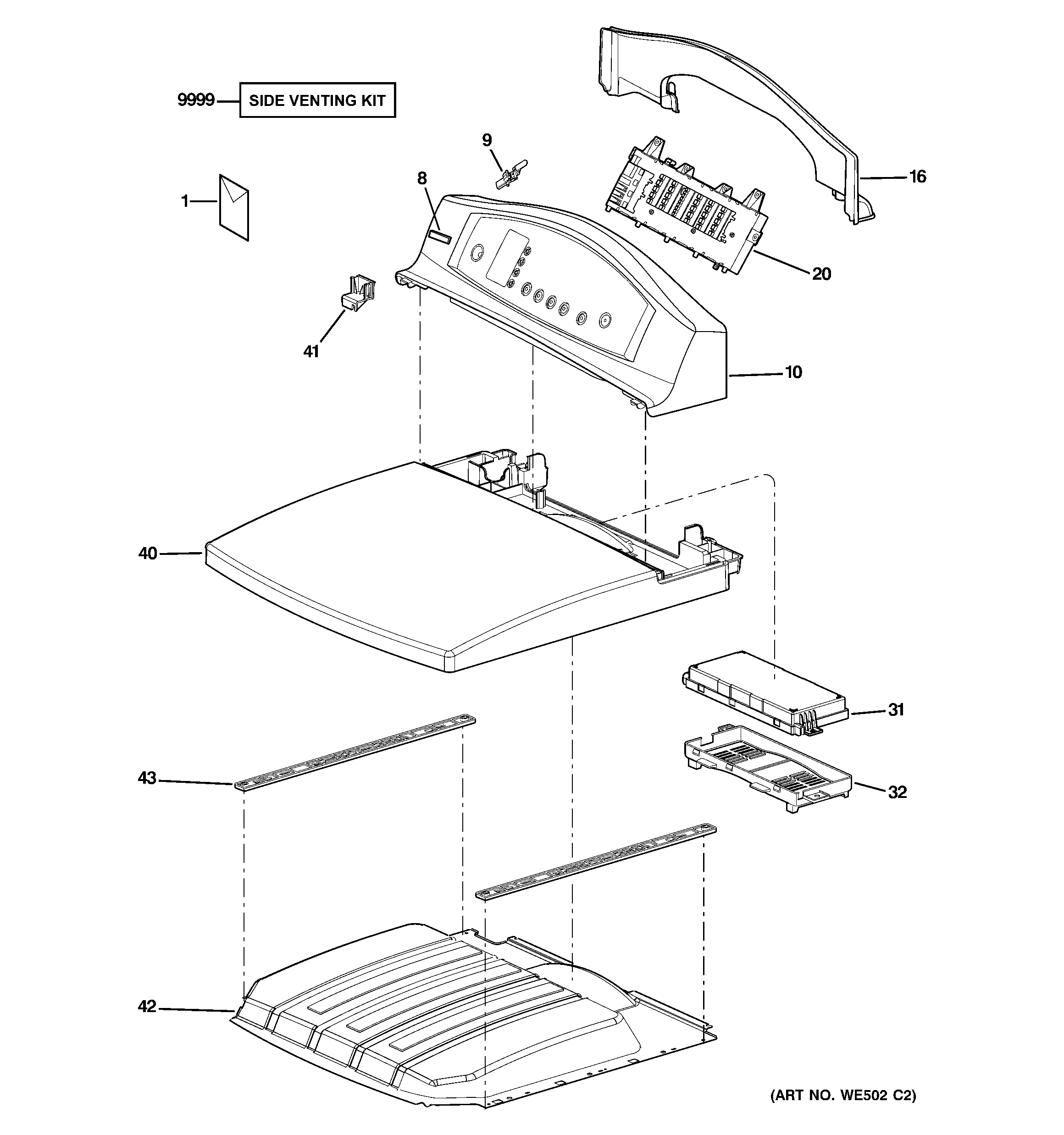

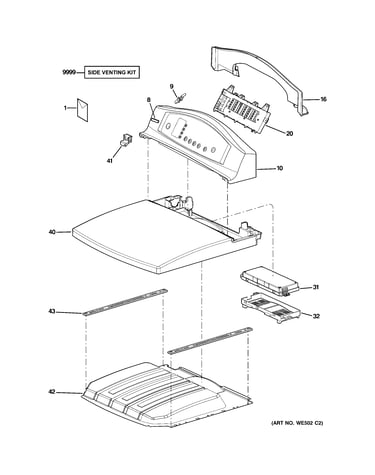

Controls & top panel diagram

Dryer side exhaust vent kit (replaces 14-a003, we02x10096)

Part #WE25X10015

$126.17 |
9% OFF Phone Price : $138.17
In Stock
U&c/ii Profi 049-90378
#1

Controls & top panel diagram

U&c/ii profi

Part #049-90378

$17.99
In Stock
Lock Washer WE02X10063
#482

Drum, motor & blower diagram

Lock washer

Part #WE02X10063

This item is not returnable
$5.00
In Stock
Pipe WE01X10202
#731

Drum, motor & blower diagram

Pipe

Part #WE01X10202

$47.90
In Stock
Screw WE02X10060
#242

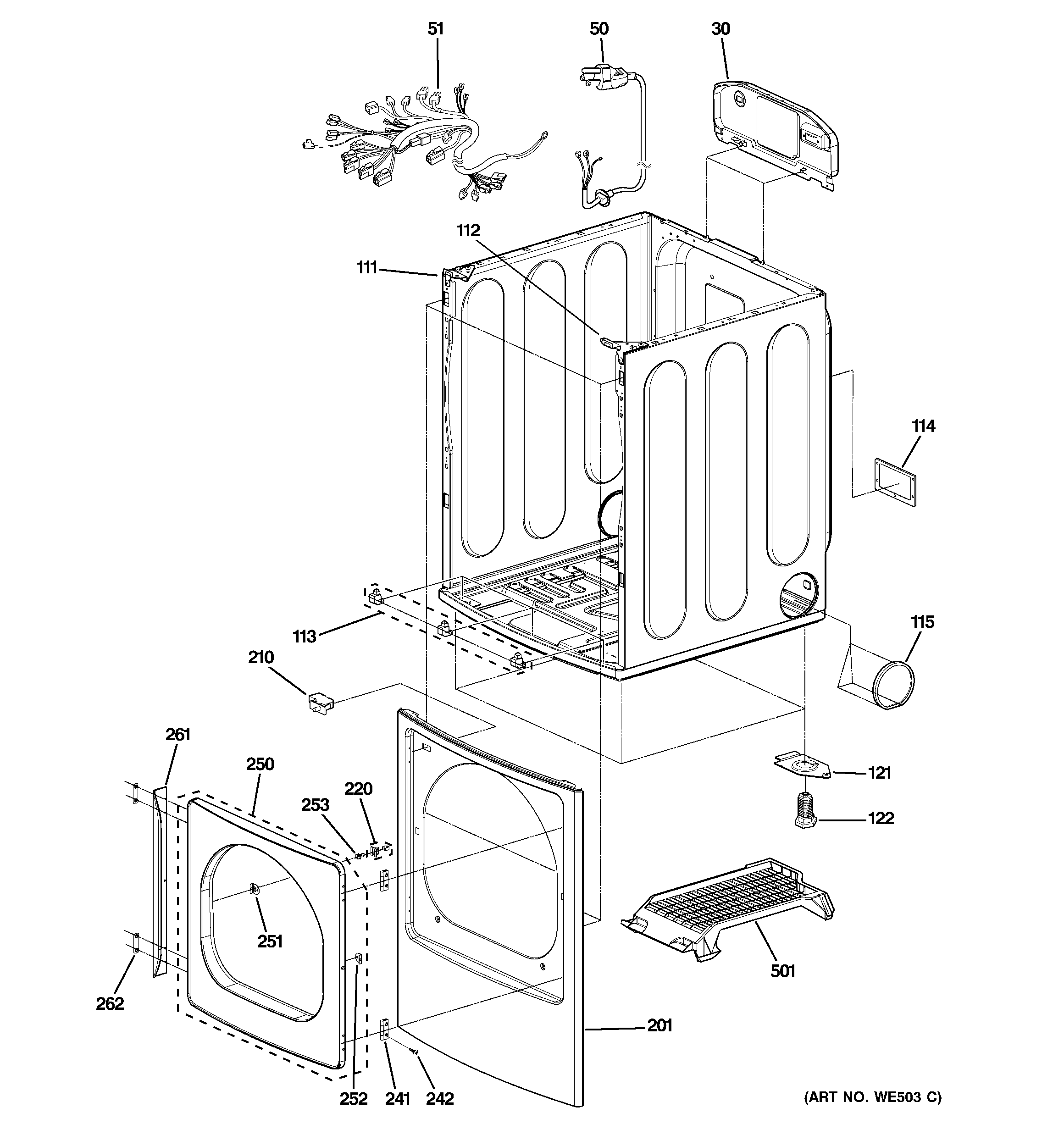

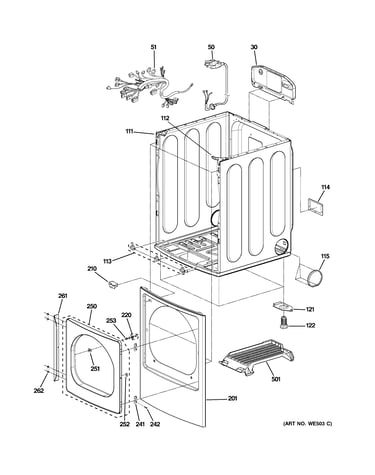

Cabinet, front panel & door diagram

Screw

Part #WE02X10060

This item is not returnable
$4.35
In Stock
Dryer Thermistor WE04X10114
#471

Drum, motor & blower diagram

Dryer thermistor

Part #WE04X10114

$55.09 |
10% OFF Phone Price : $61.09
In Stock
Dryer Temperature Sensor WE04X10111
#272

Drum, motor & blower diagram

Dryer temperature sensor

Part #WE04X10111

$65.99 |
8% OFF Phone Price : $71.99
In Stock
