Model # YMMV5208WB1 Official Maytag 2.0 cubic foot microwave/hood combo
Here are the diagrams and repair parts for Official Maytag YMMV5208WB1 2.0 cubic foot microwave/hood combo, as well as links to manuals and error code tables, if available.
By Schematic

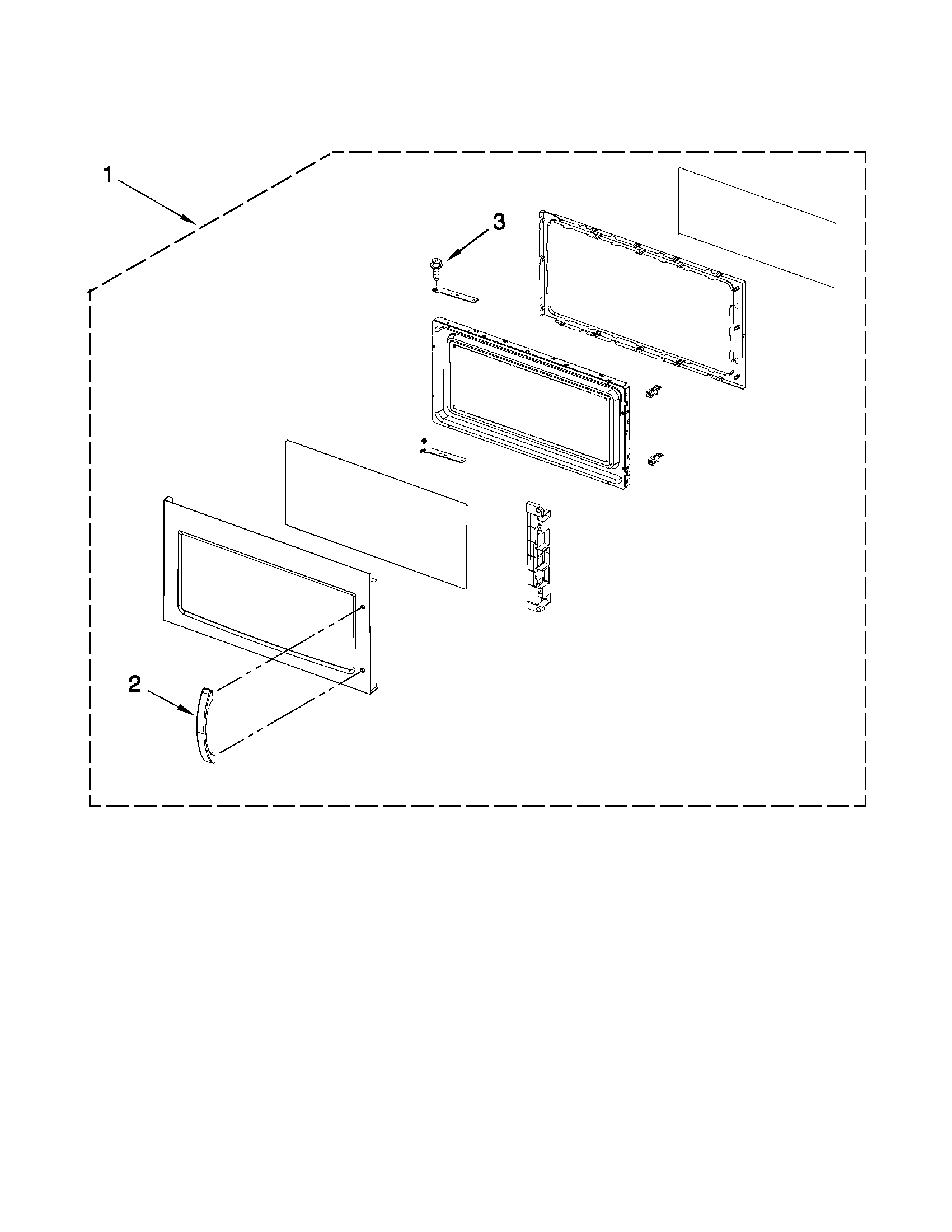

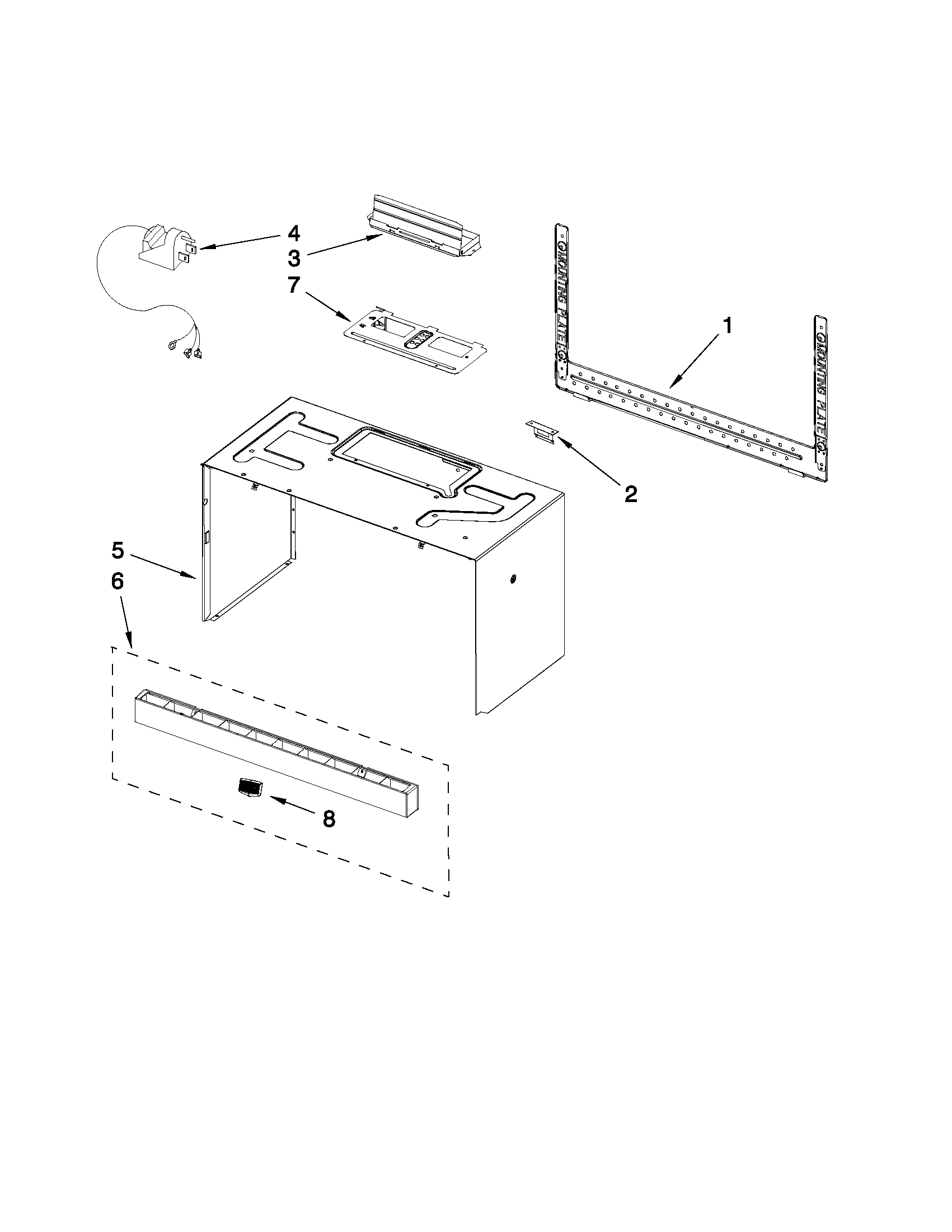

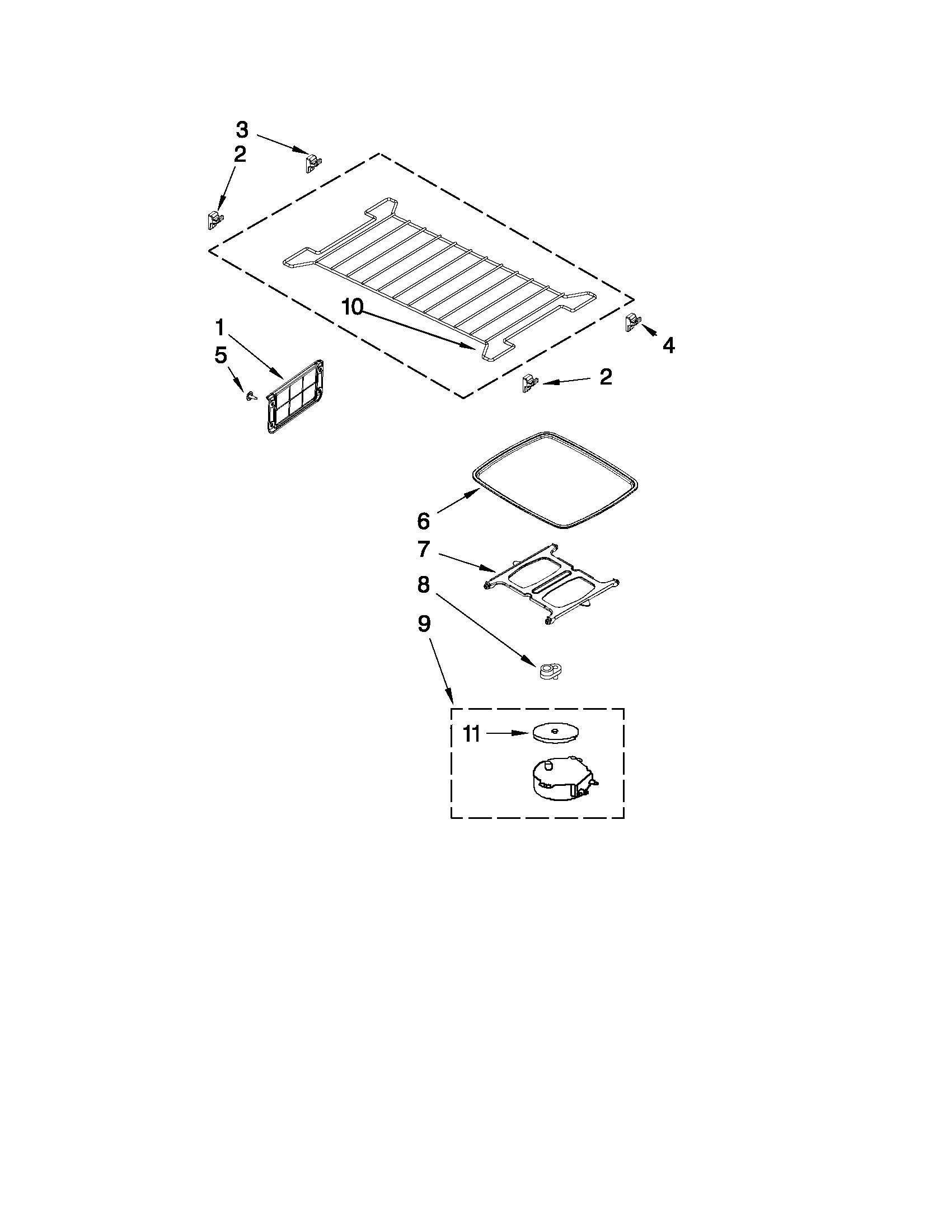

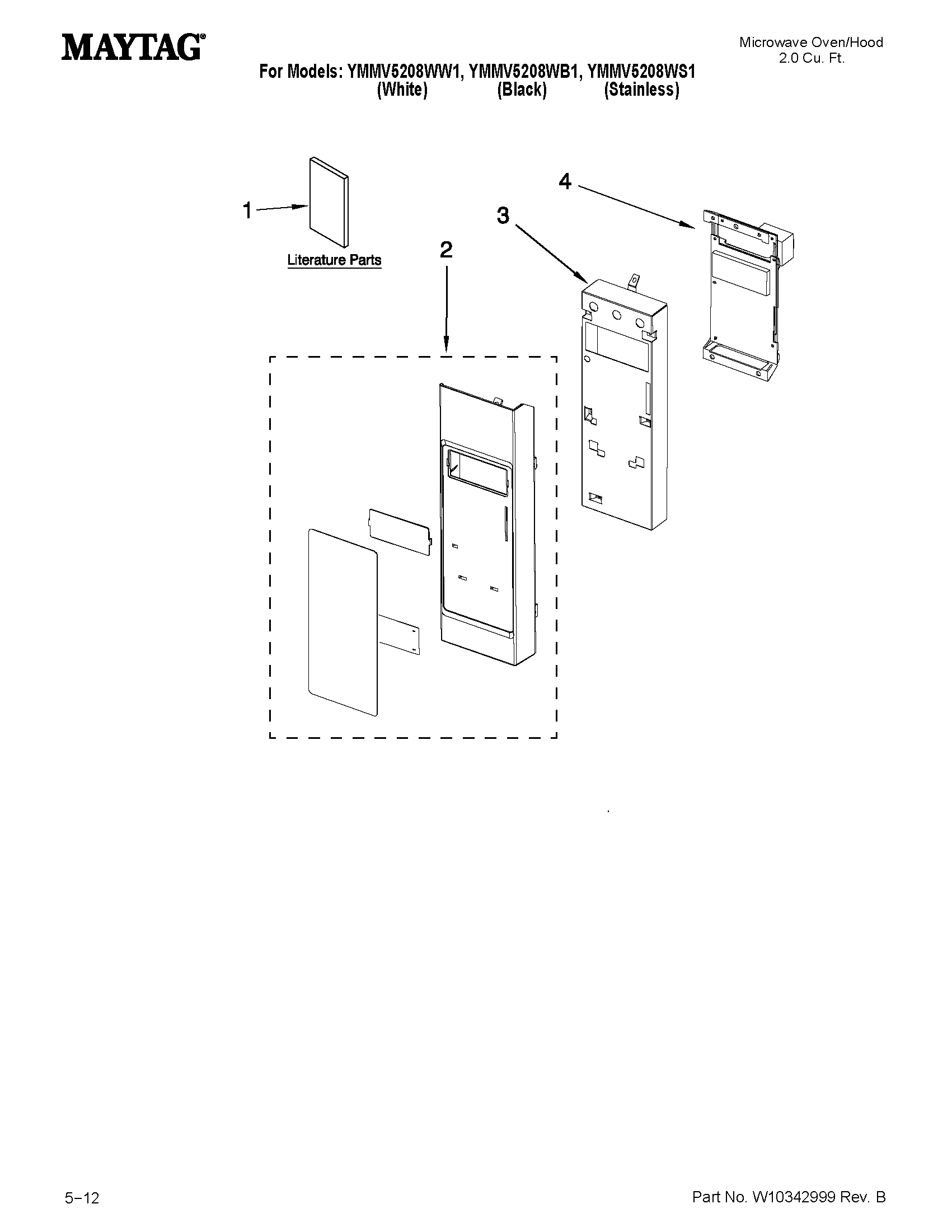

SELECT DIAGRAM
Browse Parts for
YMMV5208WB1 2.0 Cubic Foot Microwave/Hood Combo
#26

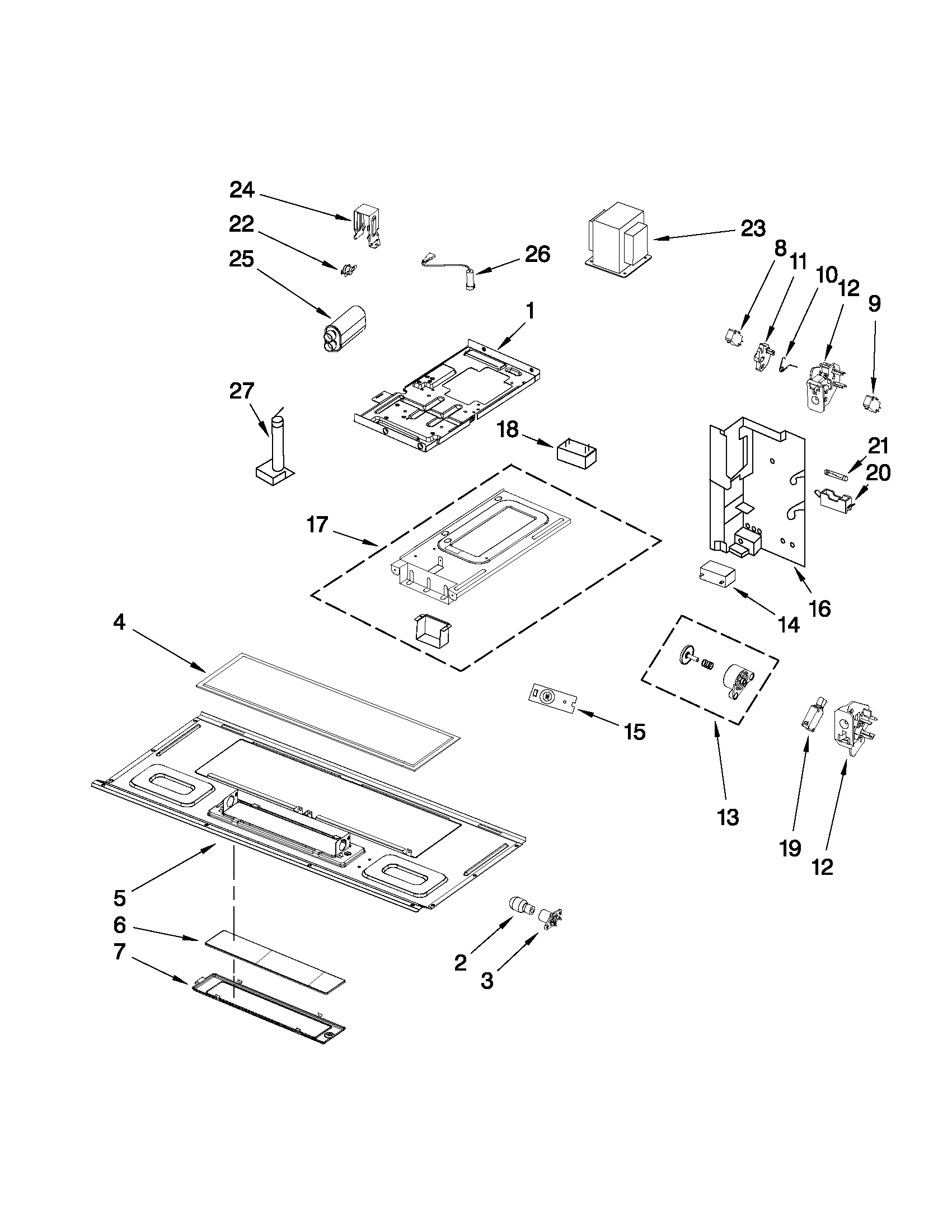

Interior and ventilation parts diagram
Diode
Part #W10245187
Replaced by #W11256462
?
Manufacturer substitution
This part replaces W10245187. Substitute parts can look different from the original.
$24.65 |
20% OFF Phone Price : $30.65
In Stock
#8
Interior and ventilation parts diagram
Microwave door switch
Part #W10269457
Replaced by #W10727360
?
Manufacturer substitution
This part replaces W10269457. Substitute parts can look different from the original.
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
#2
Interior and ventilation parts diagram
Microwave/hood light bulb
Part #8206232
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
$8.12 |
11% OFF Phone Price : $9.12
In Stock
#4

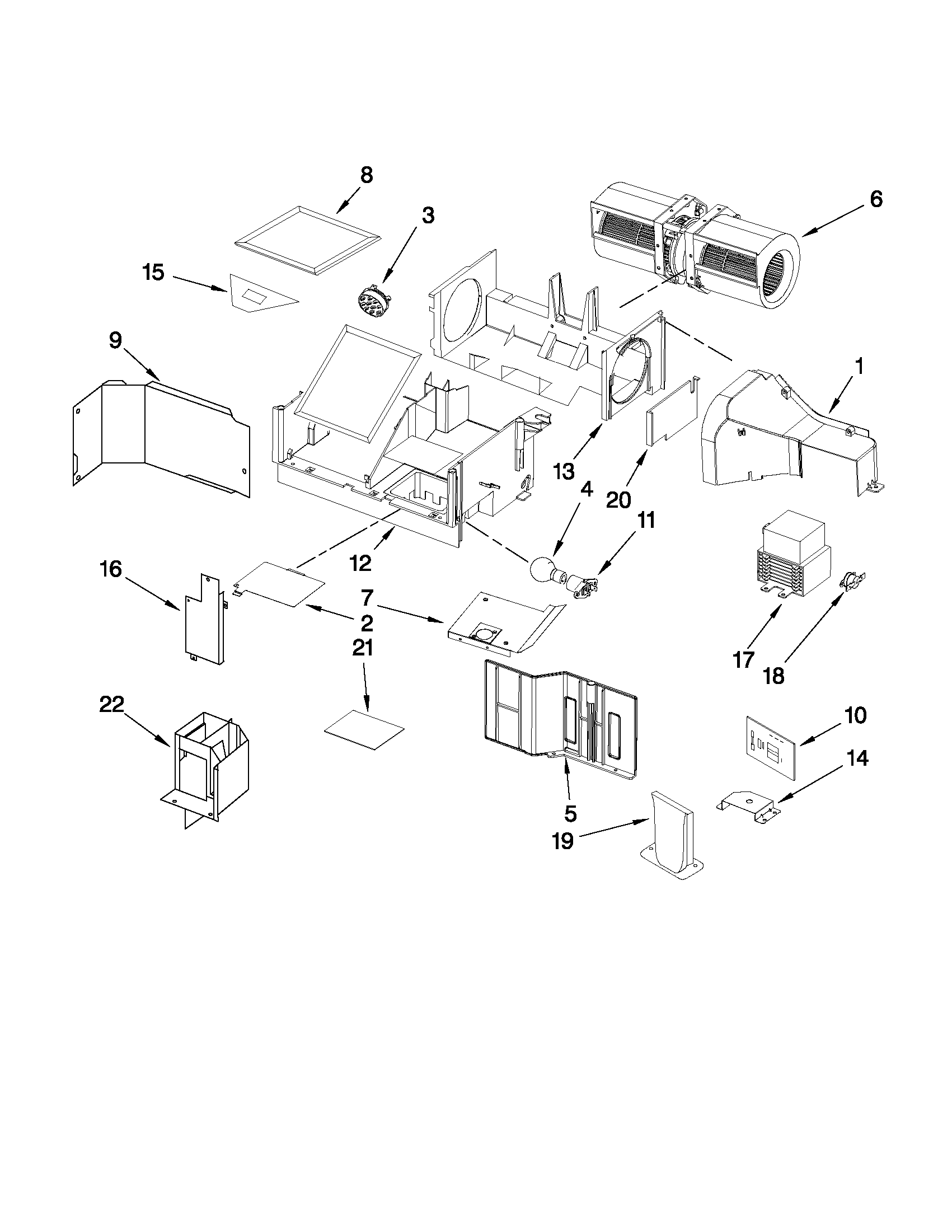

Air flow parts diagram
Lamp assembly
Part #4393681
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
$8.12 |
11% OFF Phone Price : $9.12
In Stock
#12A
Interior and ventilation parts diagram
Interlock
Part #W10156813
Replaced by #WPW10156813
?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
$7.56 |
12% OFF Phone Price : $8.56
In Stock
#19
Interior and ventilation parts diagram
Microwave door interlock switch
Part #W10269460
$39.99 |
13% OFF Phone Price : $45.99
In Stock
#11
Interior and ventilation parts diagram
Cam plate
Part #W10156811
Replaced by #W10562613
?
Manufacturer substitution
This part replaces W10156811. Substitute parts can look different from the original.
$11.59 |
15% OFF Phone Price : $13.59
In Stock
#10
Interior and ventilation parts diagram
Microwave door interlock spring
Part #W10156812
$7.73 |
11% OFF Phone Price : $8.73
In Stock
#12
Interior and ventilation parts diagram
Microwave door interlock support, upper
Part #8206419
$51.02
In Stock
#3
Interior and ventilation parts diagram
Microwave light socket
Part #W10210871
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
