Craftsman
Power Drill

Model # 315105040 Official Craftsman 1/2" electric drill

Here are the diagrams and repair parts for Official Craftsman 315105040 1/2" electric drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Gear Housing 998694-203
#12

Gear assembly diagram

Gear housing

Part #998694-203

The manufacturer no longer makes this part, and there's no substitute part

Spade Handle 616920-001
#1

Gear assembly diagram

Spade handle

Part #616920-001

The manufacturer no longer makes this part, and there's no substitute part

Spacer 998683-001
#17

Gear assembly diagram

Spacer

Part #998683-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 613150-003
#22

Gear assembly diagram

Screw

Part #613150-003

The manufacturer no longer makes this part, and there's no substitute part

F Clutch 998682-003
#15

Gear assembly diagram

F clutch

Part #998682-003

The manufacturer no longer makes this part, and there's no substitute part

Auto-chuck 998685-001
#21

Gear assembly diagram

Auto-chuck

Part #998685-001

The manufacturer no longer makes this part, and there's no substitute part

Lead W/term 998724-004
#18

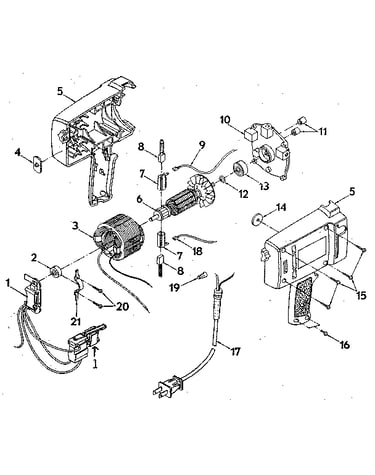

Housing assembly diagram

Lead w/term

Part #998724-004

The manufacturer no longer makes this part, and there's no substitute part

Field 998677-001
#3

Housing assembly diagram

Field

Part #998677-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Brg 999965-002
#13

Housing assembly diagram

Ball brg

Part #999965-002

The manufacturer no longer makes this part, and there's no substitute part

Lead W/term 998724-003
#9

Housing assembly diagram

Lead w/term

Part #998724-003

The manufacturer no longer makes this part, and there's no substitute part
