Model # MR40E1 Official Frigidaire dehumidifier - lf34587010

Here are the diagrams and repair parts for Official Frigidaire MR40E1 dehumidifier - lf34587010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Lens 8012705
#4

Cabinet parts diagram

Lens

Part #8012705

This item is not returnable
$2.29
In Stock
Kenmore Consnsr Coil 3015167
#13

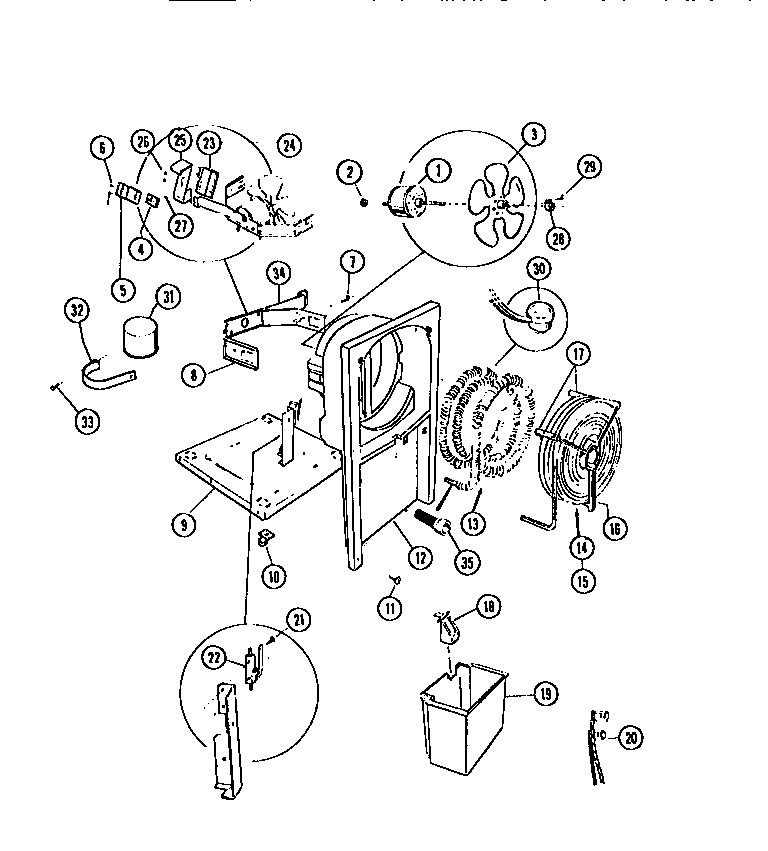

Unit parts diagram

Kenmore consnsr coil

Part #3015167

$67.49
In Stock
Bracket, Contl. 8016440
#25

Unit parts diagram

Bracket, contl.

Part #8016440

The manufacturer no longer makes this part, and there's no substitute part

Escutchn, Dial Plate 8017382
#3

Cabinet parts diagram

Escutchn, dial plate

Part #8017382

The manufacturer no longer makes this part, and there's no substitute part

Condenser Asm. 8016452
#13

Unit parts diagram

Condenser asm.

Part #8016452

The manufacturer no longer makes this part, and there's no substitute part

Grommet Compr Mtg 8017300
#7

Compressor-no parts list diagram

Grommet compr mtg

Part #8017300

The manufacturer no longer makes this part, and there's no substitute part

Nut 8012645
#9

Compressor diagram

Nut

Part #8012645

The manufacturer no longer makes this part, and there's no substitute part

Screw 8010919
#7

Cabinet parts diagram

Screw

Part #8010919

The manufacturer no longer makes this part, and there's no substitute part

Relay, Asm. 8014144
#5

Compressor diagram

Relay, asm.

Part #8014144

The manufacturer no longer makes this part, and there's no substitute part

Control 3015195
#30

Unit parts diagram

Control

Part #3015195

The manufacturer no longer makes this part, and there's no substitute part
