Makita
Power Drill

Model # 6407 Official Makita drill

Here are the diagrams and repair parts for Official Makita 6407 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Power Tool Power Cord Strain Relief 682502-4
#17A

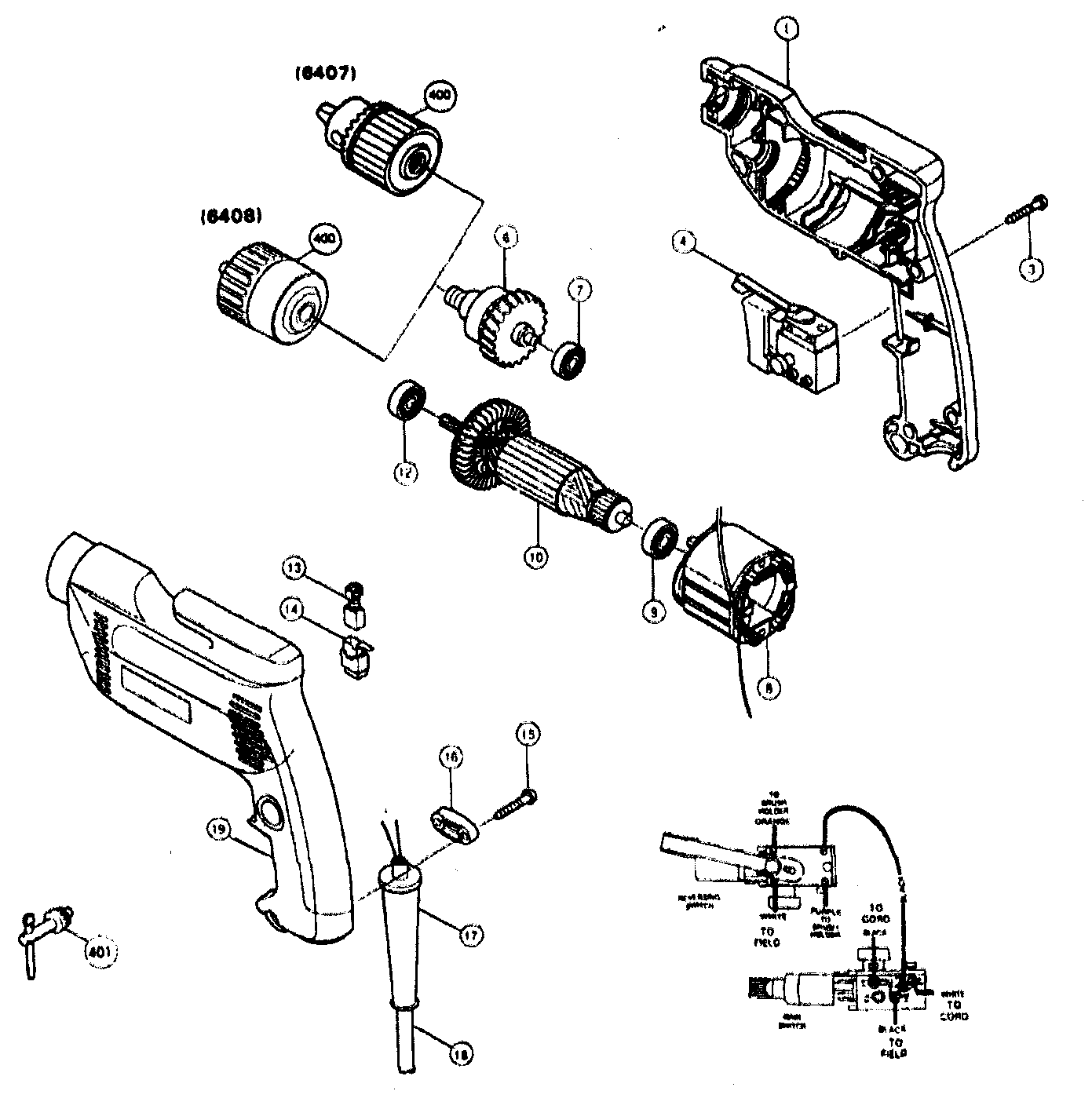

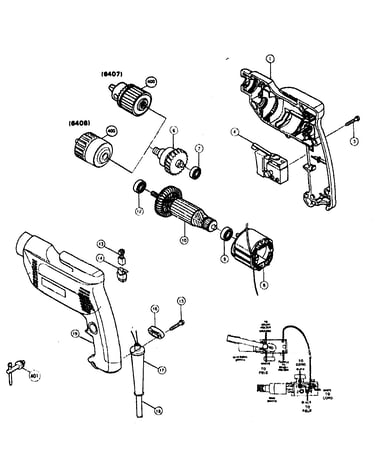

Drill diagram

Power tool power cord strain relief

Part #682502-4

The manufacturer no longer makes this part, and there's no substitute part

Bearing 211020-1
#7

Drill diagram

Bearing

Part #211020-1

The manufacturer no longer makes this part, and there's no substitute part

Housing Set 182862-9
#1

Drill diagram

Housing set

Part #182862-9

The manufacturer no longer makes this part, and there's no substitute part

Spindle Assembly 153246-8
#6

Drill diagram

Spindle assembly

Part #153246-8

The manufacturer no longer makes this part, and there's no substitute part

Guard Cord 682549-8
#17

Drill diagram

Guard cord

Part #682549-8

The manufacturer no longer makes this part, and there's no substitute part

Field 633336-8
#8

Drill diagram

Field

Part #633336-8

The manufacturer no longer makes this part, and there's no substitute part

Armature 517196-5
#10

Drill diagram

Armature

Part #517196-5

The manufacturer no longer makes this part, and there's no substitute part

Bearing 211030-8
Bearing

Part #211030-8

The manufacturer no longer makes this part, and there's no substitute part

Chuck 763109-6
#400A

Drill diagram

Chuck

Part #763109-6

The manufacturer no longer makes this part, and there's no substitute part

Switch 651935-4
#4

Drill diagram

Switch

Part #651935-4

The manufacturer no longer makes this part, and there's no substitute part
