Craftsman
Gas Walk-Behind Mower

Model # 917377665 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917377665 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 274 parts  |
Spring 188291
#52

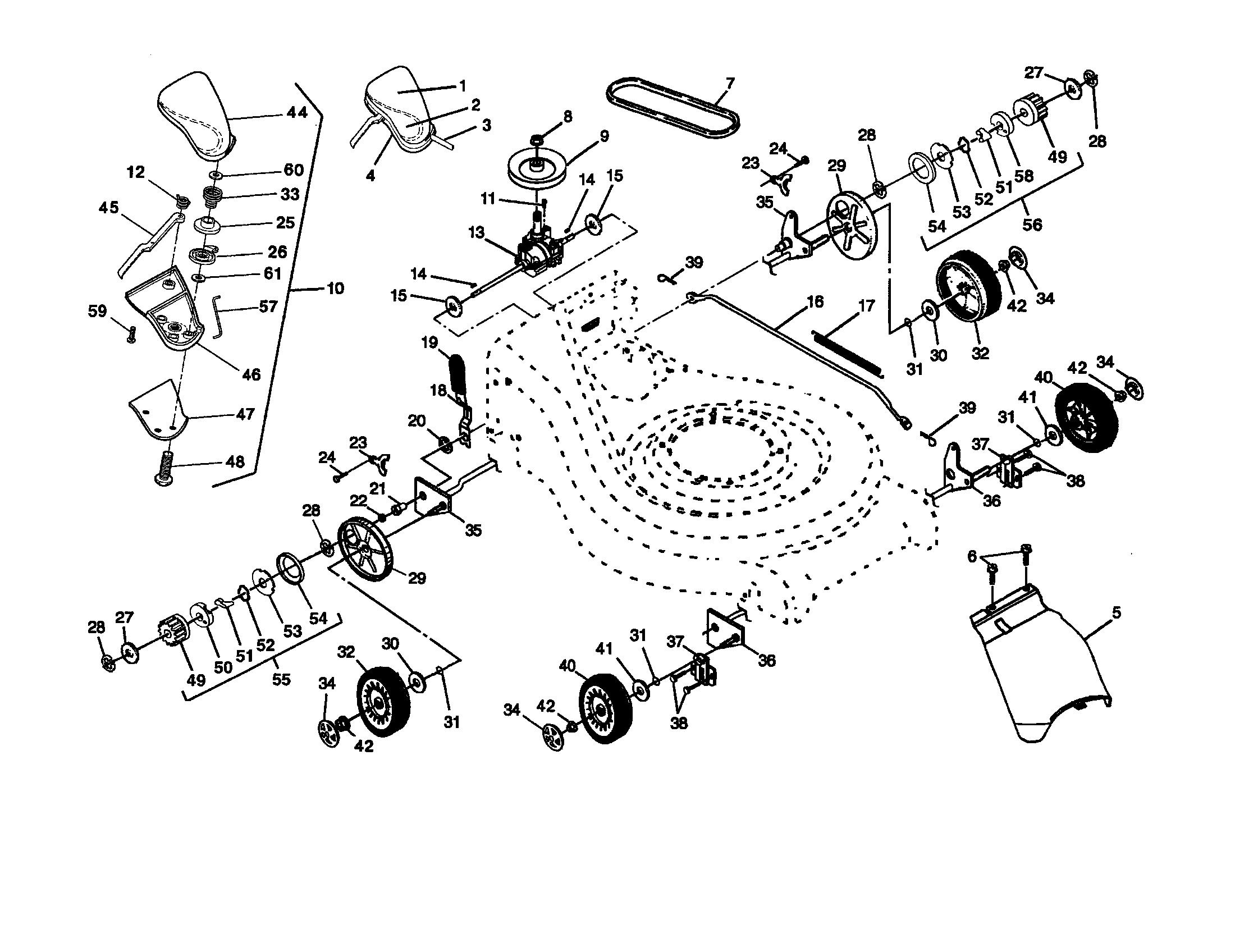

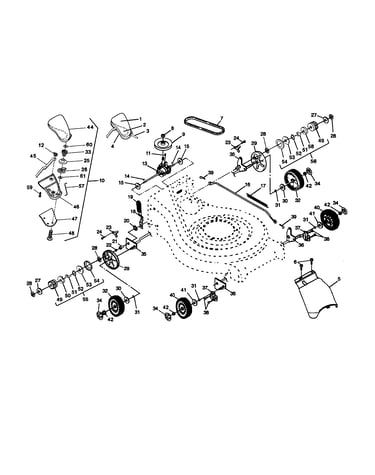

Drive control/wheels/gear case diagram

Spring

Part #188291

Replaced by #532188291

?
Manufacturer substitution
This part replaces 188291. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Nut 132004
#5

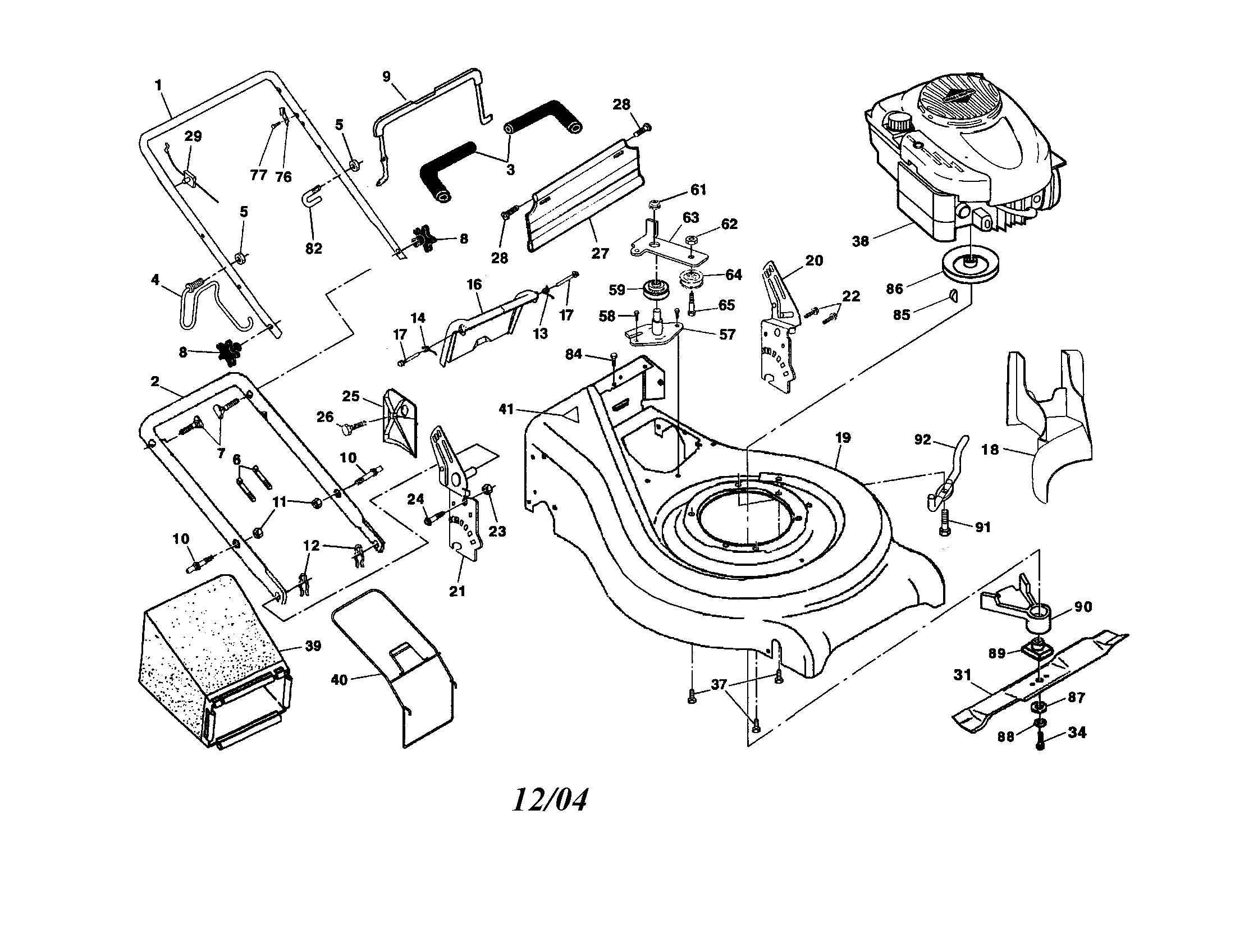

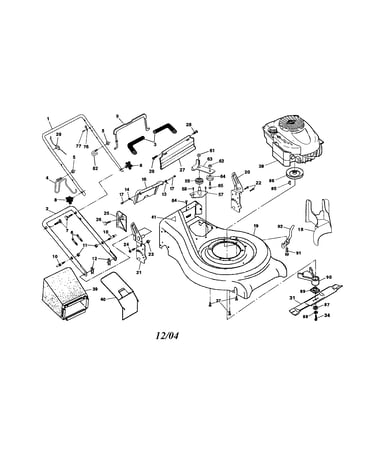

Handle/engine/housing/grassbag diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#28

Handle/engine/housing/grassbag diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Cable.mzr.60 182755
#29

Handle/engine/housing/grassbag diagram

Cable.mzr.60

Part #182755

Replaced by #532183567

?
Manufacturer substitution
This part replaces 182755. Substitute parts can look different from the original.
$19.98 |
9% OFF Phone Price : $21.98
In Stock
Lawn Mower Drive Wheel 180545
#32

Drive control/wheels/gear case diagram

Lawn mower drive wheel

Part #180545

Replaced by #532193139

?
Manufacturer substitution
This part replaces 180545. Substitute parts can look different from the original.
$54.98 |
10% OFF Phone Price : $60.98
In Stock
American Yard Products Lawn Mower Anti-fold Bracket 186079
#4

Handle/engine/housing/grassbag diagram

American yard products lawn mower anti-fold bracket

Part #186079

Replaced by #586122501

?
Manufacturer substitution
This part replaces 186079. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#28

Drive control/wheels/gear case diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Lawn Mower Drive Pawl (replaces 532175098, 5321750-98) 175098
#51

Drive control/wheels/gear case diagram

Lawn mower drive pawl (replaces 532175098, 5321750-98)

Part #175098

Replaced by #532175098

?
Manufacturer substitution
This part replaces 175098. Substitute parts can look different from the original.
$8.54
In Stock
Lawn Mower Idler Pulley 166043
#64

Handle/engine/housing/grassbag diagram

Lawn mower idler pulley

Part #166043

Replaced by #532166043

?
Manufacturer substitution
This part replaces 166043. Substitute parts can look different from the original.
$37.31
In Stock
American Yard Products Lawn & Garden Equipment Washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384) 88348
#41

Drive control/wheels/gear case diagram

American yard products lawn & garden equipment washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384)

Part #88348

Replaced by #532088348

?
Manufacturer substitution
This part replaces 88348. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
