Craftsman
Reciprocating Saw

Model # 172231090 Official Craftsman reciprocating saw

Here are the diagrams and repair parts for Official Craftsman 172231090 reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Inner Wire SB09.4.03-20
#61

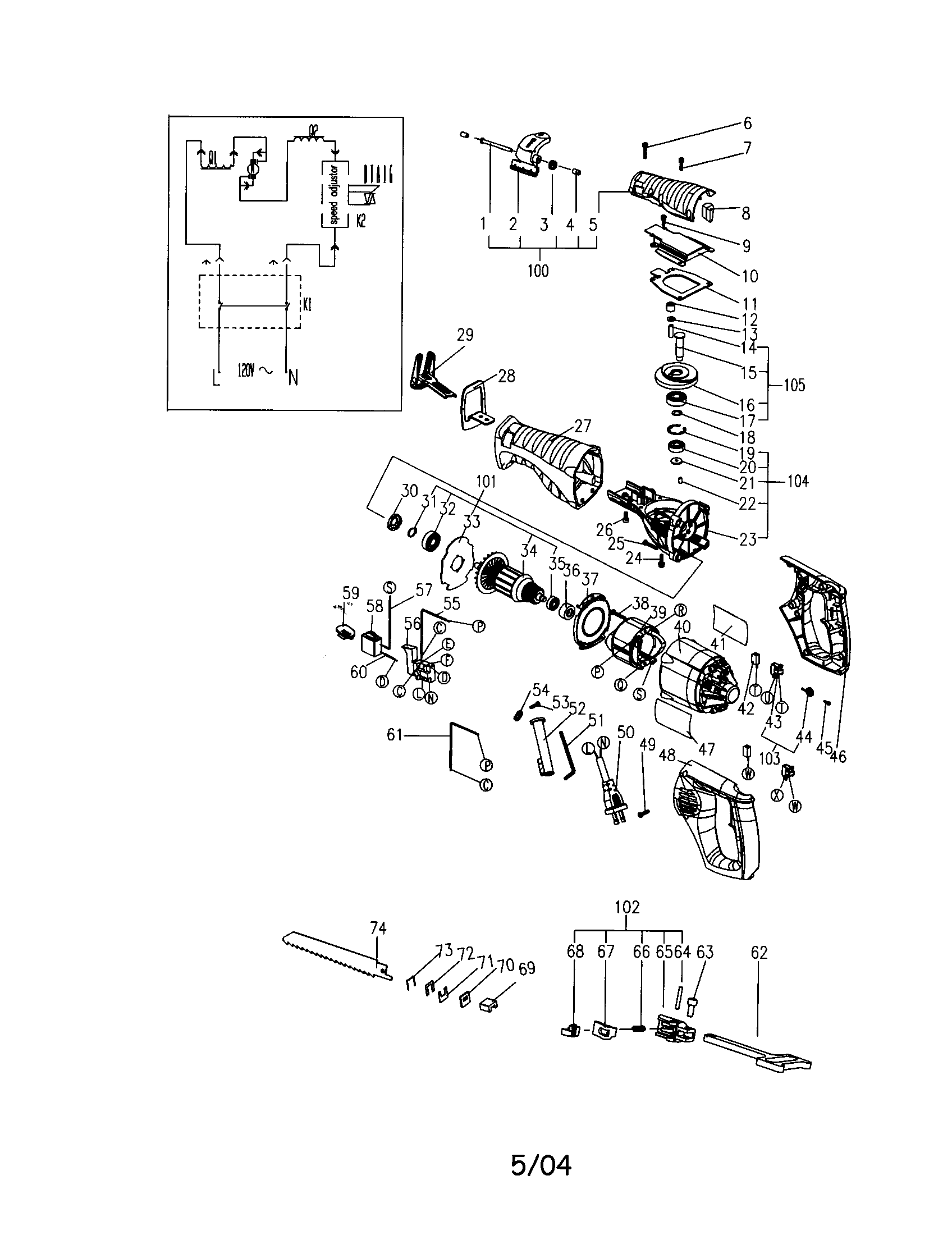

Reciprocating saw diagram

Inner wire

Part #SB09.4.03-20

The manufacturer no longer makes this part, and there's no substitute part

Bearing ST04.02.05-15
#20

Reciprocating saw diagram

Bearing

Part #ST04.02.05-15

The manufacturer no longer makes this part, and there's no substitute part

Brand ST04.02.05-22
#41

Reciprocating saw diagram

Brand

Part #ST04.02.05-22

The manufacturer no longer makes this part, and there's no substitute part

Plate SB09.4.00-10
#33

Reciprocating saw diagram

Plate

Part #SB09.4.00-10

The manufacturer no longer makes this part, and there's no substitute part

Sleeve SB09.4.00-11
#36

Reciprocating saw diagram

Sleeve

Part #SB09.4.00-11

The manufacturer no longer makes this part, and there's no substitute part

Spring ST04.02.05-09
#2

Reciprocating saw diagram

Spring

Part #ST04.02.05-09

The manufacturer no longer makes this part, and there's no substitute part

Brake Pin SB09.4.03-07
#22

Reciprocating saw diagram

Brake pin

Part #SB09.4.03-07

The manufacturer no longer makes this part, and there's no substitute part

Stator SB09.4.00-12
#39

Reciprocating saw diagram

Stator

Part #SB09.4.00-12

The manufacturer no longer makes this part, and there's no substitute part

Spring ST04.02.05-23
#44

Reciprocating saw diagram

Spring

Part #ST04.02.05-23

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Motor Brush SB09.4.00-13
#42

Reciprocating saw diagram

Reciprocating saw motor brush

Part #SB09.4.00-13

The manufacturer no longer makes this part, and there's no substitute part
