Model # JAS640RM5SS Official GE free standing electric range

Here are the diagrams and repair parts for Official GE JAS640RM5SS free standing electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

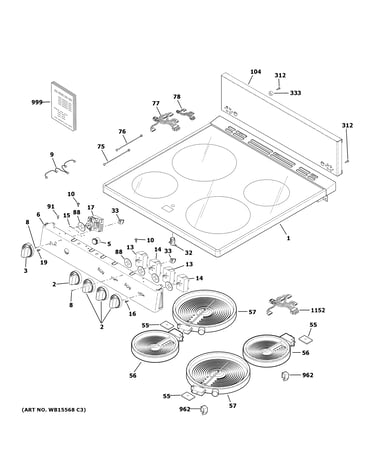

Control panel & cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$85.47 |
7% OFF Phone Price : $91.47
In Stock
Range Oven Control Thermostat WB24X21192
#17

Control panel & cooktop diagram

Range oven control thermostat

Part #WB24X21192

BEST SELLER
$71.49 |
8% OFF Phone Price : $77.49
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#230

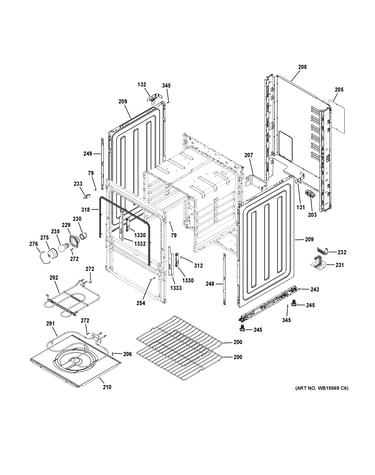

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Bumper WB02K0015
#320

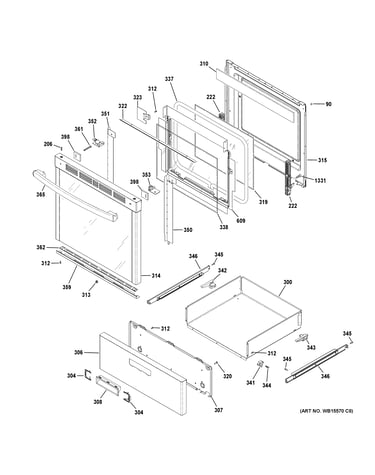

Door & drawer parts diagram

Bumper

Part #WB02K0015

Replaced by #WB2K15

?
Manufacturer substitution
This part replaces WB02K0015. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Lens WB25K10009
#8

Control panel & cooktop diagram

Lens

Part #WB25K10009

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01X30915
#344

Door & drawer parts diagram

Screw

Part #WB01X30915

$8.11
In Stock
Knob WB03X30928
#2

Control panel & cooktop diagram

Knob

Part #WB03X30928

$35.09 |
15% OFF Phone Price : $41.09
In Stock
Switch Infinite WB24X31917
#13

Control panel & cooktop diagram

Switch infinite

Part #WB24X31917

$28.24 |
18% OFF Phone Price : $34.24
In Stock
Screw WB01X1261
#91

Control panel & cooktop diagram

Screw

Part #WB01X1261

Replaced by #WB1X1261

?
Manufacturer substitution
This part replaces WB01X1261. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Thermostat Screw WB01K0008
#19

Control panel & cooktop diagram

Thermostat screw

Part #WB01K0008

Replaced by #WB1K8

?
Manufacturer substitution
This part replaces WB01K0008. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
