Model # AZ41E09EACW3 Official GE zoneline air conditioner
Here are the diagrams and repair parts for Official GE AZ41E09EACW3 zoneline air conditioner, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
AZ41E09EACW3 Zoneline Air Conditioner
#1020

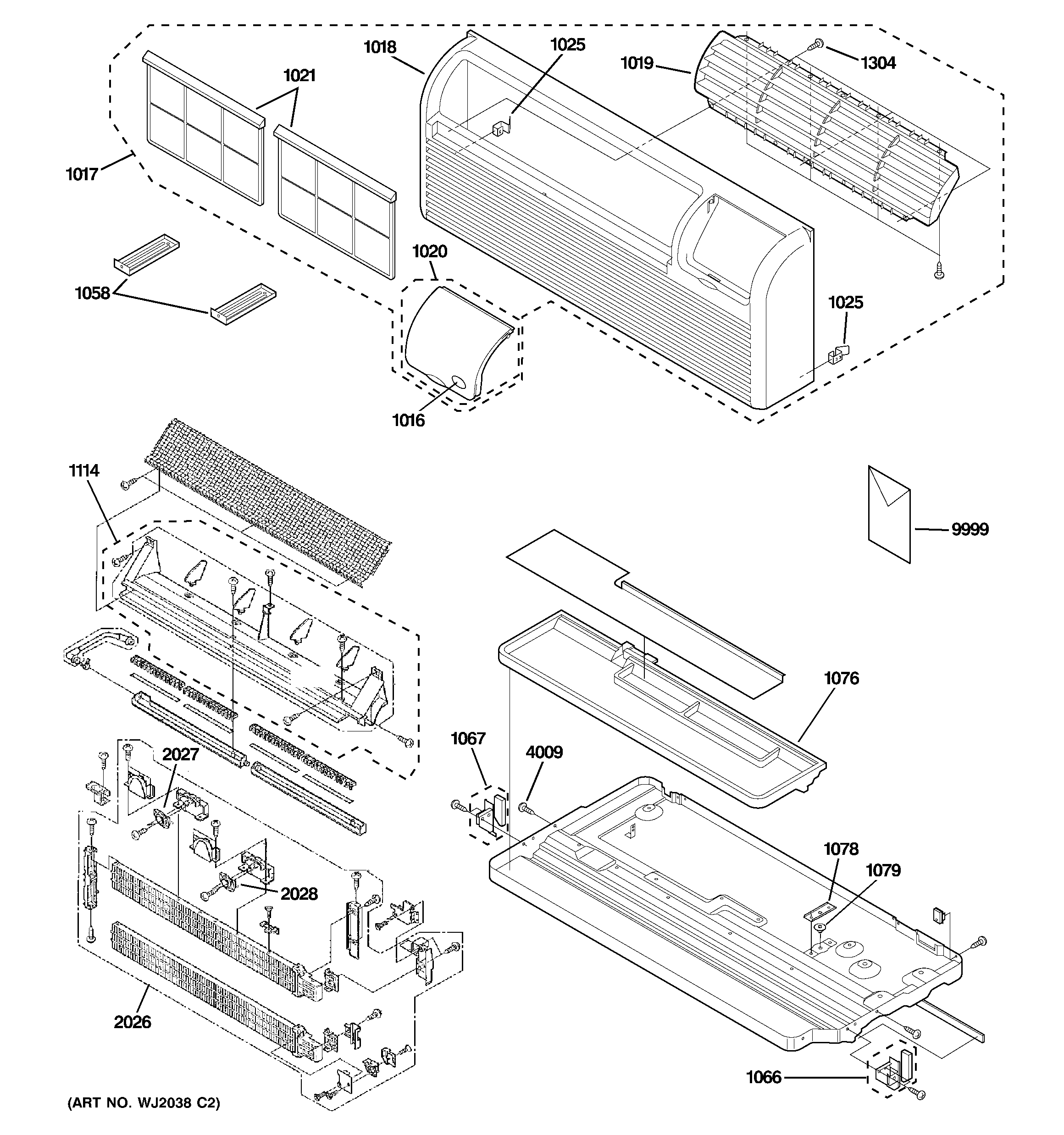

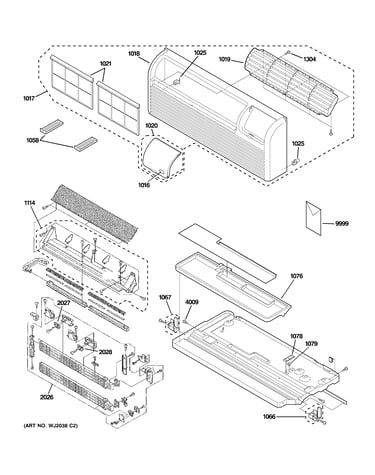

Grille, heater & base pan parts diagram
Room air conditioner control panel door
Part #WP71X10033
$22.20 |
21% OFF Phone Price : $28.20
In Stock
#1025
Grille, heater & base pan parts diagram
Spring
Part #WP02X10001
$9.51
In Stock
#2027
Grille, heater & base pan parts diagram
Room air conditioner heater high-limit thermostat
Part #WP27X10066
$192.16
In Stock
Wire holder
Part #WP03X10029
$8.37
In Stock
#1039

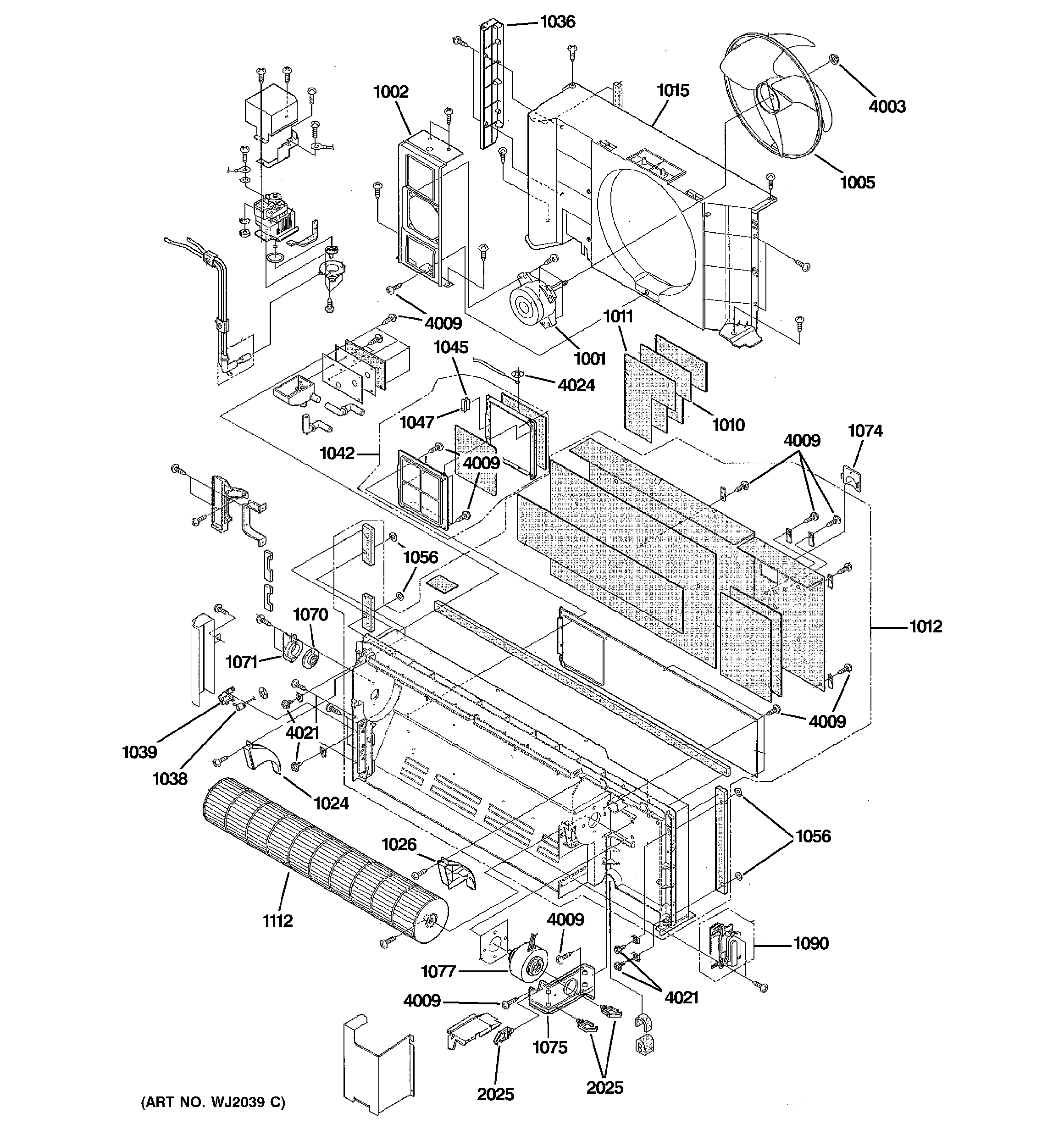

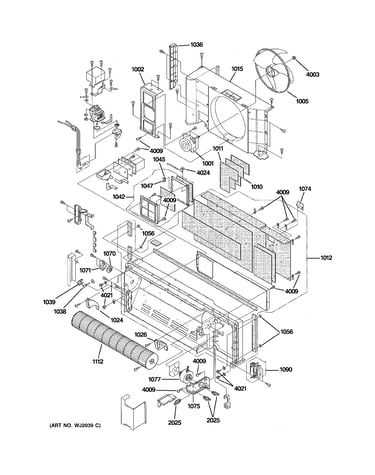

Motor & chassis parts diagram
Damper lever
Part #WP01X10058
$8.37
In Stock
#2016

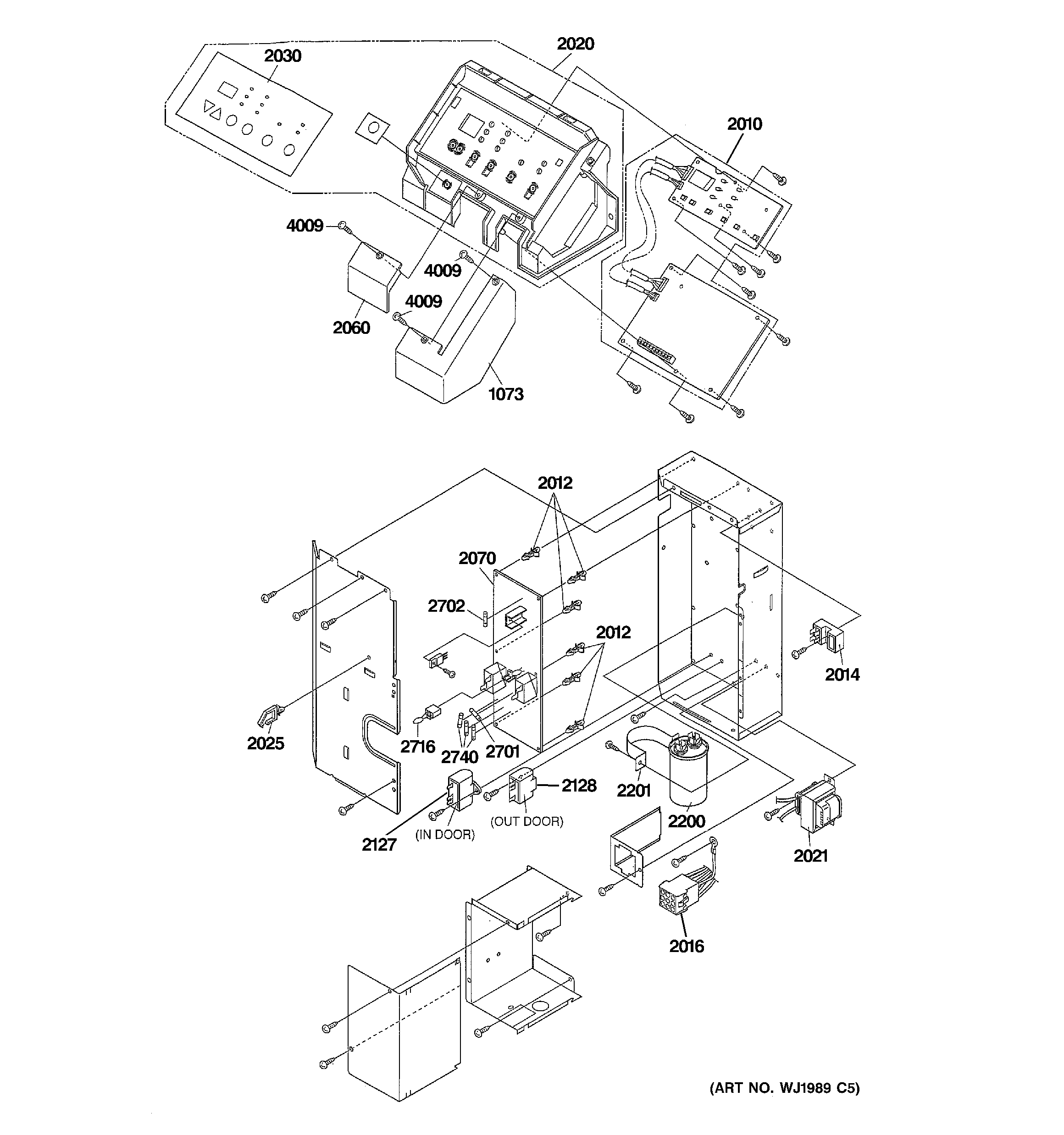

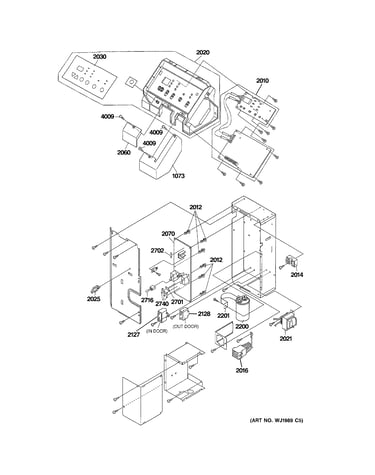

Control parts diagram
Connector
Part #WP03X10026
$100.18
In Stock
#1001
Motor & chassis parts diagram
Out-door fan
Part #WP94X10287
$193.80
In Stock
#2030
Control parts diagram
Sheet control
Part #WP07X10008
$38.60
In Stock
#2003
Unit parts diagram
Capillaly tu
Part #WP56X10037
$11.40
In Stock
#1045
Motor & chassis parts diagram
Magnet
Part #WP01X10001
$10.06
In Stock
