Model # CA3018QKA2 Official ICP cooling condenser

Here are the diagrams and repair parts for Official ICP CA3018QKA2 cooling condenser, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Contactor 1050699
#4

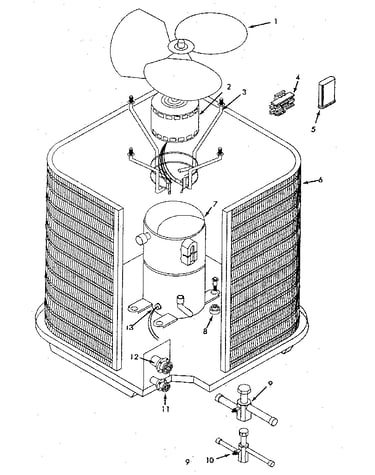

Functional replacement parts diagram

Contactor

Part #1050699

Replaced by #94-388

?
Manufacturer substitution
This part replaces 1050699. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Serv Valve 1052923
#10

Functional replacement parts diagram

Serv valve

Part #1052923

Replaced by #1080999

?
Manufacturer substitution
This part replaces 1052923. Substitute parts can look different from the original.
$127.30
In Stock
Central Air Conditioner Condenser Fan Motor, 1/6-hp (replaces 1068865) 1052662
#2B

Functional replacement parts diagram

Central air conditioner condenser fan motor, 1/6-hp (replaces 1068865)

Part #1052662

$182.64 |
6% OFF Phone Price : $194.64
In Stock
Serv Valve 1052652
#9

Functional replacement parts diagram

Serv valve

Part #1052652

Replaced by #1080995

?
Manufacturer substitution
This part replaces 1052652. Substitute parts can look different from the original.
$176.28
In Stock
Fan Blade 1050832
#1B

Functional replacement parts diagram

Fan blade

Part #1050832

Replaced by #1085958

?
Manufacturer substitution
This part replaces 1050832. Substitute parts can look different from the original.
$127.74 |
9% OFF Phone Price : $139.74
In Stock
Heater 708849
#13

Functional replacement parts diagram

Heater

Part #708849

Replaced by #1053477

?
Manufacturer substitution
This part replaces 708849. Substitute parts can look different from the original.
$152.12
In Stock
Capacitor 1050680
#5

Functional replacement parts diagram

Capacitor

Part #1050680

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 1050698
#1A

Functional replacement parts diagram

Fan blade

Part #1050698

Replaced by #1085684

?
Manufacturer substitution
This part replaces 1050698. Substitute parts can look different from the original.
$91.57
In Stock
Compressor 1052808
#7B

Functional replacement parts diagram

Compressor

Part #1052808

The manufacturer no longer makes this part, and there's no substitute part

C-box Bttm 1052888
#5

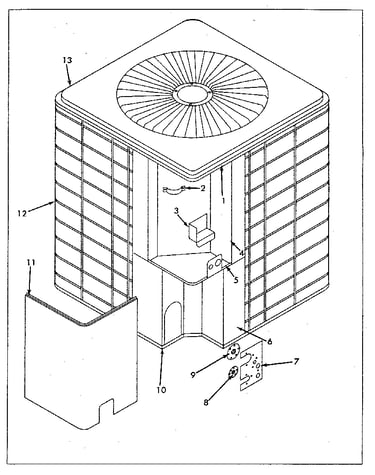

Cabinet diagram

C-box bttm

Part #1052888

The manufacturer no longer makes this part, and there's no substitute part
