Whirlpool
Electric Wall Oven

Model # RB262PXAB2 Official Whirlpool 30" electric wall oven

Here are the diagrams and repair parts for Official Whirlpool RB262PXAB2 30" electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Light Bulb 880010
#15

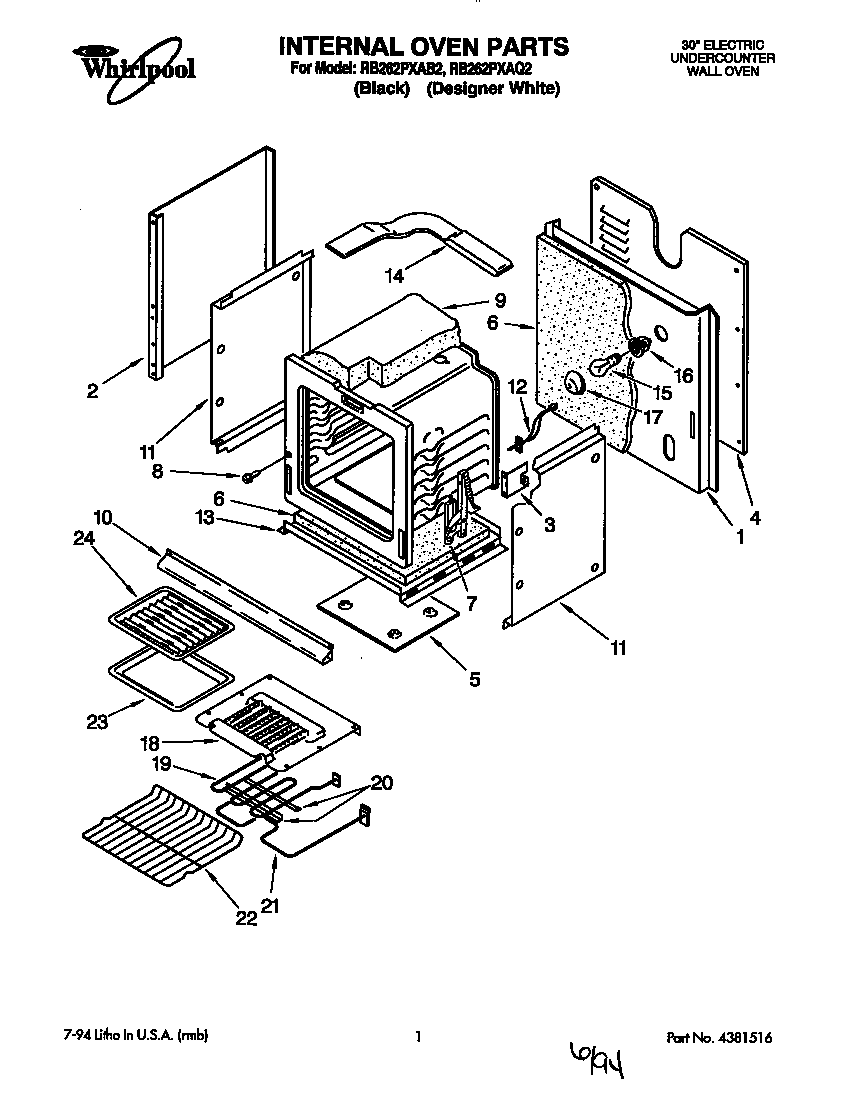

Internal oven diagram

Light bulb

Part #880010

Replaced by #40A15

?
Manufacturer substitution
This part replaces 880010. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Terminal Block 880002
#1

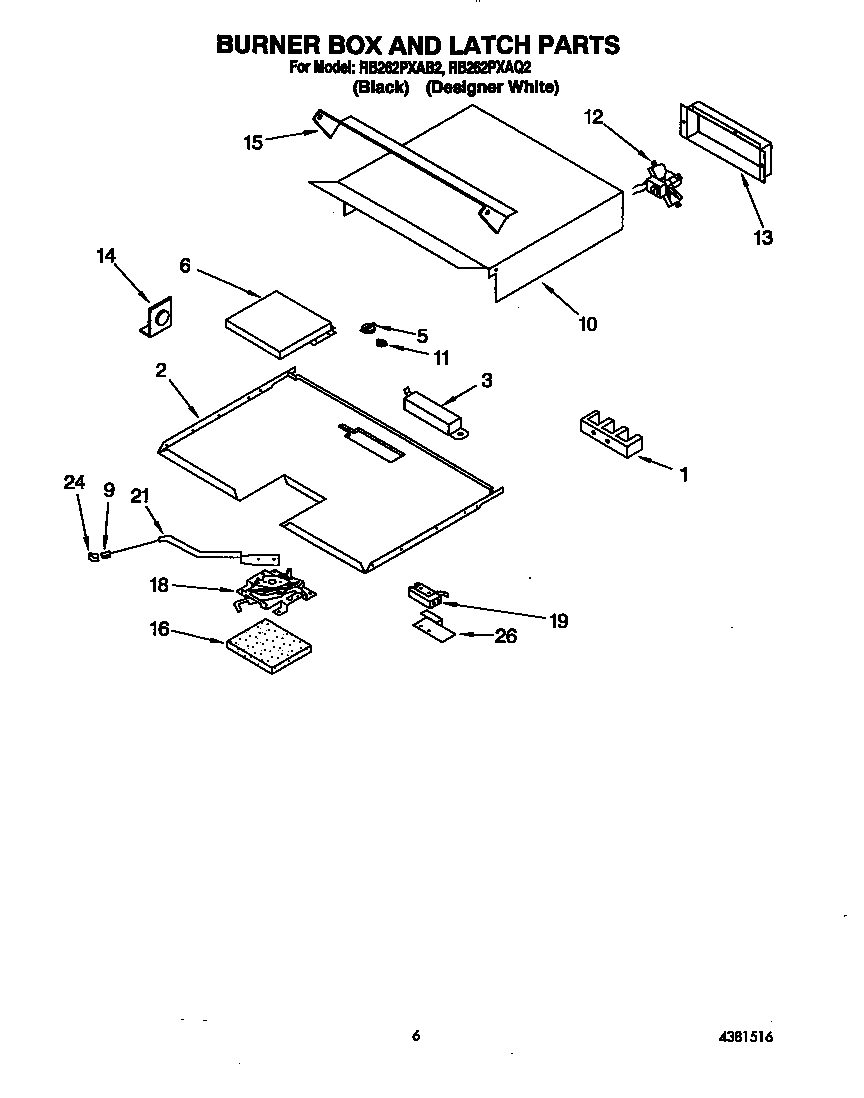

Burner box and latch diagram

Terminal block

Part #880002

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 880002. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Sensor 879368
#12

Internal oven diagram

Sensor

Part #879368

Replaced by #12001656

?
Manufacturer substitution
This part replaces 879368. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Polish Cooktop 3184477

#NI

All parts diagram

Polish cooktop

Part #3184477

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 3184477. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Screw 879451
#8

Internal oven diagram

Screw

Part #879451

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 879451. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831

#NI

All parts diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
Light Switch 879482
#8A

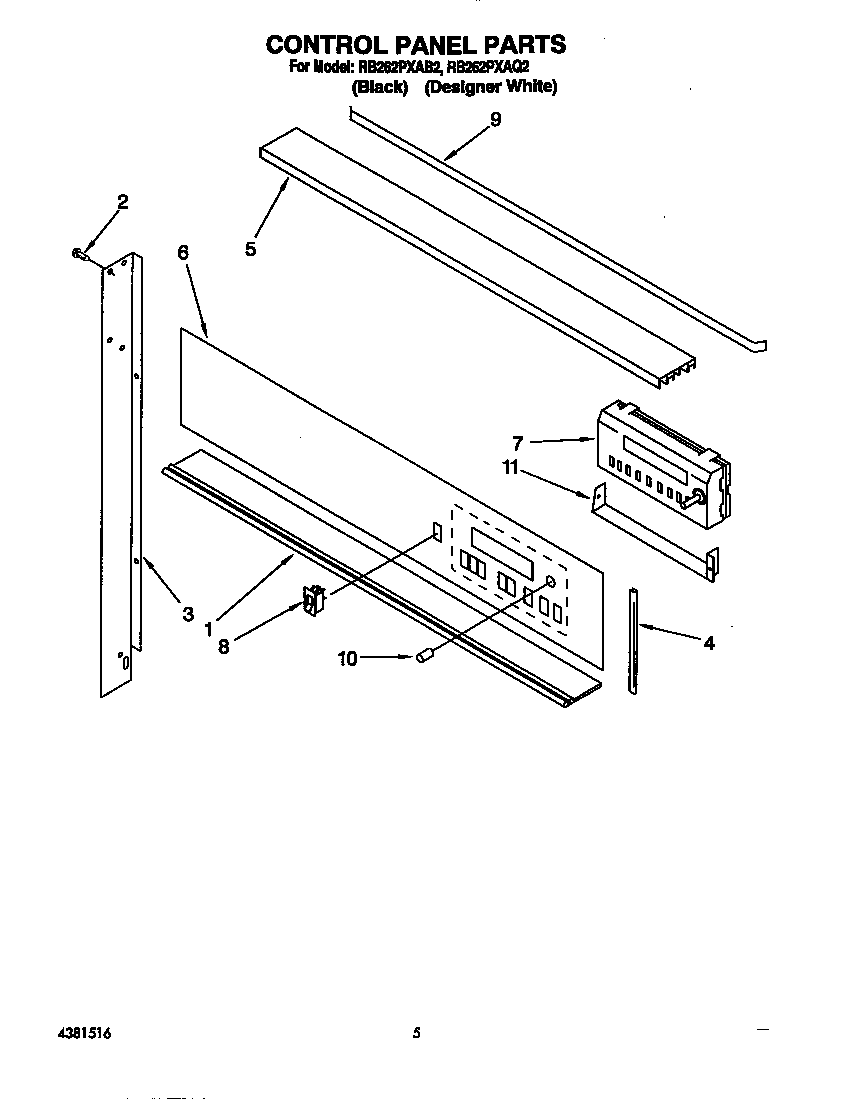

Control panel diagram

Light switch

Part #879482

Replaced by #WP4314961

?
Manufacturer substitution
This part replaces 879482. Substitute parts can look different from the original.
$35.52 |
14% OFF Phone Price : $41.52
In Stock
Light Socket 880009
#16

Internal oven diagram

Light socket

Part #880009

Replaced by #W11594027

?
Manufacturer substitution
This part replaces 880009. Substitute parts can look different from the original.
$56.53 |
10% OFF Phone Price : $62.53
In Stock
Insulation 880023
#6

Internal oven diagram

Insulation

Part #880023

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 880023. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Light Switch 879481
#8B

Control panel diagram

Light switch

Part #879481

Replaced by #WP4314961

?
Manufacturer substitution
This part replaces 879481. Substitute parts can look different from the original.
$35.52 |
14% OFF Phone Price : $41.52
In Stock
