Gas Walk-Behind Mower

Model # 917388022 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388022 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 213 parts  |
Lock Nut 83923
#39

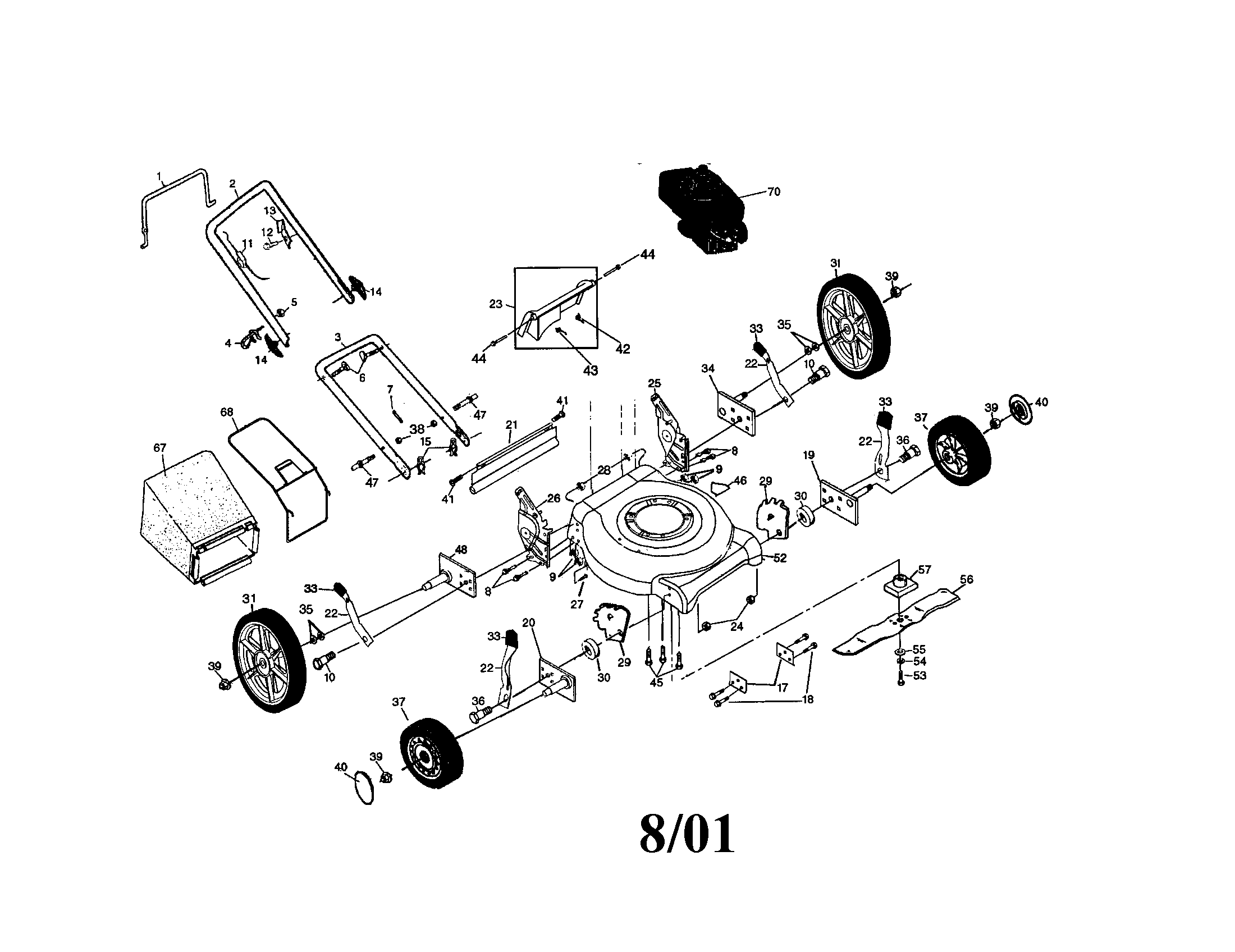

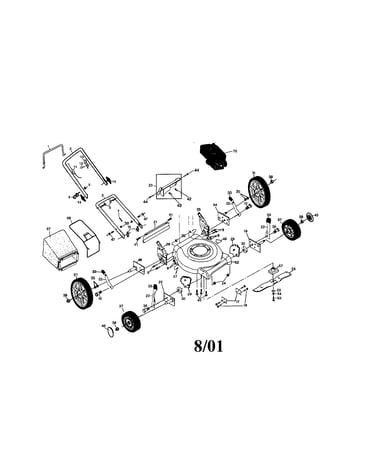

Rotary lawn mower diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Belt, 21-in 175064
#56

Rotary lawn mower diagram

Belt, 21-in

Part #175064

Replaced by #532406712

?
Manufacturer substitution
This part replaces 175064. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.13 |
21% OFF Phone Price : $28.13
In Stock
Handle Knob 136376
#14

Rotary lawn mower diagram

Handle knob

Part #136376

Replaced by #532185577

?
Manufacturer substitution
This part replaces 136376. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Handle Bolt 131959
#6

Rotary lawn mower diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Grass Bag 166113
#67

Rotary lawn mower diagram

Grass bag

Part #166113

Replaced by #532410666

?
Manufacturer substitution
This part replaces 166113. Substitute parts can look different from the original.
BEST SELLER
$66.54 |
8% OFF Phone Price : $72.54
In Stock
Lawn Mower Blade Adapter 851514
#57

Rotary lawn mower diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Rotary lawn mower diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Rope Guide 132001
#4

Rotary lawn mower diagram

Rope guide

Part #132001

Replaced by #586122501

?
Manufacturer substitution
This part replaces 132001. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#33

Rotary lawn mower diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Nut 63124
#28

Rotary lawn mower diagram

Nut

Part #63124

The manufacturer no longer makes this part, and there's no substitute part
