Model # LGB356GEV3WH Official GE gas range

Here are the diagrams and repair parts for Official GE LGB356GEV3WH gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 253 parts  |
40a15bulb STD372401
#257A

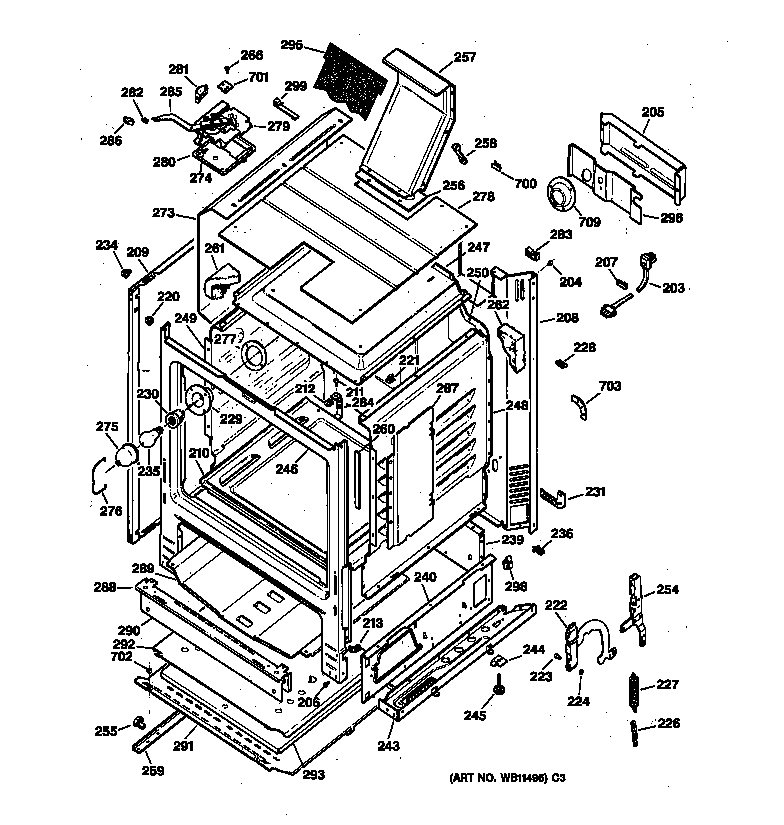

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Surface Burner Igniter (replaces Wb13k0018) WB13K18
#154

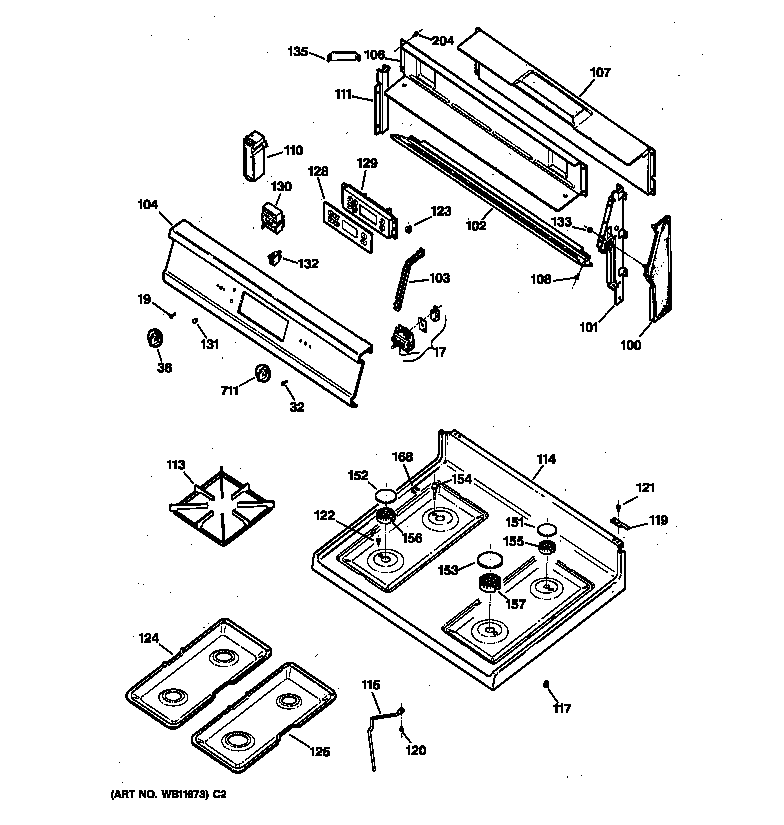

Control panel & cooktop diagram

Range surface burner igniter (replaces wb13k0018)

Part #WB13K18

$31.68 |
16% OFF Phone Price : $37.68
In Stock
Screw WB1K50
#28A

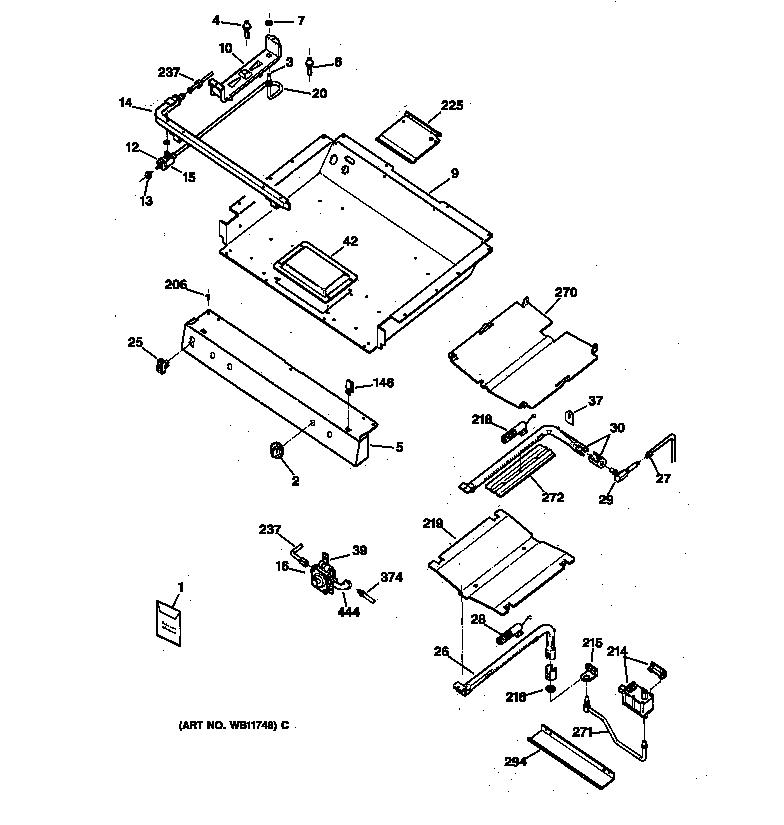

Gas burner parts diagram

Screw

Part #WB1K50

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB1K50. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Igniter Switch WB24K14
#12

Gas burner parts diagram

Range surface burner igniter switch

Part #WB24K14

$33.59 |
15% OFF Phone Price : $39.59
In Stock
Trim B. D WB7K379
#359

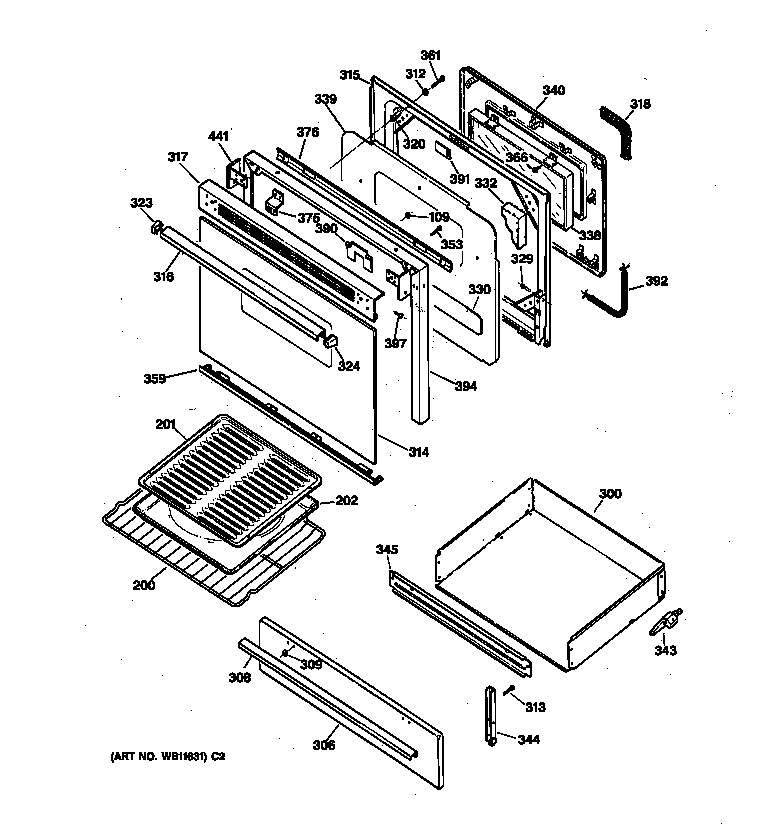

Door & drawer parts diagram

Trim b. d

Part #WB7K379

Replaced by #WB07K10232

?
Manufacturer substitution
This part replaces WB7K379. Substitute parts can look different from the original.
This item is not returnable
$22.56 |
21% OFF Phone Price : $28.56
In Stock
Range Oven Door Hinge Roller WB10K12
#222

Body parts diagram

Range oven door hinge roller

Part #WB10K12

$31.51 |
16% OFF Phone Price : $37.51
In Stock
Range Anti-tip Bracket WB2K20
#1C

Gas burner parts diagram

Range anti-tip bracket

Part #WB2K20

$11.37 |
15% OFF Phone Price : $13.37
In Stock
Drawer Support WB2K43
#255

Body parts diagram

Drawer support

Part #WB2K43

Replaced by #WB02K10158

?
Manufacturer substitution
This part replaces WB2K43. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer WB1X119
#312

Door & drawer parts diagram

Washer

Part #WB1X119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB1X119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Trim WB7K384
#359

Door & drawer parts diagram

Trim

Part #WB7K384

Replaced by #WB07K10250

?
Manufacturer substitution
This part replaces WB7K384. Substitute parts can look different from the original.
This item is not returnable
$22.56 |
21% OFF Phone Price : $28.56
In Stock
