Model # 7K45SS Official KitchenAid mixer

Here are the diagrams and repair parts for Official KitchenAid 7K45SS mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Pin-dowel 4161950
Pin-dowel

Part #4161950

Replaced by #WP9707223

?
Manufacturer substitution
This part replaces 4161950. Substitute parts can look different from the original.
This item is not returnable
$4.58 |
18% OFF Phone Price : $5.58
In Stock
Gear 4162101
#58

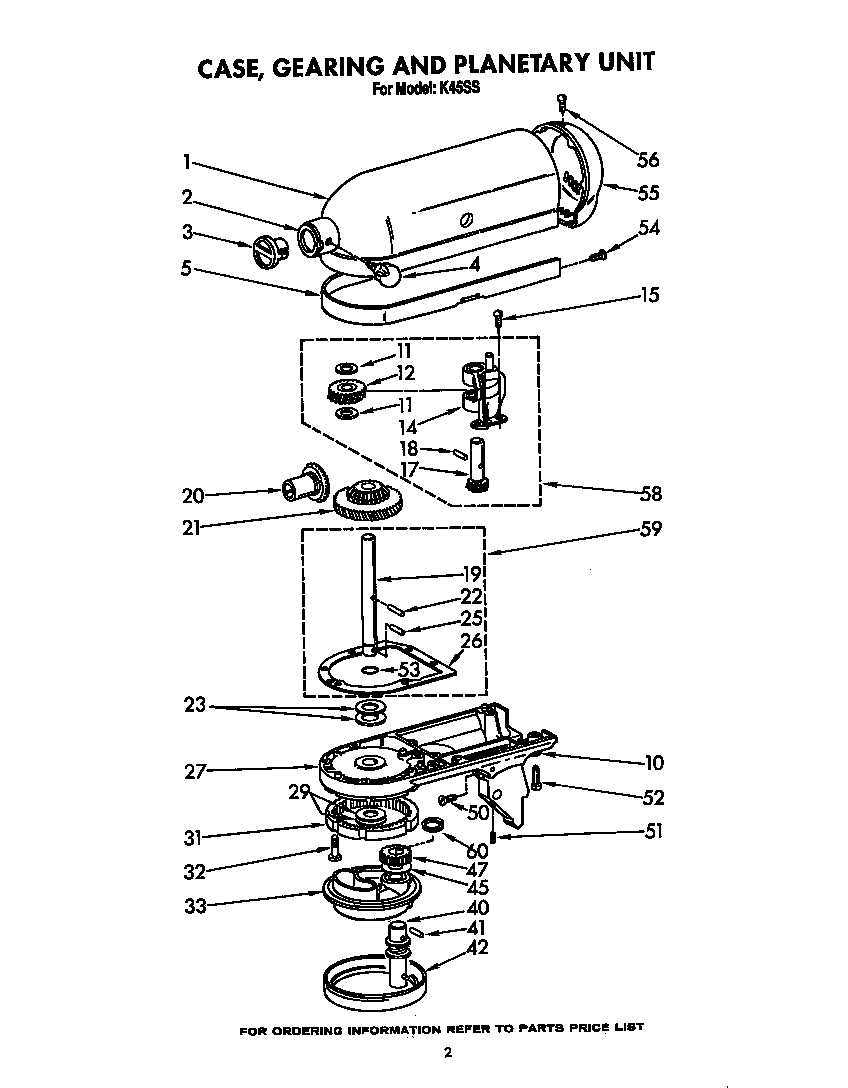

Case, gearing and planetary unit diagram

Gear

Part #4162101

Replaced by #WP240309-2

?
Manufacturer substitution
This part replaces 4162101. Substitute parts can look different from the original.
$30.24 |
17% OFF Phone Price : $36.24
In Stock
Ring-o 4159817
#53

Case, gearing and planetary unit diagram

Ring-o

Part #4159817

Replaced by #WP67500-55

?
Manufacturer substitution
This part replaces 4159817. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Brush-mtr 4162648
#29

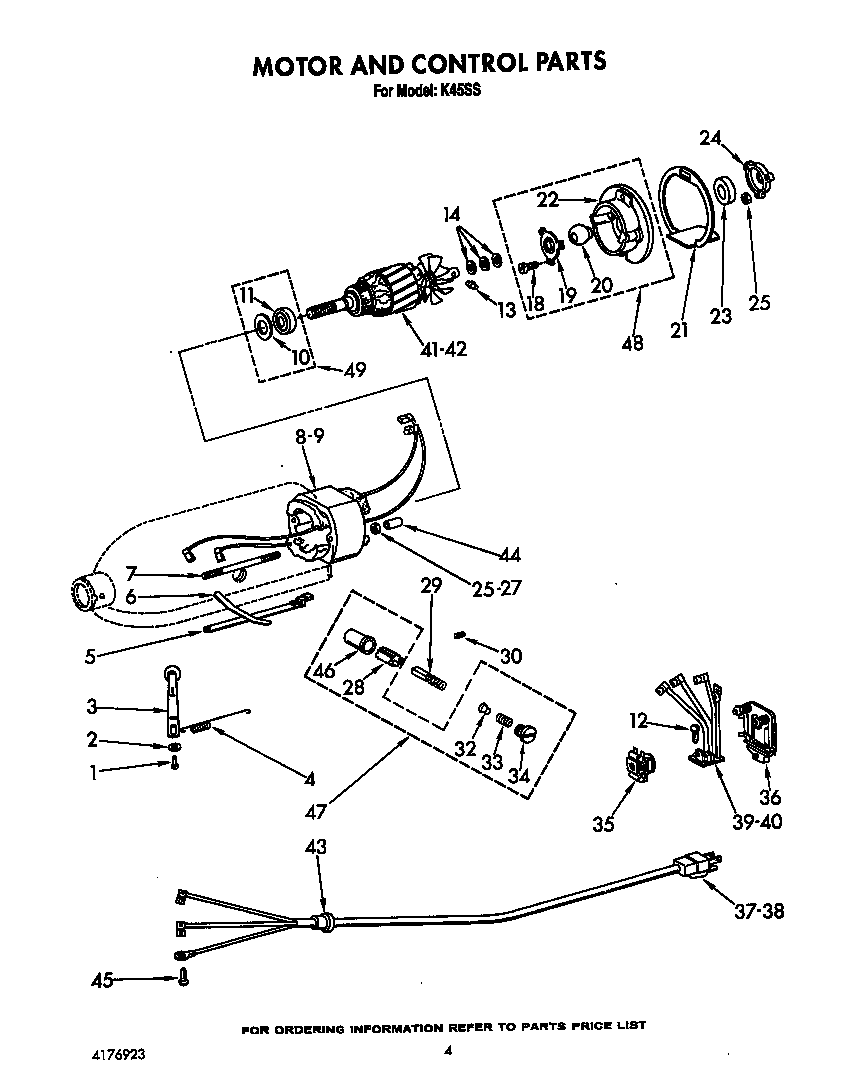

Motor and control diagram

Brush-mtr

Part #4162648

Replaced by #WPW10380496

?
Manufacturer substitution
This part replaces 4162648. Substitute parts can look different from the original.
$7.50 |
12% OFF Phone Price : $8.50
In Stock
Wire Whip 4162165
#18

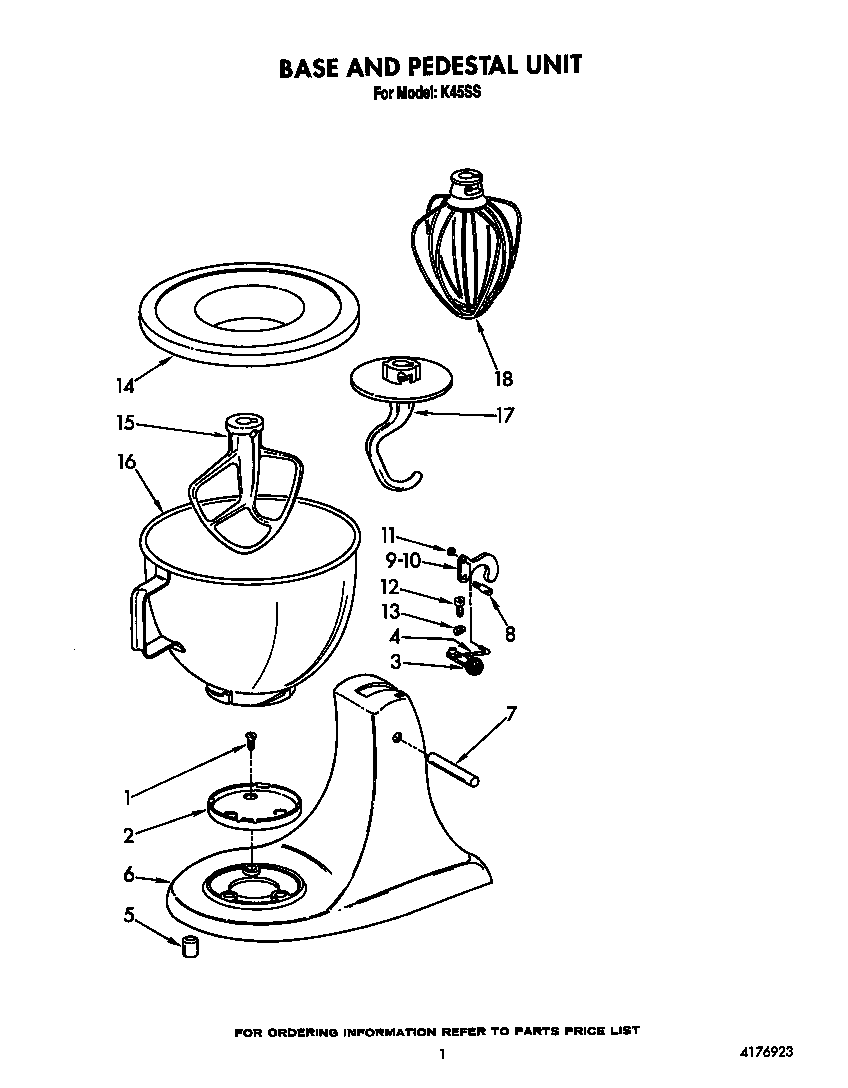

Base and pedestal diagram

Wire whip

Part #4162165

Replaced by #WP9704329

?
Manufacturer substitution
This part replaces 4162165. Substitute parts can look different from the original.
This item is not returnable
$22.27 |
21% OFF Phone Price : $28.27
In Stock
Power Cord 4162596
#37

Motor and control diagram

Power cord

Part #4162596

Replaced by #W11396625

?
Manufacturer substitution
This part replaces 4162596. Substitute parts can look different from the original.
$17.09 |
10% OFF Phone Price : $19.09
In Stock
Screw 4159264
#51

Case, gearing and planetary unit diagram

Screw

Part #4159264

Replaced by #WP3400203

?
Manufacturer substitution
This part replaces 4159264. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Gear-pinon 4161401
#47

Case, gearing and planetary unit diagram

Gear-pinon

Part #4161401

Replaced by #W11133645

?
Manufacturer substitution
This part replaces 4161401. Substitute parts can look different from the original.
This item is not returnable
$5.40
In Stock
Cover (white) 4162055
#55A

Case, gearing and planetary unit diagram

Cover (white)

Part #4162055

Replaced by #WP240253-1

?
Manufacturer substitution
This part replaces 4162055. Substitute parts can look different from the original.
$18.29
In Stock
Hubcap 4163469
#3

Case, gearing and planetary unit diagram

Hubcap

Part #4163469

Replaced by #W11048596

?
Manufacturer substitution
This part replaces 4163469. Substitute parts can look different from the original.
This item is not returnable
$10.39 |
16% OFF Phone Price : $12.39
In Stock
