Model # AX-475 Official Brother electronic typewriter

Here are the diagrams and repair parts for Official Brother AX-475 electronic typewriter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

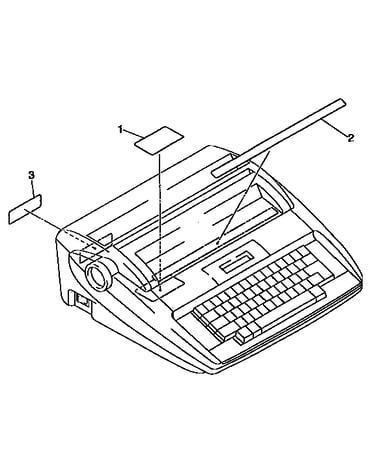

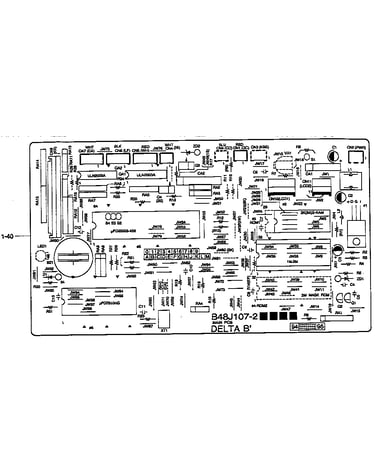

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Screw 085411615
#4

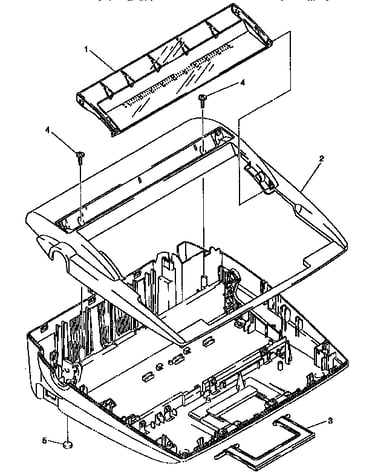

Covers diagram

Screw

Part #085411615

The manufacturer no longer makes this part, and there's no substitute part

Fpc Abx UC4940000
#14

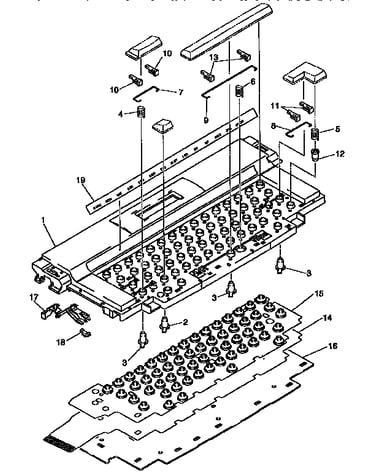

Keyboard mechanism diagram

Fpc abx

Part #UC4940000

The manufacturer no longer makes this part, and there's no substitute part

Key 583569077
#35

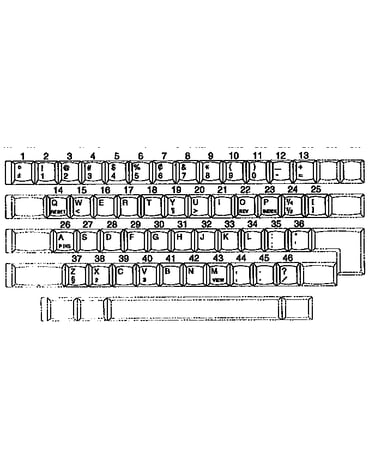

Character keys diagram

Key

Part #583569077

The manufacturer no longer makes this part, and there's no substitute part

Code Key U12880078
#12

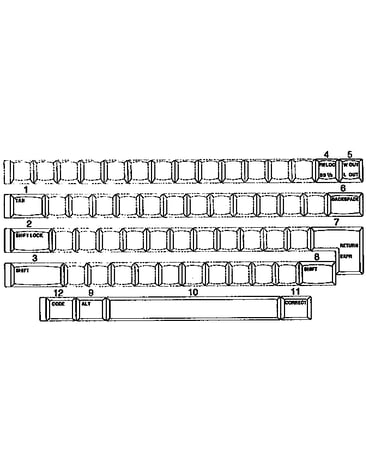

Function keys diagram

Code key

Part #U12880078

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 591010761
#1

Printed matters diagram

Owner's manual

Part #591010761

The manufacturer no longer makes this part, and there's no substitute part

Rubber UA0596000
#18

Keyboard mechanism diagram

Rubber

Part #UA0596000

The manufacturer no longer makes this part, and there's no substitute part

Screw 087271215
#3

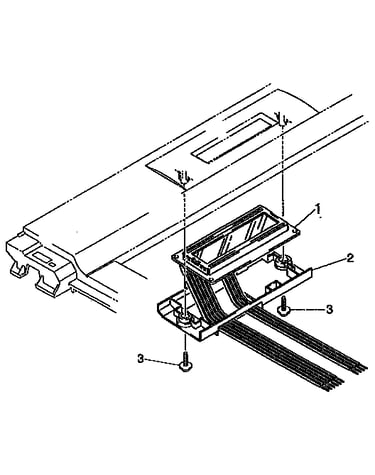

Lcd pcb assembly diagram

Screw

Part #087271215

The manufacturer no longer makes this part, and there's no substitute part

Key U11356077
#3

Function keys diagram

Key

Part #U11356077

The manufacturer no longer makes this part, and there's no substitute part

Spring 539211001
Spring

Part #539211001

The manufacturer no longer makes this part, and there's no substitute part

Alt Key UC3814078
#9

Function keys diagram

Alt key

Part #UC3814078

The manufacturer no longer makes this part, and there's no substitute part
