Model # DMC-FS3A Official Panasonic camera

Here are the diagrams and repair parts for Official Panasonic DMC-FS3A camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |

Panasonic Panel Lght VGL1263
#20

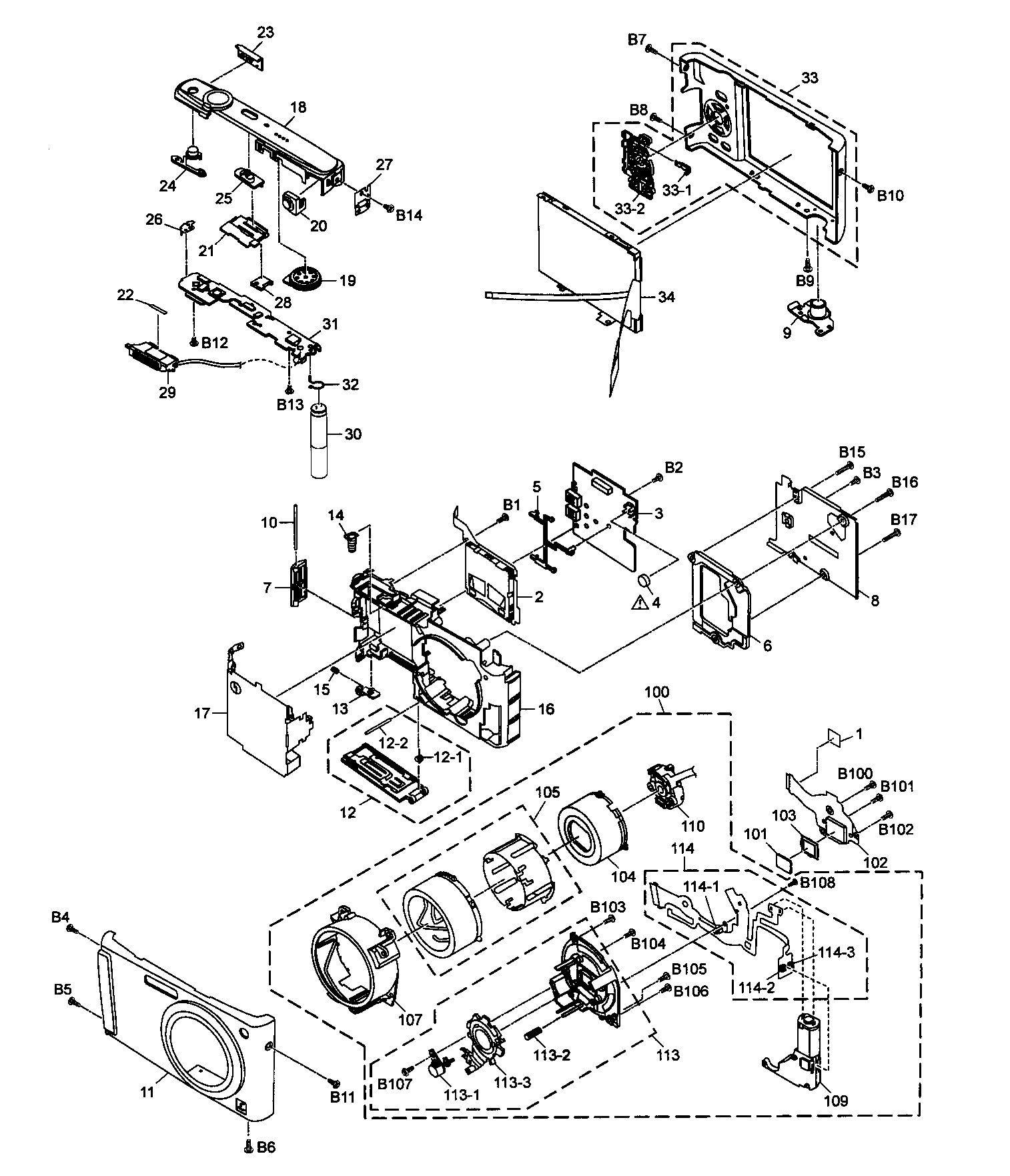

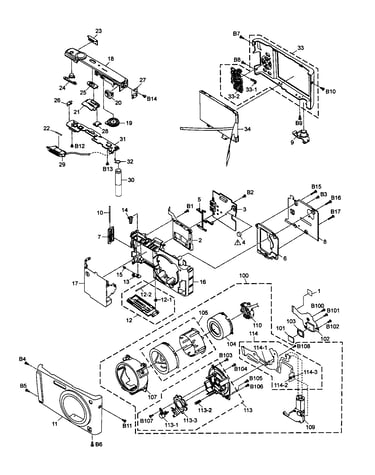

Cabinet parts diagram

Panasonic panel lght

Part #VGL1263

This item is not returnable
In Stock
Panasonic Batt.case VYQ3914
#NI

Cabinet parts diagram

Panasonic batt.case

Part #VYQ3914

This item is not returnable
In Stock
Panasonic Lens Fpc VEK0L88
#114

Cabinet parts diagram

Panasonic lens fpc

Part #VEK0L88

In Stock
Panasonic Lens Frame VXP2903
#104

Cabinet parts diagram

Panasonic lens frame

Part #VXP2903

In Stock
Panasonic Ic C0ZBZ0000937
#NI

Cabinet parts diagram

Panasonic ic

Part #C0ZBZ0000937

This item is not returnable
In Stock
Panasonic Frame Unit VXP2898
#105

Cabinet parts diagram

Panasonic frame unit

Part #VXP2898

In Stock
Panasonic Fuse ERBSE1R50U
#NI

Cabinet parts diagram

Panasonic fuse

Part #ERBSE1R50U

This item is not returnable
In Stock
Panasonic Cushion VMX3658
#103

Cabinet parts diagram

Panasonic cushion

Part #VMX3658

In Stock
Panasonic Zoom Motor L6DA8BEC0003
#109

Cabinet parts diagram

Panasonic zoom motor

Part #L6DA8BEC0003

In Stock
Panasonic Spacer VGQ9709
#6

Cabinet parts diagram

Panasonic spacer

Part #VGQ9709

This item is not returnable
In Stock
