Model # 103023 Official Broan range hood
Here are the diagrams and repair parts for Official Broan 103023 range hood, as well as links to manuals and error code tables, if available.
Installation guideBy Schematic
SELECT DIAGRAM
Browse Parts for
103023 Range Hood
#15

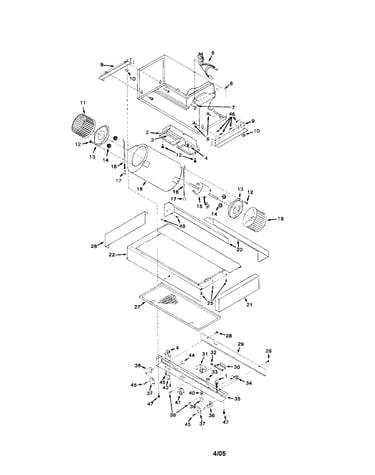

Wood hood kit diagram
Range hood fan motor
Part #97010736
The manufacturer no longer makes this part, and there's no substitute part
#36
Wood hood kit diagram
Lamp holder
Part #99270550
The manufacturer no longer makes this part, and there's no substitute part
#11
Wood hood kit diagram
Range hood clockwise blower wheel assembly
Part #99020138
The manufacturer no longer makes this part, and there's no substitute part
#42
Wood hood kit diagram
Range hood light starter
Part #99270553
The manufacturer no longer makes this part, and there's no substitute part
#28
Wood hood kit diagram
Range hood screw, 8-18 x 3/8-in
Part #99150491
Replaced by #S99150491
?
Manufacturer substitution
This part replaces 99150491. Substitute parts can look different from the original.
This item is not returnable
$3.64
In Stock
#13
Wood hood kit diagram
Range hood motor retainer ring
Part #98005212
Replaced by #S98005212
?
Manufacturer substitution
This part replaces 98005212. Substitute parts can look different from the original.
This item is not returnable
$28.80
In Stock
#19
Wood hood kit diagram
Range hood blower wheel
Part #99020139
The manufacturer no longer makes this part, and there's no substitute part
#7
Wood hood kit diagram
Harness clip
Part #93270619
This item is not returnable
$3.64
In Stock
#40
Wood hood kit diagram
Nut
Part #99260491
Replaced by #S99260491
?
Manufacturer substitution
This part replaces 99260491. Substitute parts can look different from the original.
$28.80
In Stock
#20
Wood hood kit diagram
Liner
Part #97007486
Replaced by #S97007486
?
Manufacturer substitution
This part replaces 97007486. Substitute parts can look different from the original.
$86.14
In Stock
