Jenn-Air
Microwave/Hood Combo

Model # JMV8186AAS Official Jenn-Air microwave

Here are the diagrams and repair parts for Official Jenn-Air JMV8186AAS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

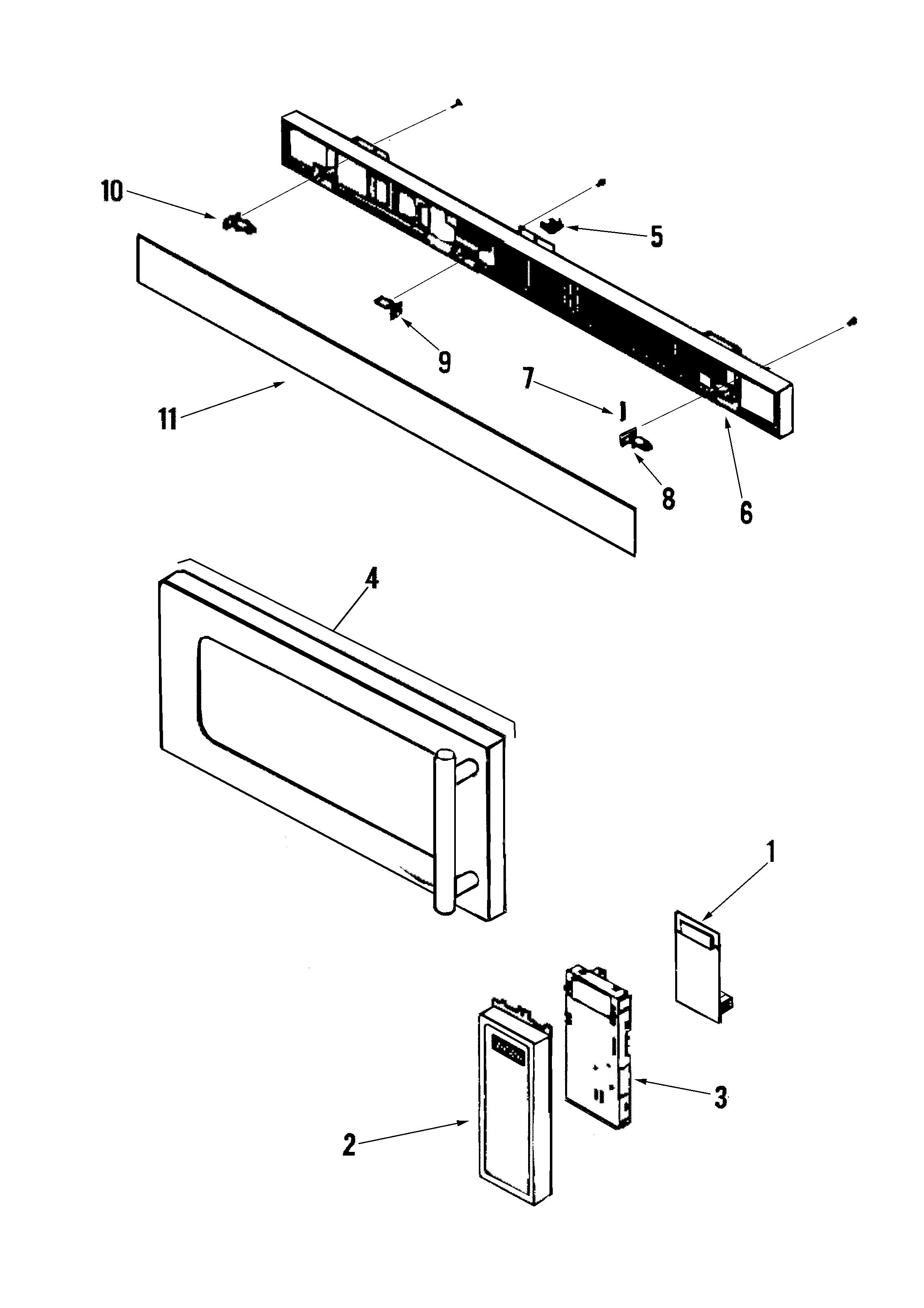

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Diode DE91-70063D
#3

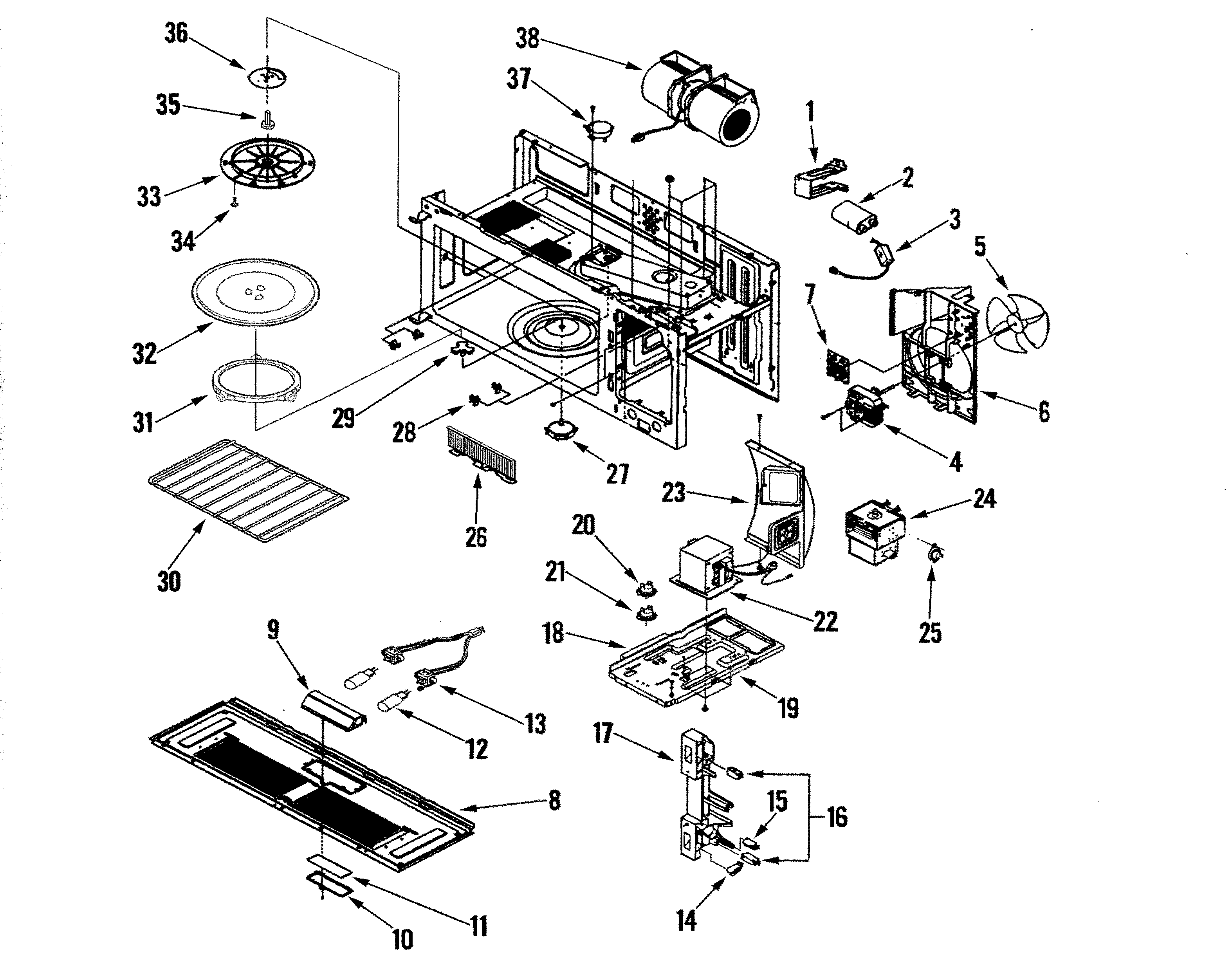

Base/cavity/internal controls diagram

Diode

Part #DE91-70063D

Replaced by #DE91-70063D

?
Manufacturer substitution
This part replaces DE91-70063D. Substitute parts can look different from the original.
BEST SELLER
$17.40 |
10% OFF Phone Price : $19.40
In Stock
Microwave High-voltage Capacitor 2501-001011
#2

Base/cavity/internal controls diagram

Microwave high-voltage capacitor

Part #2501-001011

Replaced by #2501-001011

?
Manufacturer substitution
This part replaces 2501-001011. Substitute parts can look different from the original.
BEST SELLER
$55.81 |
10% OFF Phone Price : $61.81
In Stock
Thermostat DE47-20007A
#25

Base/cavity/internal controls diagram

Thermostat

Part #DE47-20007A

Replaced by #DE47-20007B

?
Manufacturer substitution
This part replaces DE47-20007A. Substitute parts can look different from the original.
BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Microwave Turntable Motor DE31-10172A
#27

Base/cavity/internal controls diagram

Microwave turntable motor

Part #DE31-10172A

Replaced by #DE31-10172D

?
Manufacturer substitution
This part replaces DE31-10172A. Substitute parts can look different from the original.
$79.24
In Stock
Microwave Vent Damper DE72-40022A
#3

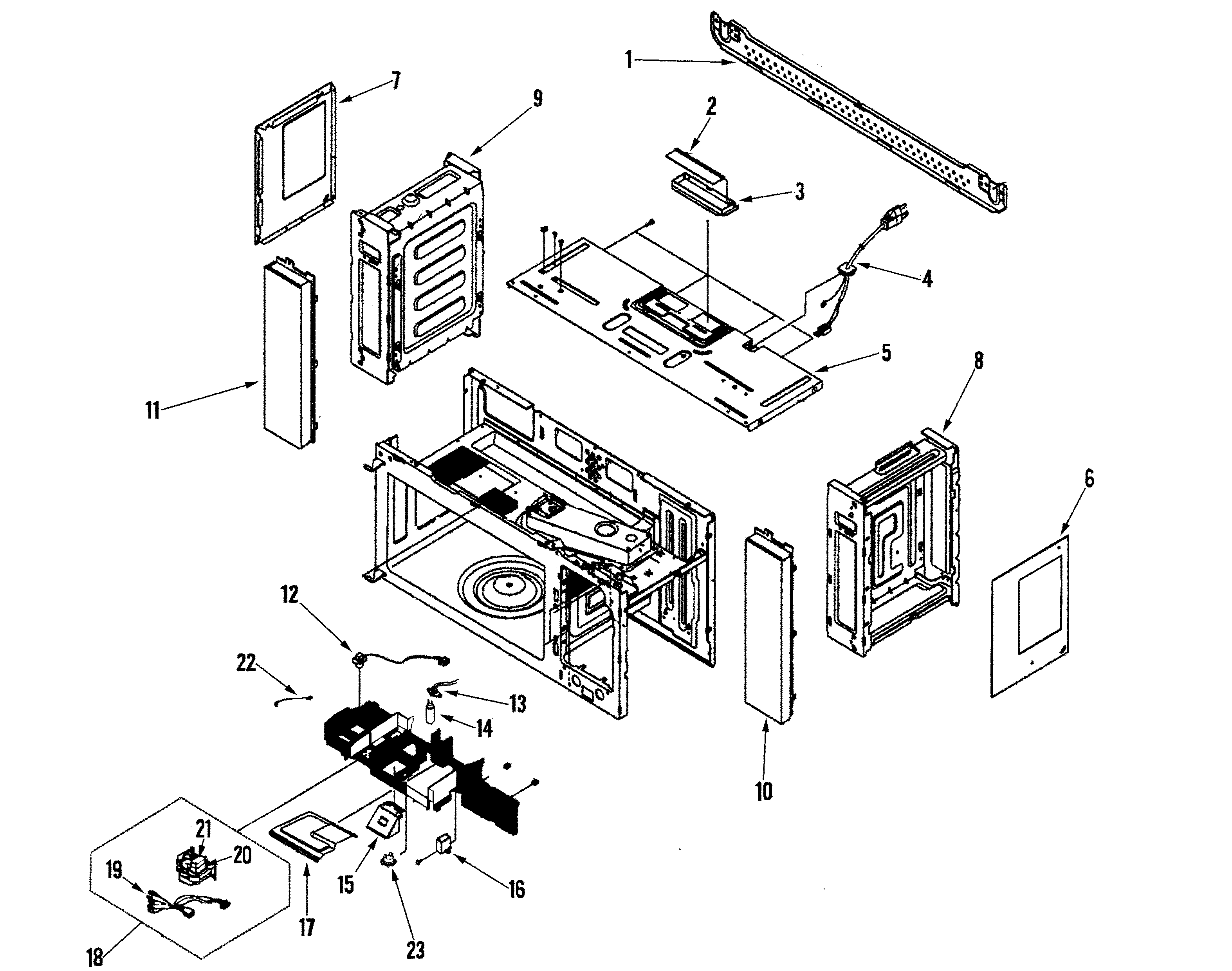

Body/upper duct diagram

Microwave vent damper

Part #DE72-40022A

Replaced by #DE72-40022A

?
Manufacturer substitution
This part replaces DE72-40022A. Substitute parts can look different from the original.
This item is not returnable
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Switch 3405-001033
#15

Base/cavity/internal controls diagram

Switch

Part #3405-001033

Replaced by #DE34-20019A

?
Manufacturer substitution
This part replaces 3405-001033. Substitute parts can look different from the original.
This item is not returnable
$15.06 |
12% OFF Phone Price : $17.06
In Stock
Microwave Glass Turntable Tray DE74-20002A
#32

Base/cavity/internal controls diagram

Microwave glass turntable tray

Part #DE74-20002A

Replaced by #DE74-20002A

?
Manufacturer substitution
This part replaces DE74-20002A. Substitute parts can look different from the original.
$57.58 |
9% OFF Phone Price : $63.58
In Stock
Microwave Turntable Motor Coupler DE67-00179A
#29

Base/cavity/internal controls diagram

Microwave turntable motor coupler

Part #DE67-00179A

This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Thermostat DE47-20034A
#21

Base/cavity/internal controls diagram

Thermostat

Part #DE47-20034A

$56.99 |
10% OFF Phone Price : $62.99
In Stock
Drive Motor DE31-10173A
#37

Base/cavity/internal controls diagram

Drive motor

Part #DE31-10173A

Replaced by #DE31-10173A

?
Manufacturer substitution
This part replaces DE31-10173A. Substitute parts can look different from the original.
$35.56 |
14% OFF Phone Price : $41.56
In Stock
