Whirlpool
Compact Refrigerator

Model # EL03CCXDW00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool EL03CCXDW00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

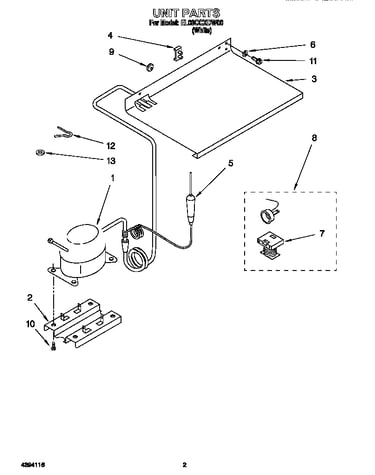

Drier Tube 4312460
#5

Unit diagram

Drier tube

Part #4312460

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4312460. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Overload 4312462
#8

Unit diagram

Refrigerator overload

Part #4312462

$83.42
In Stock

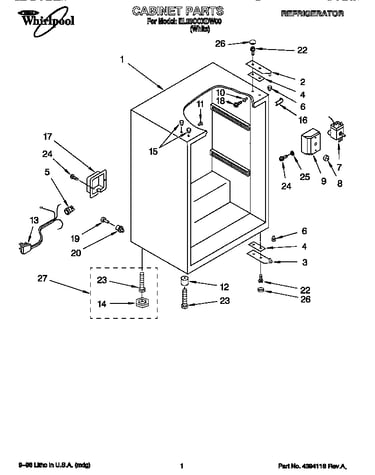

Door Hinge 4312436
#2

Cabinet diagram

Door hinge

Part #4312436

$33.18
In Stock
Leveler 4312445
#12

Cabinet diagram

Leveler

Part #4312445

$27.64
In Stock
Refrigerator Nameplate 4312476
#5

Door diagram

Refrigerator nameplate

Part #4312476

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Screw 4312464
#10

Unit diagram

Screw

Part #4312464

Replaced by #WP4312464

?
Manufacturer substitution
This part replaces 4312464. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Screw 4312450
Screw

Part #4312450

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4312450. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Door Hinge 4312437
#3

Cabinet diagram

Door hinge

Part #4312437

Replaced by #4312505

?
Manufacturer substitution
This part replaces 4312437. Substitute parts can look different from the original.
$29.89
In Stock

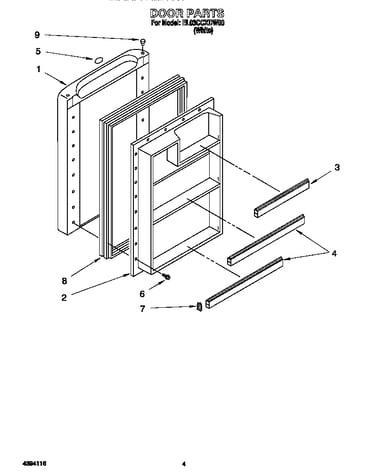

Refrigerator Complete Door 4312467
#1

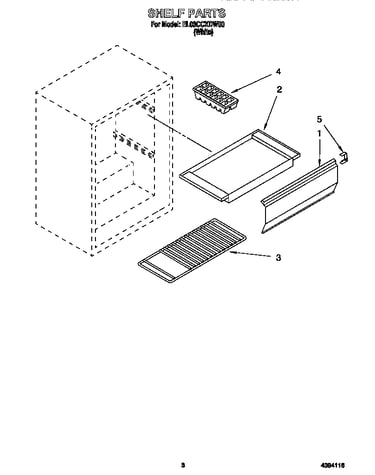

Shelf diagram

Refrigerator complete door

Part #4312467

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Thermostat 4312399
#7

Cabinet diagram

Refrigerator thermostat

Part #4312399

The manufacturer no longer makes this part, and there's no substitute part
