Model # 11651875101 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11651875101 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Vacuum Foam Filter 4370713
#8

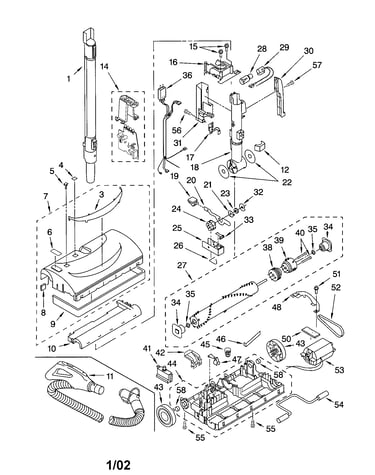

Power mate diagram

Vacuum foam filter

Part #4370713

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Wheel 4370724
#43

Power mate diagram

Vacuum powermate wheel

Part #4370724

The manufacturer no longer makes this part, and there's no substitute part

Release 4370578
#42

Power mate diagram

Release

Part #4370578

Replaced by #KC47AGJ3V06

?
Manufacturer substitution
This part replaces 4370578. Substitute parts can look different from the original.
This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
Wiring Diagram Label LIT4369996

#NI01

All parts diagram

Wiring diagram label

Part #LIT4369996

The manufacturer no longer makes this part, and there's no substitute part

End Brush (black) 8175101
#39

Power mate diagram

End brush (black)

Part #8175101

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor Brush N/P
#1

Power mate diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Wheel Bushing 8191778
#58

Power mate diagram

Vacuum powermate wheel bushing

Part #8191778

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Guard 4370714
#9

Power mate diagram

Vacuum furniture guard

Part #4370714

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 4368522
#45

Power mate diagram

Twist-on wire connector

Part #4368522

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Release Pedal 8195108
#30

Power mate diagram

Vacuum handle release pedal

Part #8195108

The manufacturer no longer makes this part, and there's no substitute part
