Model # 158433 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 158433 sewing machine head, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 237 parts  |
Knob 4263
#9

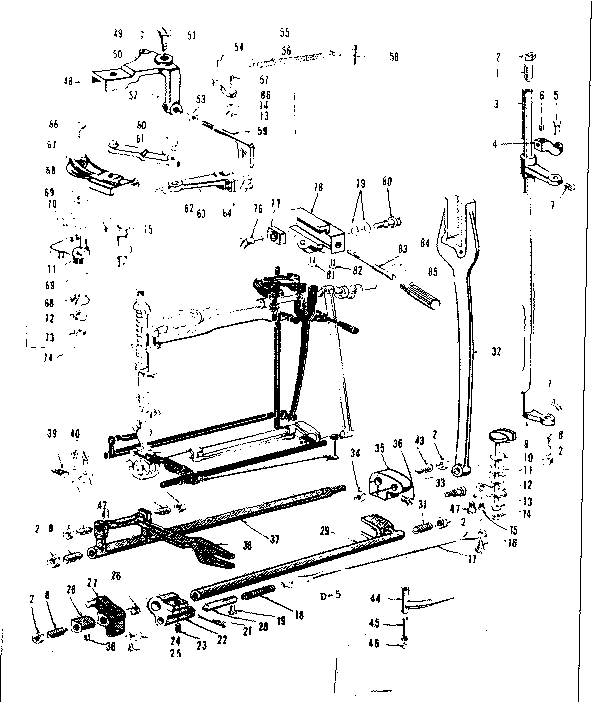

Feed regulator assembly diagram

Knob

Part #4263

The manufacturer no longer makes this part, and there's no substitute part

Feed Cam 4820
#12

Feed regulator assembly diagram

Feed cam

Part #4820

The manufacturer no longer makes this part, and there's no substitute part

Screw 4354
#37

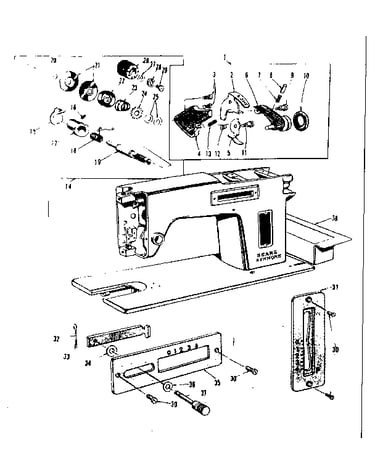

Dial controls diagram

Screw

Part #4354

The manufacturer no longer makes this part, and there's no substitute part

Pin 4344
#20

Dial controls diagram

Pin

Part #4344

The manufacturer no longer makes this part, and there's no substitute part

Bushing 20
#38

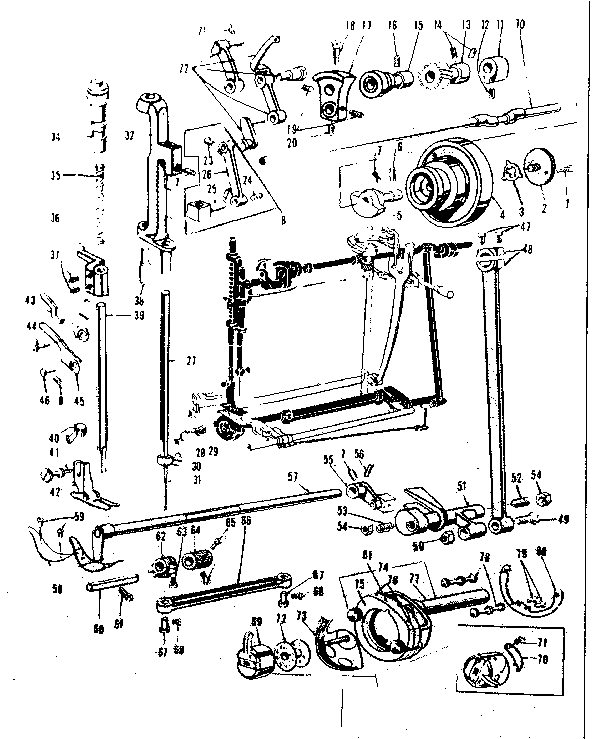

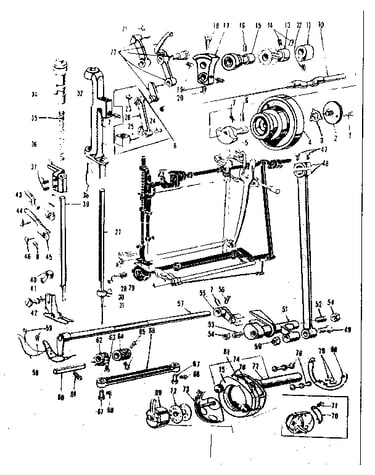

Presser bar and shuttle assembly diagram

Bushing

Part #20

The manufacturer no longer makes this part, and there's no substitute part

Disc Set 4345
#21

Dial controls diagram

Disc set

Part #4345

The manufacturer no longer makes this part, and there's no substitute part

Washer 4843
#10

Feed regulator assembly diagram

Washer

Part #4843

The manufacturer no longer makes this part, and there's no substitute part

Washer 4066
#79

Feed regulator assembly diagram

Washer

Part #4066

The manufacturer no longer makes this part, and there's no substitute part

Rocker 4332
#48

Feed regulator assembly diagram

Rocker

Part #4332

The manufacturer no longer makes this part, and there's no substitute part

Washer 4844
#32

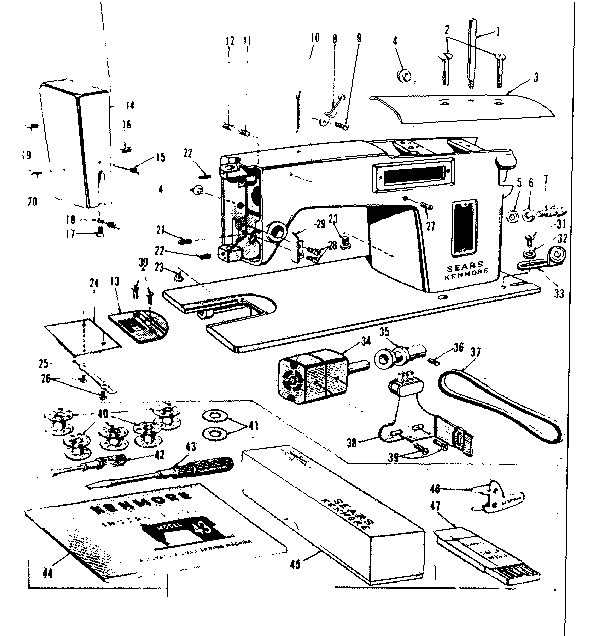

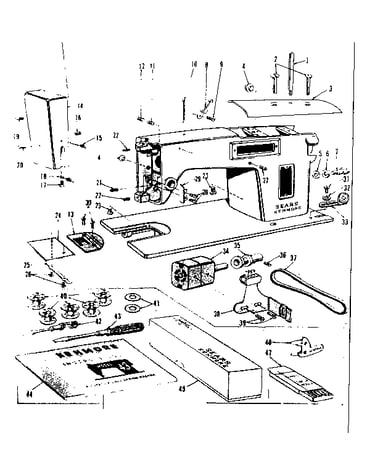

Motor and attachment parts diagram

Washer

Part #4844

The manufacturer no longer makes this part, and there's no substitute part
