Amana
Countertop Microwave

Model # 70/30.11 Official Amana countertop microwave

Here are the diagrams and repair parts for Official Amana 70-3011 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Fuse Holder M4D35
#19A

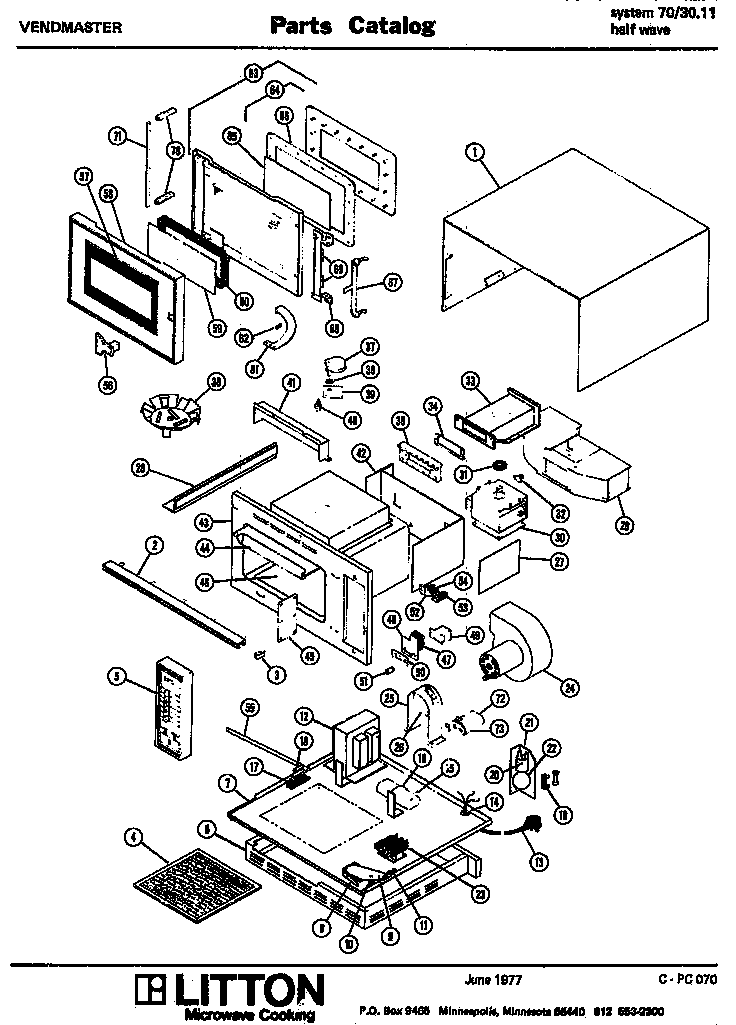

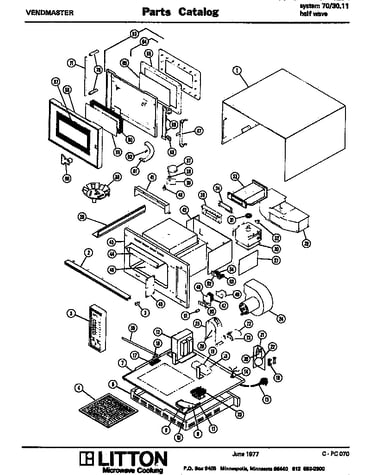

(70/30.11) diagram

Fuse holder

Part #M4D35

The manufacturer no longer makes this part, and there's no substitute part

On / Off Switch (s1) M14D128
#11

(70/30.11) diagram

On / off switch (s1)

Part #M14D128

The manufacturer no longer makes this part, and there's no substitute part

Screw, Inner Door Mtg M1D307
#8B

(70/30.11) diagram

Screw, inner door mtg

Part #M1D307

The manufacturer no longer makes this part, and there's no substitute part

R. F. Gasket M2D19
#38

(70/30.11) diagram

R. f. gasket

Part #M2D19

The manufacturer no longer makes this part, and there's no substitute part

Cook Relay M16D8
#23A

(70/30.11) diagram

Cook relay

Part #M16D8

The manufacturer no longer makes this part, and there's no substitute part

Name Plate, Pressure Sensitive M7D187
#57

(70/30.11) diagram

Name plate, pressure sensitive

Part #M7D187

The manufacturer no longer makes this part, and there's no substitute part

Terminal Ring M1D288
#73H

(70/30.11) diagram

Terminal ring

Part #M1D288

The manufacturer no longer makes this part, and there's no substitute part

Bracekt, Capacitor Mtg. M20D77
#16A

(70/30.11) diagram

Bracekt, capacitor mtg.

Part #M20D77

The manufacturer no longer makes this part, and there's no substitute part

Microwave Blower Bracket M20D93
#25

(70/30.11) diagram

Microwave blower bracket

Part #M20D93

The manufacturer no longer makes this part, and there's no substitute part

Casting Timer M7D308
#5G

(70/30.11) diagram

Casting timer

Part #M7D308

The manufacturer no longer makes this part, and there's no substitute part
