Model # FRT8G8HW2 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRT8G8HW2 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

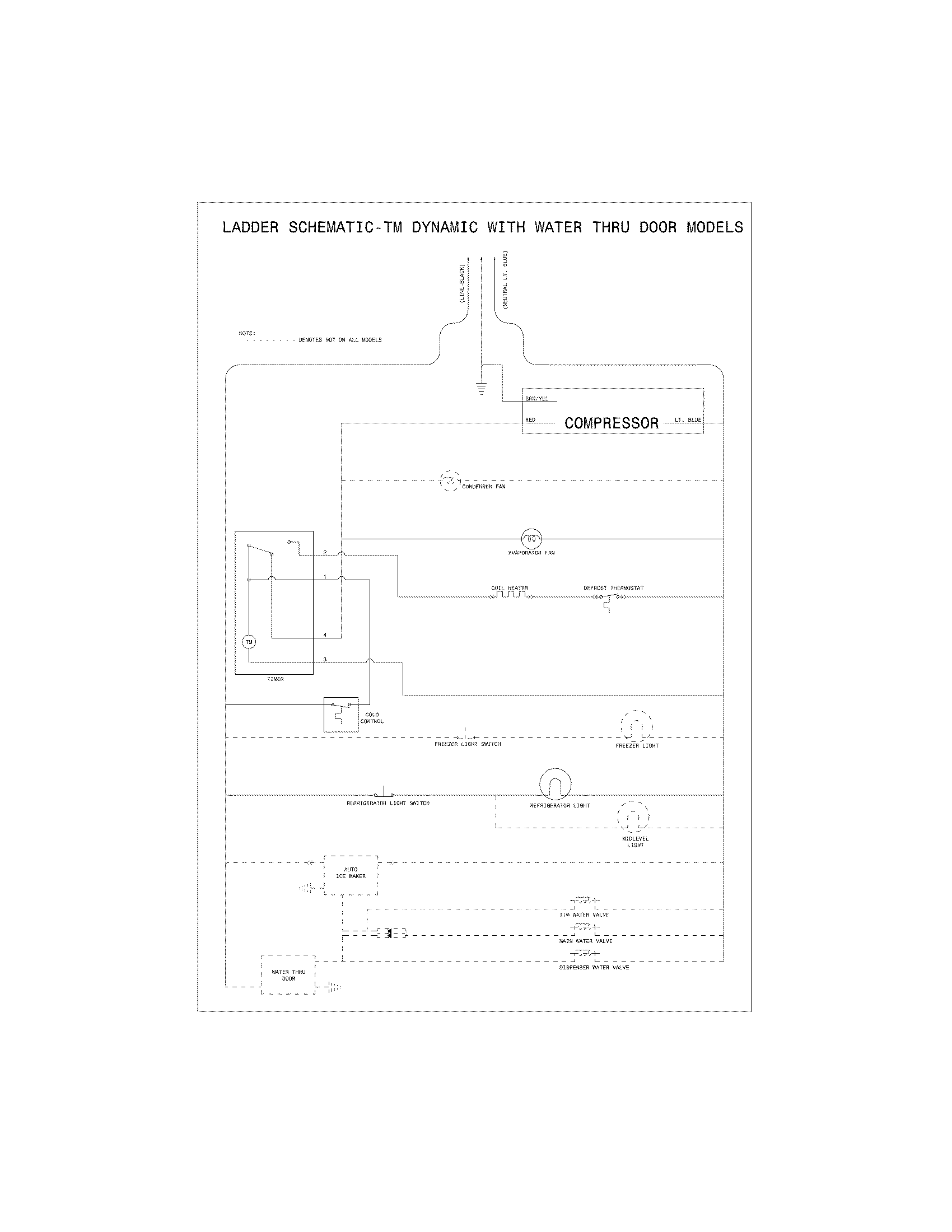

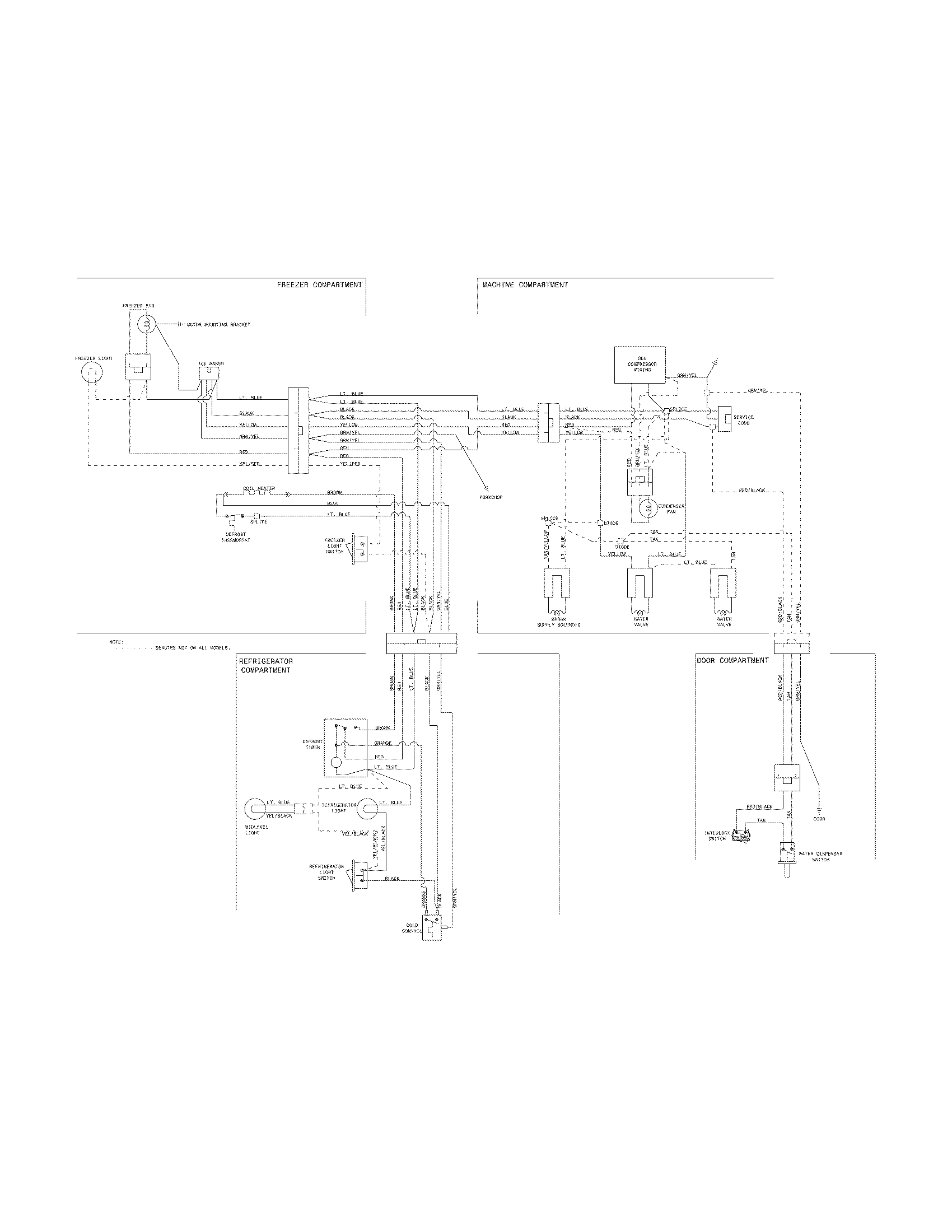

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Filter Drier 218944002
#4

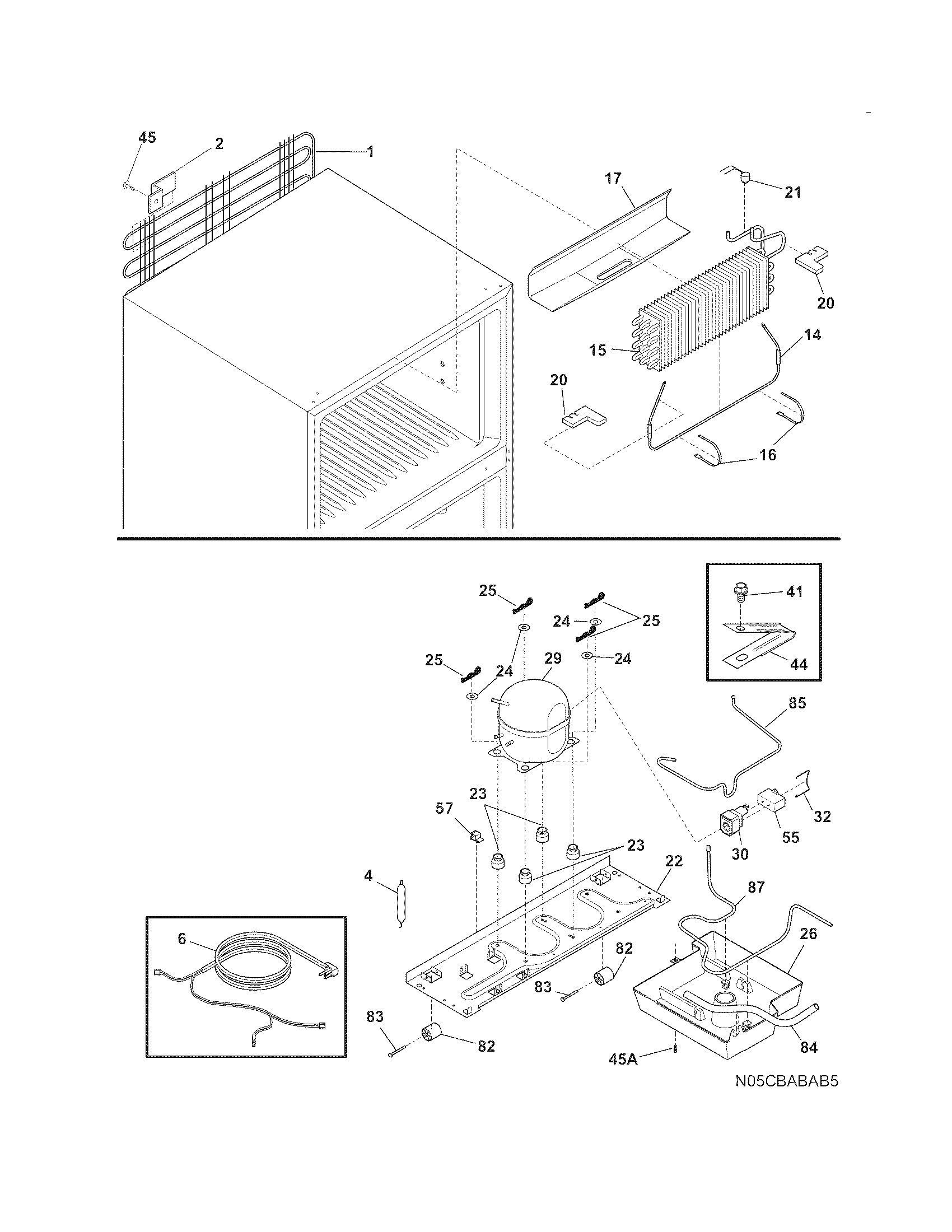

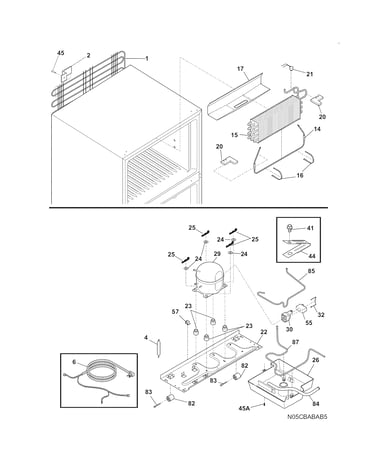

System diagram

Filter drier

Part #218944002

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944002. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
#15

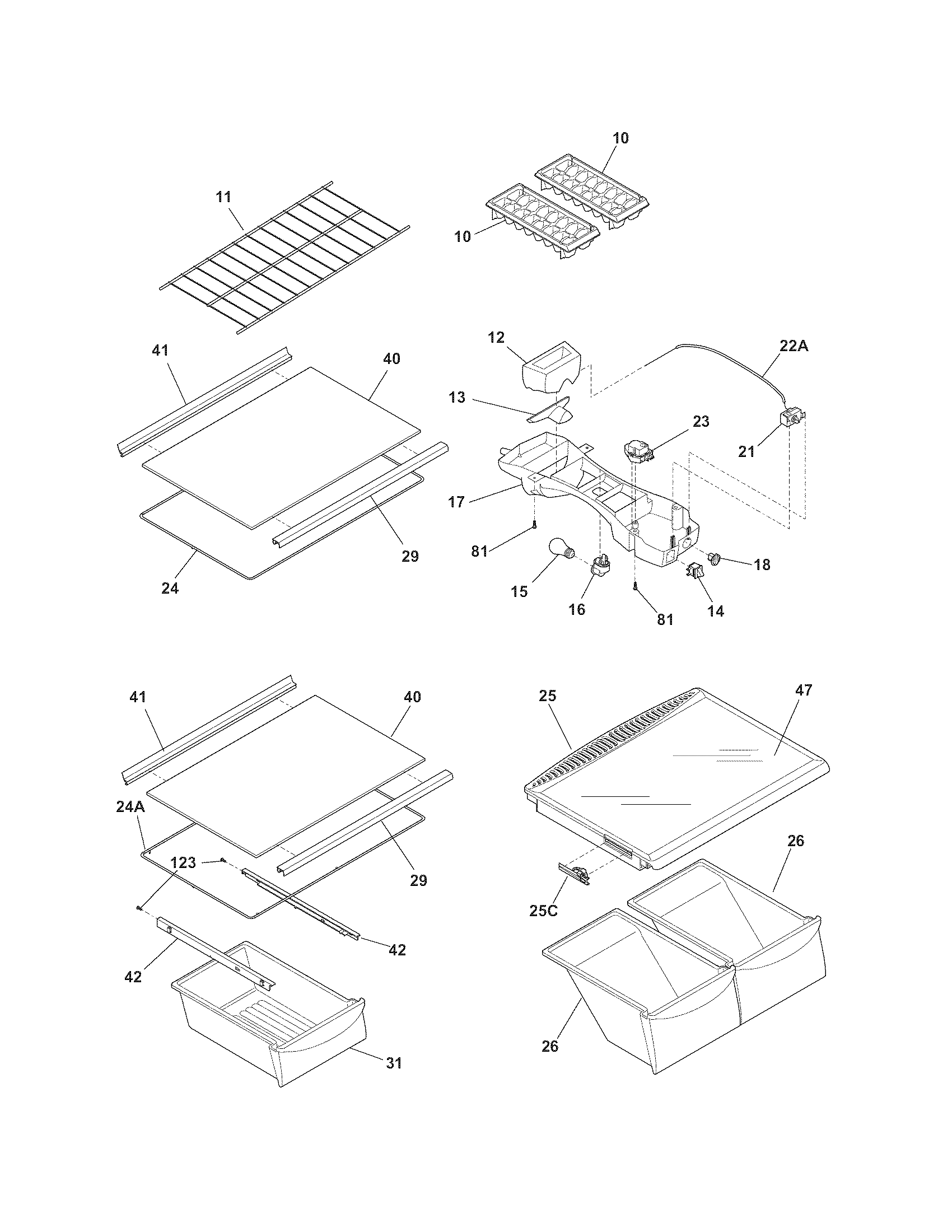

Shelves diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Refrigerator Gasket 241872506
#2

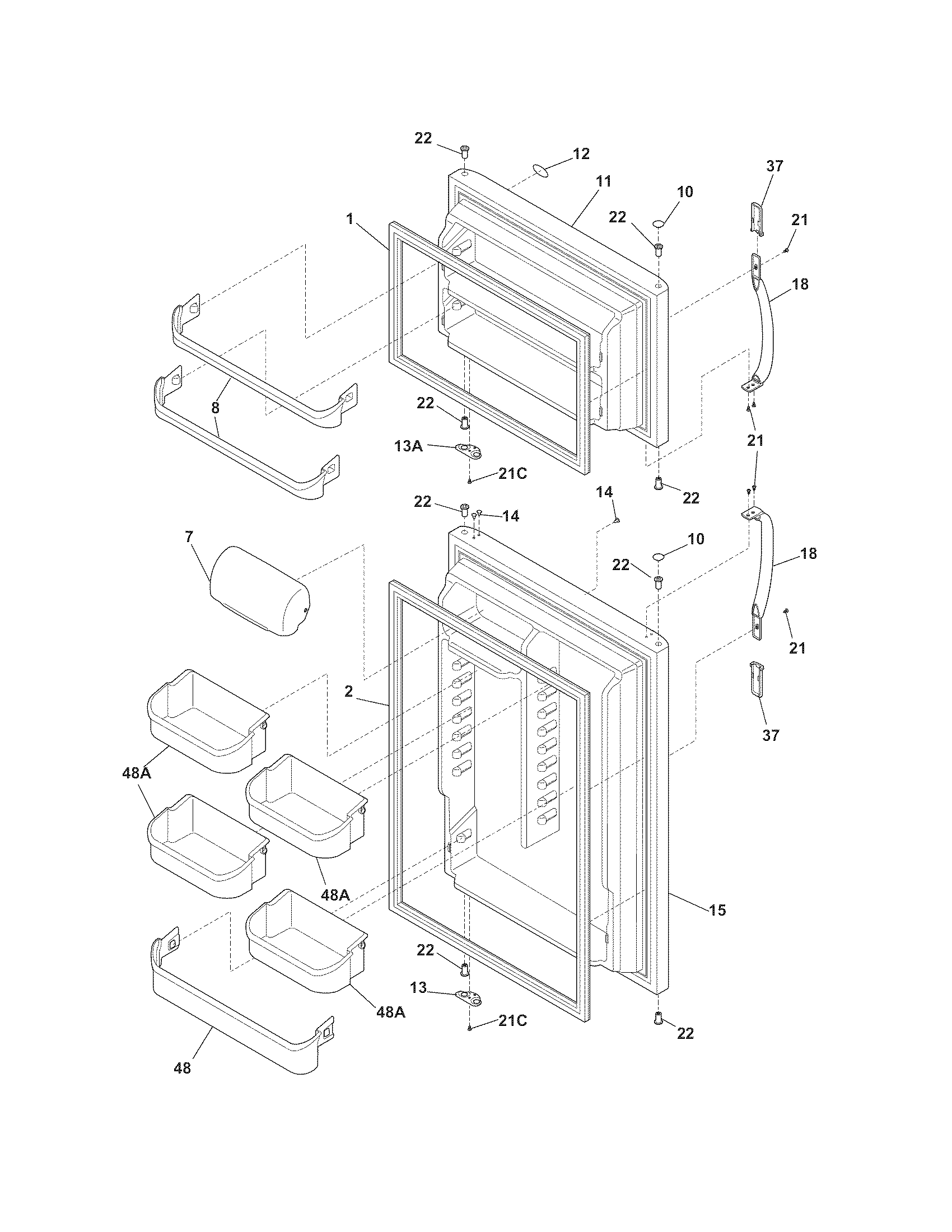

Door diagram

Refrigerator gasket

Part #241872506

Replaced by #241872513

?
Manufacturer substitution
This part replaces 241872506. Substitute parts can look different from the original.
BEST SELLER
$100.58 |
11% OFF Phone Price : $112.58
In Stock
Refrigerator Drawer Hanger, Right (replaces 240460501) 240530701
#42

Shelves diagram

Refrigerator drawer hanger, right (replaces 240460501)

Part #240530701

BEST SELLER
$48.43 |
11% OFF Phone Price : $54.43
In Stock
Refrigerator Crisper Drawer Cover Insert (replaces 240350655, 241711220, 241711270, 297194400) 240350608
#47

Shelves diagram

Refrigerator crisper drawer cover insert (replaces 240350655, 241711220, 241711270, 297194400)

Part #240350608

BEST SELLER
$104.62 |
10% OFF Phone Price : $116.62
In Stock
Refrigerator Door Bin (replaces 240338104) 240338101
#48

Door diagram

Refrigerator door bin (replaces 240338104)

Part #240338101

BEST SELLER
$49.71 |
11% OFF Phone Price : $55.71
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

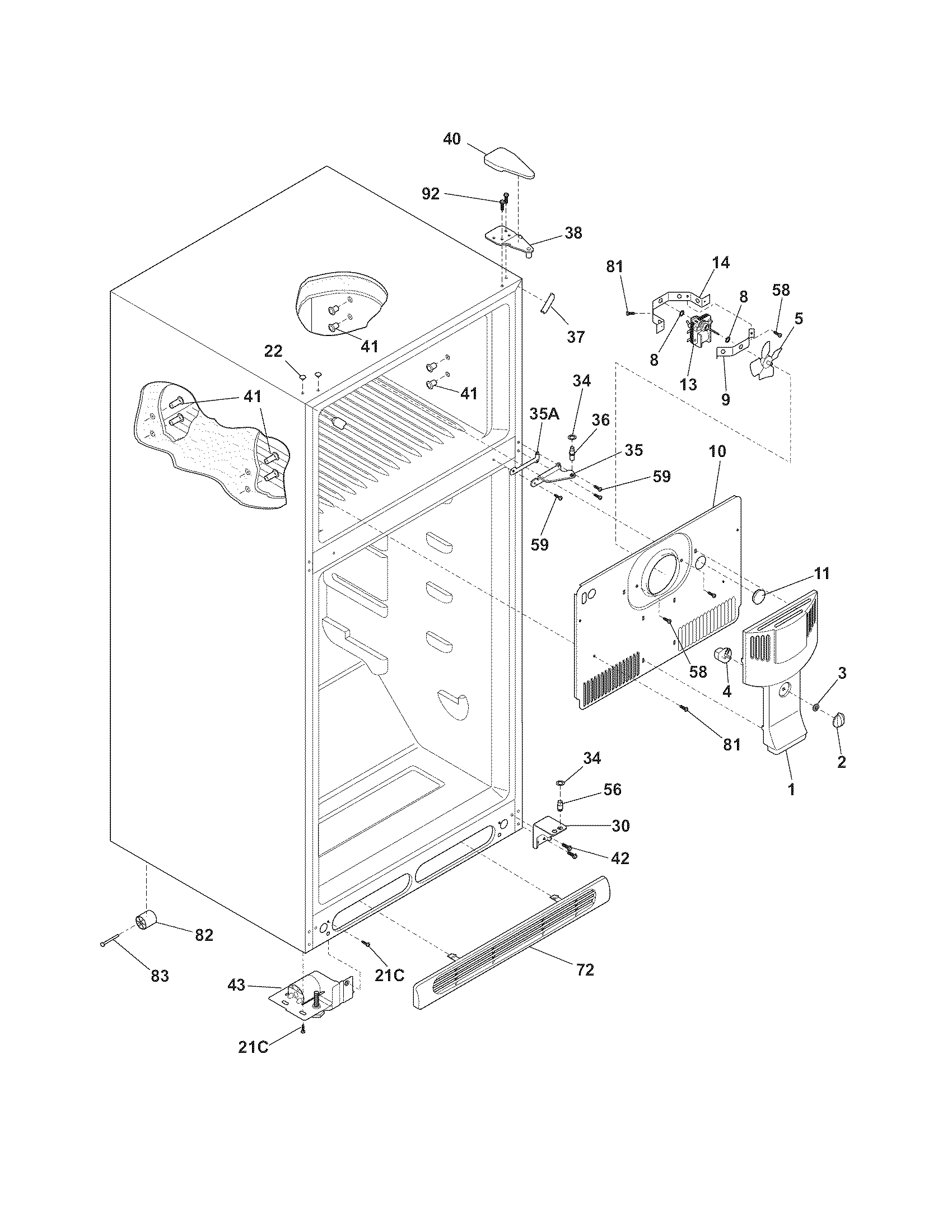

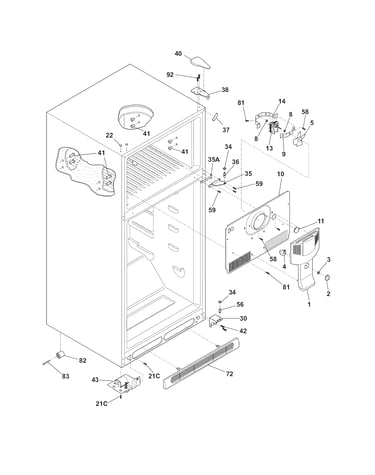

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Compressor 5303918373
#29

System diagram

Refrigerator compressor

Part #5303918373

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 5303918373. Substitute parts can look different from the original.
BEST SELLER
$449.52 |
$12.00 OFF Phone Price : $461.52
In Stock
Refrigerator Shelf Trim, Front 240357704
#29

Shelves diagram

Refrigerator shelf trim, front

Part #240357704

BEST SELLER
$49.48 |
11% OFF Phone Price : $55.48
In Stock
Refrigerator Crisper Drawer Cover Frame 240364713
#25

Shelves diagram

Refrigerator crisper drawer cover frame

Part #240364713

Replaced by #240364793

?
Manufacturer substitution
This part replaces 240364713. Substitute parts can look different from the original.
BEST SELLER
$81.39 |
7% OFF Phone Price : $87.39
In Stock
