Model # SX2E Official Corona kerosene heater

Here are the diagrams and repair parts for Official Corona SX2E kerosene heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Igniter 199-02
#B

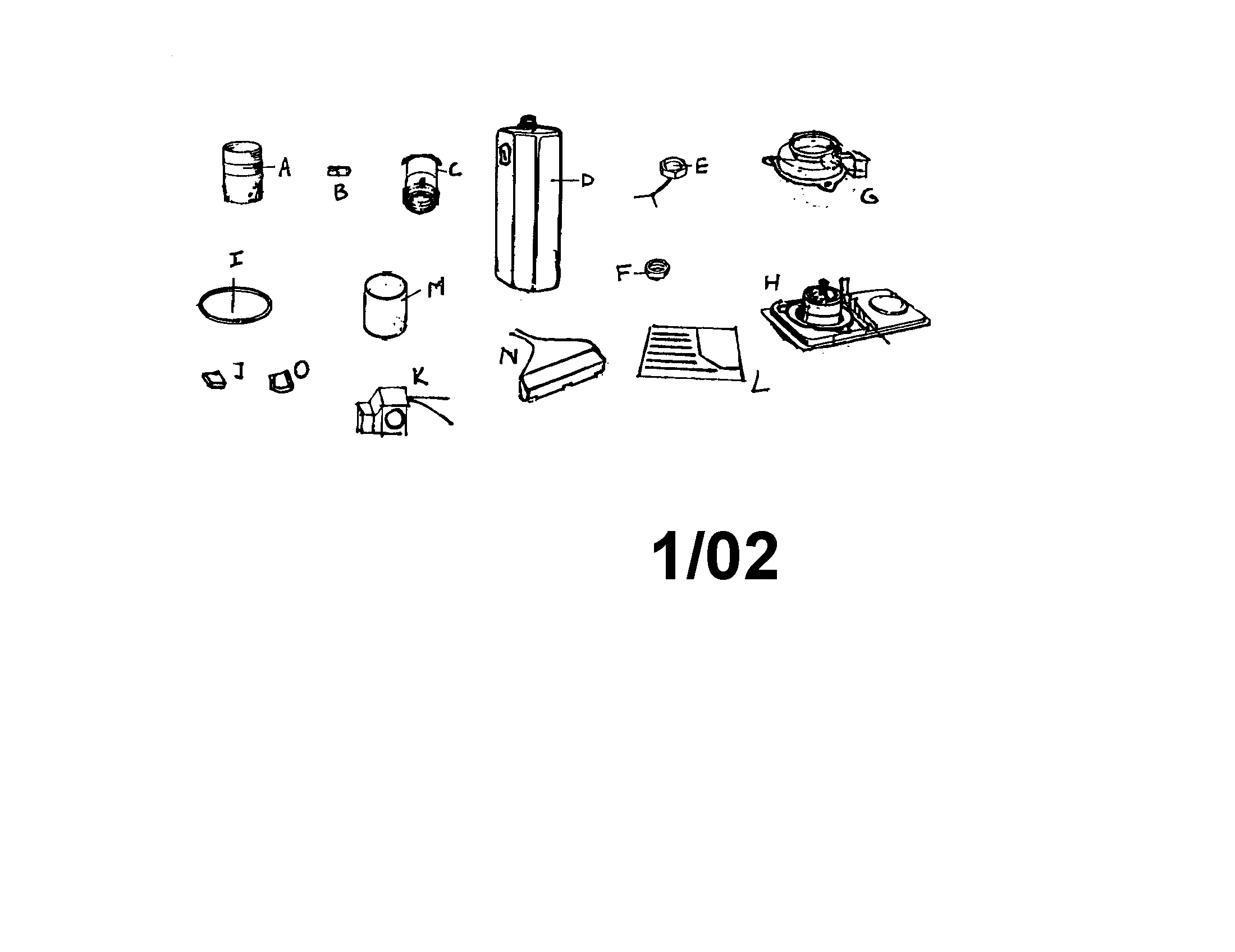

Kerosene heater diagram

Igniter

Part #199-02

The manufacturer no longer makes this part, and there's no substitute part

Kerosene Heater Owner's Manual 210595

#NI

All parts diagram

Kerosene heater owner's manual

Part #210595

The manufacturer no longer makes this part, and there's no substitute part

Wick Guide Packing 200-11
#I

Kerosene heater diagram

Wick guide packing

Part #200-11

The manufacturer no longer makes this part, and there's no substitute part

Cap 197-07
#E

Kerosene heater diagram

Cap

Part #197-07

The manufacturer no longer makes this part, and there's no substitute part

Chimney 200-05
#C

Kerosene heater diagram

Chimney

Part #200-05

The manufacturer no longer makes this part, and there's no substitute part

Pin 200-08
#F

Kerosene heater diagram

Pin

Part #200-08

The manufacturer no longer makes this part, and there's no substitute part

Wick Guide 200-09
#G

Kerosene heater diagram

Wick guide

Part #200-09

The manufacturer no longer makes this part, and there's no substitute part

Fuel Tank 200-10
#H

Kerosene heater diagram

Fuel tank

Part #200-10

The manufacturer no longer makes this part, and there's no substitute part

Wick Control Lever Knob 200-12
#J

Kerosene heater diagram

Wick control lever knob

Part #200-12

The manufacturer no longer makes this part, and there's no substitute part

Cartridge 190-06
#D

Kerosene heater diagram

Cartridge

Part #190-06

The manufacturer no longer makes this part, and there's no substitute part
