Side-By-Side Refrigerator

Model # TFX28PRZCBB Official GE refrigerator - z series

Here are the diagrams and repair parts for Official GE TFX28PRZCBB refrigerator - z series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

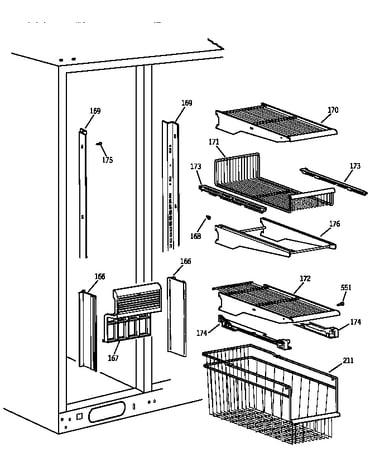

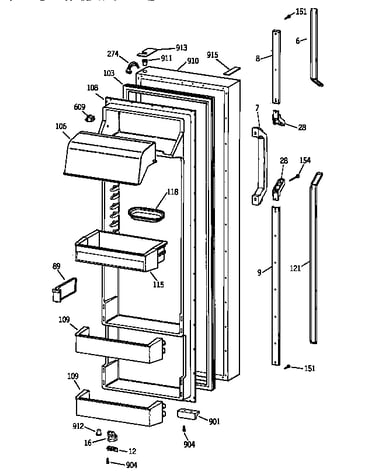

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 309 parts  |
Icemaker Crescent WR30X0328
#820

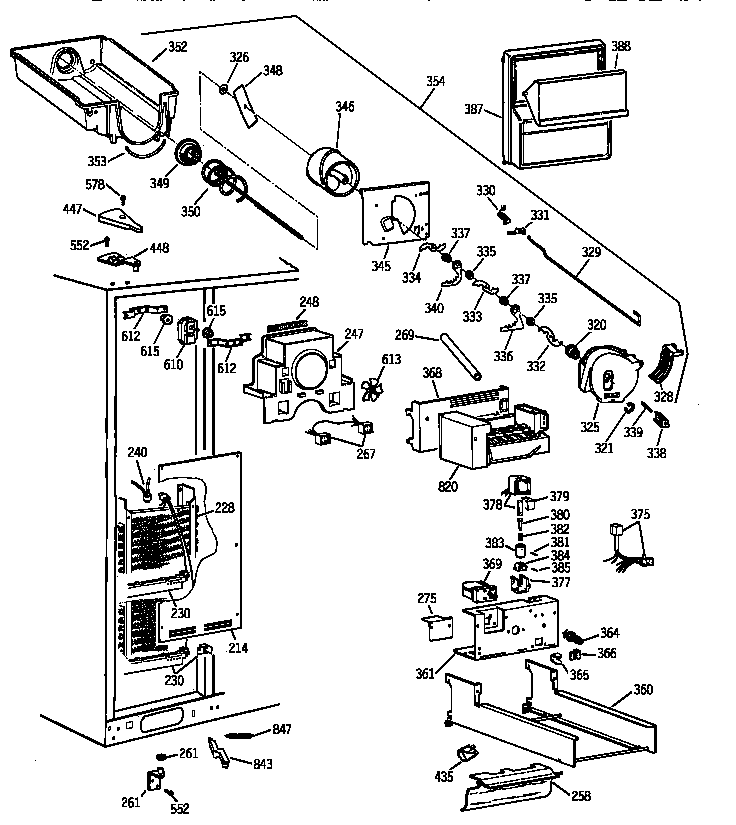

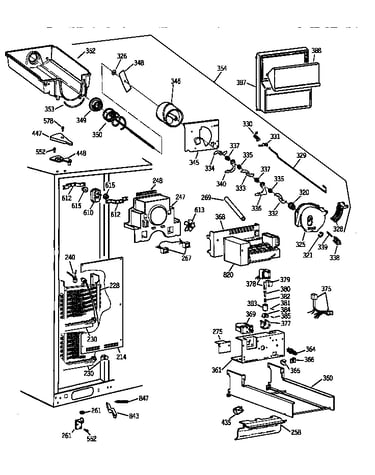

Freezer section diagram

Icemaker crescent

Part #WR30X0328

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X0328. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Dryer Filter WR86X0096
#740

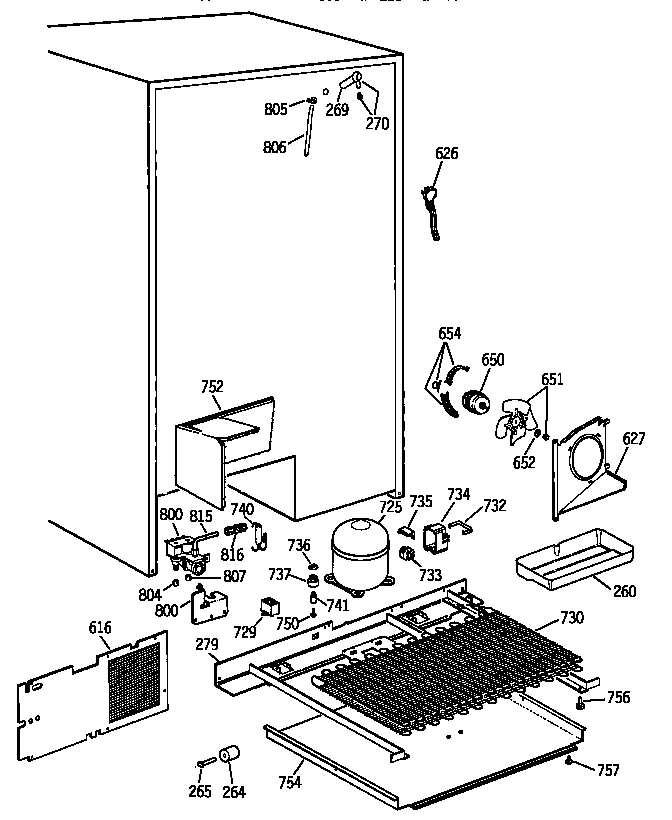

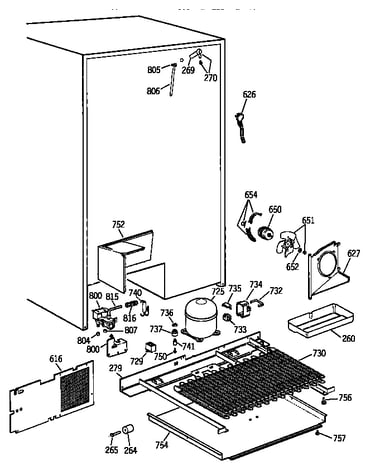

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Union Nut WR02X8545
#80

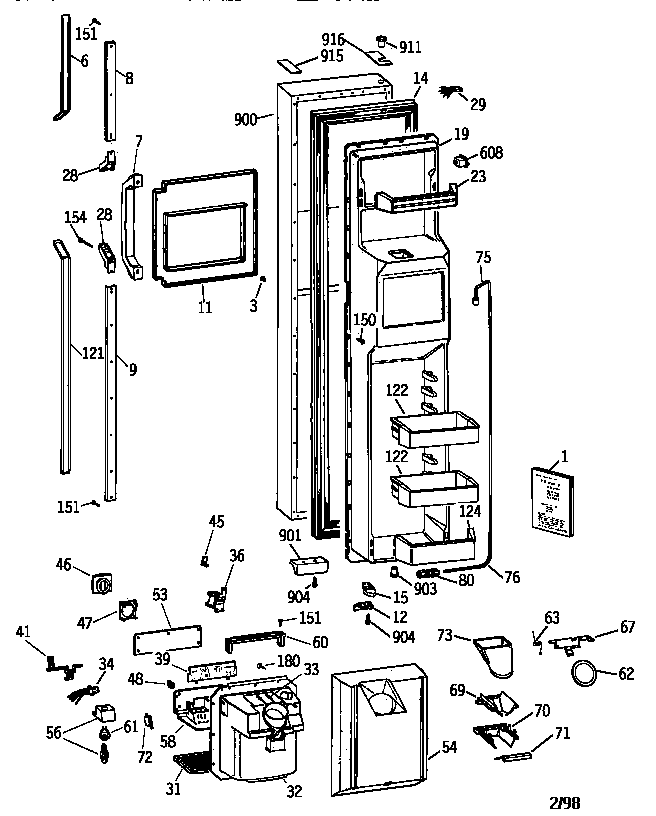

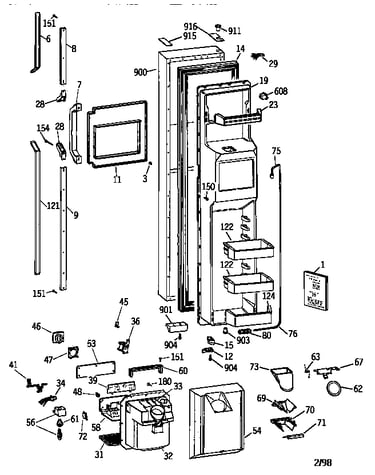

Freezer door diagram

Union nut

Part #WR02X8545

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X8545. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Nut & Union WR02X4048
#807A

Unit parts diagram

Nut & union

Part #WR02X4048

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X4048. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Refrigerator Solenoid Arm Assembly WR62X0058
#378

Freezer section diagram

Refrigerator solenoid arm assembly

Part #WR62X0058

Replaced by #WR62X23154

?
Manufacturer substitution
This part replaces WR62X0058. Substitute parts can look different from the original.
BEST SELLER
$91.44 |
6% OFF Phone Price : $97.44
In Stock
Refrigerator Defrost Thermostat WR50X0122
#240

Freezer section diagram

Refrigerator defrost thermostat

Part #WR50X0122

Replaced by #WR50X122

?
Manufacturer substitution
This part replaces WR50X0122. Substitute parts can look different from the original.
BEST SELLER
$37.61 |
14% OFF Phone Price : $43.61
In Stock
Refrigerator Reservoir-to-dispenser Water Tubing (replaces Wr17x10732, Wr17x11439, Wr17x3104, Wr17x3140, Wr17x3228) WR17X2891
#812

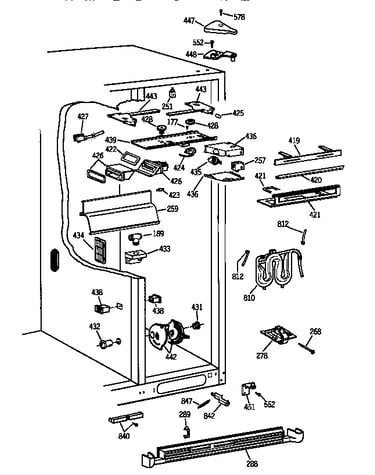

Fresh food section diagram

Refrigerator reservoir-to-dispenser water tubing (replaces wr17x10732, wr17x11439, wr17x3104, wr17x3140, wr17x3228)

Part #WR17X2891

BEST SELLER
$24.41 |
20% OFF Phone Price : $30.41
In Stock
Refrigerator Water Valve WR57X0119
#800B

Unit parts diagram

Refrigerator water valve

Part #WR57X0119

Replaced by #WR57X10051

?
Manufacturer substitution
This part replaces WR57X0119. Substitute parts can look different from the original.
BEST SELLER
$51.14 |
11% OFF Phone Price : $57.14
In Stock
Refrigerator Slide Assembly, Right WR72X0240
#479A

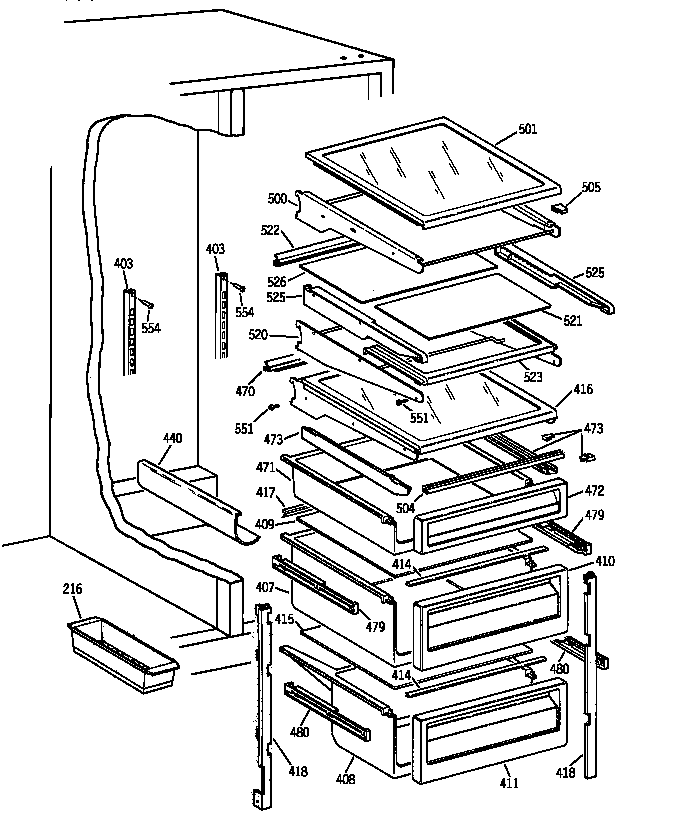

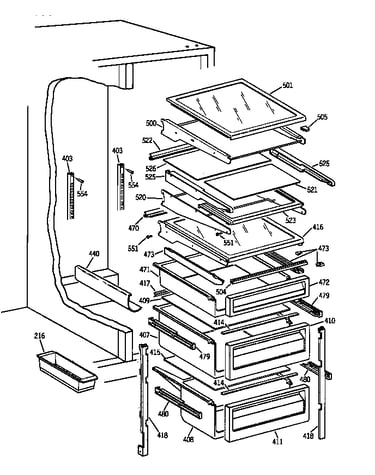

Fresh food shelves diagram

Refrigerator slide assembly, right

Part #WR72X0240

Replaced by #WR72X240

?
Manufacturer substitution
This part replaces WR72X0240. Substitute parts can look different from the original.
BEST SELLER
$37.72 |
14% OFF Phone Price : $43.72
In Stock
