Model # FAC065L7A2 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAC065L7A2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

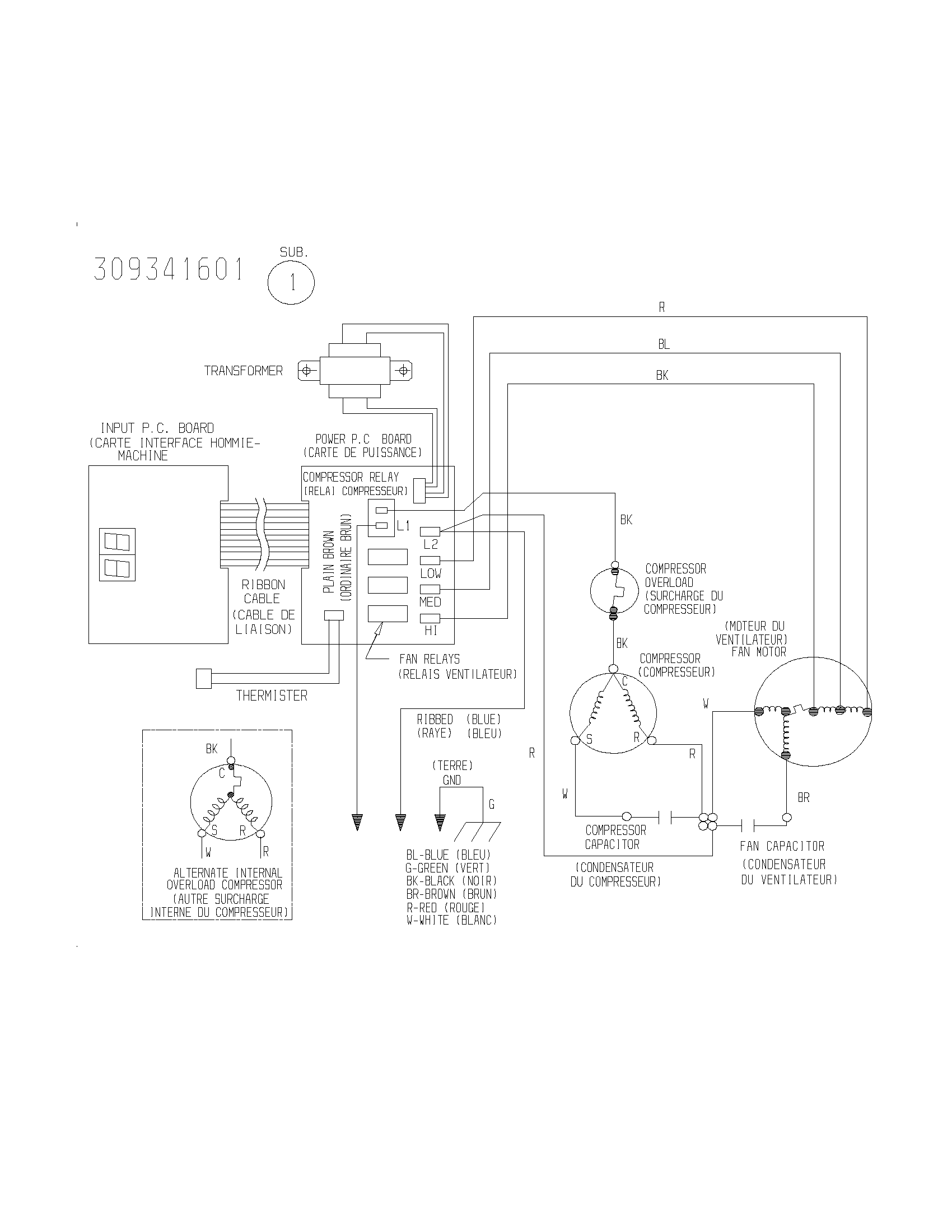

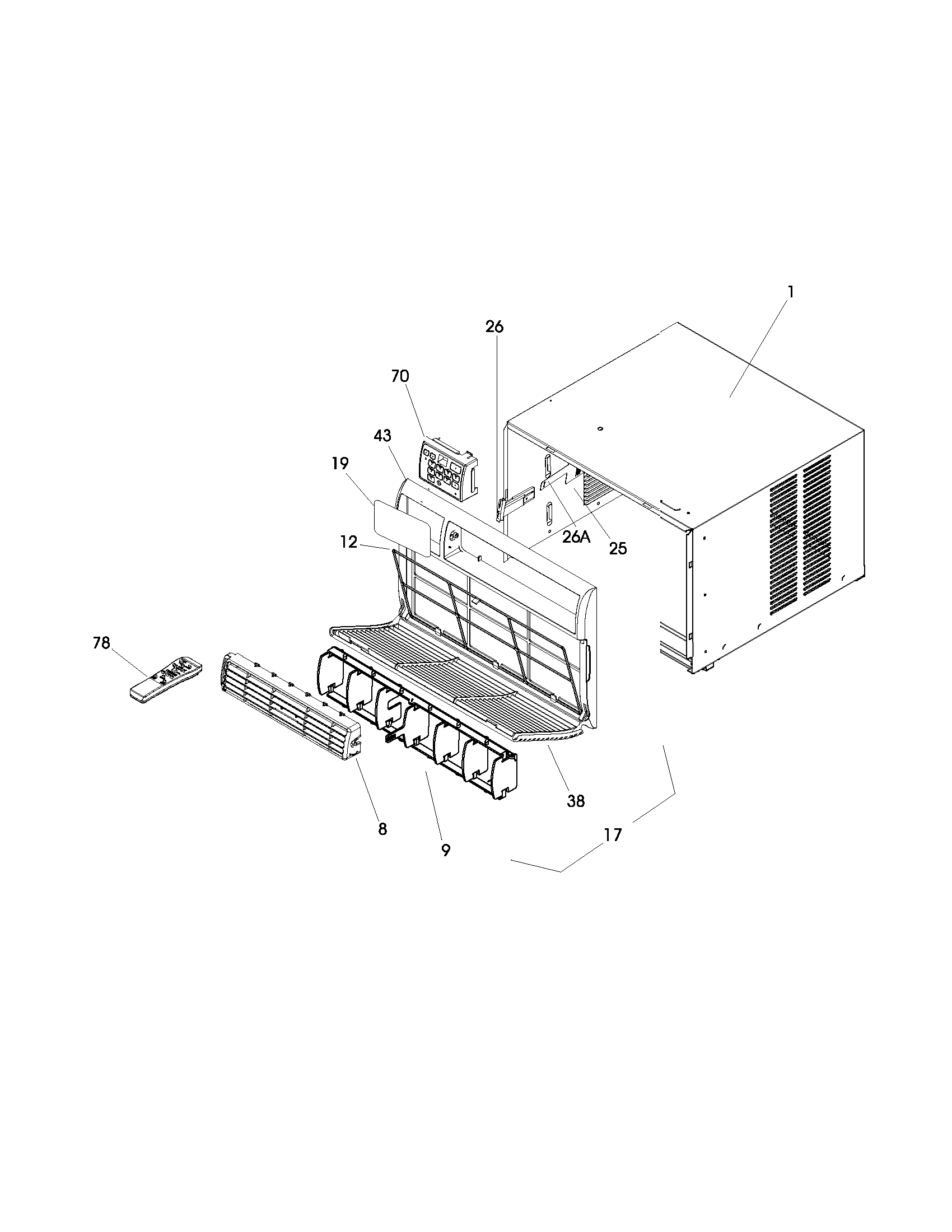

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Bracket Screw 3015312
Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Screw 5303303691
Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
$14.69
In Stock
Bracket Screw 5303301590
#74

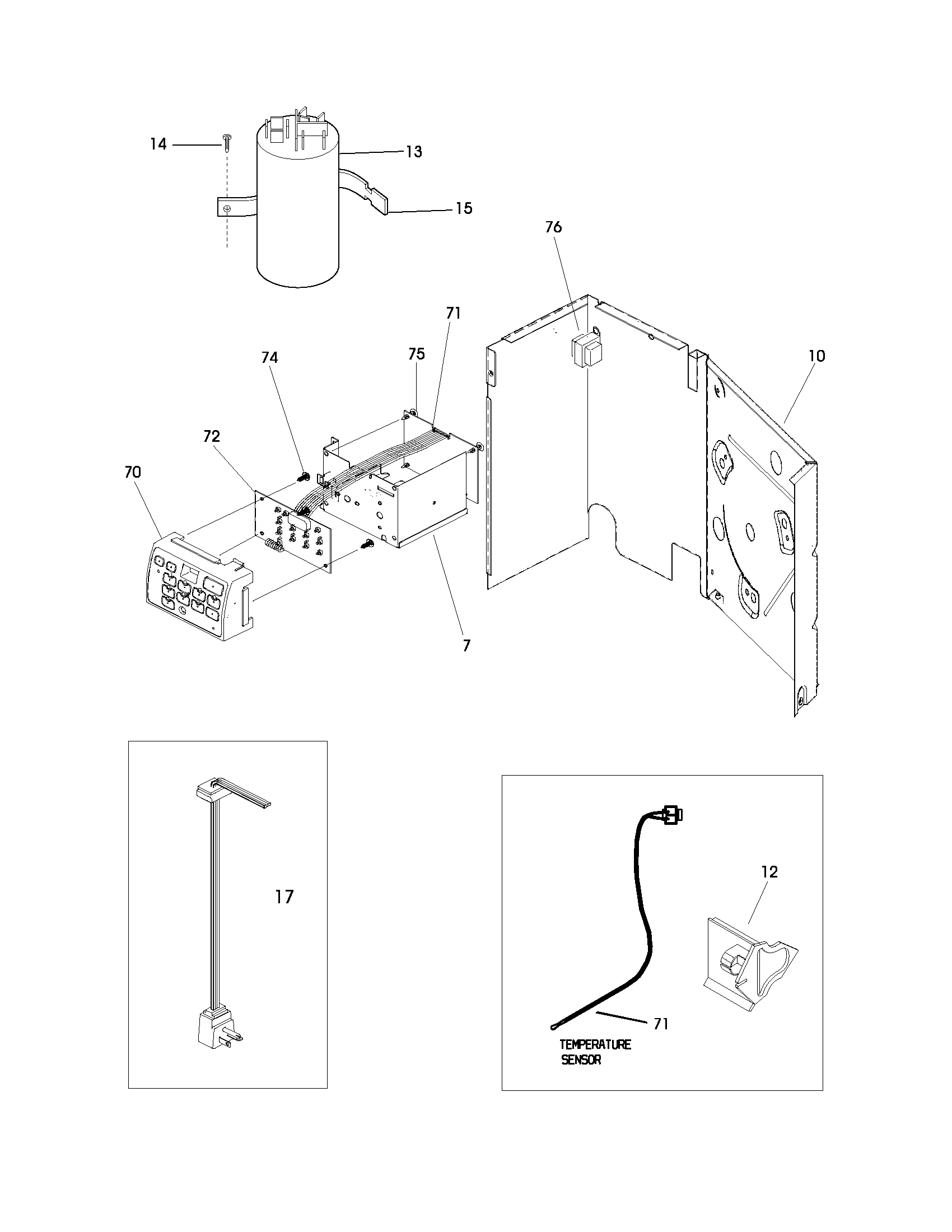

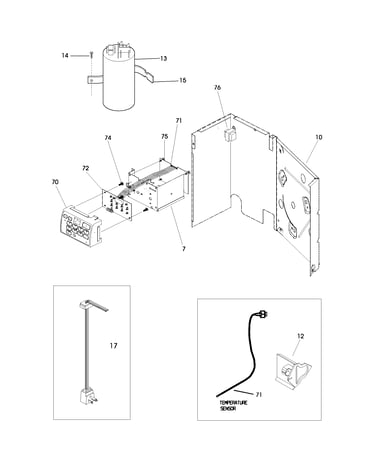

Controls diagram

Bracket screw

Part #5303301590

This item is not returnable
$4.63
In Stock
Kelvinator Room Air Conditioner Lock Nut 08007481
#6

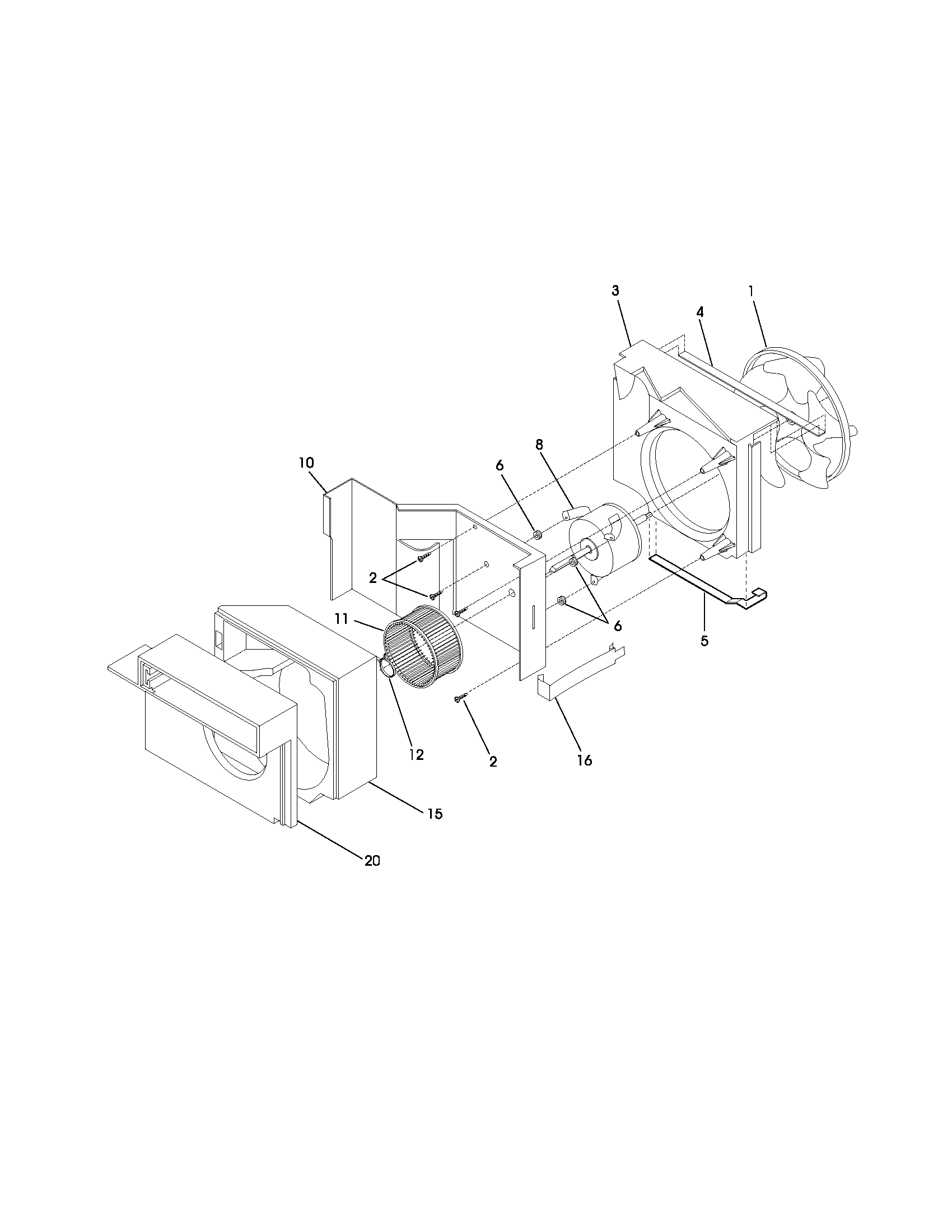

Air handling parts diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable
$5.74
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#17

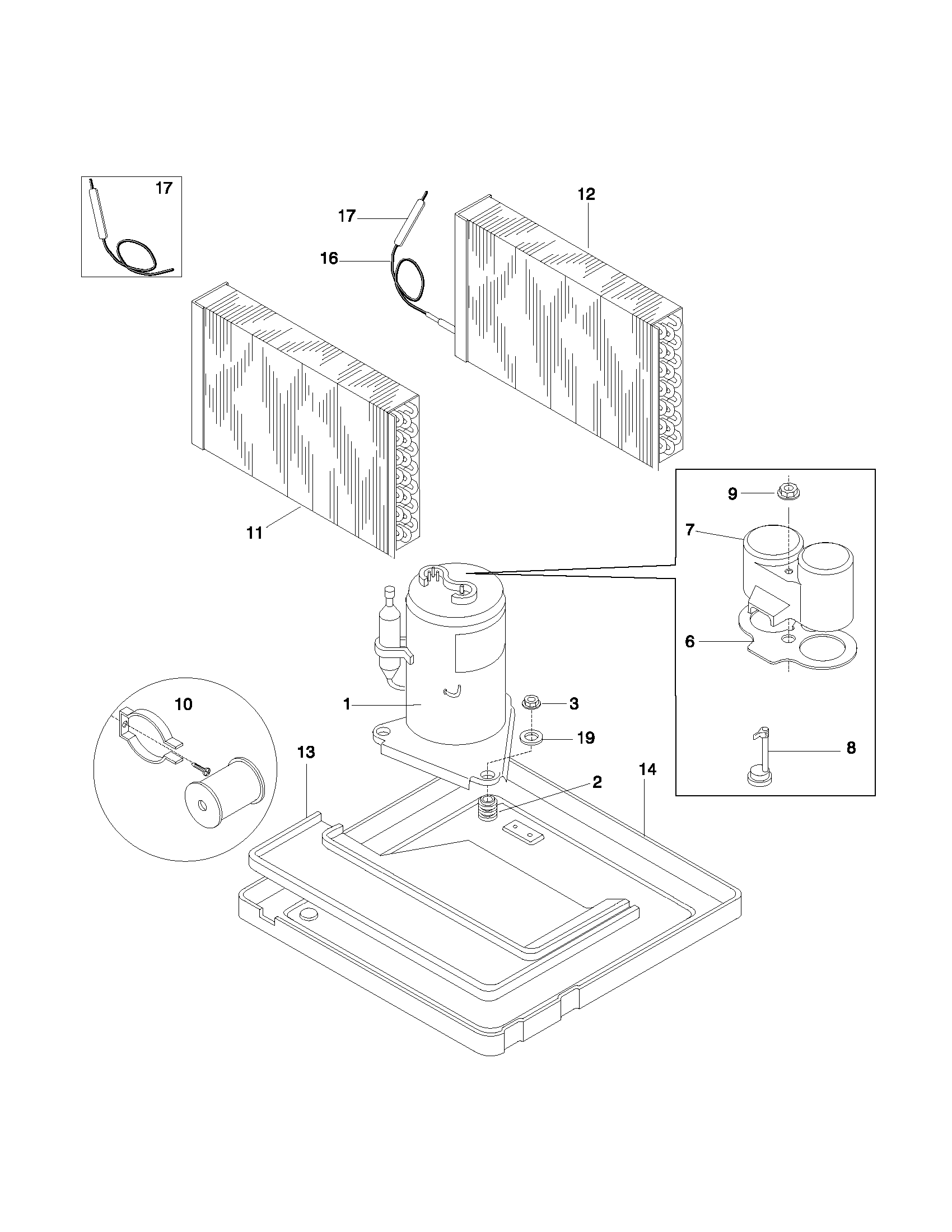

Compressor parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Foam Strip 5304407729
#1

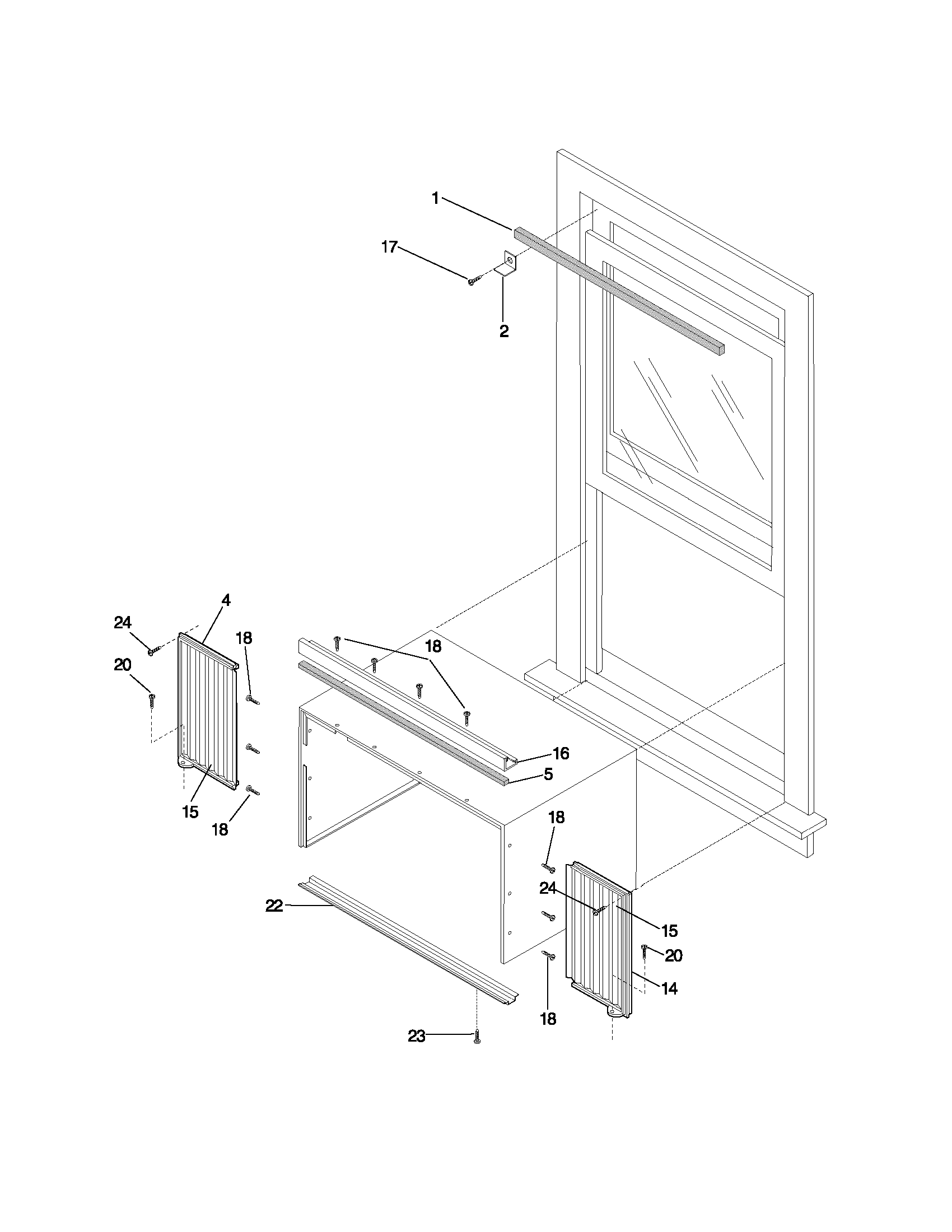

Window mounting parts diagram

Foam strip

Part #5304407729

$25.17
In Stock
Room Air Conditioner Screw, #8-18 X 0.75-in 5304411997
#20

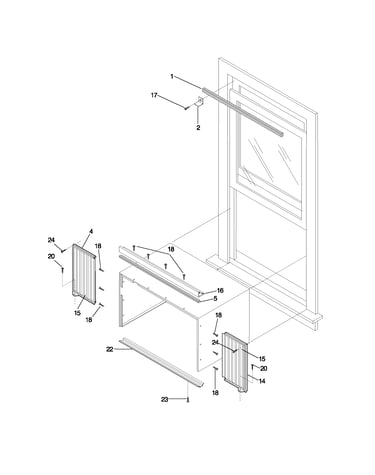

Window mounting parts diagram

Room air conditioner screw, #8-18 x 0.75-in

Part #5304411997

This item is not returnable
$2.29
In Stock
Screw 3202975
#2

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Evaporator Tray 309642801
#13

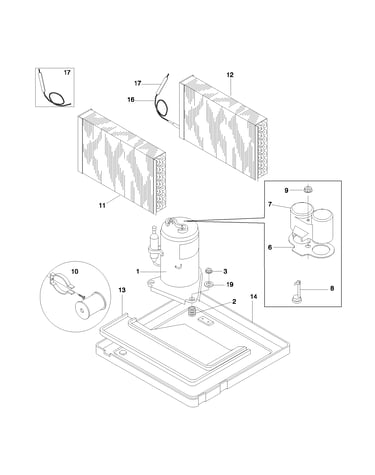

Compressor parts diagram

Evaporator tray

Part #309642801

The manufacturer no longer makes this part, and there's no substitute part

Housing, Fan Shroud 309643901
#3

Air handling parts diagram

Housing, fan shroud

Part #309643901

The manufacturer no longer makes this part, and there's no substitute part
