GE
Upright Freezer

Model # ZIFS36NMHLH Official GE freezer

Here are the diagrams and repair parts for Official GE ZIFS36NMHLH freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

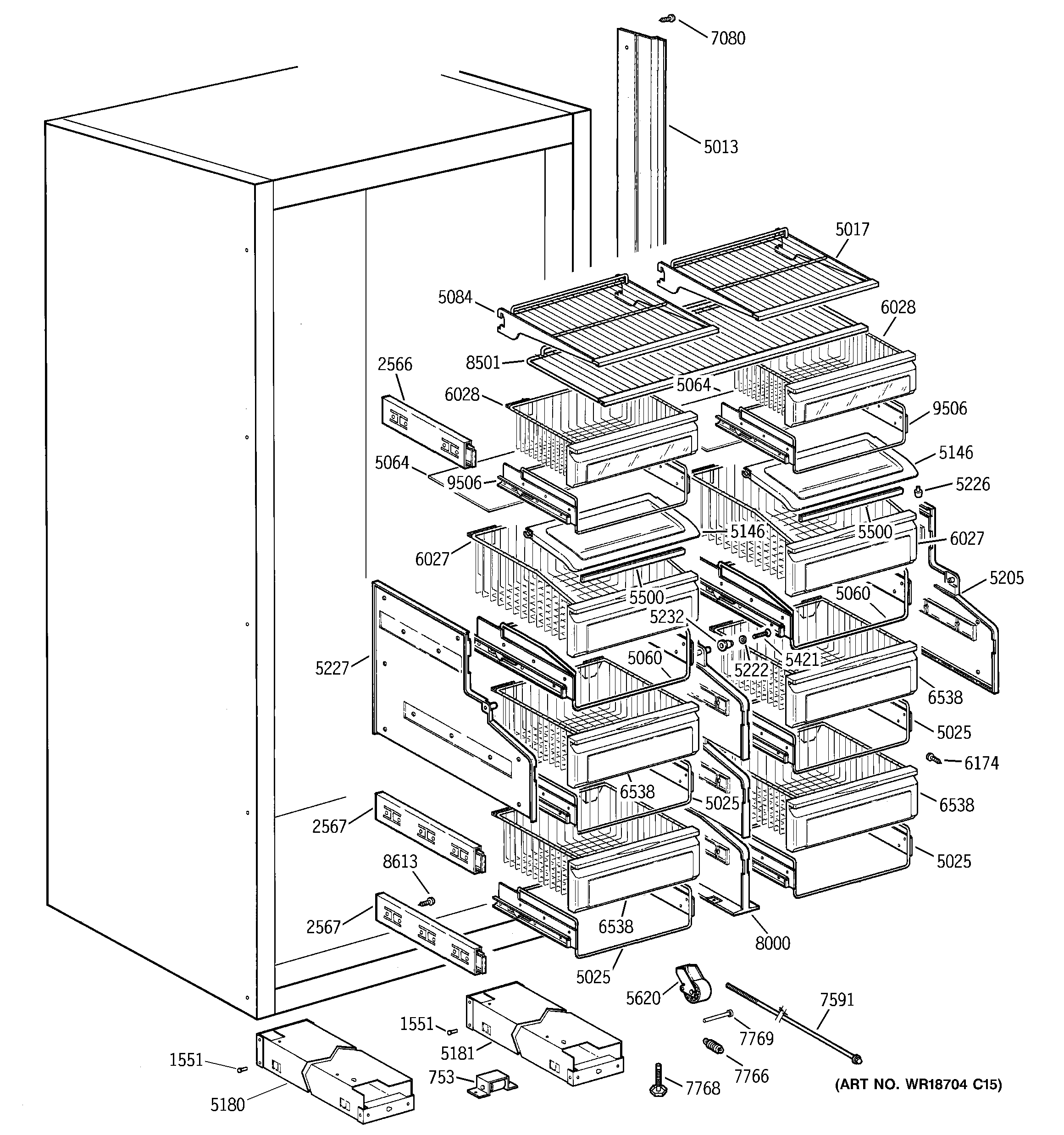

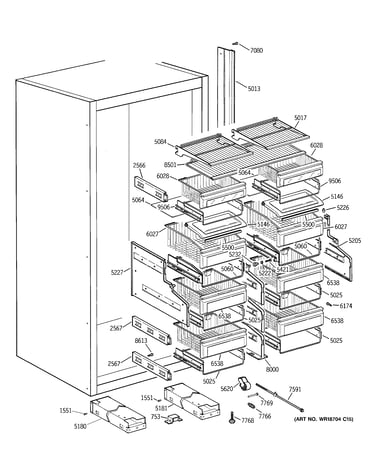

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Refrigerator Ice Maker WR30X10012
#820

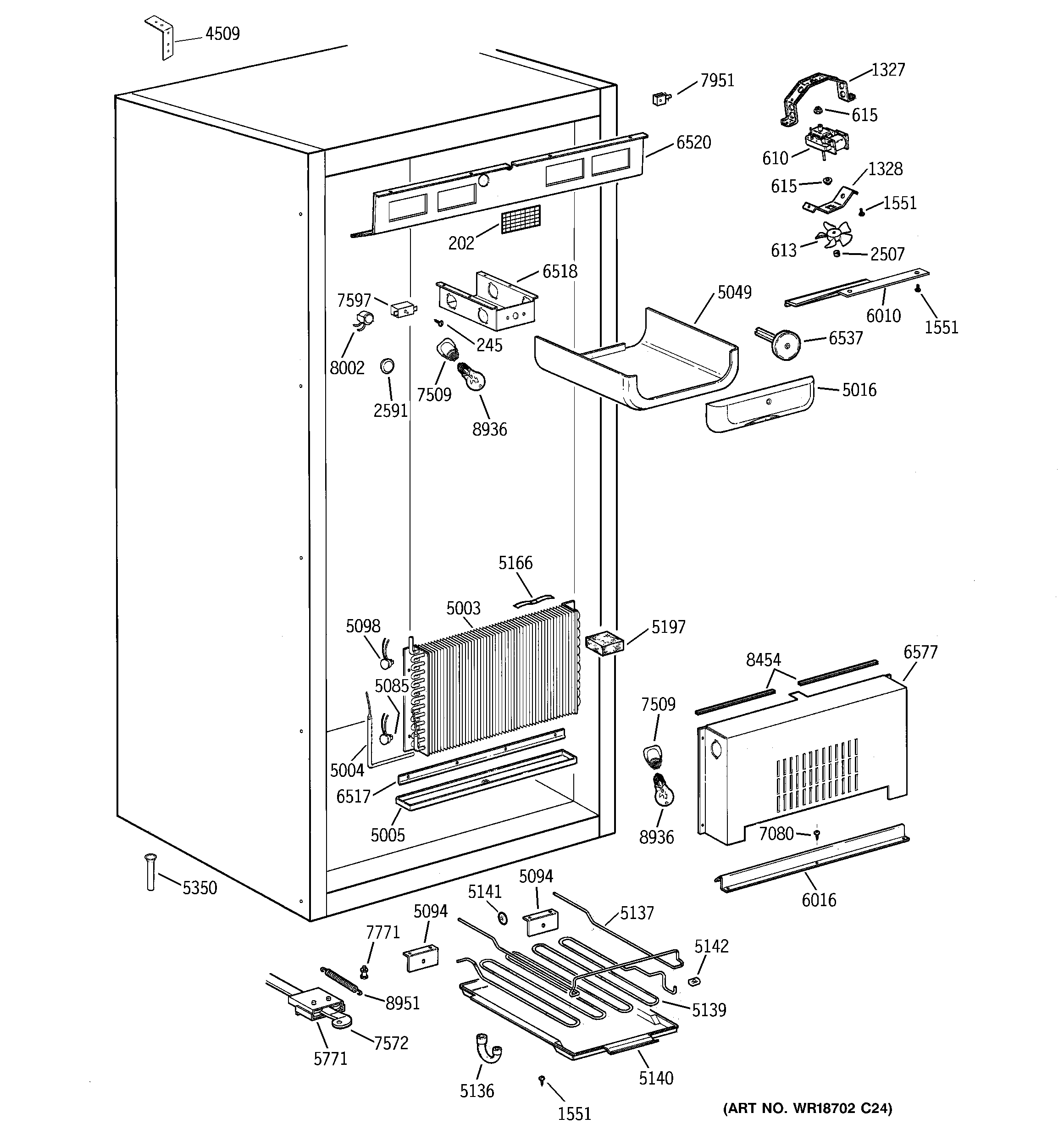

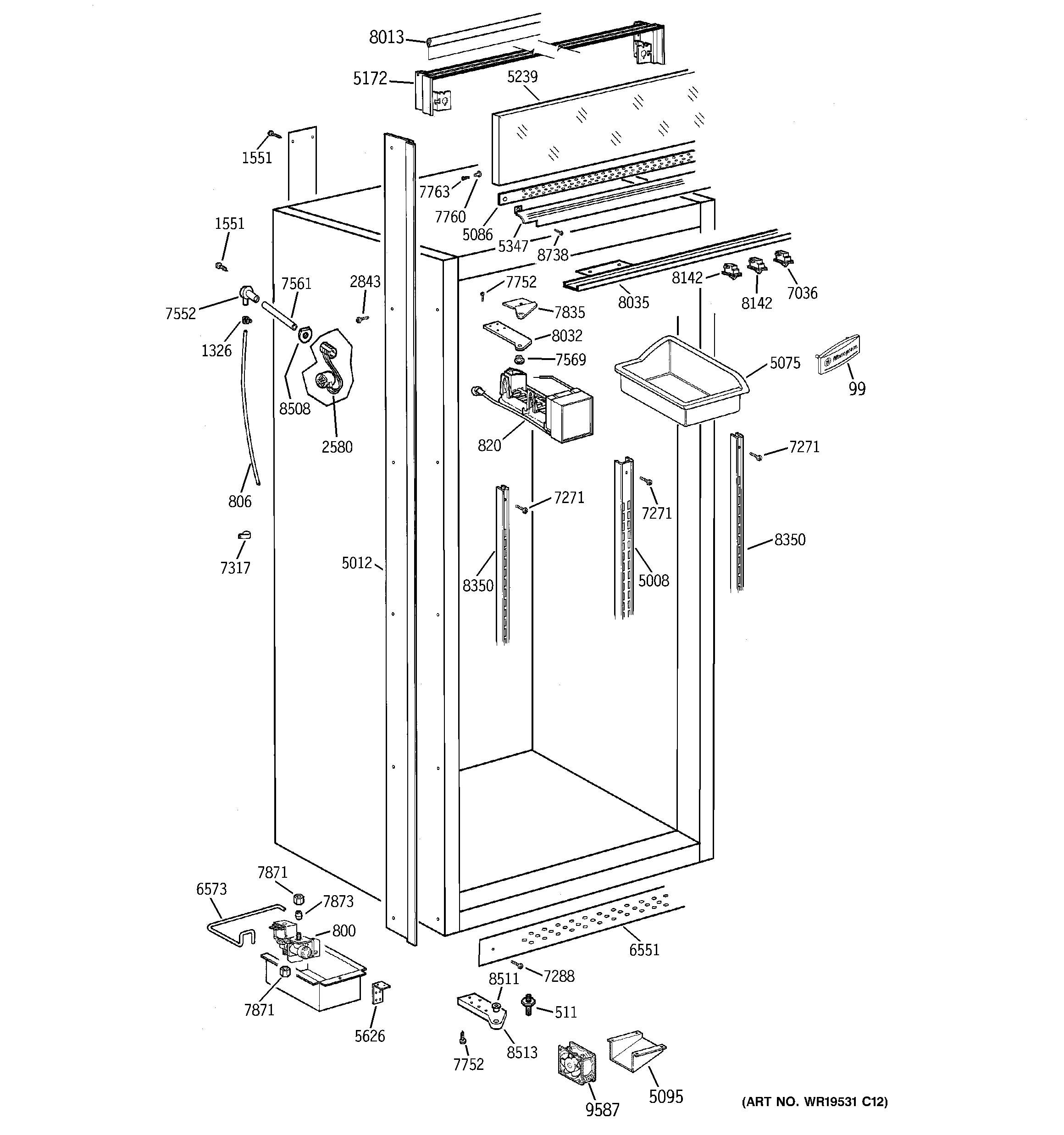

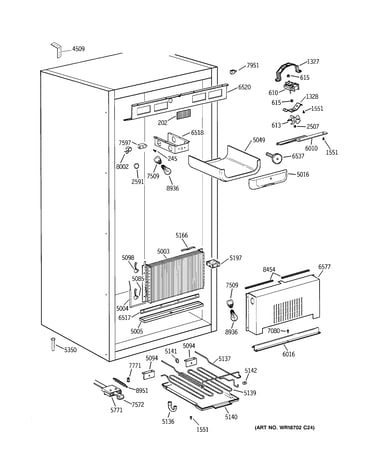

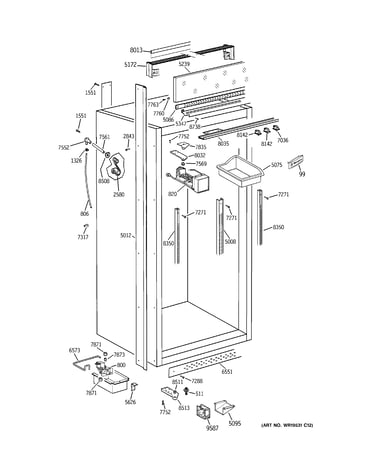

Cabinet parts (2) diagram

Refrigerator ice maker

Part #WR30X10012

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10012. Substitute parts can look different from the original.
BEST SELLER
$180.85 |
6% OFF Phone Price : $192.85
In Stock
Dryer Filter WR86X0096
#740

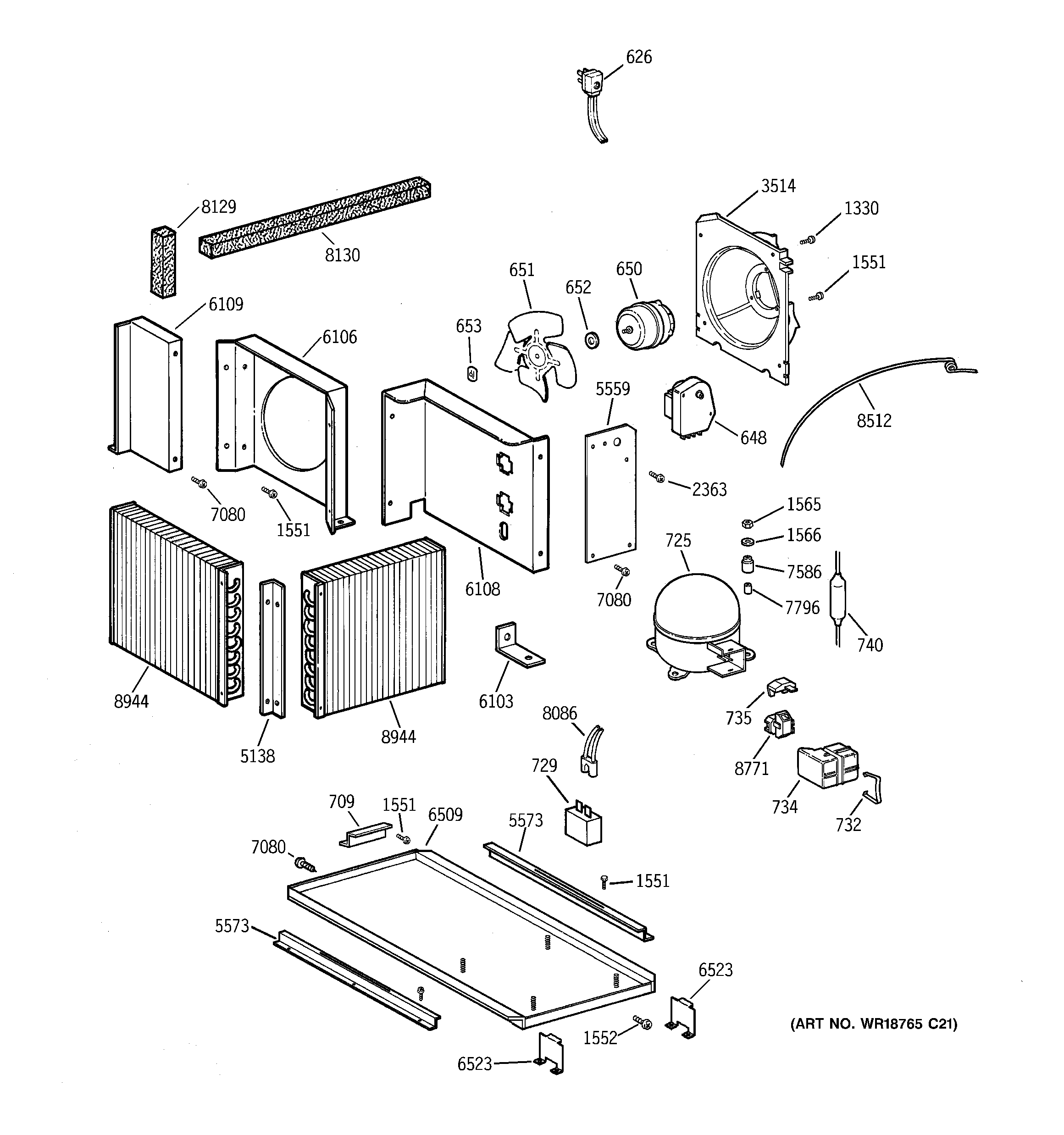

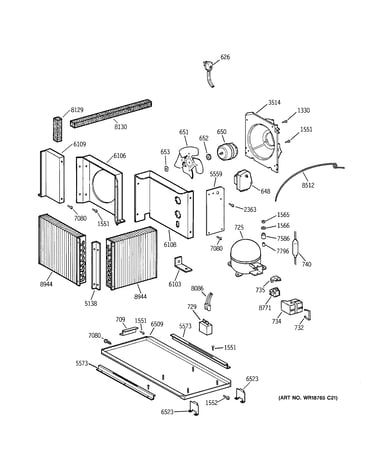

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
#8936

Cabinet parts (1) diagram

Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Capacitor WR62X0079
#729

Unit parts diagram

Capacitor

Part #WR62X0079

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
BEST SELLER
$41.95 |
13% OFF Phone Price : $47.95
In Stock
Hi Side Asm WR87X0471
#725

Unit parts diagram

Hi side asm

Part #WR87X0471

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X0471. Substitute parts can look different from the original.
BEST SELLER
$394.05 |
$12.00 OFF Phone Price : $406.05
In Stock
Water Valve WR57X0095
#800

Cabinet parts (2) diagram

Water valve

Part #WR57X0095

Replaced by #WR57X10033

?
Manufacturer substitution
This part replaces WR57X0095. Substitute parts can look different from the original.
BEST SELLER
$39.92 |
13% OFF Phone Price : $45.92
In Stock
Condenser Fan Blade WR60X10049
#651

Unit parts diagram

Condenser fan blade

Part #WR60X10049

Replaced by #WR60X24484

?
Manufacturer substitution
This part replaces WR60X10049. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$26.55 |
18% OFF Phone Price : $32.55
In Stock
Defrost Control WR09X0502
#648

Unit parts diagram

Defrost control

Part #WR09X0502

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR09X0502. Substitute parts can look different from the original.
BEST SELLER
$42.02 |
12% OFF Phone Price : $48.02
In Stock
Refrigerator Door Bin WR71X10138
#5391

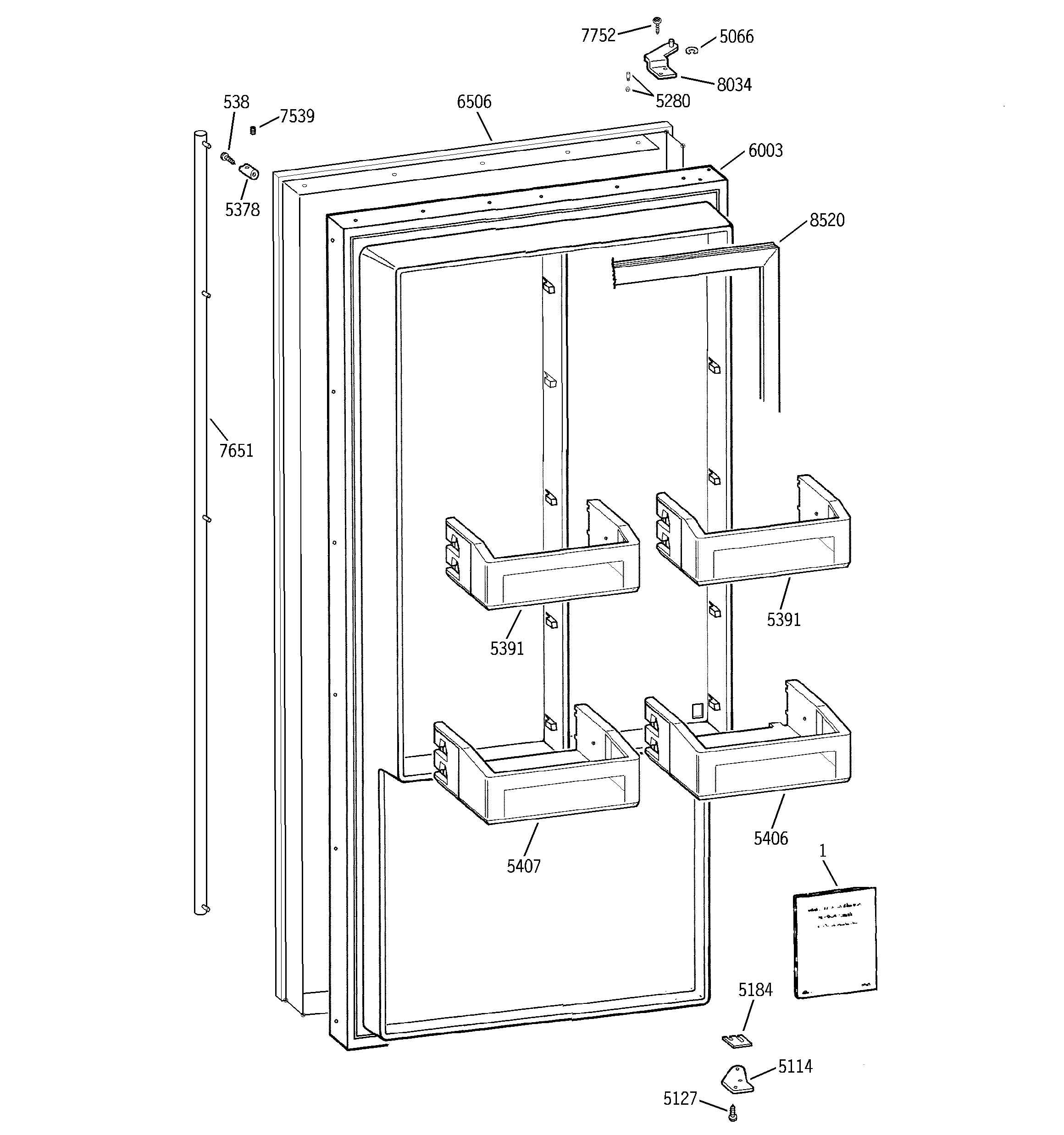

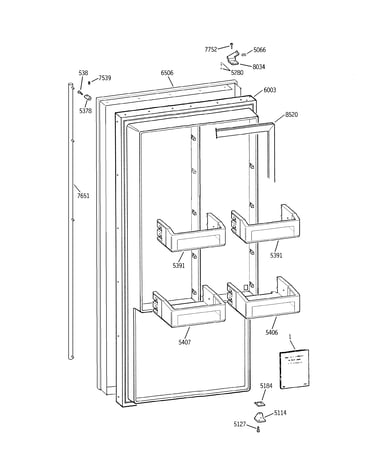

Freezer door diagram

Refrigerator door bin

Part #WR71X10138

BEST SELLER
$72.62 |
8% OFF Phone Price : $78.62
In Stock
Ring/fan Bld WR02X3198
#2507

Cabinet parts (1) diagram

Ring/fan bld

Part #WR02X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR02X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
