Model # UN32C4000PDXZA Official Samsung lcd television

Here are the diagrams and repair parts for Official Samsung UN32C4000PDXZA lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Access Pck BN96-10788B
#NI

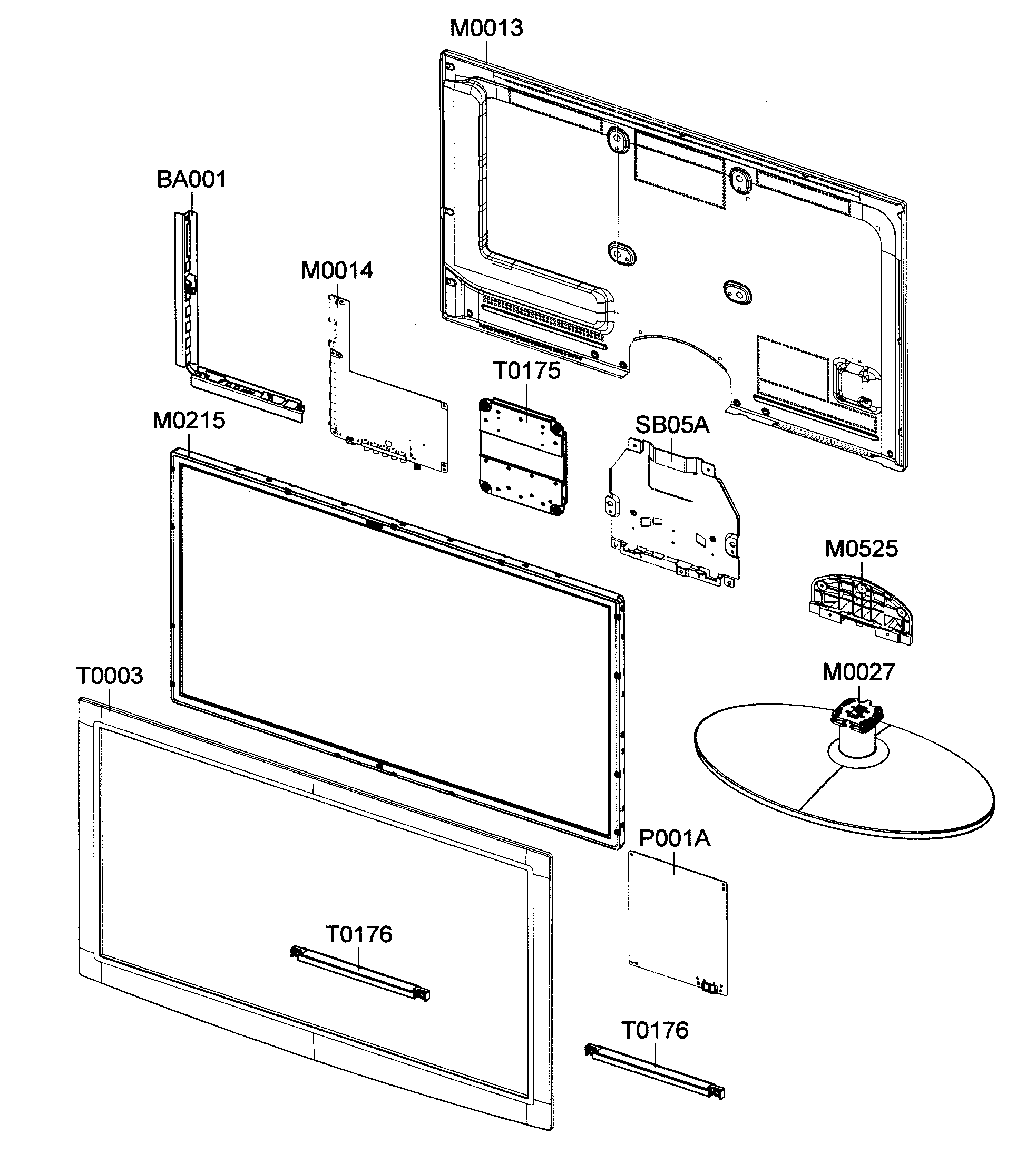

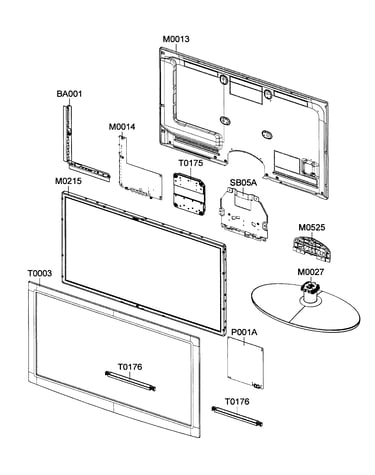

Cabinet parts diagram

Access pck

Part #BN96-10788B

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1103-000129
#NI

Cabinet parts diagram

Integrated circuit

Part #1103-000129

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1201-002993
#NI

Cabinet parts diagram

Integrated circuit

Part #1201-002993

The manufacturer no longer makes this part, and there's no substitute part

Cover BN96-13155A
#M013

Cabinet parts diagram

Cover

Part #BN96-13155A

The manufacturer no longer makes this part, and there's no substitute part

Tuner BN40-00162A
#NI

Cabinet parts diagram

Tuner

Part #BN40-00162A

The manufacturer no longer makes this part, and there's no substitute part

Ic-sw. 1205-003733
#NI

Cabinet parts diagram

Ic-sw.

Part #1205-003733

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1201-002849
#NI

Cabinet parts diagram

Integrated circuit

Part #1201-002849

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1203-006138
#NI

Cabinet parts diagram

Integrated circuit

Part #1203-006138

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1203-005559
#NI

Cabinet parts diagram

Integrated circuit

Part #1203-005559

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1203-002898
#NI

Cabinet parts diagram

Integrated circuit

Part #1203-002898

The manufacturer no longer makes this part, and there's no substitute part
