Model # 919164200 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919164200 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 64 parts |

#45

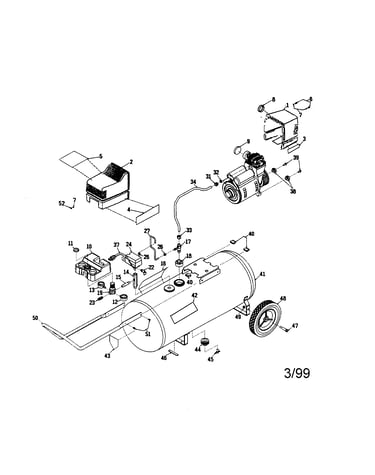

Air compressor diagram diagram

Valve

Part #SS-2707

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Manifold Assembly AC-0027-2

#14

Air compressor diagram diagram

Air compressor manifold assembly

Part #AC-0027-2

The manufacturer no longer makes this part, and there's no substitute part

Air compressor diagram diagram

Craftsman label

Part #LA-3268

The manufacturer no longer makes this part, and there's no substitute part

#60

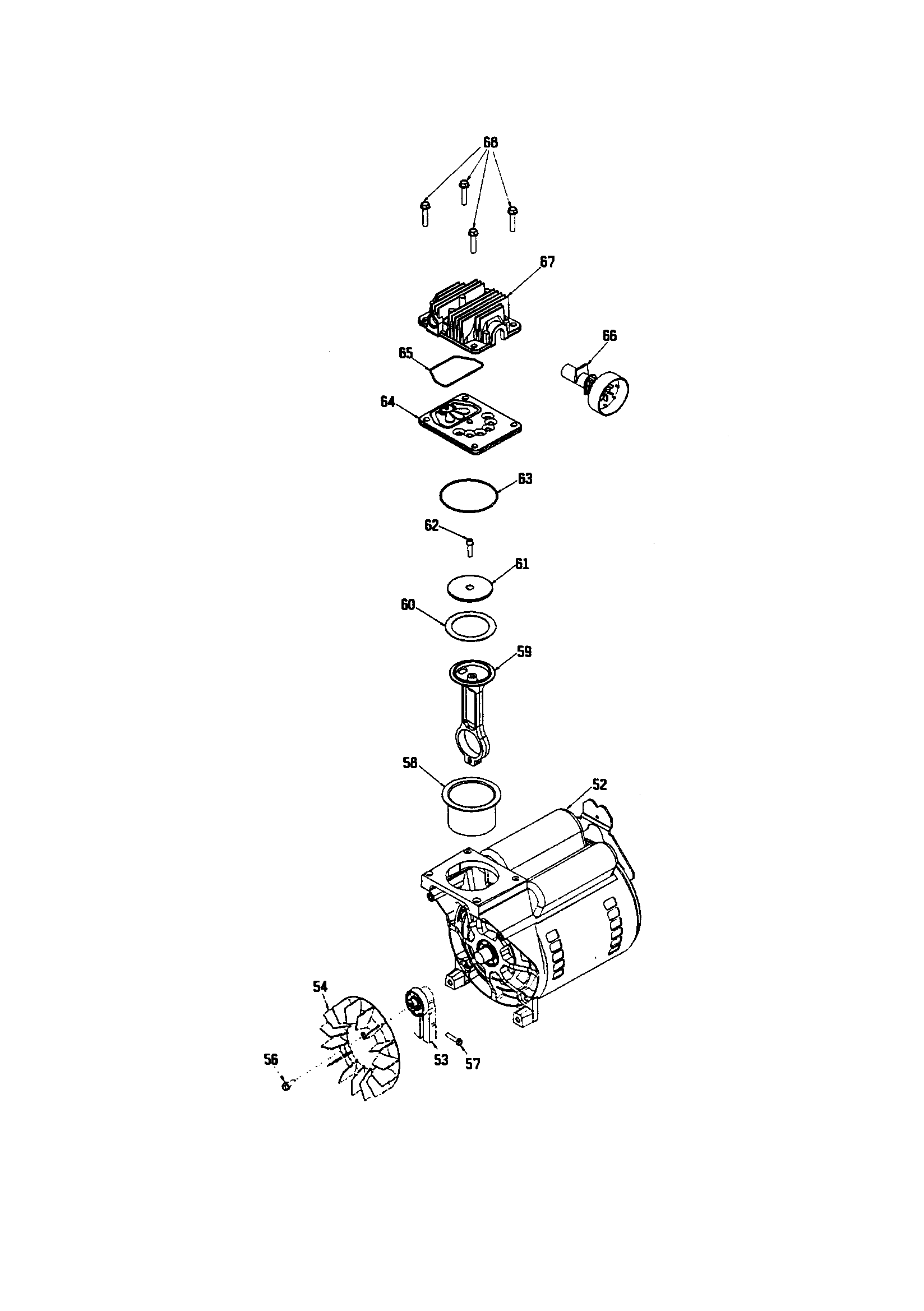

Compressor pump diagram diagram

Air compressor compression ring

Part #DAC-308

The manufacturer no longer makes this part, and there's no substitute part

#57

Compressor pump diagram diagram

Screw

Part #SSF-615

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Compression Nut SSP-7821-1

#31

Air compressor diagram diagram

Air compressor compression nut

Part #SSP-7821-1

The manufacturer no longer makes this part, and there's no substitute part

Air compressor diagram diagram

Air compressor air filter retainer

Part #CAC-1373

The manufacturer no longer makes this part, and there's no substitute part

Air compressor diagram diagram

Label,perf

Part #LA-3269

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Pressure Relief Tube AC-0028

#27

Air compressor diagram diagram

Air compressor pressure relief tube

Part #AC-0028

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Connecting Rod Cap ACG-29

#61

Compressor pump diagram diagram

Air compressor connecting rod cap

Part #ACG-29

The manufacturer no longer makes this part, and there's no substitute part
