Kenmore
Top-Mount Refrigerator

Model # 25373462300 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25373462300 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

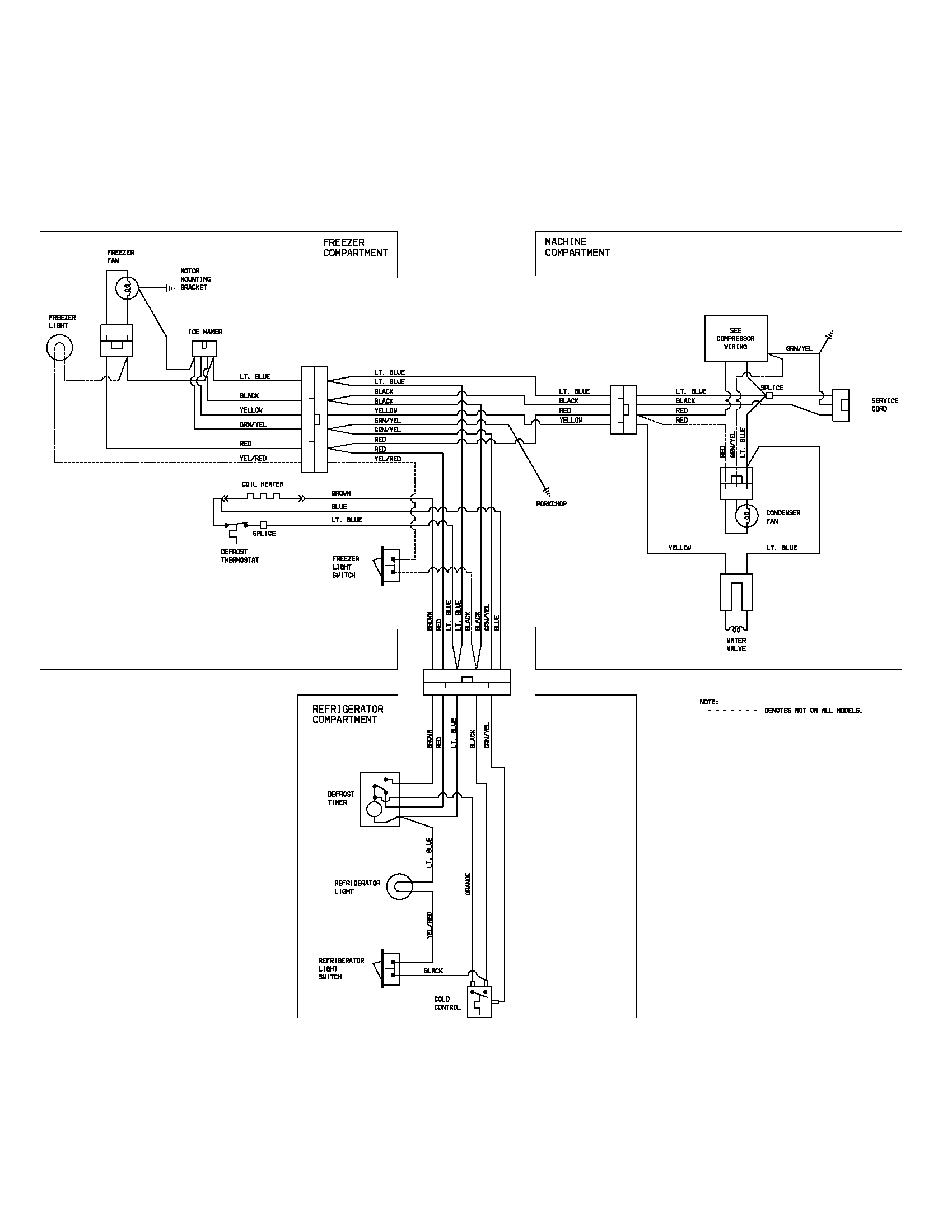

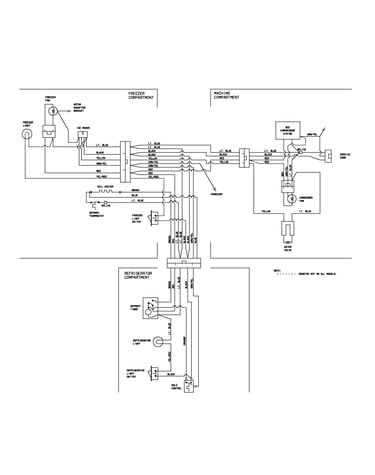

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Ice Maker Mold 5303320545
#17

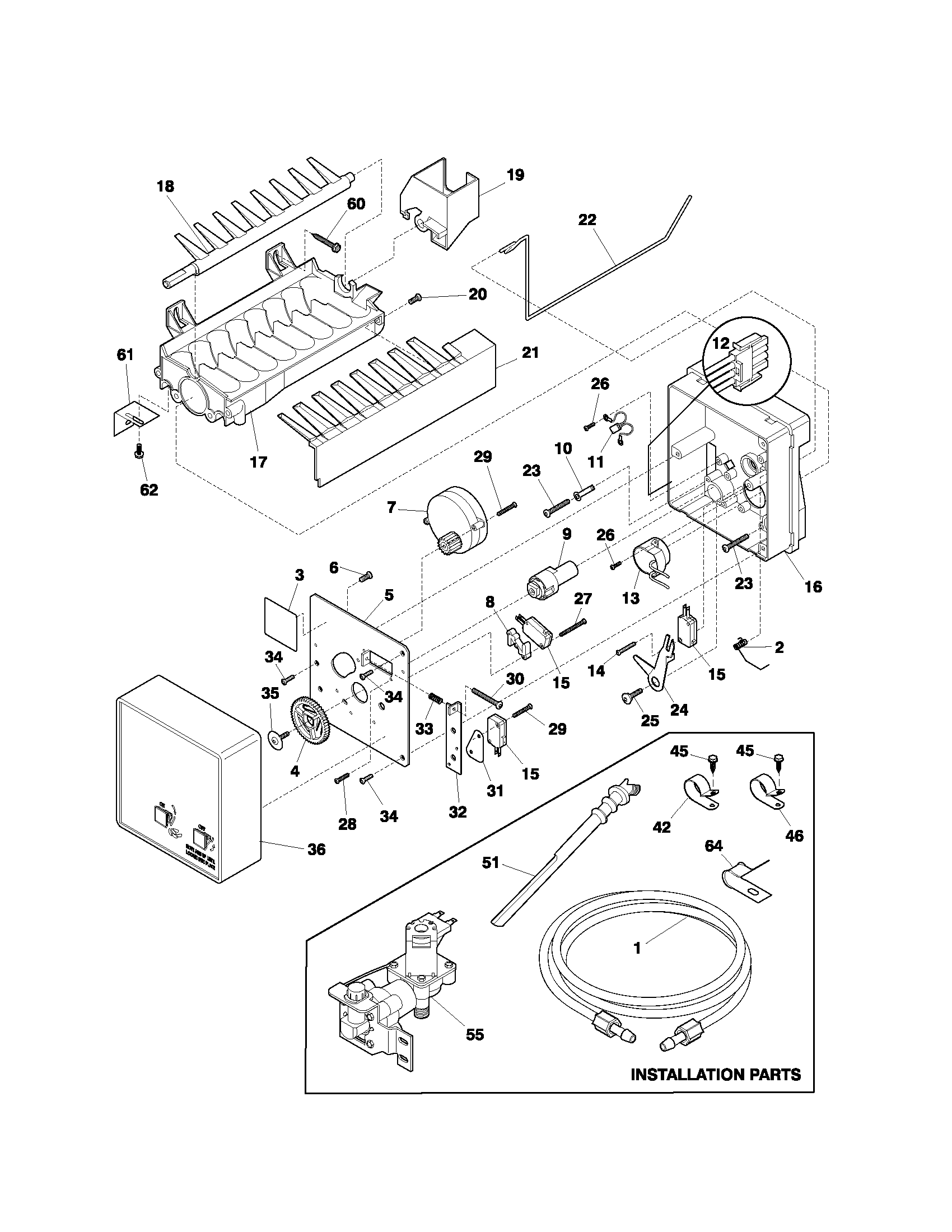

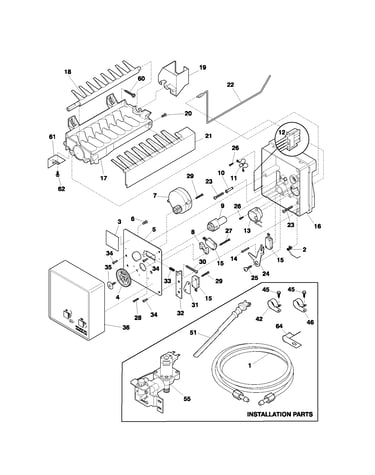

Ice maker diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Refrigerator Filter Drier 218944001
#4

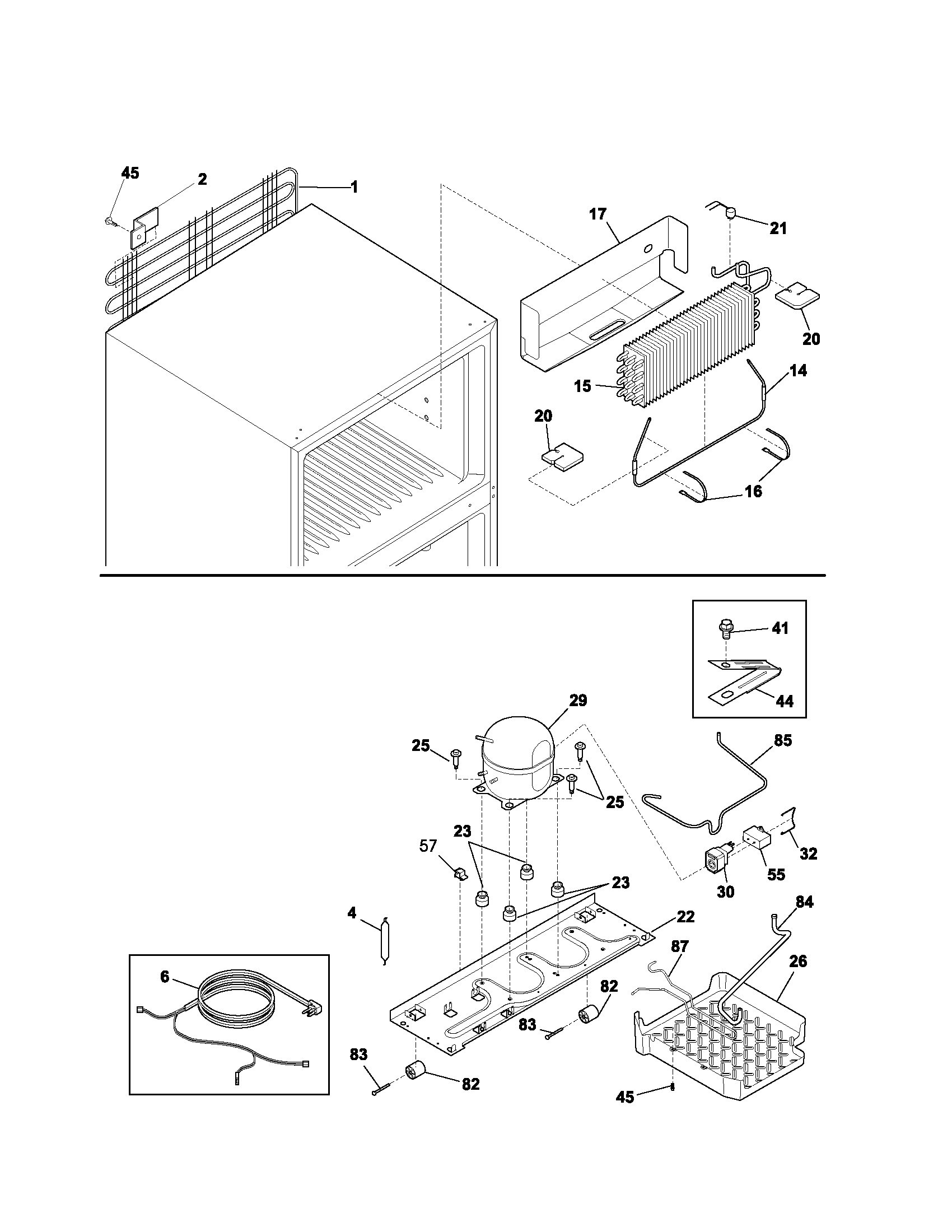

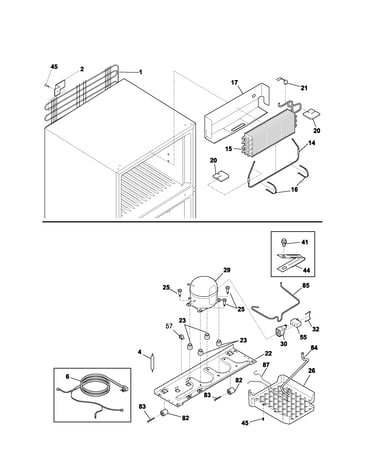

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Drawer Hanger, Right (replaces 240460501) 240530701
#42

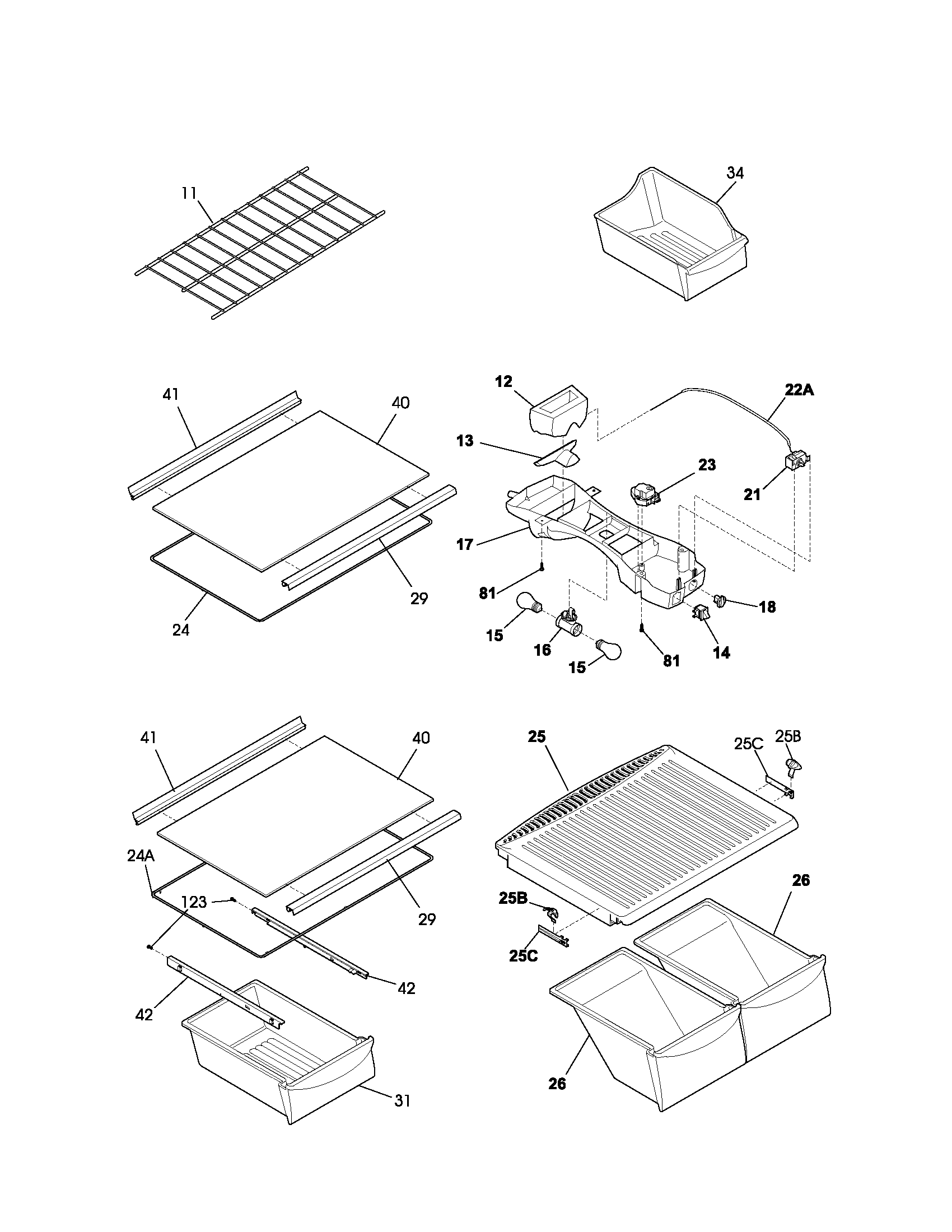

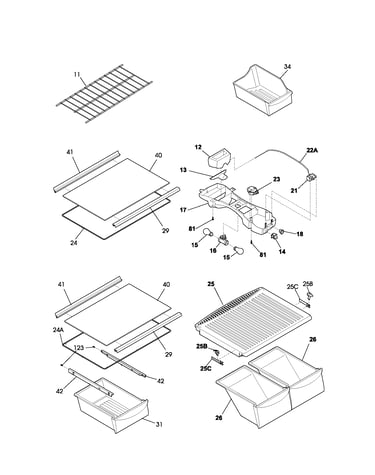

Shelves diagram

Refrigerator drawer hanger, right (replaces 240460501)

Part #240530701

BEST SELLER
$48.43 |
11% OFF Phone Price : $54.43
In Stock
Refrigerator Door Shelf Rail 240535101
#4

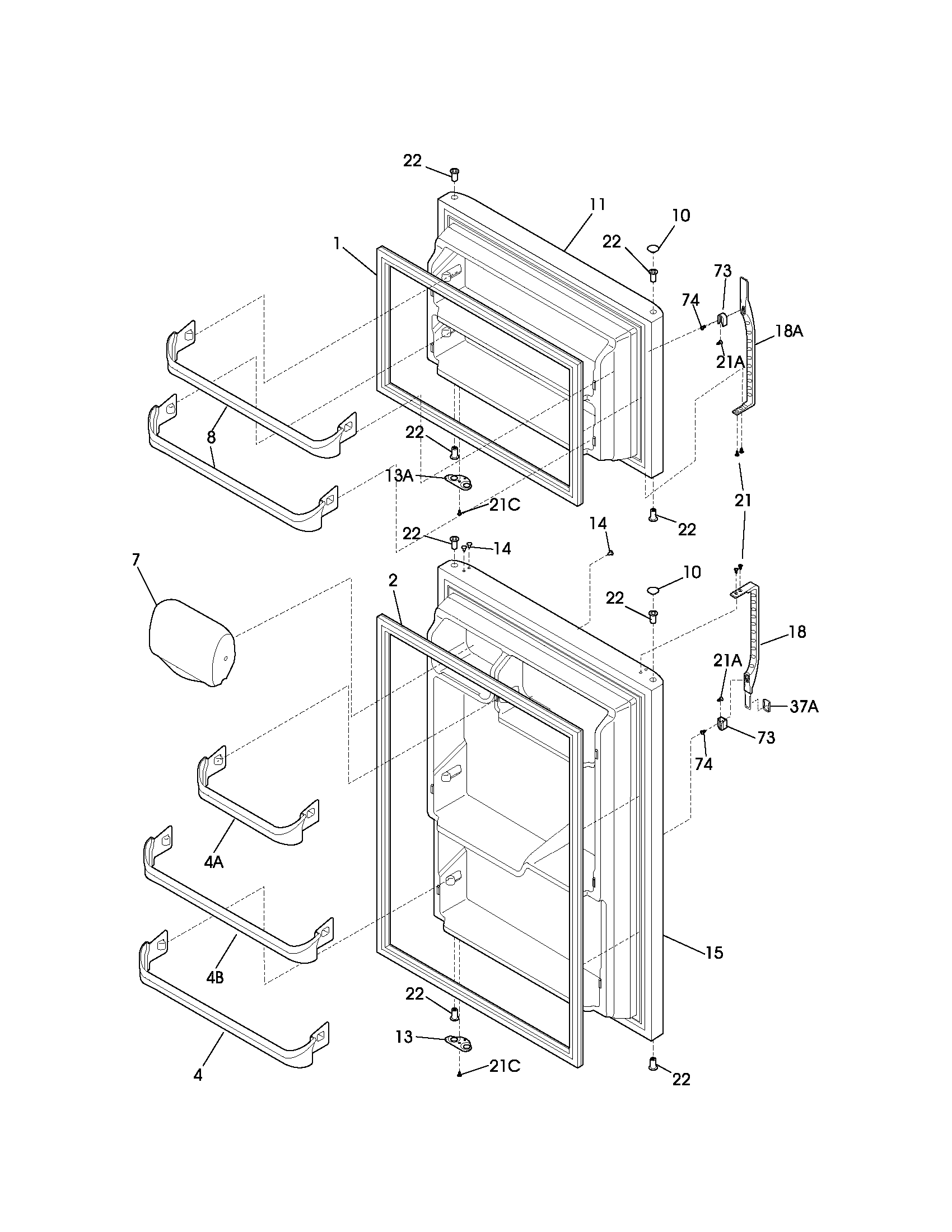

Door diagram

Refrigerator door shelf rail

Part #240535101

BEST SELLER
$31.06 |
16% OFF Phone Price : $37.06
In Stock
Water Inlet Valve 240519601
#55

Ice maker diagram

Water inlet valve

Part #240519601

Replaced by #242252603

?
Manufacturer substitution
This part replaces 240519601. Substitute parts can look different from the original.
BEST SELLER
$51.04 |
11% OFF Phone Price : $57.04
In Stock
Washer 240311301
#34

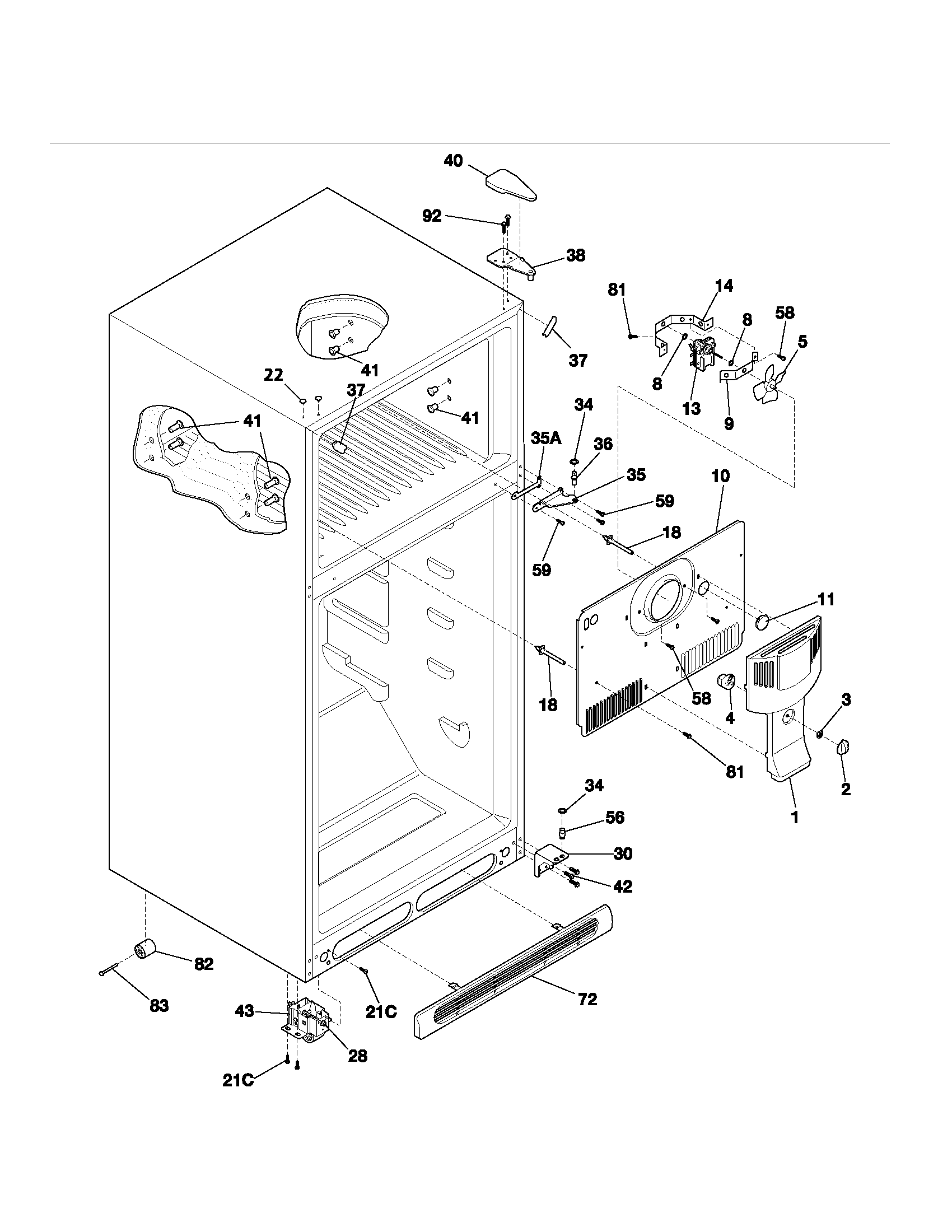

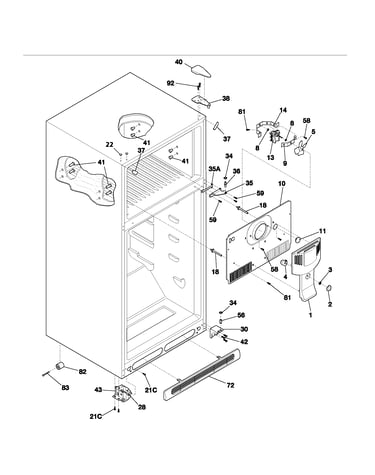

Cabinet diagram

Washer

Part #240311301

Replaced by #240311303

?
Manufacturer substitution
This part replaces 240311301. Substitute parts can look different from the original.
BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Compressor 5303918264
#29

System diagram

Refrigerator compressor

Part #5303918264

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 5303918264. Substitute parts can look different from the original.
BEST SELLER
$449.52 |
$12.00 OFF Phone Price : $461.52
In Stock
Refrigerator Timer 215846606
#23

Shelves diagram

Refrigerator timer

Part #215846606

Replaced by #215846602

?
Manufacturer substitution
This part replaces 215846606. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Refrigerator Door Shelf Rail 240535201
#4B

Door diagram

Refrigerator door shelf rail

Part #240535201

BEST SELLER
$35.99 |
14% OFF Phone Price : $41.99
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces 241619705) 5303918202
#21

System diagram

Refrigerator defrost bi-metal thermostat (replaces 241619705)

Part #5303918202

BEST SELLER
$27.56 |
18% OFF Phone Price : $33.56
In Stock
