Kenmore
Electric Wall Oven

Model # 91141084994 Official Kenmore electric built-in oven

Here are the diagrams and repair parts for Official Kenmore 91141084994 electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Wall Oven Temperature Sensor WB23T10015
#253

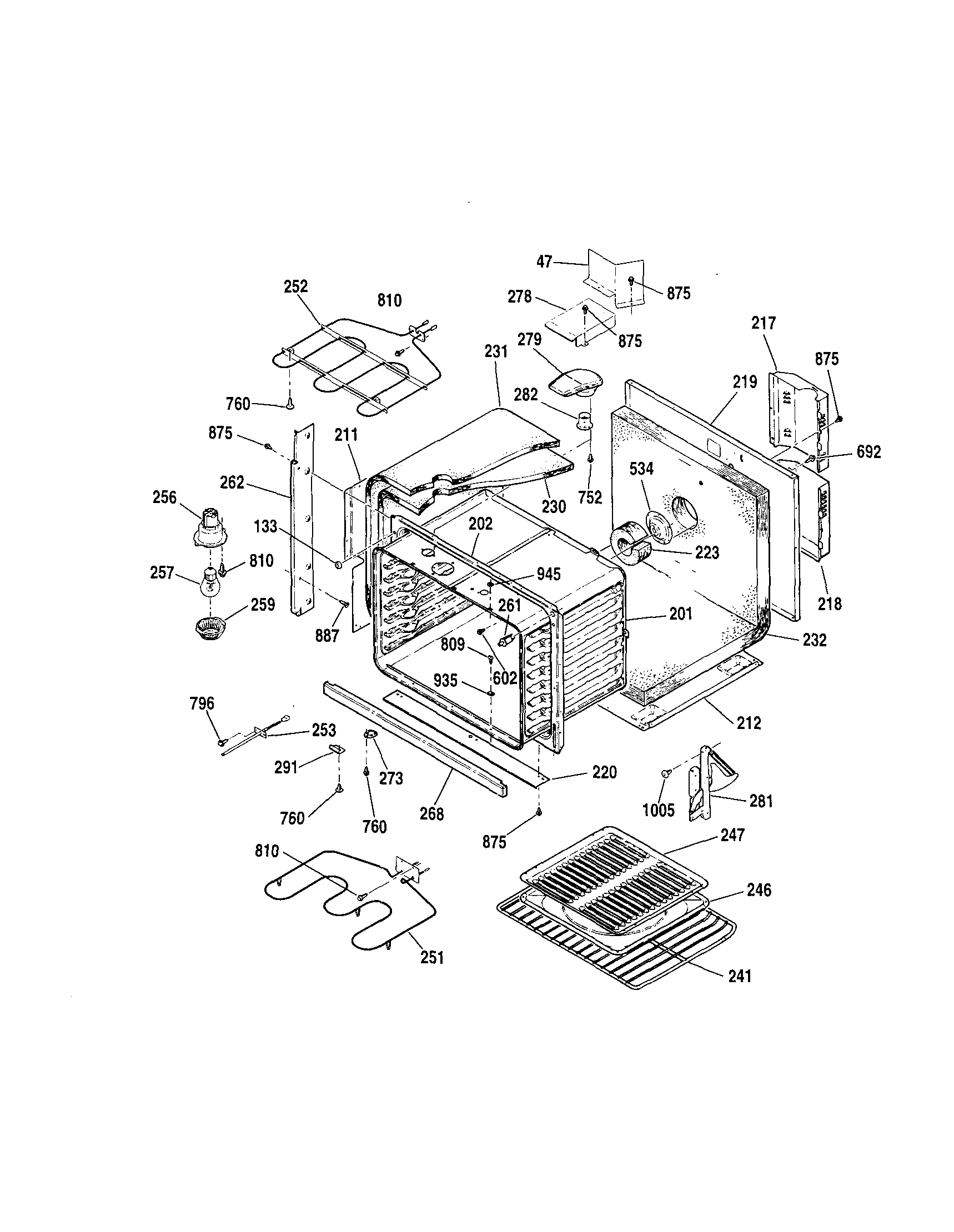

Body diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Element Ov A WB44T10025
#251

Body diagram

Element ov a

Part #WB44T10025

Replaced by #WB44T10018

?
Manufacturer substitution
This part replaces WB44T10025. Substitute parts can look different from the original.
BEST SELLER
$57.30 |
9% OFF Phone Price : $63.30
In Stock
Oven Lamp Holder WB08T10002
#256

Body diagram

Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Wall Oven Cooling Fan Assembly WB26K5061
#32

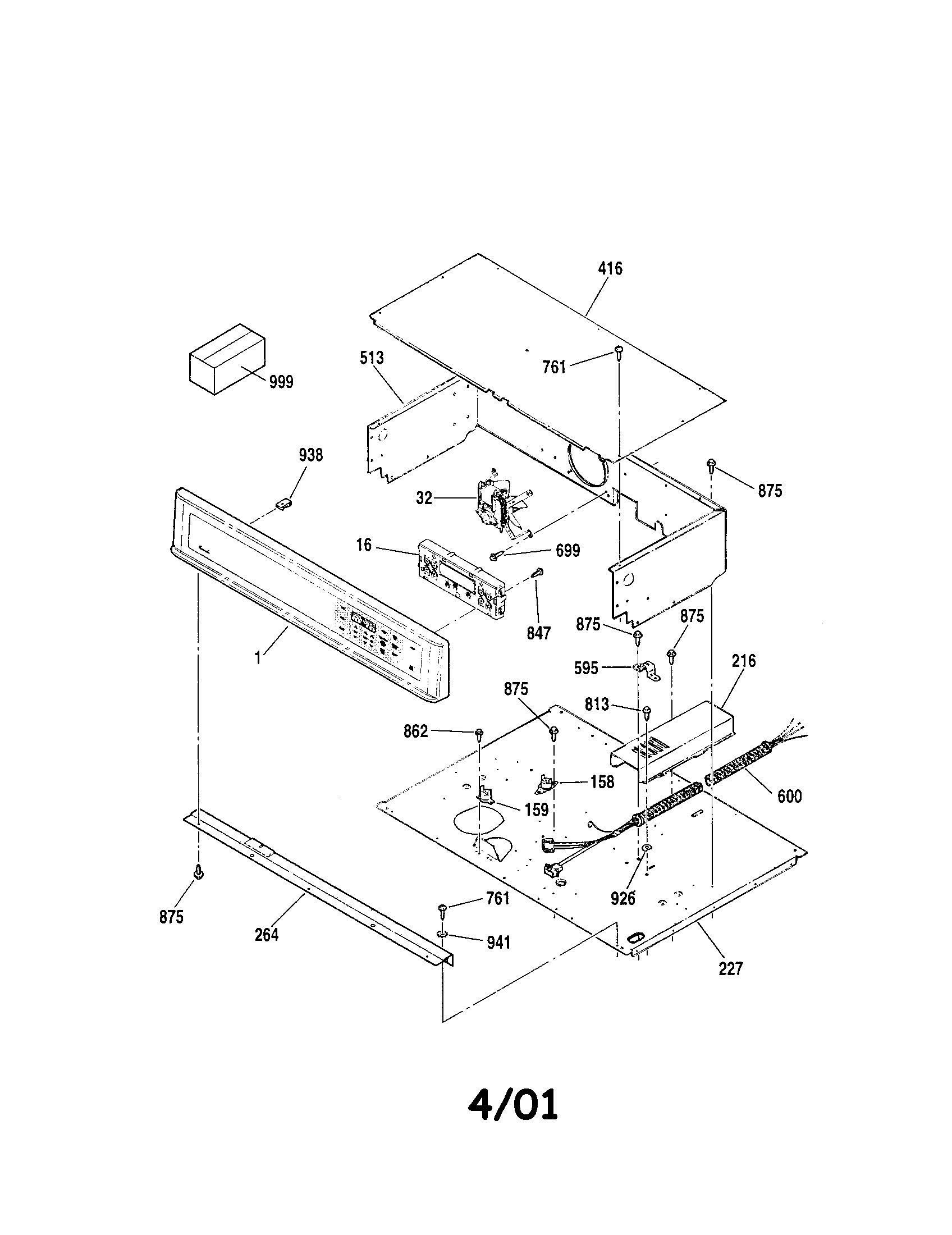

Control diagram

Wall oven cooling fan assembly

Part #WB26K5061

BEST SELLER
$123.63 |
9% OFF Phone Price : $135.63
In Stock
Ov Lt Dr Sw WB24K5031
#261

Body diagram

Ov lt dr sw

Part #WB24K5031

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces WB24K5031. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Broil Unit WB44K10007
#252

Body diagram

Broil unit

Part #WB44K10007

Replaced by #WB44T10043

?
Manufacturer substitution
This part replaces WB44K10007. Substitute parts can look different from the original.
$70.47 |
8% OFF Phone Price : $76.47
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
#1005

Body diagram

Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01K5150
Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Oven Door Glass WB56K0020
#338

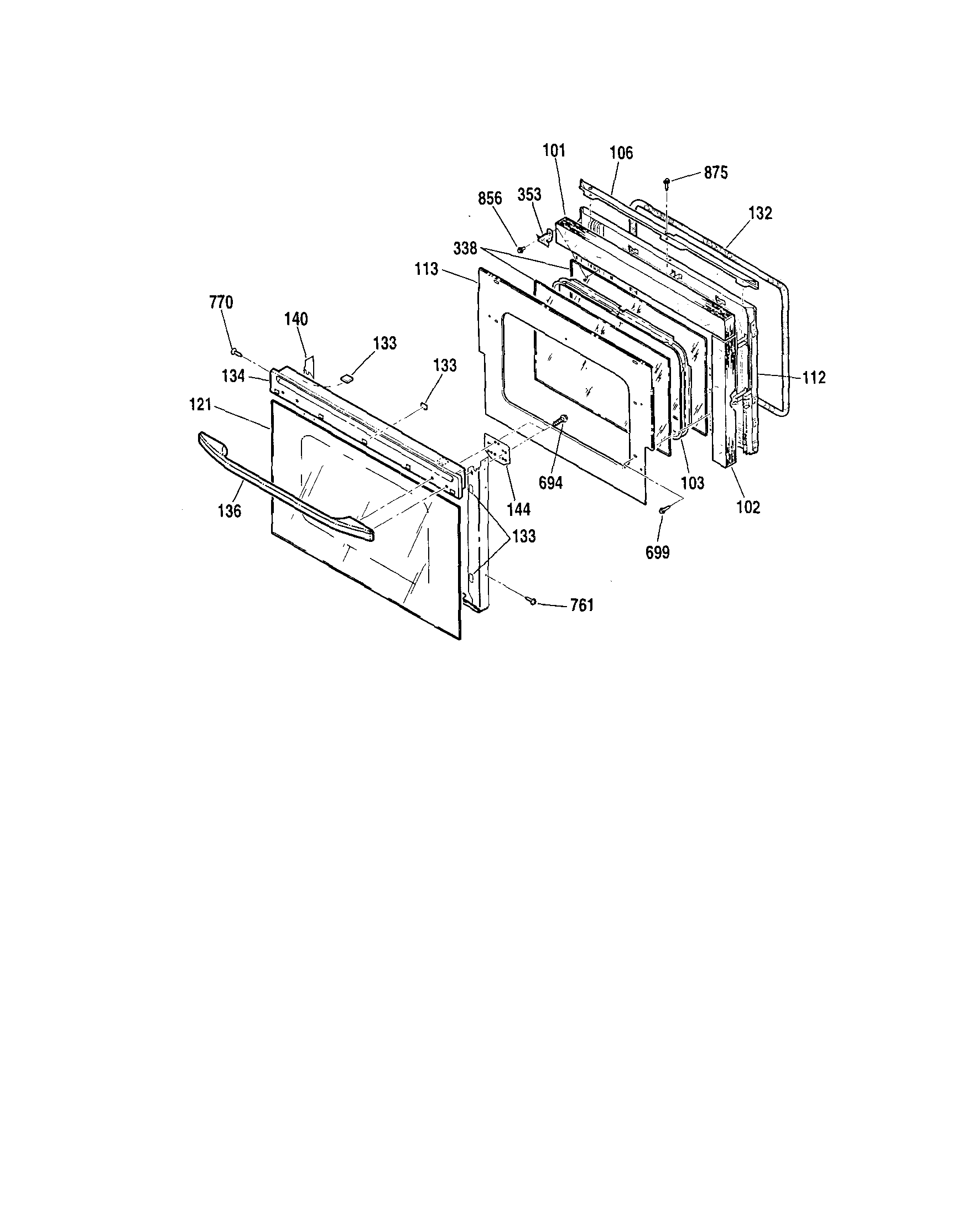

Door diagram

Oven door glass

Part #WB56K0020

Replaced by #WB56K20

?
Manufacturer substitution
This part replaces WB56K0020. Substitute parts can look different from the original.
$230.28 |
5% OFF Phone Price : $242.28
In Stock
Oven Rack WB48K5019
#241

Body diagram

Oven rack

Part #WB48K5019

Replaced by #WB48T10095

?
Manufacturer substitution
This part replaces WB48K5019. Substitute parts can look different from the original.
$51.46 |
10% OFF Phone Price : $57.46
In Stock
