Model # 3052 Official Peerless kitchen faucet

Here are the diagrams and repair parts for Official Peerless 3052 kitchen faucet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Cam Assembly RP12619
#7

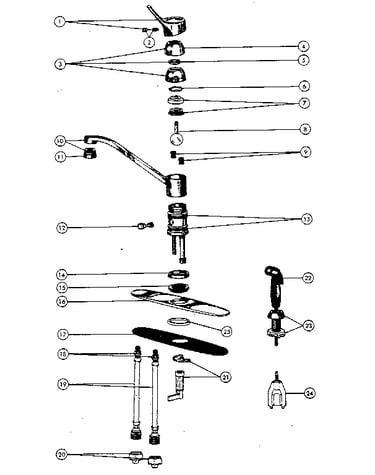

Single handle washerless kitchen faucets diagram

Cam assembly

Part #RP12619

The manufacturer no longer makes this part, and there's no substitute part

Ball RP12388
#8

Single handle washerless kitchen faucets diagram

Ball

Part #RP12388

The manufacturer no longer makes this part, and there's no substitute part

O-ring RP5391
#13

Single handle washerless kitchen faucets diagram

O-ring

Part #RP5391

The manufacturer no longer makes this part, and there's no substitute part

Repair Kit RP1815
#9

Single handle washerless kitchen faucets diagram

Repair kit

Part #RP1815

The manufacturer no longer makes this part, and there's no substitute part

Spout RP13445AL
#10A

Single handle washerless kitchen faucets diagram

Spout

Part #RP13445AL

The manufacturer no longer makes this part, and there's no substitute part

Support RP5368GR
#23E

Single handle washerless kitchen faucets diagram

Support

Part #RP5368GR

The manufacturer no longer makes this part, and there's no substitute part

Aerator N/P
Aerator

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Spray Assembly RP7632AL
#22A

Single handle washerless kitchen faucets diagram

Spray assembly

Part #RP7632AL

The manufacturer no longer makes this part, and there's no substitute part

Spray-gray RP7632GR
#22E

Single handle washerless kitchen faucets diagram

Spray-gray

Part #RP7632GR

The manufacturer no longer makes this part, and there's no substitute part

Spout RP13445RD
#10B

Single handle washerless kitchen faucets diagram

Spout

Part #RP13445RD

The manufacturer no longer makes this part, and there's no substitute part
