Dryer

Model # DVE52A5500W/A3-00 Official Samsung dryer

Here are the diagrams and repair parts for Official Samsung DVE52A5500W/A3-00 dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

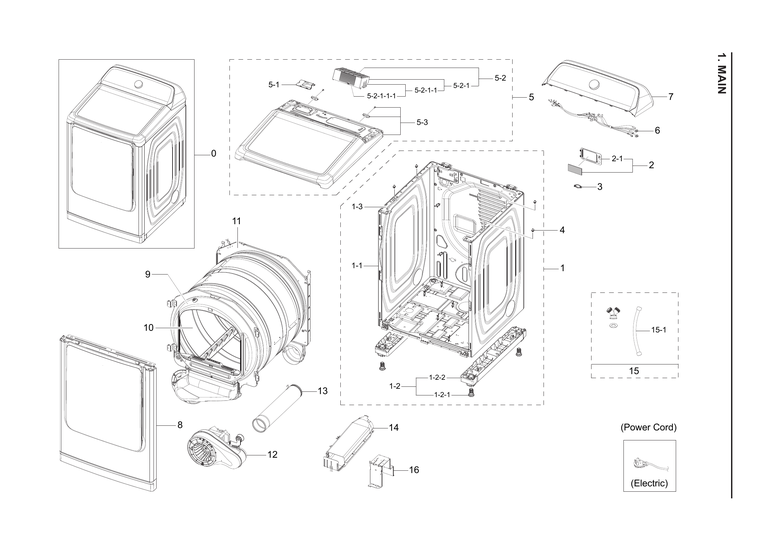

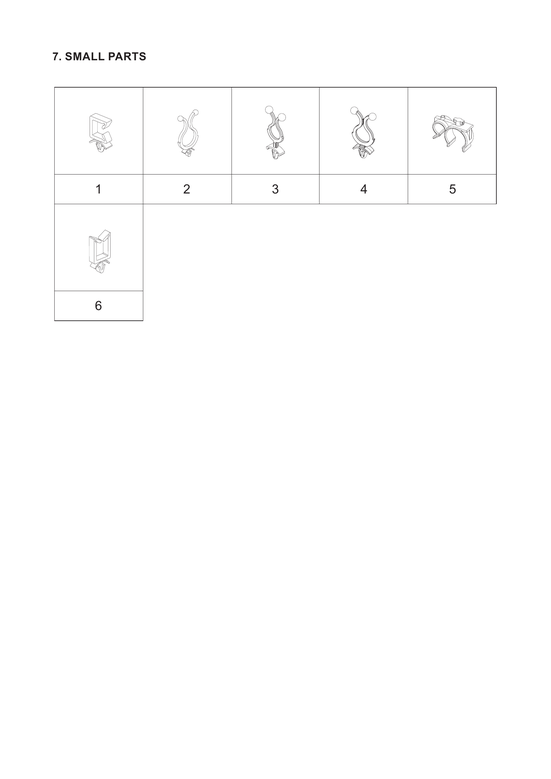

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
DVE52A5500W/A3-00 DRYER
Samsung Dryer Idler Assembly (replaces Dc96-00882b, Dc96-00882c) DC93-00634A
#2-8

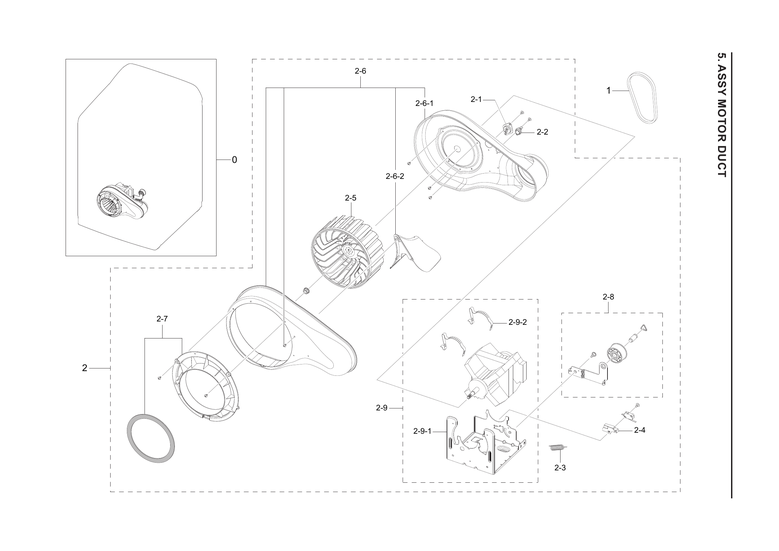

Motor duct assy diagram

Samsung dryer idler assembly (replaces dc96-00882b, dc96-00882c)

Part #DC93-00634A

4.73 (26)
BEST SELLER
$62.75 |
9% OFF Phone Price : $68.75
In Stock
Dryer Thermal Cut-off Thermostat DC47-00016A
#2-2

Motor duct assy diagram

Dryer thermal cut-off thermostat

Part #DC47-00016A

3.86 (7)
BEST SELLER
$26.33 |
19% OFF Phone Price : $32.33
In Stock
Dryer Thermal Cut-off Fuse DC96-00887A
#2

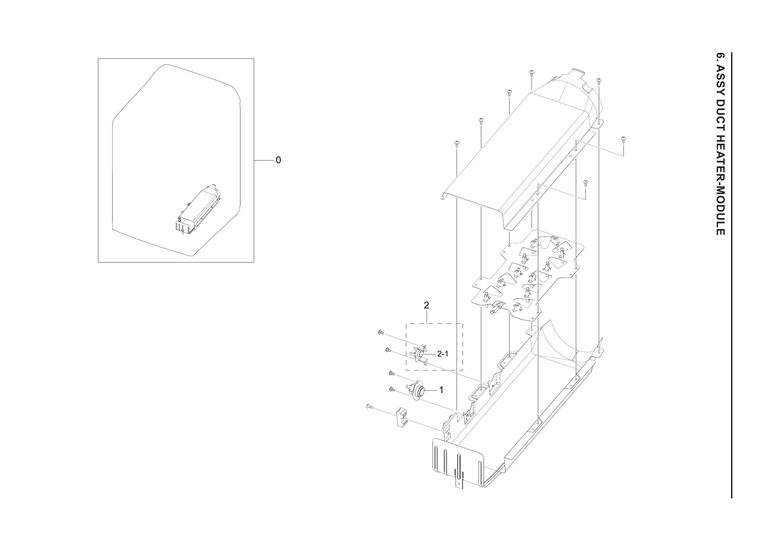

Heater duct-module assy diagram

Dryer thermal cut-off fuse

Part #DC96-00887A

Replaced by #DC96-00887C

?
Manufacturer substitution
This part replaces DC96-00887A. Substitute parts can look different from the original.
4.2 (5)
BEST SELLER
$58.88 |
9% OFF Phone Price : $64.88
In Stock
Dryer High-limit Thermostat DC47-00018A
#1

Heater duct-module assy diagram

Dryer high-limit thermostat

Part #DC47-00018A

3.63 (8)
BEST SELLER
$38.24 |
14% OFF Phone Price : $44.24
In Stock

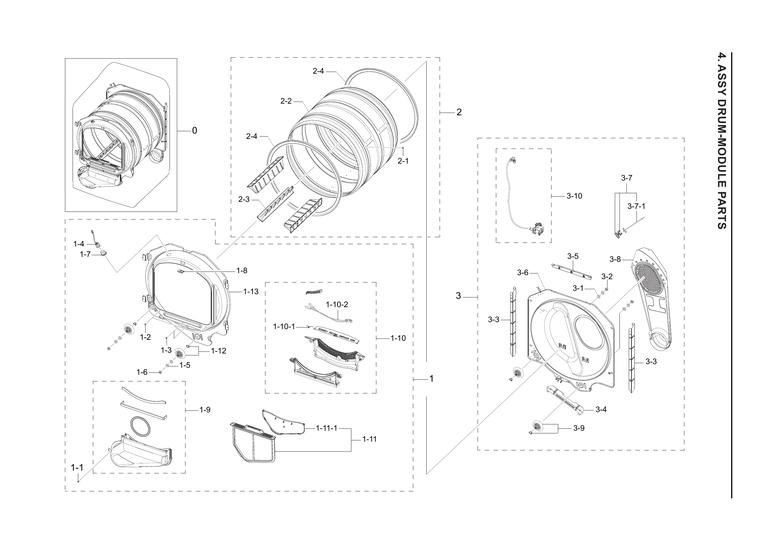

Dryer Drum Support Roller (replaces Dc97-16782b) DC97-16782E
Dryer drum support roller (replaces dc97-16782b)

Part #DC97-16782E

5 (1)
BEST SELLER
$89.80 |
6% OFF Phone Price : $95.80
In Stock
Dryer Motor And Blower Assembly DC93-00101U
#2

Motor duct assy diagram

Dryer motor and blower assembly

Part #DC93-00101U

BEST SELLER
This item is not returnable
$331.91 |
$12.00 OFF Phone Price : $343.91
In Stock
Dryer Door Switch DC64-00828B
#4-6

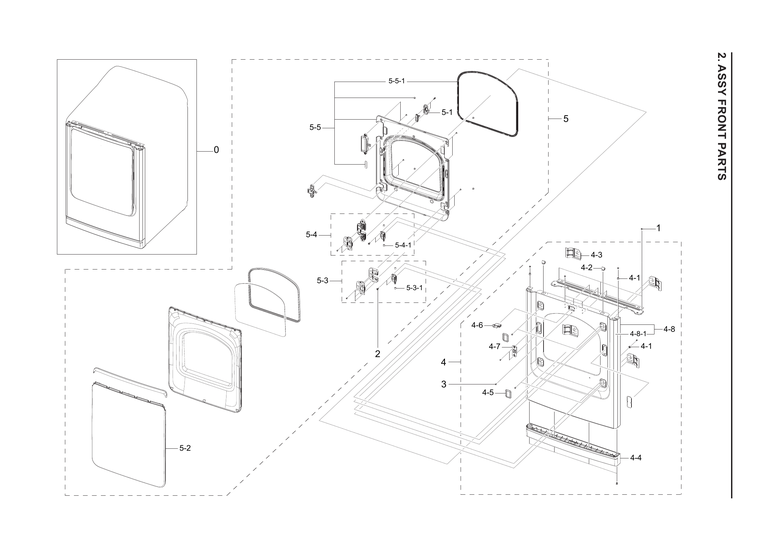

Front assy diagram

Dryer door switch

Part #DC64-00828B

5 (1)
BEST SELLER
$40.04 |
13% OFF Phone Price : $46.04
Back Order
Dryer Drive Motor Assembly DC96-00790G
#2-9

Motor duct assy diagram

Dryer drive motor assembly

Part #DC96-00790G

5 (1)
BEST SELLER
$220.27 |
5% OFF Phone Price : $232.27
In Stock
Dryer User Interface DC92-02401A
#4

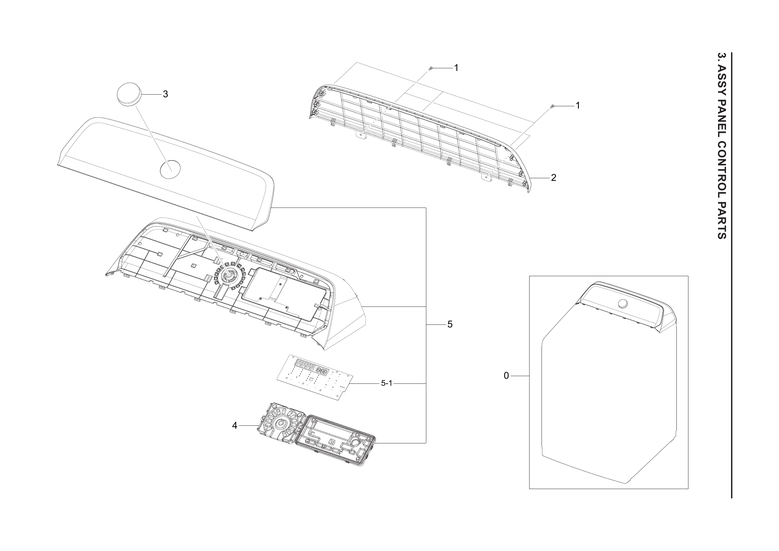

Control panel assy diagram

Dryer user interface

Part #DC92-02401A

BEST SELLER
$141.73 |
8% OFF Phone Price : $153.73
In Stock
Dryer Thermal Cut-off Fuse, 320-degree F DC47-00015A
#2-1

Heater duct-module assy diagram

Dryer thermal cut-off fuse, 320-degree f

Part #DC47-00015A

3 (5)
BEST SELLER
$34.74 |
15% OFF Phone Price : $40.74
In Stock
