Model # DD24SCB6V2-88602-A Official Fisher & Paykel dishwasher

Here are the diagrams and repair parts for Official Fisher & Paykel DD24SCB6V2-88602-A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

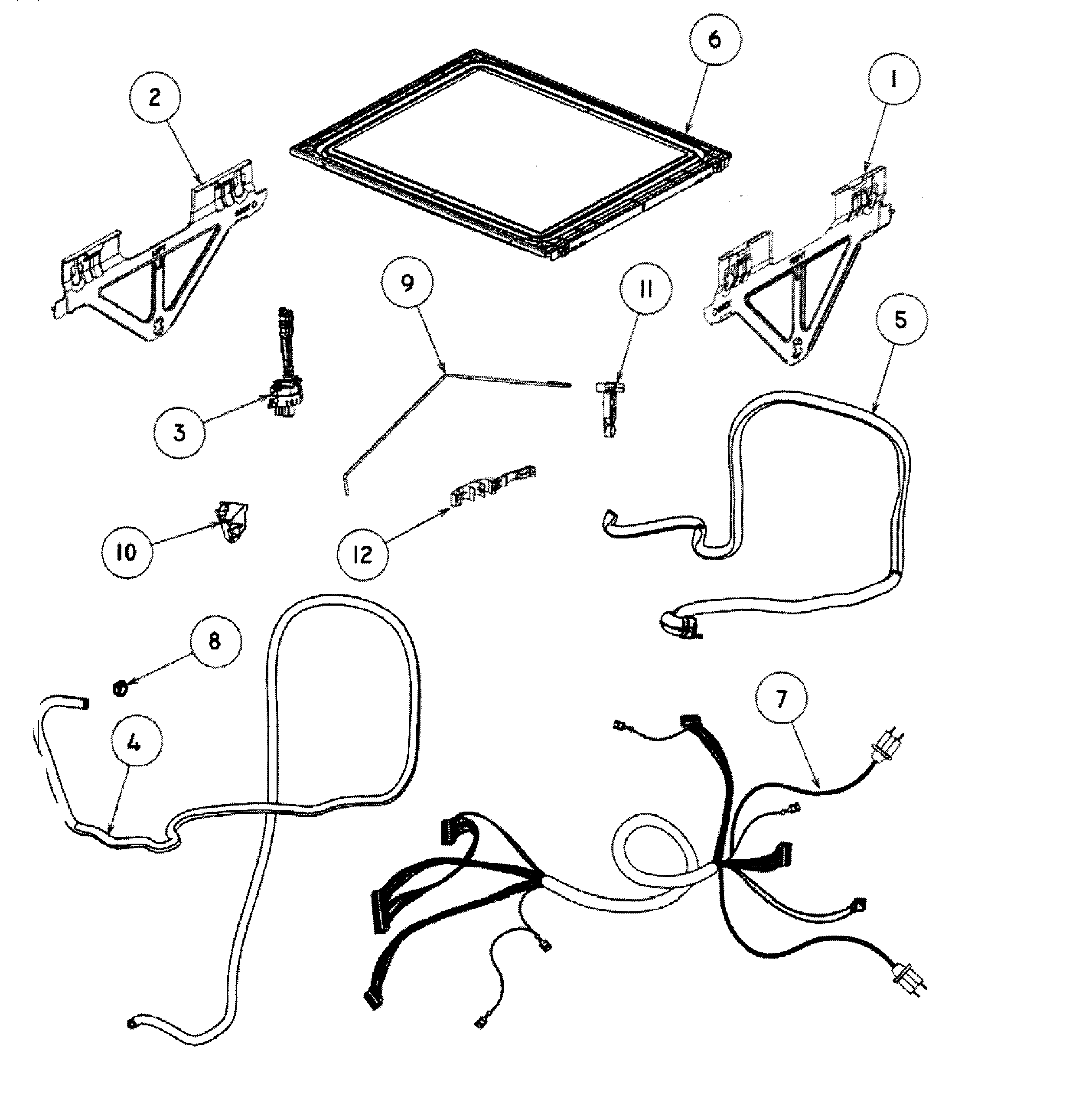

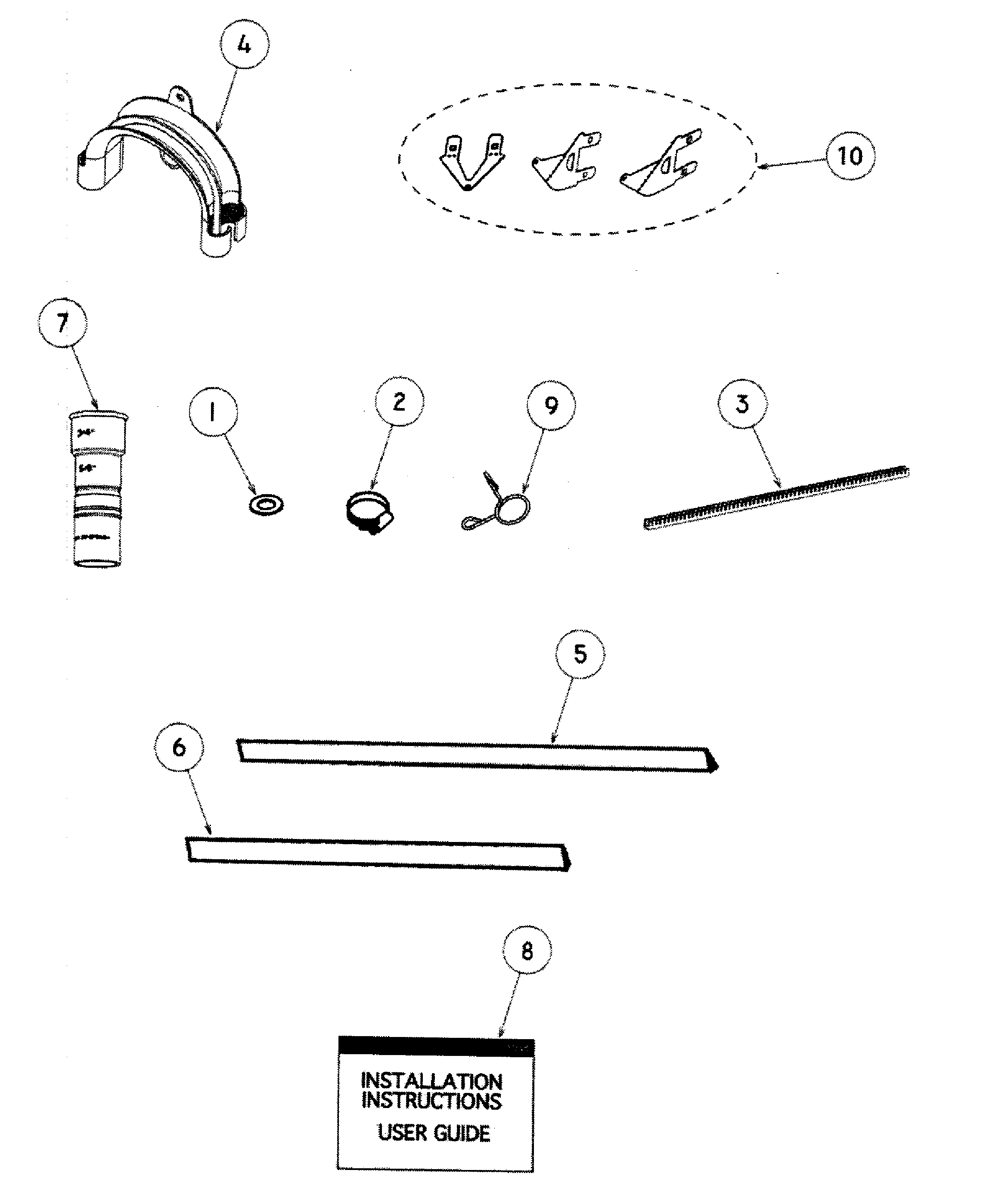

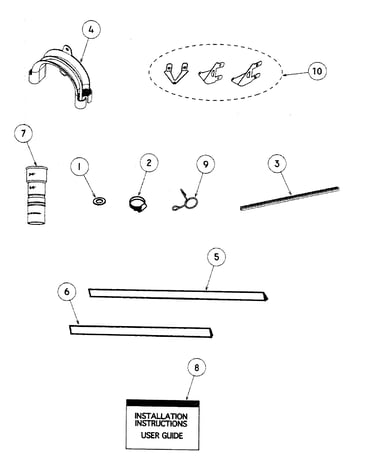

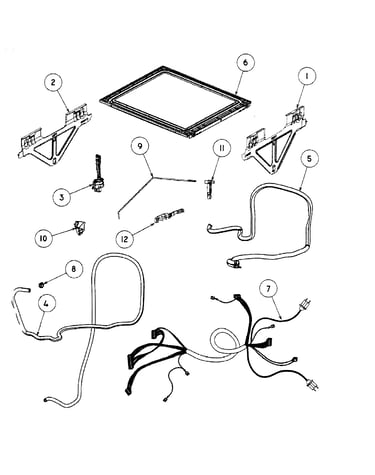

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Fisher & Paykel Dishwasher Pump Motor 522088
#13

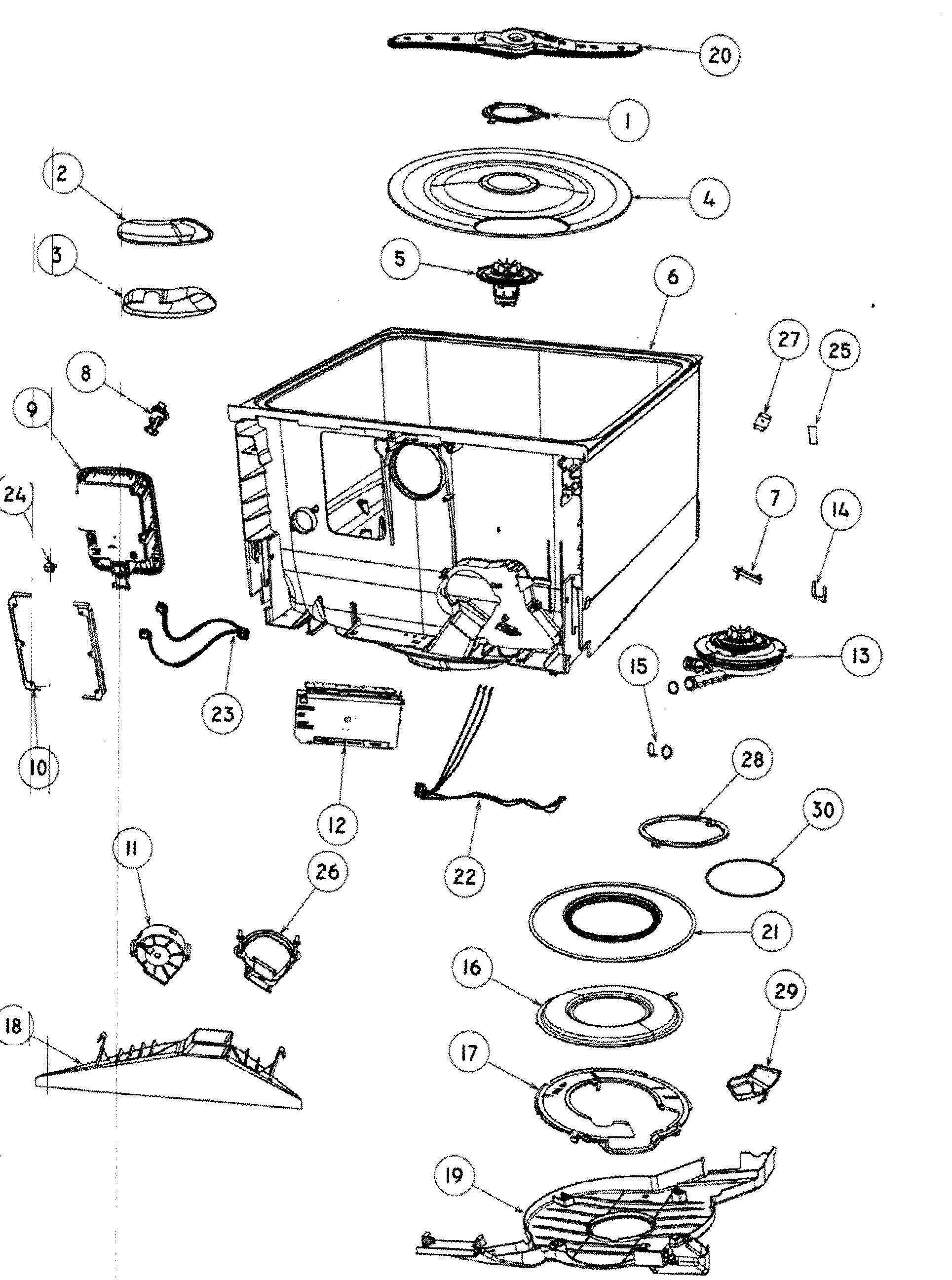

Tub assy diagram

Fisher & paykel dishwasher pump motor

Part #522088

$204.86 |
6% OFF Phone Price : $216.86
In Stock
Fisher & Paykel Dishwasher Drawer Latch, Right (replaces 526128) 522584
#3

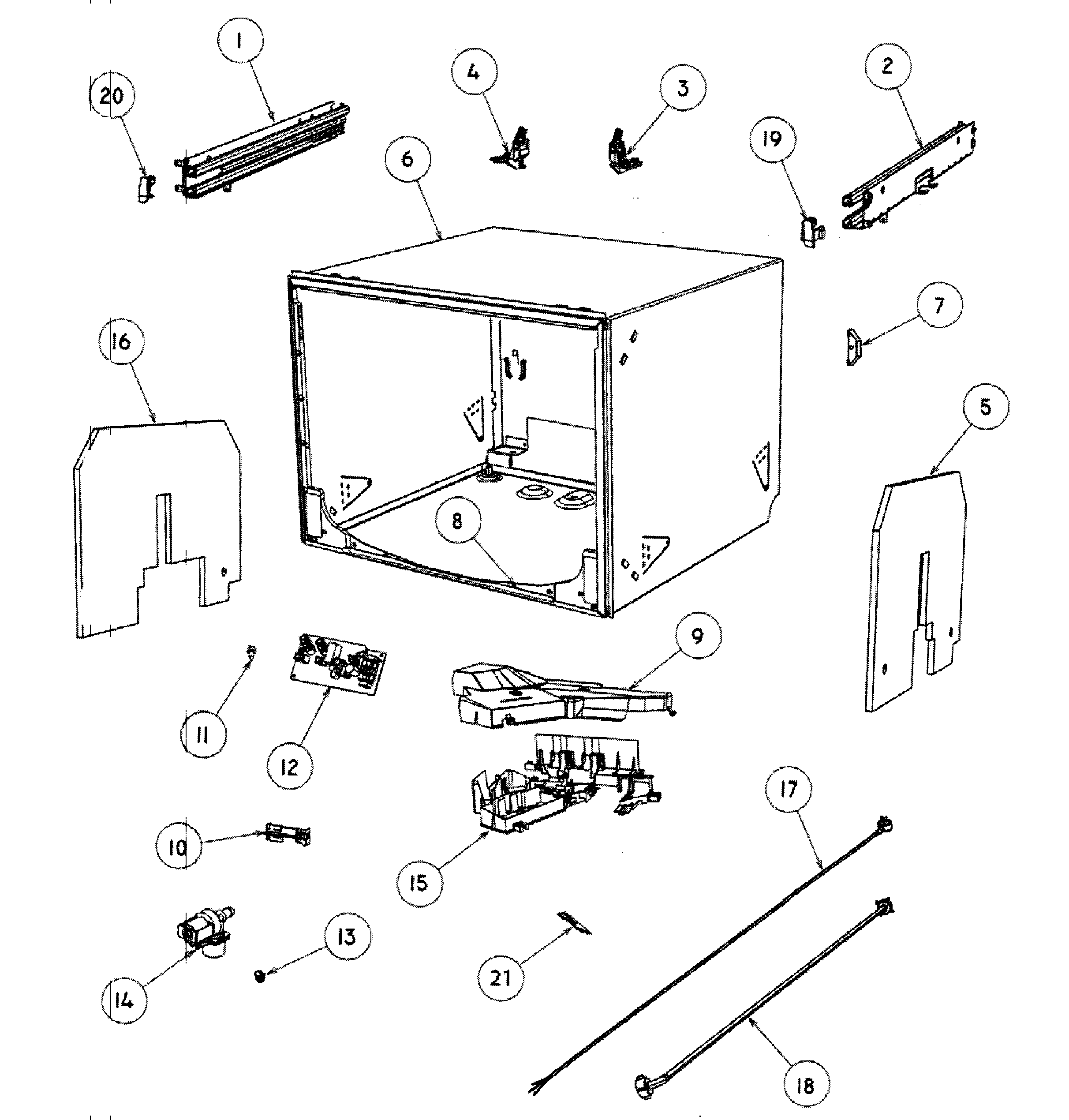

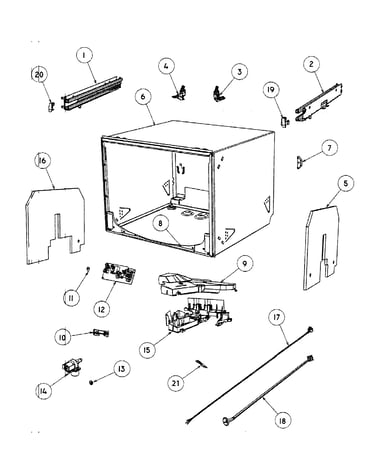

Cabinet diagram

Fisher & paykel dishwasher drawer latch, right (replaces 526128)

Part #522584

This item is not returnable
$15.64 |
11% OFF Phone Price : $17.64
In Stock
Duct,top 529144
#18

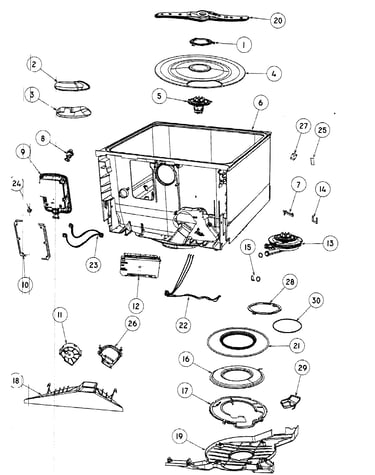

Tub assy diagram

Duct,top

Part #529144

Replaced by #522578

?
Manufacturer substitution
This part replaces 529144. Substitute parts can look different from the original.
$27.09 |
18% OFF Phone Price : $33.09
In Stock
Fisher & Paykel Door Kit 522905
#9

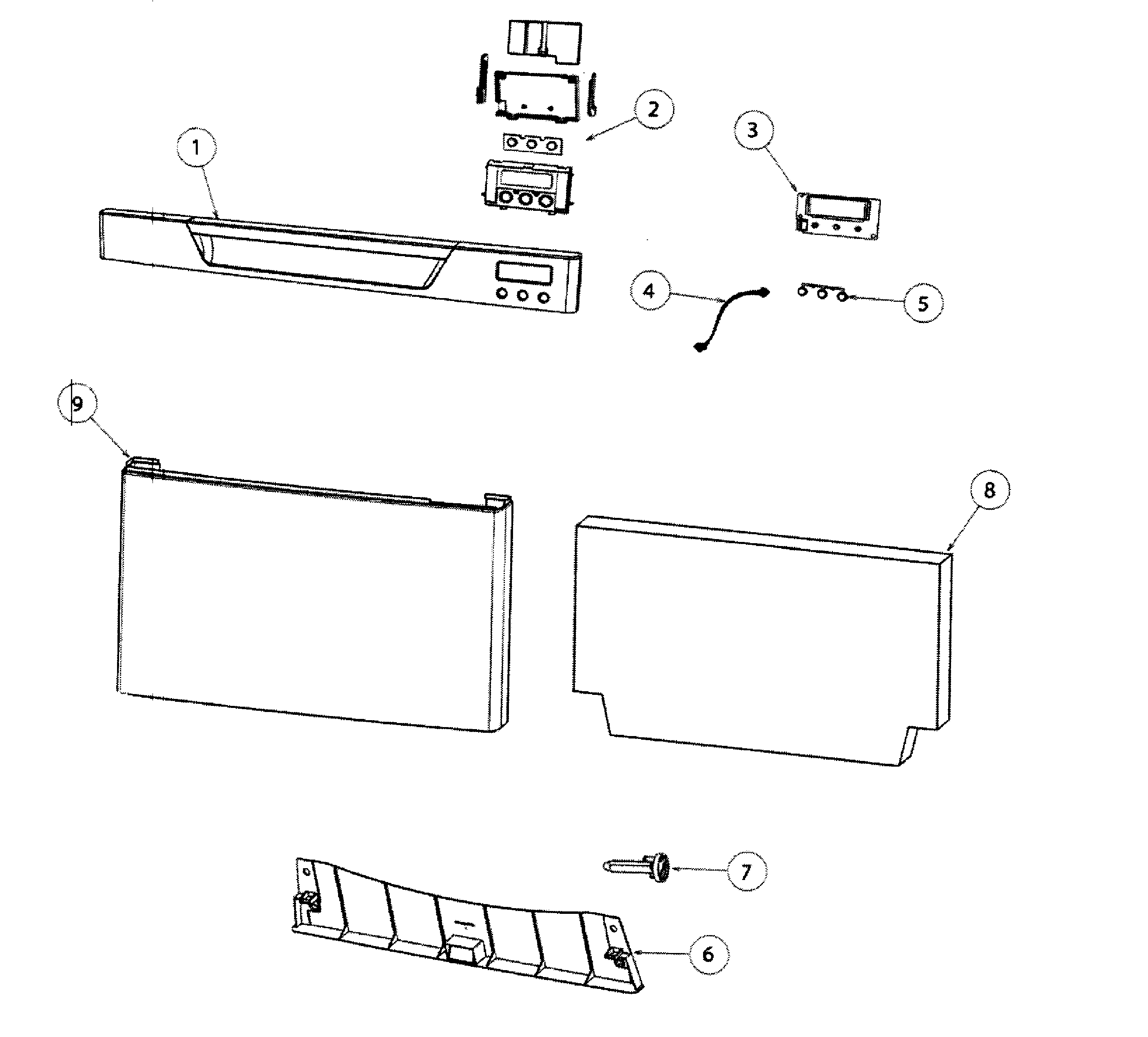

Front panel diagram

Fisher & paykel door kit

Part #522905

$87.10 |
6% OFF Phone Price : $93.10
In Stock
Fisher & Paykel Dishwasher Display Board Housing 522899
#2

Front panel diagram

Fisher & paykel dishwasher display board housing

Part #522899

$28.27 |
18% OFF Phone Price : $34.27
In Stock
Fisher & Paykel Dd Knife Clip Combined 523326
#16

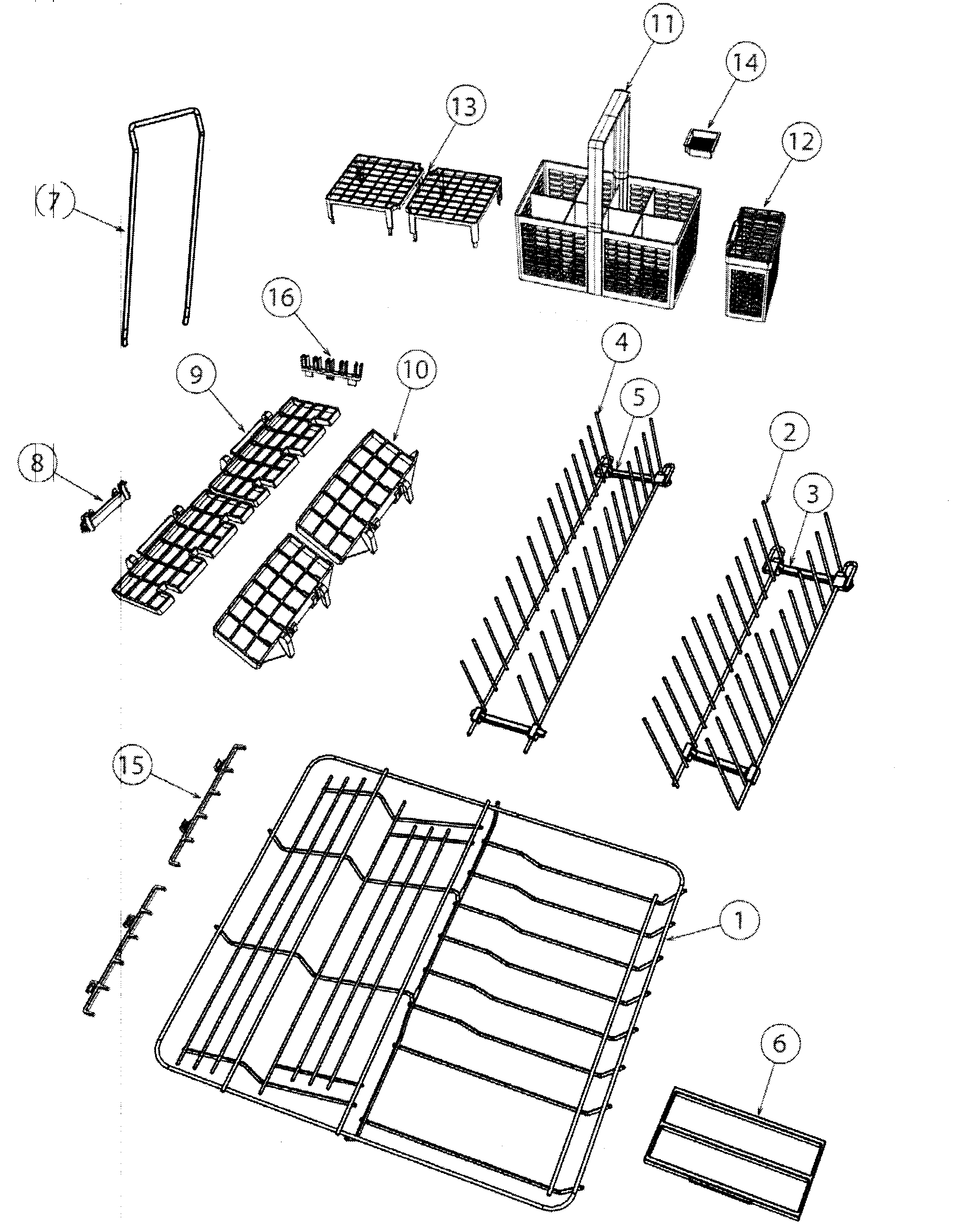

Racks diagram

Fisher & paykel dd knife clip combined

Part #523326

$12.09 |
14% OFF Phone Price : $14.09
In Stock
Fisher & Paykel Dishwasher Vent Fan Motor 522006
#11

Tub assy diagram

Fisher & paykel dishwasher vent fan motor

Part #522006

$57.80 |
9% OFF Phone Price : $63.80
In Stock
Fisher & Paykel Light Pipe 528276
#7

Tub assy diagram

Fisher & paykel light pipe

Part #528276

$9.93 |
9% OFF Phone Price : $10.93
In Stock
Fisher & Paykel Shim Motor Assy 605 (sp) 522154P
#30

Tub assy diagram

Fisher & paykel shim motor assy 605 (sp)

Part #522154P

$12.77 |
14% OFF Phone Price : $14.77
In Stock
Dishwasher Detergent Dispenser (replaces 525690, 526536) 526860
#9

Tub assy diagram

Dishwasher detergent dispenser (replaces 525690, 526536)

Part #526860

$210.39 |
5% OFF Phone Price : $222.39
In Stock
