Whirlpool
Chest Freezer

Model # TCF0710JW01 Official Whirlpool freezer

Here are the diagrams and repair parts for Official Whirlpool TCF0710JW01 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Drier Tube 4357299
#3

Unit diagram

Drier tube

Part #4357299

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4357299. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray Paint (white) 350930

#NI

All parts diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Terminal Cover 4356599
#8

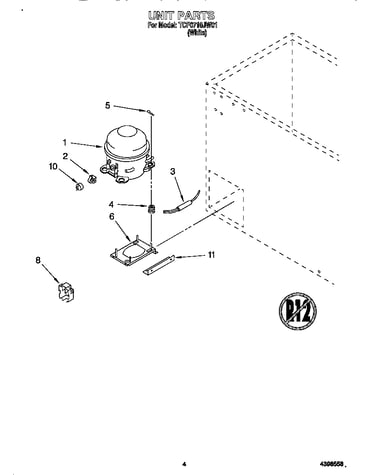

Unit diagram

Terminal cover

Part #4356599

Replaced by #WP2162358

?
Manufacturer substitution
This part replaces 4356599. Substitute parts can look different from the original.
$34.39 |
15% OFF Phone Price : $40.39
In Stock
Thermostat 4356670
#6

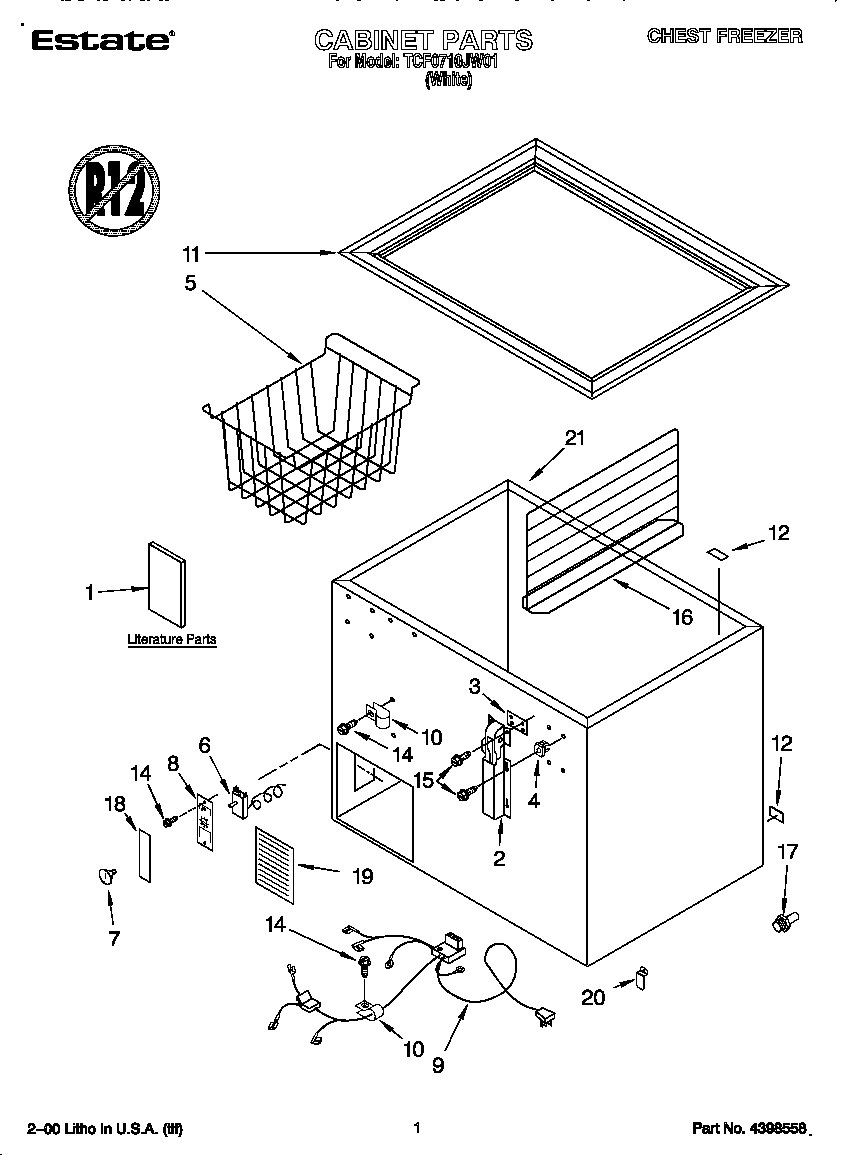

Cabint diagram

Thermostat

Part #4356670

Replaced by #WP4-35940-001

?
Manufacturer substitution
This part replaces 4356670. Substitute parts can look different from the original.
$118.93 |
9% OFF Phone Price : $130.93
In Stock
Baskt-wire 4356354
#5

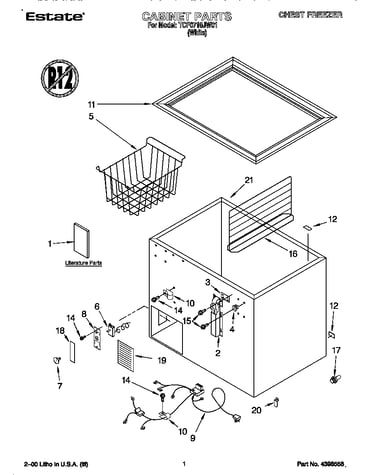

Cabint diagram

Baskt-wire

Part #4356354

Replaced by #8210434A

?
Manufacturer substitution
This part replaces 4356354. Substitute parts can look different from the original.
$35.36 |
15% OFF Phone Price : $41.36
In Stock
Roper Freezer Compressor Start Relay (replaces 2-35181-006, 68001356) 4356716
#2

Unit diagram

Roper freezer compressor start relay (replaces 2-35181-006, 68001356)

Part #4356716

$72.29 |
8% OFF Phone Price : $78.29
In Stock
Panel 4356622
#19

Cabint diagram

Panel

Part #4356622

$32.87
In Stock
Appliance Porcelain Touch-up Paint, 1-qt (white) 799344

#NI

All parts diagram

Appliance porcelain touch-up paint, 1-qt (white)

Part #799344

$109.53 |
10% OFF Phone Price : $121.53
In Stock
Nameplate 4356705
#9

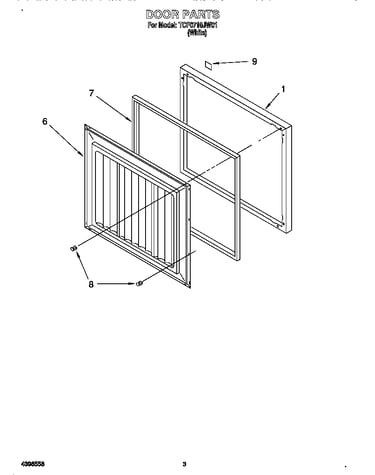

Door diagram

Nameplate

Part #4356705

$8.82
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

View all
