Model # M1031W-P1323102M Official Amana microwave
Here are the diagrams and repair parts for Official Amana M1031W-P1323102M microwave, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
M1031W-P1323102M Microwaves
#201

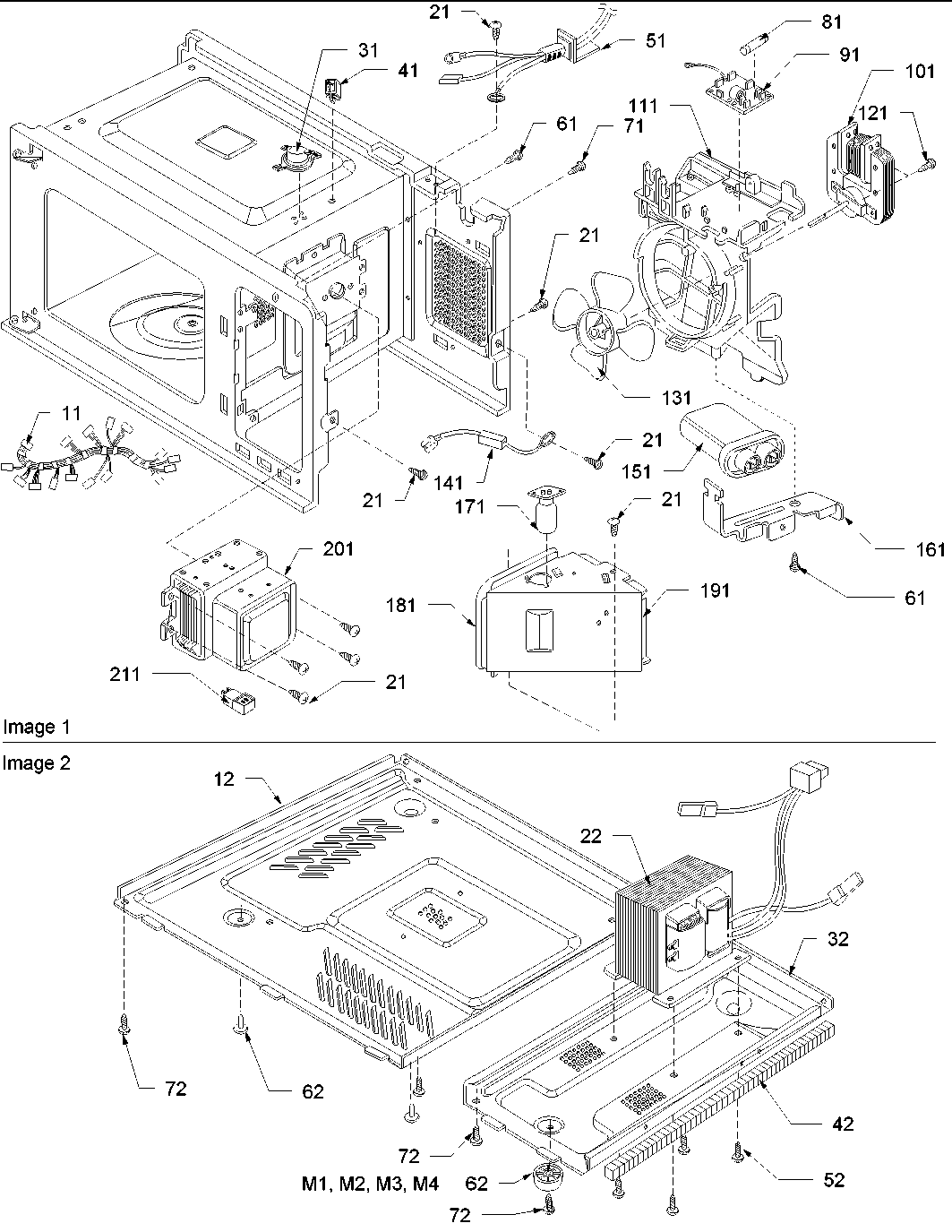

Interior and base plate parts diagram
Magnetron
Part #R9900377
The manufacturer no longer makes this part, and there's no substitute part
#151
Interior and base plate parts diagram
Capacitor-1.
Part #R9900304
Replaced by #WP59001168
?
Manufacturer substitution
This part replaces R9900304. Substitute parts can look different from the original.
$87.46 |
6% OFF Phone Price : $93.46
In Stock
#181

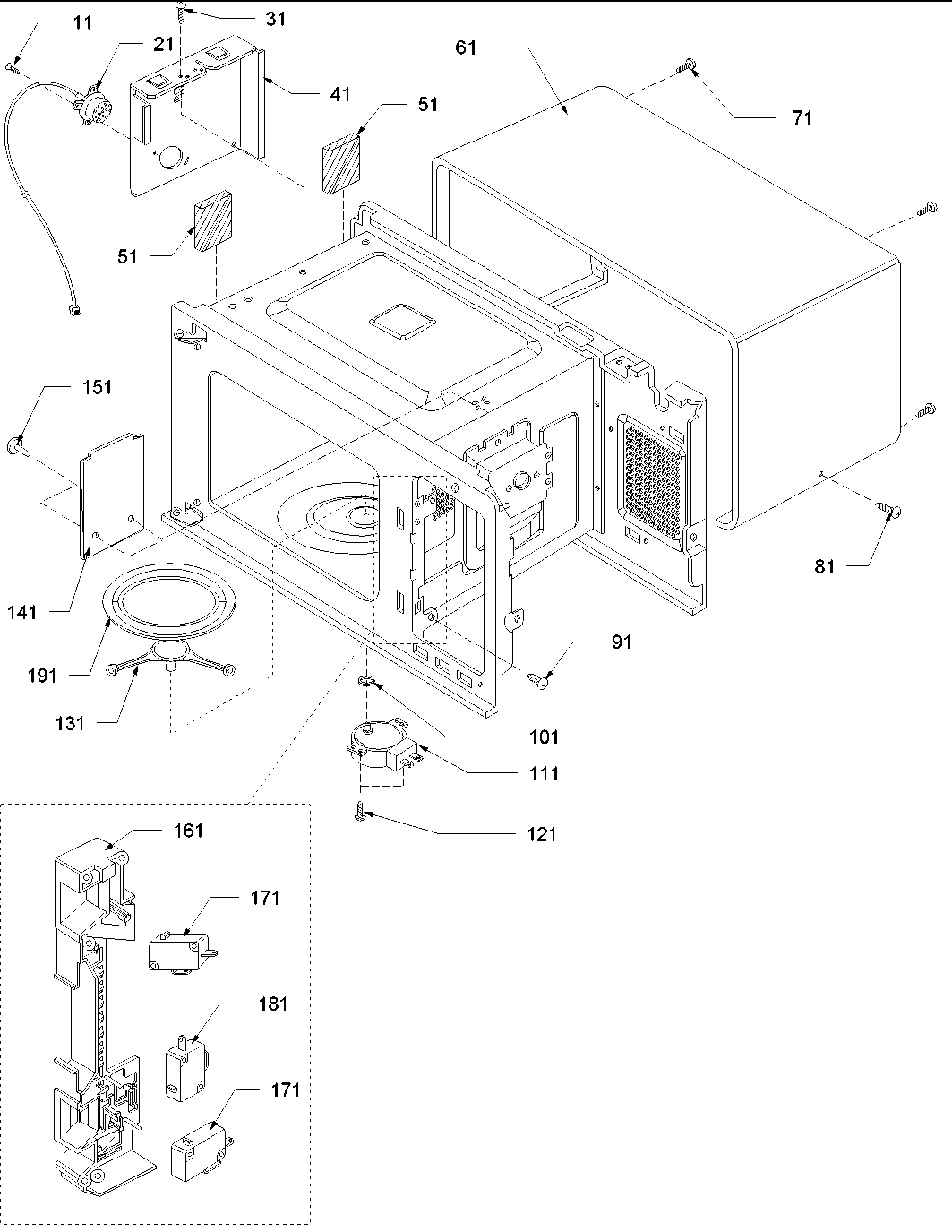

Oven cavity & latch assembly parts diagram
Micro-switch
Part #R9800690
Replaced by #4392027
?
Manufacturer substitution
This part replaces R9800690. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
#151
Oven cavity & latch assembly parts diagram
Rivet
Part #R9800452
Replaced by #WP4359508
?
Manufacturer substitution
This part replaces R9800452. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
"screw, truss"
Part #R0654038
Replaced by #W11380570
?
Manufacturer substitution
This part replaces R0654038. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
#21

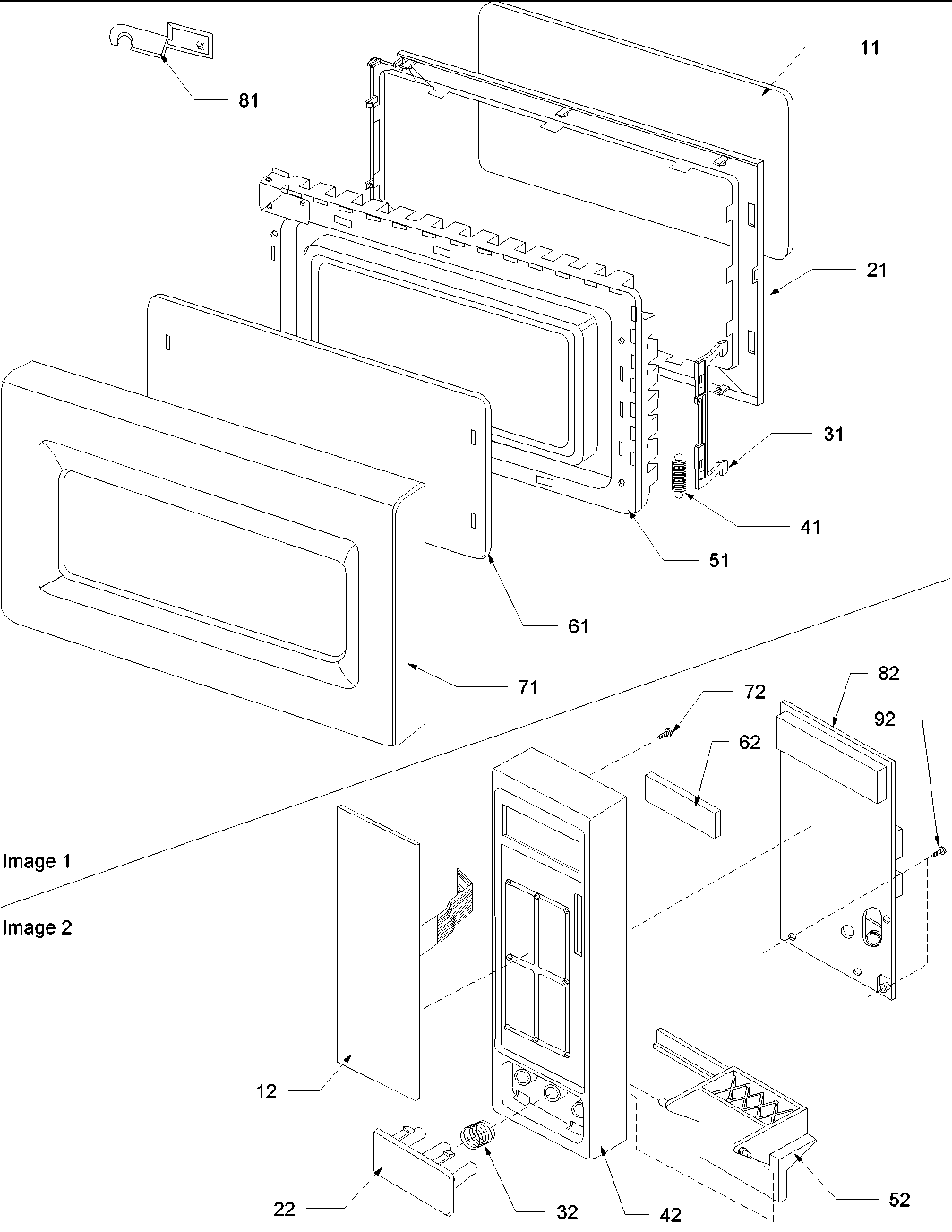

Door & control panel parts diagram
Choke cover
Part #R9800273
$34.71
In Stock
#32
Door & control panel parts diagram
Spring
Part #R9800320
Replaced by #WP4158178
?
Manufacturer substitution
This part replaces R9800320. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
#81
Interior and base plate parts diagram
Fuse, 20amp
Part #R9800424
Replaced by #WPM0805101
?
Manufacturer substitution
This part replaces R9800424. Substitute parts can look different from the original.
This item is not returnable
$6.68 |
13% OFF Phone Price : $7.68
In Stock
#141
Interior and base plate parts diagram
Diode
Part #R9900303
Replaced by #WPR9800486
?
Manufacturer substitution
This part replaces R9900303. Substitute parts can look different from the original.
$20.69 |
22% OFF Phone Price : $26.69
In Stock
#171
Interior and base plate parts diagram
Lamp oven burner
Part #R9900373
Replaced by #WP8183592
?
Manufacturer substitution
This part replaces R9900373. Substitute parts can look different from the original.
$24.11 |
20% OFF Phone Price : $30.11
In Stock
