Craftsman
Lawn & Garden Engine

Model # 143640096 Official Craftsman carburetor

Here are the diagrams and repair parts for Official Craftsman 143640096 carburetor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Needle Seat 631021
#30

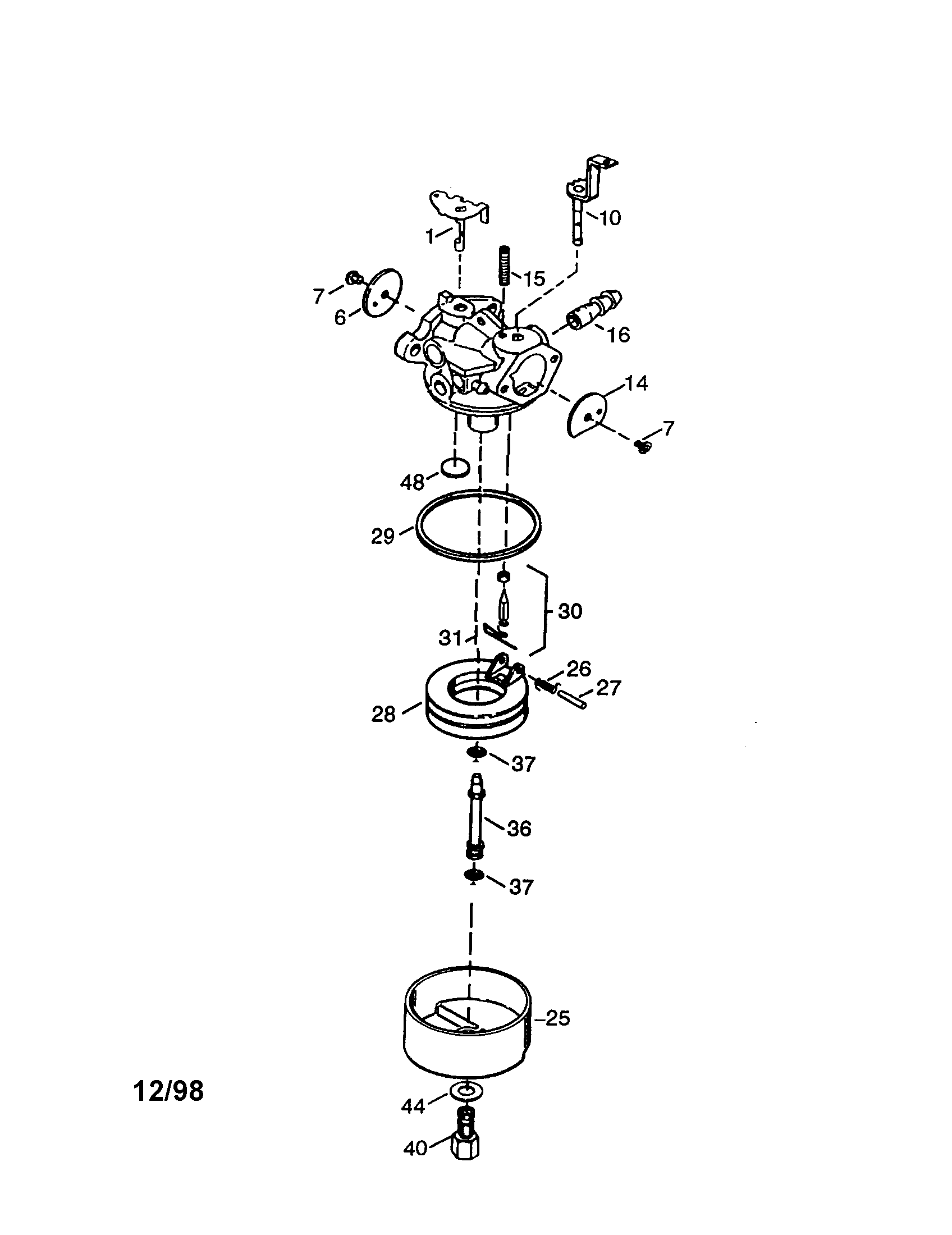

Carburetor - 640096 diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.50 |
10% OFF Phone Price : $10.50
In Stock
Repair Kit 632760
#NI

Carburetor - 640096 diagram

Repair kit

Part #632760

Replaced by #632760B

?
Manufacturer substitution
This part replaces 632760. Substitute parts can look different from the original.
BEST SELLER
$22.91 |
21% OFF Phone Price : $28.91
In Stock
Gasket 27110
#44

Carburetor - 640096 diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Float 632019
#28

Carburetor - 640096 diagram

Float

Part #632019

Replaced by #632019A

?
Manufacturer substitution
This part replaces 632019. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Troybilt Carburetor Float 631024
#27

Carburetor - 640096 diagram

Troybilt carburetor float

Part #631024

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Engine Carburetor O-ring 630740
#37

Carburetor - 640096 diagram

Lawn & garden equipment engine carburetor o-ring

Part #630740

This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
Lawn & Garden Equipment Nut 640089
#40

Carburetor - 640096 diagram

Lawn & garden equipment nut

Part #640089

$8.20
In Stock
Shaft Lever 632182
#10

Carburetor - 640096 diagram

Shaft lever

Part #632182

This item is not returnable
$5.66
In Stock
Shaft Lever 632538
#1

Carburetor - 640096 diagram

Shaft lever

Part #632538

$8.20
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Connector 632164
#16

Carburetor - 640096 diagram

Troybilt lawn & garden equipment engine fuel line connector

Part #632164

This item is not returnable
$9.46
In Stock
