Model # 11652512205 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11652512205 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |

Release 4370578
#21

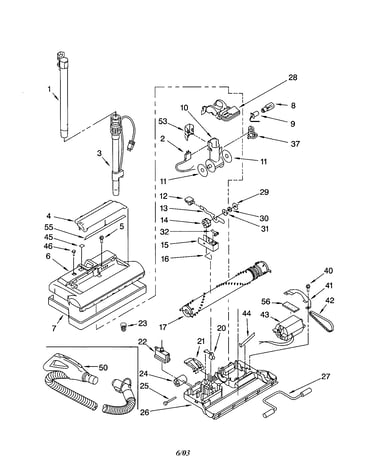

Power-mate diagram

Release

Part #4370578

Replaced by #KC47AGJ3V06

?
Manufacturer substitution
This part replaces 4370578. Substitute parts can look different from the original.
This item is not returnable
$4.79
17% OFF Phone Price : $5.79
In Stock
Vacuum Power Switch Button 8195147
#37

Power-mate diagram

Vacuum power switch button

Part #8195147

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Height Adjuster Foot Pedal Pad 4370577
#12

Power-mate diagram

Vacuum height adjuster foot pedal pad

Part #4370577

The manufacturer no longer makes this part, and there's no substitute part

Catch 722955
#31

Power-mate diagram

Catch

Part #722955

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Motor 8192708
#43

Power-mate diagram

Motor

Part #8192708

The manufacturer no longer makes this part, and there's no substitute part

Axle (silver) 744029
#27

Power-mate diagram

Axle (silver)

Part #744029

The manufacturer no longer makes this part, and there's no substitute part

Belt 742024
#42

Power-mate diagram

Belt

Part #742024

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Assembly 8195150
#50

Power-mate diagram

Vacuum hose assembly

Part #8195150

The manufacturer no longer makes this part, and there's no substitute part

Spring 742002
#44

Power-mate diagram

Spring

Part #742002

The manufacturer no longer makes this part, and there's no substitute part
