Here are the diagrams and repair parts for Official Whirlpool WOC54EC0AW04 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic

By Part

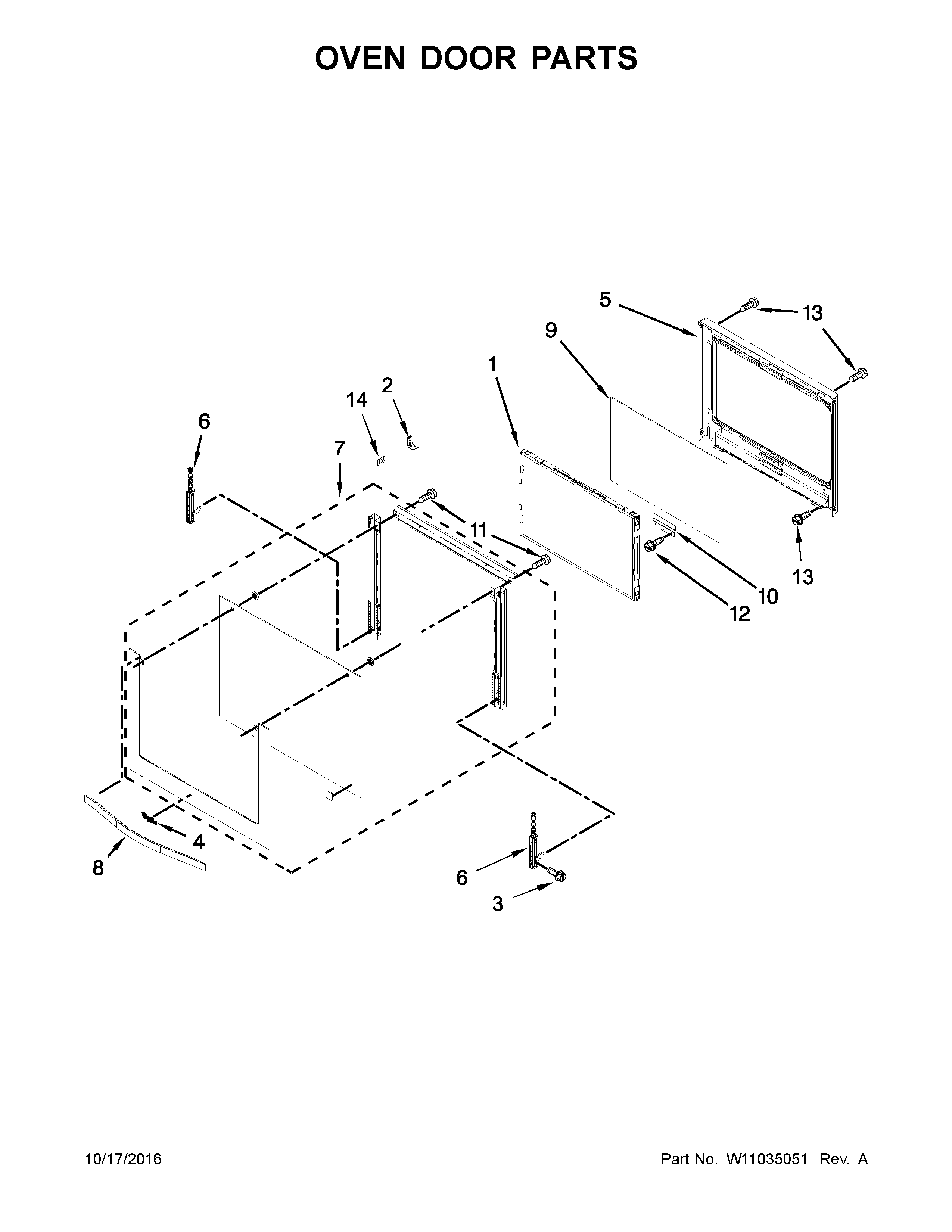

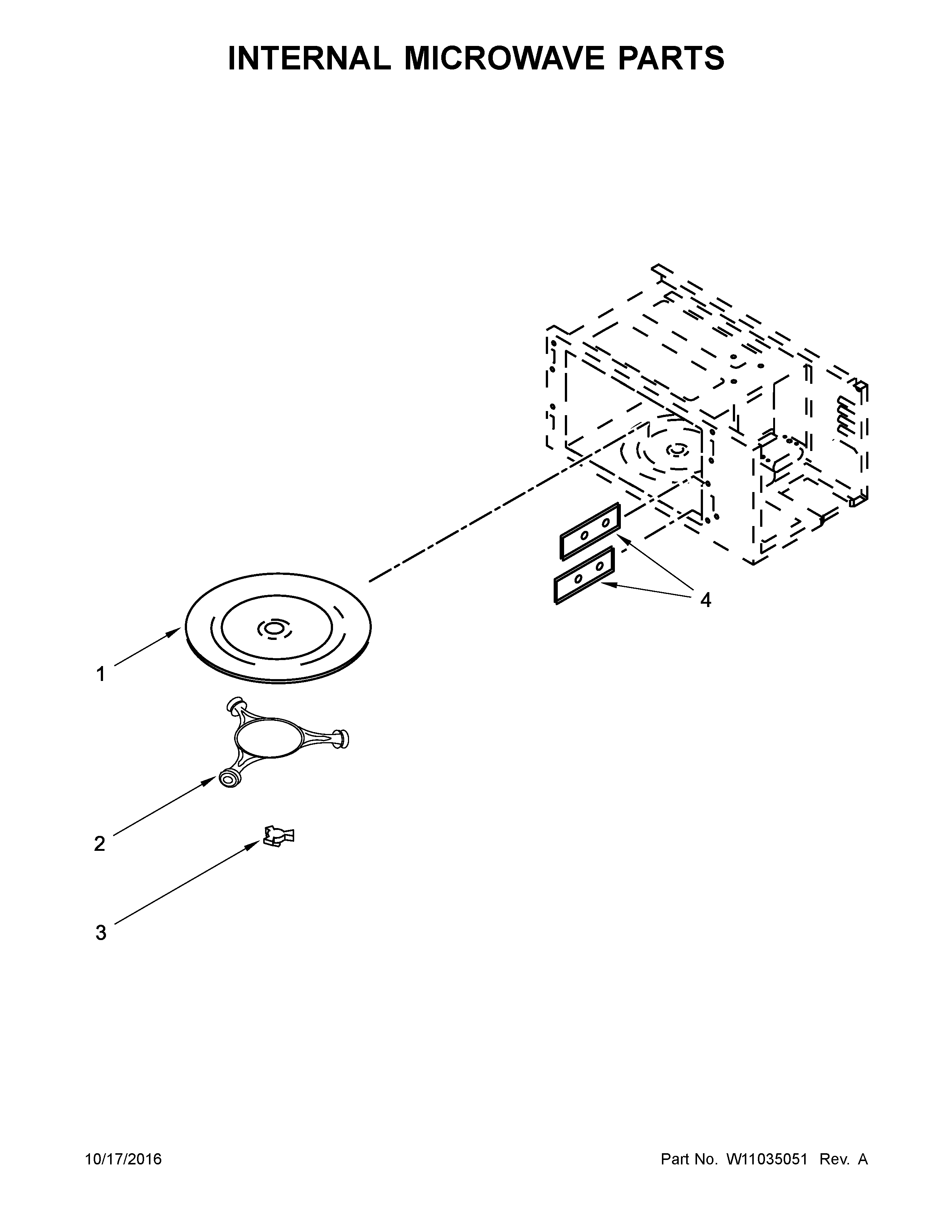

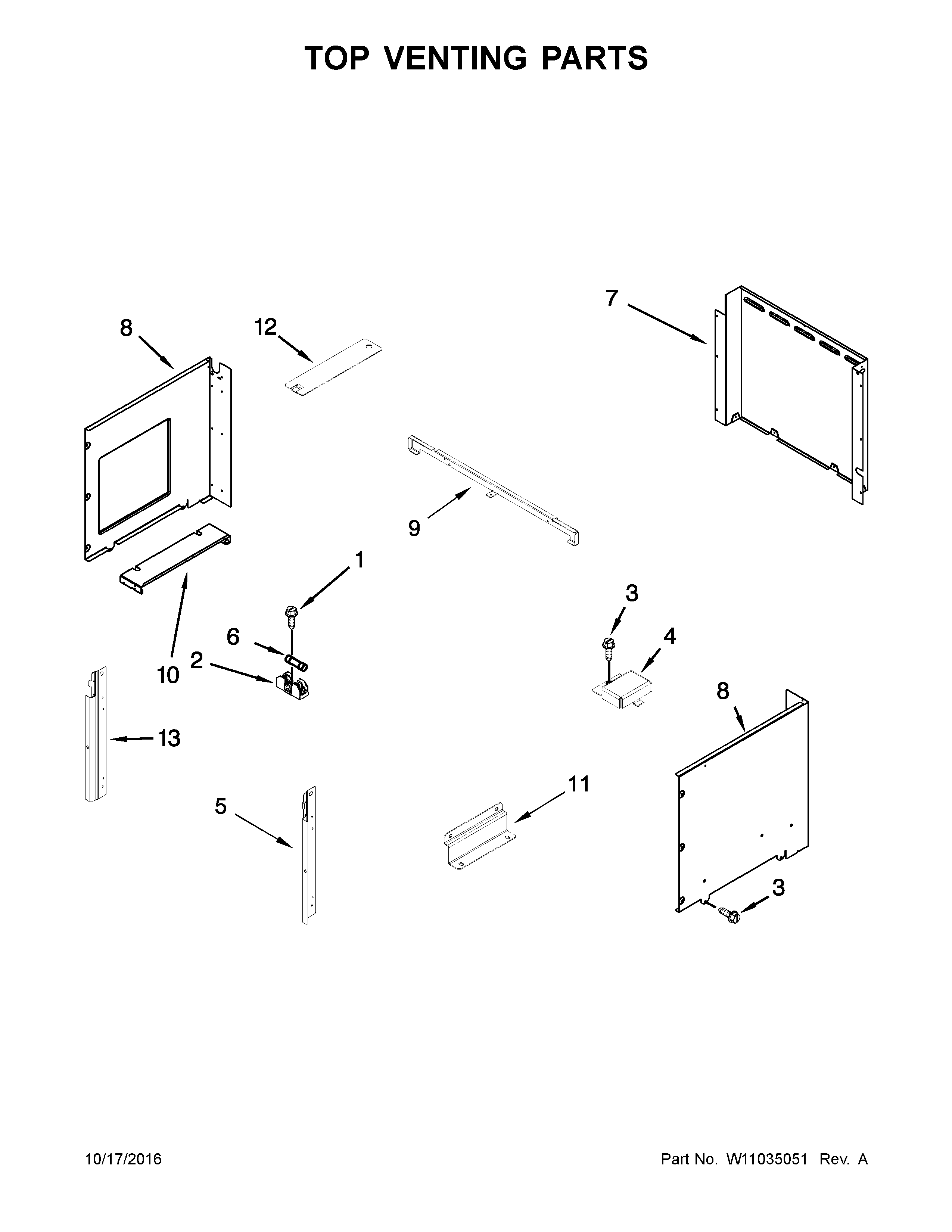

SELECT DIAGRAM

Browse Parts forWOC54EC0AW04 Wall Oven/Microwave Combo

#15

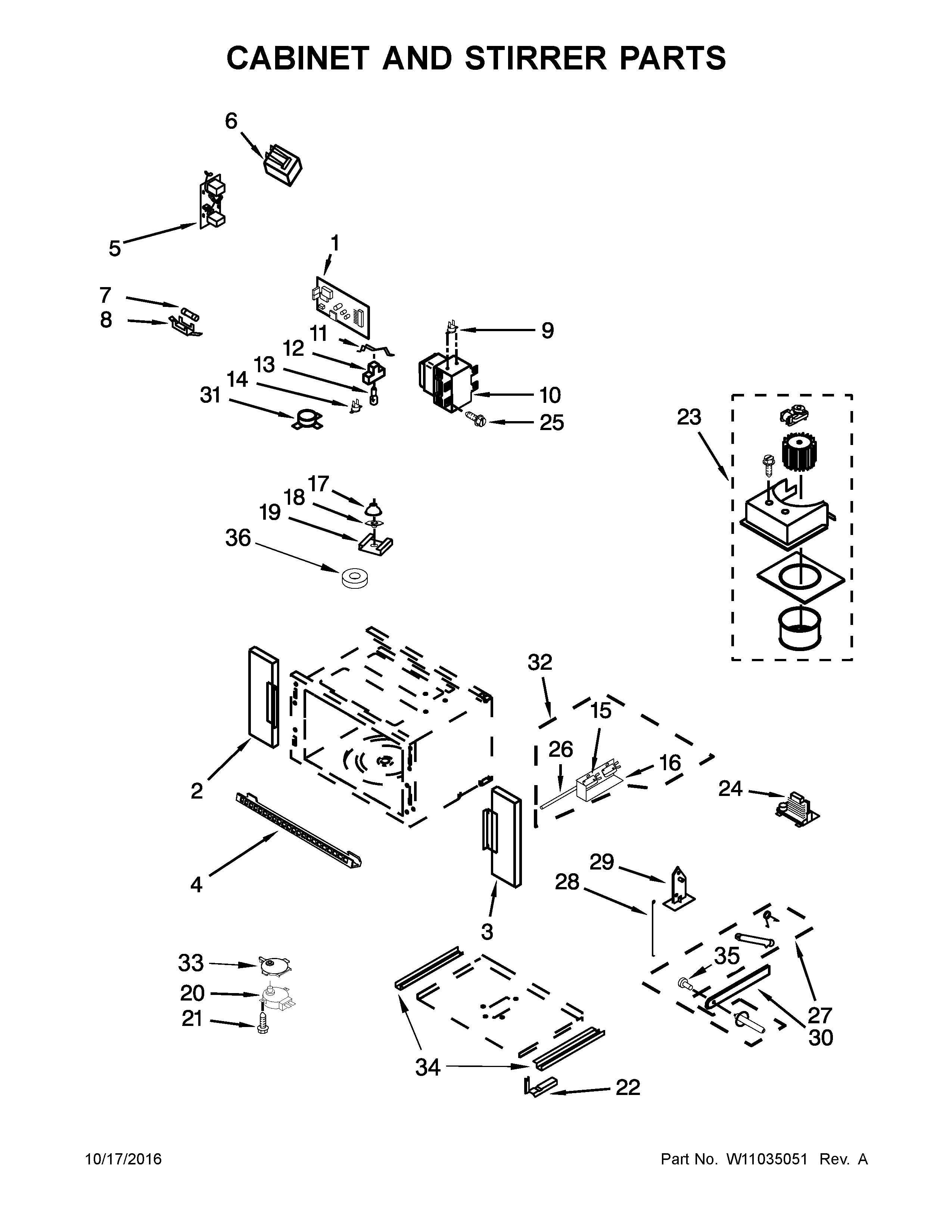

Cabinet and stirrer parts diagram
Microwave door switch
Part #W10330566
Replaced by #W10211972
?
Manufacturer substitution
This part replaces W10330566. Substitute parts can look different from the original.
$34.08 |
15% OFF Phone Price : $40.08
In Stock
Qty
#24
Cabinet and stirrer parts diagram
Inverter
Part #W10468206
Replaced by #W10217711
?
Manufacturer substitution
This part replaces W10468206. Substitute parts can look different from the original.
5 (1)
$198.63 |
6% OFF Phone Price : $210.63
In Stock
Qty
#10
Cabinet and stirrer parts diagram
Microwave magnetron
Part #461967847321
Replaced by #W11346197
?
Manufacturer substitution
This part replaces 461967847321. Substitute parts can look different from the original.
5 (1)
$176.24 |
6% OFF Phone Price : $188.24
In Stock
Qty
#18

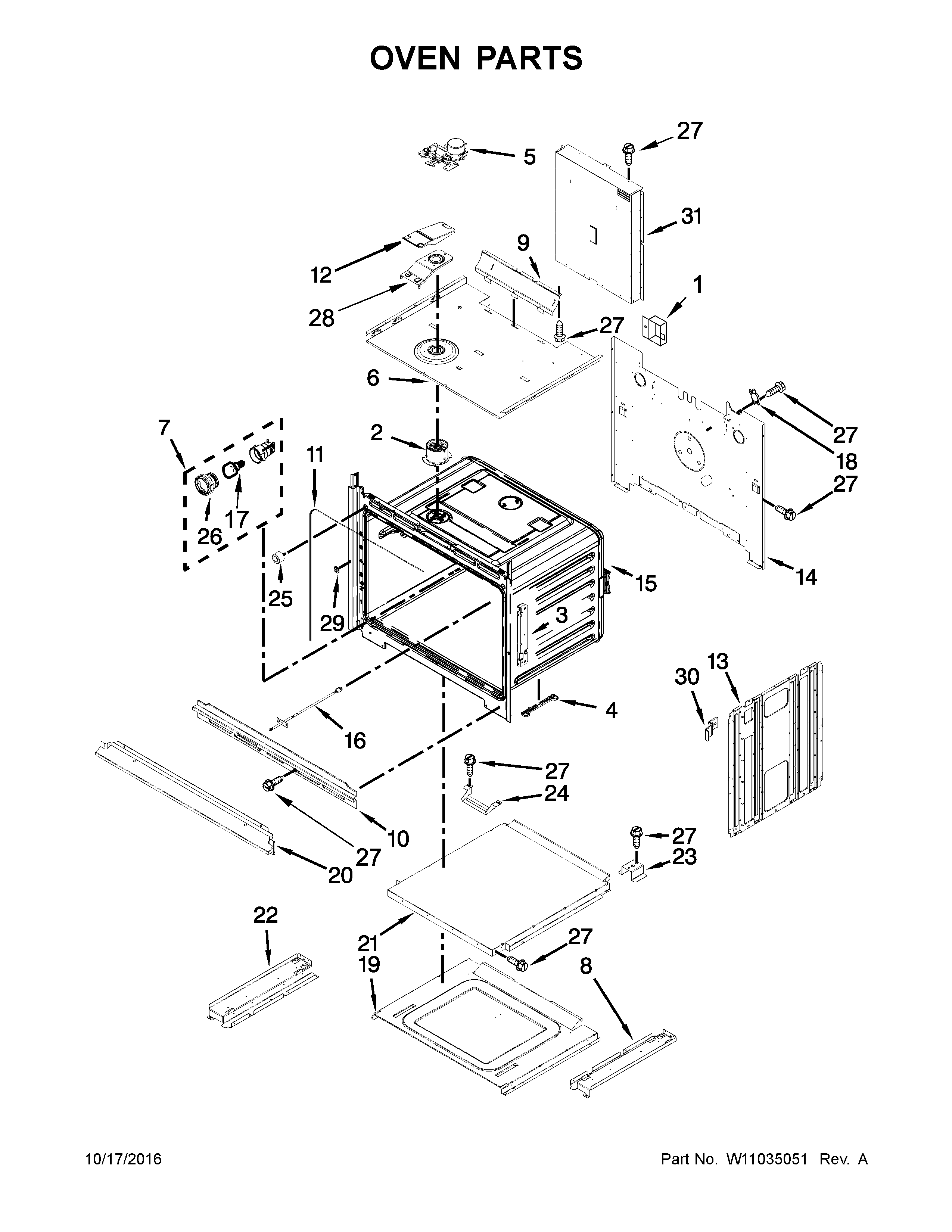

Oven parts diagram
Range high-limit thermostat
Part #4449751
Replaced by #WP4449751
?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
3 (1)
$109.18 |
10% OFF Phone Price : $121.18
In Stock
Qty
#32
Cabinet and stirrer parts diagram
Interlock
Part #W10358241
Replaced by #W11033422
?
Manufacturer substitution
This part replaces W10358241. Substitute parts can look different from the original.
$109.92 |
10% OFF Phone Price : $121.92
In Stock
Qty
#5

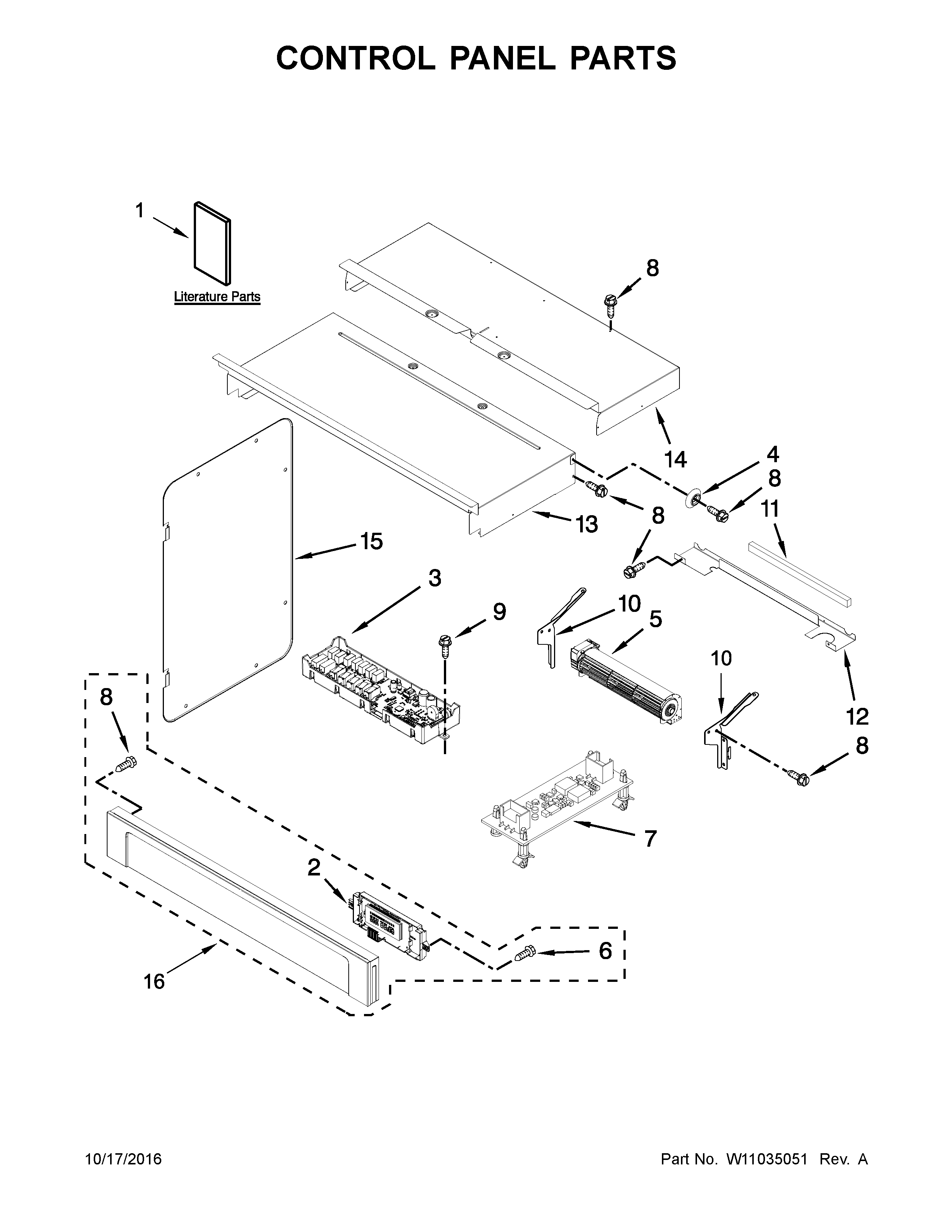

Control panel parts diagram
Dual speed b
Part #W10669823
Replaced by #W11245567
?
Manufacturer substitution
This part replaces W10669823. Substitute parts can look different from the original.
4.7 (3)
$176.81 |
6% OFF Phone Price : $188.81
In Stock
Qty
#1

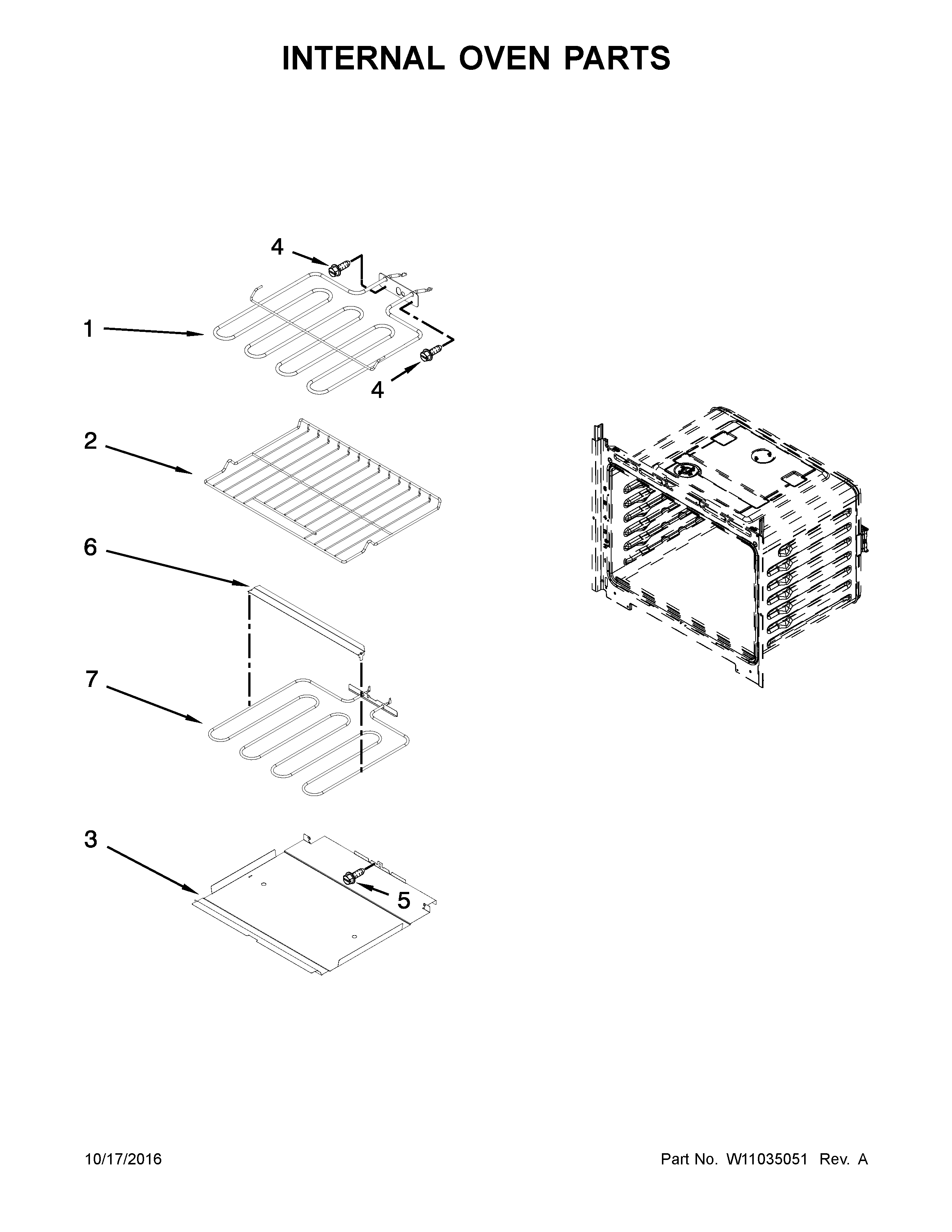

Internal oven parts diagram
Range broil element
Part #W10260252
Replaced by #WPW10260252
?
Manufacturer substitution
This part replaces W10260252. Substitute parts can look different from the original.
5 (2)
$84.51 |
7% OFF Phone Price : $90.51
In Stock
Qty
#22
Cabinet and stirrer parts diagram
Hinge nar ob
Part #461968979601
Replaced by #W10874474
?
Manufacturer substitution
This part replaces 461968979601. Substitute parts can look different from the original.
$37.46 |
14% OFF Phone Price : $43.46
In Stock
Qty
#4

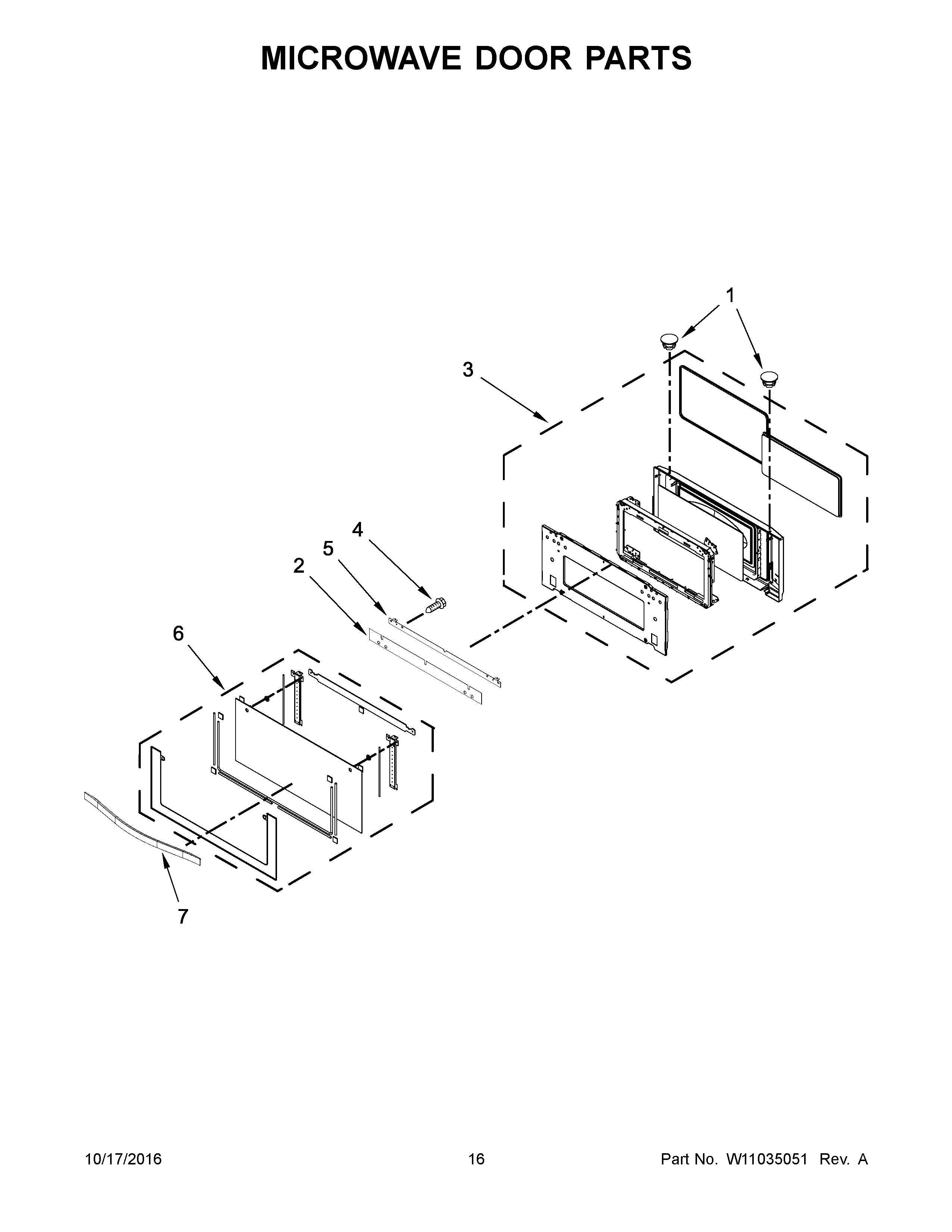

Microwave door parts diagram
Screw
Part #7101P338-60
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.43 |
11% OFF Phone Price : $18.43
In Stock
Qty
#16
Oven parts diagram
Wako minerva
Part #W10622170
Replaced by #W10859573
?
Manufacturer substitution
This part replaces W10622170. Substitute parts can look different from the original.
$96.32 |
11% OFF Phone Price : $108.32
In Stock
Qty
